Product Core Brief

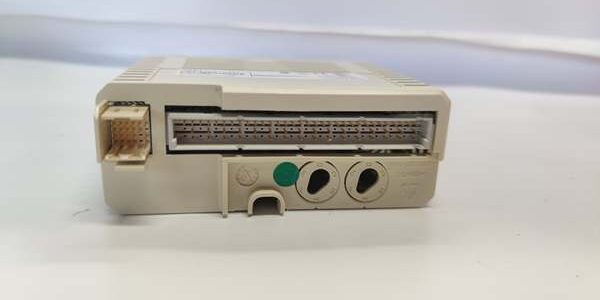

- Model: DO815
- Full OEM Part Number: 3BSE013258R1
- Brand: ABB
- Series: S800 Distributed I/O for Symphony Plus / Freelance DCS
- Core Function: High-current sourcing digital output, drives large solenoid valves, contactors, lamp loads; dual-group galvanic isolation, full channel fault diagnostics, OSP safety preset state for communication loss protection, supports hot-swap online replacement.
- Product Type: Slide-in S800 I/O module, matched with terminal base TU814V1
- Key Specs: 8 high-side sourcing outputs, split into 2 isolated groups (4CH/group); single channel max 2A@24VDC; open/short/undervoltage full diagnosis; hot-swap support; Condition: New Original / New Surplus
Product Introduction
ABB (3BSE013258R1) is high-power digital output module of ABB S800 I/O series, widely used in thermal power, chemical, water treatment, pulp & paper DCS control cabinets, matched with Symphony Plus, Freelance controller systems via Modulebus backplane or PROFIBUS-DP fieldbusABB.Each channel adopts high-side sourcing driver with built-in inductive load absorption circuit, can directly drive large contactors and high-power solenoids without external relay expansion; all 8 channels are divided into two independent electrical isolation groups, effectively eliminate ground loop interference caused by field multi-point potential difference.Unique OSP (Output Safe Position) function: When Modulebus communication interrupts, all outputs automatically switch to user pre-defined safe state to avoid uncontrolled equipment action and process safety risks. It supports two fault processing modes: automatic reset after fault elimination or permanent latch alarm for manual reset.Compared with low-current DO810 (0.5A/CH), single channel load capacity increased to 2A, greatly reducing auxiliary relay wiring workload, and realizes full hot-swap without rack power off during maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Article Code | 3BSE013258R1 ( standard) |
| Compatible DCS Platform | Symphony Plus, Freelance S800 I/O system |
| Matching Terminal Base | TU814V1 screw terminal MTU base |
| Channel Configuration | 8 high-side sourcing DO, 2 isolated groups ×4 channels |
| Rated Field Supply Voltage | 24 V DC (operating range 10 ~ 30 V DC) |
| Single Channel Continuous Current | Max 2 A @ 24 V DC resistive load |
| Single Group Total Max Current | 8 A (4 channels full load simultaneously) |
| Galvanic Isolation | Group-to-group & field-to-logic, 500 V AC 1min withstand |
| Built-in Diagnostics | Per-channel short circuit, overload, open load, group undervoltage detection |
| Fault Mode Selection | Auto recovery / Fault latch (software configurable) |
| Safety OSP Function | User preset output state when communication lost |
| Load Compatibility | Inductive solenoid, contactor, max 10W filament lamp |
| Hot-Swap Feature | Full hot-swap supported, no rack power-off required |
| Modulebus Power Draw | Typ. 120 mA, Max. 150 mA (+5V backplane) |
| Typical Power Dissipation | 4 W full load operation |
| Front Panel Indicators | RUN green, FAULT red, WARNING, OSP status + 8 channel status/fault LEDs |
| PCB Coating Grade | ISA-S71.04 G3 anti-corrosion conformal coating |
| Operating Ambient Temp | -20 ℃ ~ +60 ℃ continuous full load; derate above 50℃ |
| Storage Temperature Range | -40 ℃ ~ +70 ℃, 5–95% RH non-condensing |
| Overall Dimensions | W27 mm × H119 mm × D96 mm |
| Net Unit Weight | 0.25 kg |
| Safety Certifications | CE EMC, cULus Class I Div 2, ATEX II 3G Zone 2 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-check serial number and full part code 3BSE013258R1 against ABB S800 spare database; inspect backplane edge connector pins, all channel LEDs intact, PCB no cold solder joints or oxidation. Reject units with damaged anti-static packaging.
- 24h Full Load Aging Bench Test: Install on TU814V1 base, pair with Symphony Plus controller and 2A resistive load simulators, cyclic ON/OFF test for all channels. Simulate short-circuit, open-load and communication loss to verify OSP safe state & fault alarm logic, record backplane voltage every 15 minutes.
- Insulation Withstand Test: 500 V Megger isolation test between two output groups and field/logic circuits, pass threshold ≥10 MΩ; verify reverse polarity protection circuit function.
- Firmware Calibration: Read onboard output drive firmware via Control Builder M, calibrate overload/short-circuit trigger threshold and OSP state parameters.
- Final Packaging: Cover backplane edge connector with plastic dust cap; pack module with anti-static foam, attach dated QC Pass label before factory carton shipment.
Replacement Pitfall Guide
❗Terminal Base Matching Error: only matches TU814V1 MTU base; mismatched base leads to abnormal field power supply, all output channels fail to actuate.❗Group Power Overload Risk: Each group total load cannot exceed 8A; simultaneous full-load of 4 channels triggers persistent group fault alarm and channel cut-off.❗Inductive Load Without Suppression: If external surge absorption is omitted for large solenoid/contactors, reverse voltage spike will damage internal driver chips; internal absorption only for small inductive loads.❗OSP Parameter Forgetting Configuration: If safe state is not set during engineering, communication loss will keep outputs original state, causing unplanned valve/contactor action and safety accidents.❗ESD Damage Drive IC: Wear grounded anti-static wristband and touch cabinet earth bar for 3 seconds before hot-swap replacement; static discharge burns high-side driver chips leading to permanent channel failure.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- -XC extended coating variant ↔ Standard 3BSE013258R1: Direct hot-swap replacement; XC version enhances salt-fog resistance for coastal power & offshore chemical plants.
- TU814V1 screw terminal base: Mechanical lock-fit, native Modulebus signal matching, dedicated field power wiring terminals.
- Symphony Plus / Freelance rack Modulebus backplane: Supports redundant bus communication and online hot-swap.
- CI840A PROFIBUS-DP communication interface: Realizes remote I/O distributed layout, unified configuration via Control Builder M.
- AC500 S500 DO524 PLC output module: Incompatible, different backplane bus, no 2A high-current drive and OSP safety function.
Performance Benchmarks
- Full 8-channel synchronous output refresh cycle: < 1.2 ms
- Short-circuit fault detection & shutdown latency: < 80 ms
- OSP safe state switching response time after communication loss: ≤ 200 ms
- Channel output drive response delay: < 0.6 ms from DCS logic command to field load actuation
