Product Core Brief
- Model: DO524 A3
- Full OEM Order Code: 1SAP240700R0001
- Brand: ABB
- Series: S500 Standard I/O Expansion Modules for AC500 PLC Platform
- Core Function: High-density transistor digital output, drives 24VDC solenoid valves, contactors, indicator lights and actuator coils; divided into 4 isolated groups with independent overload/short-circuit protection and group fault diagnosis.
- Product Type: Slide-in S500 I/O module, mates with standard S500 terminal base
- Key Specs: 32 transistor outputs split into 4 isolated groups ×8 channels; 24VDC 0.5A per channel; group galvanic isolation; per-channel short-circuit auto-recovery; 1-wire sink wiring topology; Condition: New Original / New Surplus
Product Introduction
ABB A3 (1SAP240700R0001) is a high-density 32-channel digital output module for ABB AC500 series PLCs, widely used in packaging machinery, material handling, water treatment, metallurgical auxiliary automation lines.All 32 outputs are divided into 4 independent electrical isolation groups (Group1~Group4, each 8 channels). Each group has separate 24VDC process power supply terminals, realizing group isolation to eliminate cross-group ground loop interference.It adopts NPN high-side transistor sink output, supporting 1-wire field wiring to reduce cabinet wiring workload. Every channel integrates independent short-circuit and overcurrent protection; when overload occurs, the corresponding group fault LED alarms, and the channel automatically recovers after fault clearance without module lockout.Compared with 16-channel DO523, doubles output density, greatly saving DIN rail cabinet space for projects requiring massive discrete actuator control signals. It communicates with AC500 CPU via S500 internal I/O backplane bus, compatible with all PM581/PM582/PM590/PM591 CPUs and CM-series communication modules.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Number | 1SAP240700R0001 ( A3 standard version) |
| Compatible PLC Series | AC500 PM581, PM582, PM590, PM591, PM592 |
| Matching Terminal Base | Standard S500 TB5xxx I/O terminal bases |
| Total Digital Output Channels | 32 transistor outputs, 4 isolated groups × 8 channels |
| Output Type | NPN Sink high-side transistor, 1-wire topology |
| Rated Process Supply Voltage UP | 24 V DC (20.4 ~ 28.8 V DC), reverse polarity protected |
| Single Channel Rated Current | 0.5 A resistive load |
| Combined Max Current Per Group | 4 A (8 channels fully loaded simultaneously) |
| Group Galvanic Isolation | 500 V AC 1min between 4 output groups and internal logic |
| Protection Function | Per-channel short-circuit, overload auto shutdown + auto recovery |

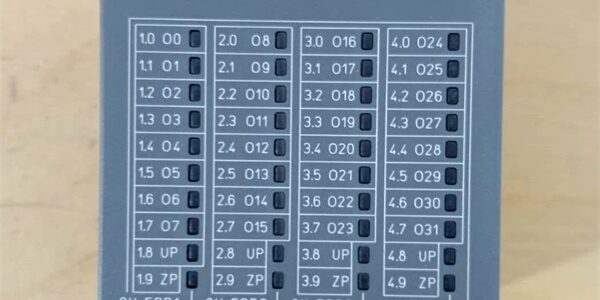

| Indicator LEDs | 32 yellow channel status LEDs; 1 green power RUN LED; 4 red group fault LEDs |
| Max Field Cable Length | Shielded wire 1000 m; unshielded wire 600 m |
| Power Dissipation | Max 7.2 W with all 32 channels fully energized |
| Enclosure Protection Class | IP20, indoor cabinet DIN rail installation |
| Physical Dimensions | W28 mm × H135 mm × D62 mm |
| Net Unit Weight | 0.106 kg |
| Operating Ambient Temp | 0 ℃ ~ +60 ℃ continuous full load |
| Storage Temperature Range | -40 ℃ ~ +70 ℃, 5–95 % RH non-condensing |
| PCB Coating | Standard anti-corrosion coating; XC variant with ISA-S71.04 G3 thick conformal coating |
| Certifications | CE EMC, cULus, RoHS 2 compliant |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-check serial number and full code 1SAP240700R0001 against ABB spare database; inspect backplane edge connector pins for bending, all channel LEDs intact, PCB solder joints free of cold soldering. Reject units with damaged anti-static packaging.
- 24h Full Load Aging Test: Mount to matching terminal base paired with PM591 CPU and resistive load simulators, continuous cyclic ON/OFF test for all 32 channels. Simulate single-channel short-circuit faults to verify group fault alarm and automatic recovery function, record supply voltage every 15 minutes.
- Insulation Withstand Test: 500 V Megger insulation test between every two output groups and between field circuit and PLC internal logic, pass threshold ≥10 MΩ.
- Firmware Calibration: Read onboard I/O drive firmware version via Automation Builder software, calibrate overcurrent protection trigger threshold for each channel group.
- Final Packaging: Cover backplane edge connector with plastic dust cap; pack module with anti-static foam, attach dated QC Pass label before factory carton shipment.
Replacement Pitfall Guide
❗Group Power Supply Wiring Error: Each group must connect independent 24VDC UP/0V power; cross-group power mixing will invalidate isolation function and cause widespread signal interference.❗Overload Current Risk: Single group total load cannot exceed 4A; simultaneous full-load of all 8 channels in one group triggers persistent group fault alarm and output cut-off.❗Unshielded Field Cable Interference: Long-distance solenoid wiring near servo drives must use shielded twisted-pair cable, single-point shield grounding only at cabinet earth bar to avoid EMI-induced false output action.❗Backplane Load Calculation: Reserve minimum 20% 24VDC power margin for rack; densely arranged multiple modules will cause backplane voltage drop and intermittent output dropout during peak machine operation.❗ESD Damage Drive IC: Wear grounded anti-static wristband and touch cabinet earth bar for 3 seconds before disassembly/replacement; static discharge will burn transistor drive chips, leading to permanent channel failure.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- -XC extended temperature variant ↔ Standard A3 1SAP240700R0001: Direct plug-and-play replacement; XC version expands operating range to -30℃ ~ +70℃ for cold storage and coastal corrosive environments.
- AC500 PM series main CPUs: Native backplane bus communication, no extra conversion hardware required.
- CM572-DP / CM579-PNIO communication modules: Coexist in same rack, unified configuration via Automation Builder.
- DC541-CM multifunction high-speed I/O module: Same backplane mechanical size, mixed digital I/O layout fully supported.
- Symphony Plus DI01 DCS digital input module: Incompatible, different rack bus and mechanical form factor, cannot cross-system replacement.
Performance Benchmarks
- Full 32-channel synchronous output refresh cycle: < 1 ms
- Short-circuit fault detection & shutdown latency: < 100 ms
- Channel auto-recovery time after fault removal: ≤ 200 ms
- Output drive response delay: < 0.5 ms from PLC logic command to field load actuation
