Product Core Brief
- Model: DO820
- Full OEM Part Code: 3BSE008514R1
- Brand: ABB
- Series: S800 Distributed I/O for ABB Freelance, Symphony Plus DCS Systems
- Core Function: 8 independent mechanical relay digital outputs, each channel full channel-to-logic galvanic isolation; used for equipment interlock trips, alarm horns, shutdown solenoids, breaker auxiliary control, cross-voltage signal switching between 24VDC control circuit and 110/230VAC field circuits.
- Support Function: Hot-swap online replacement, per-channel fault diagnosis, OSP output safe preset state when bus communication lost
- Matching Terminal Base: TU830V1 screw terminal MTU base
- Key Specs: 8 Form-A single-pole relay channels; each channel isolated; contact rating 5A resistive @230VAC / 5A @24VDC; full hot swap support; Condition: New Original / New Surplus

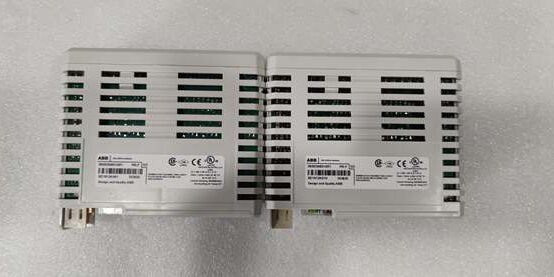

Product Introduction
ABB (3BSE008514R1) is standard relay output module of ABB S800 I/O series, widely applied in thermal power plant boiler protection, chemical plant safety interlock, pulp & paper shutdown control cabinets.Unlike transistor output modules such as DO815 limited to 24VDC field loads, mechanical relay contacts can directly switch AC and DC mixed signals, realize isolation between low-voltage DCS control logic and high-voltage field secondary circuits without intermediate relay.Every channel adopts independent opto-relay isolation structure, completely eliminate ground loop interference between different field equipment; built-in OSP safety state logic, when Modulebus / PROFIBUS communication breaks off, all relay contacts automatically switch to user pre-defined safe position to avoid unplanned equipment startup or shutdown risks.Supports full hot-swap maintenance: replace module online without powering down S800 rack, reduce plant unplanned downtime. All relay channels have independent LED status indication and open/overload diagnostic feedback uploaded to DCS operator station.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Order Code | 3BSE008514R1 ( standard relay output module) |
| Applicable DCS Platform | Freelance 800F, Symphony Plus S800 I/O system |
| Matched Terminal Base | TU830V1 screw terminal MTU unit |
| Channel Configuration | 8 independent Form-A NO relay channels, per-channel galvanic isolation |
| Relay Contact Rating | 5 A resistive load @ 230 V AC; 5 A @ 24 V DC |
| Minimum Switch Load | 1 mA / 5 V DC (guarantees contact reliability for weak signals) |
| Galvanic Isolation | Per-channel isolation between field contact circuit and internal logic, 1500 V AC 1 minute withstand |
| Communication Function | Modulebus backplane, PROFIBUS-DP via CI840A interface |
| Safety OSP Function | Software configurable safe relay state under communication failure |
| Diagnostic Items | Relay drive fault, module undervoltage, bus communication fault |
| Hot Swap | Full hot-swap supported, no rack power-off required |
| Backplane Power Consumption | Typ. 140 mA, Max. 180 mA 5VDC backplane supply |
| Full Load Power Dissipation | 4.5 W when all 8 relays energized |
| Front Panel Indicators | RUN green, FAULT red, 8 channel yellow relay status LEDs |
| PCB Coating | ISA-S71.04 G3 anti-corrosion conformal coating standard |
| Operating Ambient Temp | 0 ℃ ~ +55 ℃ continuous operation; derate 15% above 50 ℃ |
| Storage Temperature Range | -40 ℃ ~ +70 ℃, 5–95% RH non-condensing |
| Mechanical Size | W27 mm × H119 mm × D96 mm |
| Net Unit Weight | 0.28 kg |
| Certifications | CE EMC, cULus Class I Div 2, ATEX II 3G Zone 2 hazardous location certified |
Quality Control Process (Engineer’s Perspective)
- Incoming Inspection Verification: Match serial number and full code 3BSE008514R1 against ABB spare database; check backplane connector pins, relay contact spring integrity, no cold solder joint or PCB oxidation. Reject goods with damaged anti-static packaging.
- 24h Full Load Aging Test: Install on TU830V1 terminal base, connect to Freelance test controller, each channel loaded with 230VAC resistive load, continuous relay pull-in/release cyclic aging. Simulate bus disconnection to verify OSP safe relay state switching, record backplane voltage every 15 minutes.
- Insulation Withstand Test: 500V Megger isolation test for each relay channel between field contact and control logic, pass threshold ≥10 MΩ; test reverse polarity protection circuit.
- Firmware Calibration: Read internal I/O firmware version via Control Builder M engineering software, calibrate relay drive fault detection threshold and OSP parameter group.
- Final Packaging Protection: Cover backplane edge connector with plastic dust cap; place module into anti-static foam carton, attach dated QC pass label before factory delivery.
Replacement Pitfall Guide
❗Terminal Base Mismatch Risk: can only pair with TU830V1 MTU base; incompatible terminal unit leads to abnormal relay power supply, all channels cannot pull in.❗Contact Overload Damage Risk: Do not exceed 5A resistive load per channel; inductive loads (contactor, solenoid) must install external RC surge absorption, otherwise relay contact ablation and permanent failure will occur.❗OSP Safety State Missing Configuration: If OSP relay safe state is not set in engineering software, communication loss will hold original relay state, easily causing boiler trip failure or equipment accidental startup safety accidents.❗Mixed AC/DC Wiring Interference: Isolation fails if field AC and DC circuits share common ground across different channels; each channel field circuit must independently ground only at field equipment side.❗ESD Damage Internal Drive Chip: Wear grounded anti-static wristband and touch cabinet earth bar for 3 seconds before hot swap replacement; static discharge damages relay drive optocoupler, resulting in channel permanent no-output failure.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- -XC anti-corrosion variant ↔ Standard 3BSE008514R1: Direct hot-swap replacement; XC version thickened conformal coating for coastal salt fog environment power plants.
- TU830V1 screw terminal base: Mechanical lock fit, dedicated relay contact wiring terminals, full signal matching with .
- CI840A PROFIBUS-DP communication interface: Realize remote distributed I/O layout, unified configuration under Control Builder M.
- DO815 high-current transistor output module: Same rack mechanical size, but no relay isolation, cannot switch AC high voltage loads.
- AC500 S500 DO524 PLC digital output: Incompatible, different backplane bus protocol, no per-channel isolation relay function.
Performance Benchmarks
- Full 8-channel relay synchronous refresh cycle: < 1.5 ms
- Relay pull-in action delay: ≤ 10 ms from DCS logic command
- OSP safe state switching time after bus disconnection: ≤ 200 ms
- Relay mechanical service life rated: ≥ 10 million times under rated resistive load
