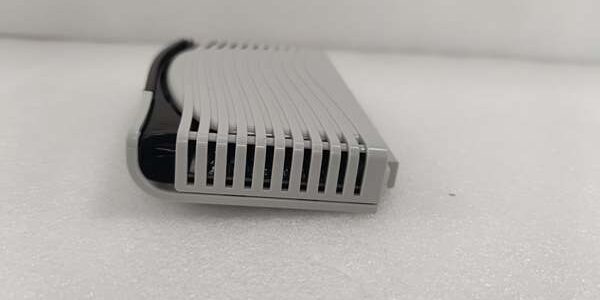

Product Core Brief

• Model: AO02
• Brand: ABB
• Series: Symphony Plus SD Series Singular I/O for HN800 DCS Controllers
• Core Function: Generates 16 configurable analog control signals to drive valve positioners and linear actuators, supports shared HART communication for smart field devices.
• Product Type: Rack slide-in analog output I/O module
• Key Specs: 16 independent channels | 12-bit per-channel D/A conversion | Dual 8-channel group galvanic isolationNote: Obsolete EOL OEM spare, limited new surplus inventory available; one shared HART modem for all 16 channels.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, max power draw 3.6 W, 150 mA typical load
• Software-selectable output ranges per channel: 4–20 mA current, 1–5 VDC voltage
• D/A hardware: Dedicated 12-bit DAC per individual channel
• Full 16-channel output refresh cycle: 100 ms total scan rate
• Output load limits: Current mode max 750 Ω; voltage mode minimum 22 kΩ load resistance
• Measurement accuracy: ±0.1 % full scale at 25 °C ambient operating temperature
• Galvanic isolation: Two isolated groups (CH0–7 / CH8–15), 1500 VAC 1-minute dielectric withstand between field and backplane logic
• HART capability: Single shared HART v5.4 modem, supports up to 64 aggregate secondary variables across all channels
• Circuit protection: Per-channel current limiting capped at 26 mA short-circuit protection; open-loop wire-break detection triggers within 5 seconds for current-mode loops
• PCB coating: Full acrylic conformal coating meeting ISA-S71.04 G1 standards for mild industrial fume exposure
• Status indicators: One LED per output channel, global POWER, RUN and MODULE FAULT diagnostic lamps
• Mechanical form: Slide-in Singular card compatible with VBS01-FPH DIN rail mounting base, no hot-swap capability
• Operating ambient: -25 °C to +70 °C, linear output drift above 65 °C ambient
• Storage range: -40 °C to +85 °C, non-condensing 5–95 % relative humidity
• Dimensions: 263 mm L × 58 mm W × 28 mm D
• Net weight: 0.44 kg

Product Introduction

This I/O card is a dedicated final control element drive component built exclusively for Symphony Plus SD DCS racks. It delivers continuous analog command signals to modulating valves, dampers and proportional actuators in power, pulp and chemical process plants.Dual-group galvanic isolation blocks common-mode noise from nearby variable frequency drives, limiting output signal deviation to less than 0.1% full scale during large motor load transients. The shared HART modem eliminates separate communicator runs to retrieve positioner diagnostic data without dedicated per-channel HART hardware.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Symphony spare part databases. Inspect conformal coating for delamination, terminal block spring tension and full 16-channel LED functionality. Reject units with damaged factory anti-static packaging to eliminate counterfeit stock.
2. Live Testing: Seat the module in a VBS01-FPH test base paired with a HN800 controller simulator. Run a continuous 24-hour cyclic output test across all 16 channels while logging stable 24VDC supply via Fluke 115 multimeter. Simulate field wiring short-circuits and open current loops to validate current limiting and wire-break alarm timing.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between each field channel group and backplane logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no erratic output swing or false fault flags.
4. Firmware/Config Backup: Record factory default output range preset values via Control Builder M software. Capture high-resolution photos of all mechanical keying tabs and terminal pin labels for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over the front terminal header. Place the PCB inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: HN800 controller firmware older than v6.1.2 lacks register mapping for shared HART secondary variable polling logic. Post-replacement, the DCS will fail to read valve positioner diagnostic data and throw intermittent AO COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before rack insertion.❗HART Bus Contention Risk: Only one HART device can be polled at a time across all 16 channels due to the single shared modem. Simultaneous HART requests from multiple field devices create persistent module communication faults. Schedule staggered HART polling intervals in DCS logic.❗Wiring Incompatibilities: Unshielded field wiring introduces mains interference into current outputs, creating ±0.3% full scale output swing during VFD transients. Use OEM shielded twisted pair cable with single-point chassis ground at the I/O rack terminal bar, follow 0.8 N·m torque specs for terminal screws.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple analog input cards during controller startup, triggering repeated backplane resets and total loss of modulating valve control signals. Recalculate total rack load before swapping the card.❗ESD Dangers: Ungrounded handling exposes D/A output analog traces to static discharge from dry control room air. Field records show unprotected handling burns output drive circuits; full process unit downtime labor cost exceeds $1,640. Remediation: Place anti-static mat under the I/O rack, wear grounded wrist strap, touch bare chassis ground for 3 seconds before handling the PCB.

4-step replacement guide

1. Pre-install: Lock out and tag all rack 24VDC auxiliary power. Photograph old unit mechanical key positions and field actuator wiring layout per channel. Set all modulating valves to safe manual bypass position before power isolation.
2. Removal: Release the rack slide latch, pull the old card free and disconnect terminal wiring one channel at a time to avoid cross-channel miswiring to critical valve loops.
3. Install: Transfer wiring harness to the new unit’s terminal header, match photographed mechanical key settings, slide the card fully into the VBS01-FPH base and lock the latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all channel LEDs activate correctly, connect a precision mA calibrator to confirm stable output signal ramping before restoring full DCS bus communication and automatic valve control.

FAQ (Frequently Asked Questions)

Q: Can this unit be hot-swapped while the Symphony rack remains powered?A: No. It shares a common HN800 backplane data bus with critical control I/O. Removing it live creates voltage transients that corrupt controller scan tables and can permanently damage adjacent analog modules. Full lockout of rack auxiliary power is mandatory for replacement.Q: Does this card carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty expired at product end-of-life. All surplus inventory passes full in-house QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during bench validation.Q: Can AO05 serve as a direct drop-in replacement for the module?A: Mechanical fit only. AO05 is an 8-channel per-channel isolated HART analog output board with independent modems and different backplane register mapping. Swapping without reworking field actuator wiring and DCS control logic cuts available modulating valve control capacity in half.Q: What minimum controller firmware version enables full shared HART secondary variable polling support?A: HN800 DCS controller firmware v6.1.2 or newer. Older builds lack register addresses for aggregate HART data polling, only delivering raw analog output setpoints with no access to positioner health diagnostics.Q: Will the unit retain output range and fail-safe preset values after power loss?A: No configuration data stores on-board. All channel mA/V range, fail-safe output and HART polling parameters reside in the HN800 controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with System 800xA AC 800M controllers?A: No. The card uses the proprietary Symphony I/O backplane bus, which is electrically incompatible with AC 800M CI8xx I/O fieldbus interfaces.Q: Can I mix current and voltage output loads on separate channels of the same module?A: Yes, each channel is independently software configurable for 4–20 mA or 1–5 VDC operation without hardware jumper changes, though mixed load types increase HART polling cycle latency across the shared modem.
