Product Core Brief

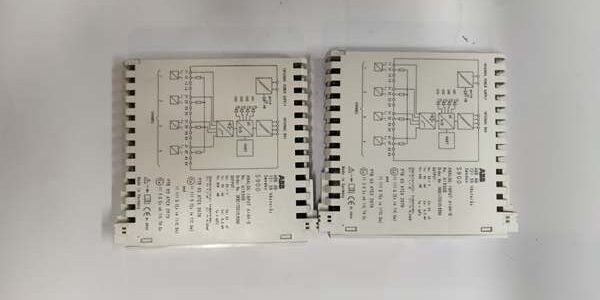

• Model: AI930, Base Variant AI930N, OEM Article Code 3KDE175512L9300
• Brand: ABB
• Series: S900 Intrinsically Safe Remote I/O for Freelance DCS
• Core Function: Powers and reads 4 loop-powered 2-wire HART 4–20mA transmitters in hazardous Zone 2 locations, transmits primary values and HART diagnostics over Profibus DP.
• Product Type: DIN rail mount intrinsically safe analog input remote I/O module
• Key Specs: 4 single-ended channels | HART 7 compliant | ATEX Zone 2 / cULus Class I Div 2 certifiedNote: Active OEM spare, new original surplus stock available; single group galvanic isolation, wire-break detection per channel.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, max power draw 1.9 W
• Supported signal: 4–20 mA loop-powered 2-wire transmitters only; voltage inputs unsupported
• A/D resolution: 12-bit unsigned conversion
• Full 4-channel scan cycle: 12 ms base refresh rate, HART secondary data polled at 250 ms interval
• Input shunt resistance: Fixed 250 Ω per channel for HART communication
• Measurement accuracy: Max 0.12% full scale at 25 °C ambient, temperature drift ≤55 ppm/°C
• Galvanic isolation: Single group isolation between field hazardous circuits and Profibus backplane, 1500 VAC 1-minute dielectric withstand
• Hazardous area certification: ATEX II 3G Ex nA IIC T4 Gc Zone 2; cULus Class I Div 2 Groups A-D
• HART compliance: HART 7 pass-through, simultaneous PV acquisition and digital diagnostic polling
• Overload protection: Per-channel self-resetting PTC current limiter; withstands 30 V DC continuous accidental overvoltage
• Diagnostics: Per-channel open wire-break detection, over-range / under-range flagging, transmitter power supervision
• PCB coating: ISA-S71.04 G3 grade conformal coating for corrosive industrial atmospheres
• Status indicators: Individual LED per channel, global POWER, RUN and MODULE FAULT diagnostic lamps
• Mechanical form: Standard S900 DIN rail snap-in module, hot-swap certified per IEC 61131-2
• Operating ambient: -20 °C to +60 °C continuous duty; max relative humidity 93% non-condensing
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 600 meters with fully shielded twisted pair intrinsically safe control cable
• Dimensions: 20 mm W × 104 mm H × 104 mm D
• Net weight: 0.14 kg

Product Introduction

This I/O card is an intrinsically safe remote acquisition component built exclusively for S900 field-mounted I/O racks paired with Freelance DCS controllers. It installs directly in Zone 2 classified areas to connect pressure, flow and level smart transmitters without separate external barrier terminals.Group galvanic isolation eliminates common-mode voltage drift from nearby variable frequency drives, holding steady-state measurement deviation below 0.12% full scale during large motor load transients. Built-in HART pass-through eliminates separate handheld communicator field trips for routine transmitter calibration and fault diagnostics in hazardous zones.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3KDE part code against ABB S900 spare part databases. Inspect conformal coating for delamination, terminal block spring tension and full 4-channel LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Mount the unit on S900 DIN rail test station paired with a Freelance controller Profibus DP simulator. Run continuous 24-hour cyclic scan testing across all channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate open-loop transmitter wiring, +30V accidental overvoltage and HART device disconnection to validate PTC current limiting, wire-break alarm timing and digital HART data polling.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between field channel group and Profibus logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no false wire-break fault triggers.
4. Firmware/Config Backup: Record factory default current loop preset values via Freelance Engineering software. Capture high-resolution photos of terminal pin labeling for hazardous area field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over front terminal headers. Place the module inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: Freelance controller firmware older than v9.2.1 lacks register mapping for HART secondary variable diagnostic logic. Post-replacement, the DCS will ignore smart transmitter fault codes and throw intermittent AI COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before DIN rail mounting.❗Hazardous Wiring Certification Risk: Non-IS rated field cable violates ATEX Zone 2 approval. All field wiring must use certified intrinsically safe shielded twisted pair cable; unapproved wiring voids area classification compliance.❗Wiring Incompatibilities: Unshielded field wiring introduces mains interference into current inputs, creating ±0.3% full scale reading drift. Use OEM IS shielded twisted pair cable with single-point chassis ground at the rack terminal bar, follow 0.6 N·m torque specs for terminal screws.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple digital I/O modules during controller cold startup, triggering repeated Profibus resets and total analog data loss. Recalculate total rack load before swapping the module.❗ESD Dangers: Ungrounded handling exposes analog A/D traces to static discharge from dry hazardous-area cabinet air. Field records show unprotected handling burns input signal circuits; full process unit downtime labor cost exceeds $1,610. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare DIN rail chassis ground for 3 seconds before handling the module.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power; pause Profibus DP fieldbus communication before hot-swap. Photograph terminal wiring layout and existing channel range assignments from the old unit.
2. Removal: Depress DIN rail latch, slide the old module upward off the rail and disconnect terminal wiring one channel at a time to avoid cross-channel miswiring.
3. Install: Transfer IS transmitter wiring harness to the new unit’s terminal header, snap the module fully onto the DIN rail and lock the mounting latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all channel LEDs activate correctly, connect a HART communicator to confirm secondary variable polling before resuming full DCS fieldbus communication.

FAQ (Frequently Asked Questions)

Q: Can this unit be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for Zone 2 hazardous installations. Maintain lockout/tagout procedures for high-EMI sites to avoid Profibus data corruption from voltage transients.Q: Does this module carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during bench validation.Q: Can AI931 serve as a direct drop-in replacement for the module?A: DIN rail mechanical fit only. AI931 is a passive-input HART module without built-in loop power supply, requiring external transmitter power. Swapping without reworking field wiring disables all 2-wire smart transmitter monitoring loops.Q: What minimum controller firmware version enables full HART secondary variable diagnostic support?A: Freelance DCS controller firmware v9.2.1 or newer. Older builds lack register addresses for multi-variable HART data, only returning raw unflagged 4–20mA primary process values with no transmitter health alerts.Q: Will the unit retain channel signal range settings after power loss?A: No configuration data stores on-board. All channel current loop parameters reside in the Freelance controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with S800 I/O racks for AC800M controllers?A: No. The module uses the proprietary Profibus remote I/O bus, which is electrically incompatible with S800 backplane architecture and cannot be cross-mounted.Q: Can I connect passive voltage sensors to the module terminals?A: No. The hardware only supplies regulated loop power for 4–20mA 2-wire transmitters; voltage inputs lack excitation circuitry and will return invalid zero-scale readings.
