Product Core Brief

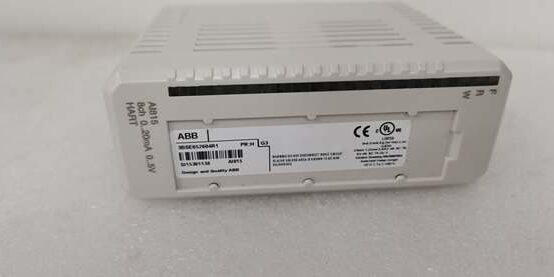

• Model: AI815, OEM Article Code 3BSE052604R1
• Brand: ABB
• Series: S800 Distributed I/O System for AC800M / Freelance DCS
• Core Function: Captures 8 unipolar analog signals from HART smart transmitters, delivers primary process values and HART diagnostic data to DCS controllers via backplane bus.
• Product Type: Rack slide-in HART-capable analog input I/O module
• Key Specs: 8 single-ended channels | 12-bit A/D resolution | HART 7 pass-through + per-channel current-limited transmitter powerNote: Active OEM spare, new original surplus stock available; group ground isolation, no individual channel isolation.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, max power draw 3.1 W
• Supported unipolar signal ranges: 4–20 mA, 0–20 mA, 1–5 V, 0–5 V DC; all channels must match current or voltage type (mixed types unsupported)
• A/D resolution: 12-bit unsigned conversion
• Full 8-channel scan cycle: 10 ms total refresh rate
• Input impedance: 10 MΩ (voltage); fixed 250 Ω shunt (current)
• Measurement accuracy: Max 0.1% full scale at 25 °C ambient; temperature drift ≤50 ppm/°C
• Galvanic isolation: Single group (all 8 channels) isolated from backplane logic, 500 VAC 1-minute dielectric test
• HART compliance: HART 7 pass-through, simultaneous primary PV read and digital diagnostic polling
• Overload protection: Per-channel self-resetting PTC current limiter; withstands 30 V DC continuous accidental overvoltage
• Input filter rise time: 290 ms analog filter to suppress VFD switching noise
• Diagnostic functions: Wire-break detection for current loops, over/under-range flagging, transmitter power supply supervision
• PCB coating: G3 industrial conformal coating per ISA-S71.04 for mild corrosive cabinet atmospheres
• Status indicators: Individual LED per channel, global POWER and BUS COMM fault lamps
• Mechanical form: S800 standard slide-in card, hot-swap certified per IEC 61131-2
• Operating ambient: 0 °C to +55 °C; compact MTU rack limited to 0–40 °C continuous duty
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 600 meters with fully shielded twisted pair cable
• Dimensions: 254 mm L × 58 mm W × 27 mm D
• Net weight: 0.23 kg

Product Introduction

This I/O card is a HART-enabled group-isolated analog acquisition component built exclusively for S800 I/O racks paired with AC800M and Freelance DCS controllers. It powers and communicates with 2-wire smart transmitters used for flow, pressure, level and temperature process monitoring.Group isolation eliminates common-mode voltage drift from nearby medium voltage drives, holding steady-state measurement deviation below 0.1% full scale during large motor load transients. Integrated HART pass-through eliminates separate handheld communicator field trips for routine transmitter calibration and fault diagnostics.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3BSE part code against ABB S800 spare part databases. Inspect conformal coating for cracking, terminal block spring tension and full 8-channel LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Seat the module in an S800 MTU test rack paired with an AC800M PM865 controller simulator. Run continuous 24-hour cyclic scan testing across all channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate open-loop transmitter wiring, +30V accidental overvoltage and HART device disconnection to validate PTC current limiting, wire-break alarm timing and digital HART data polling.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between field channel group and backplane logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no false wire-break fault triggers.
4. Firmware/Config Backup: Record factory default signal range preset values via Control Builder M engineering software. Capture high-resolution photos of terminal pin labels for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over the front terminal header. Place the card inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: AC800M controller firmware older than v5.2.0 lacks register mapping for HART secondary variable diagnostic logic. Post-replacement, the DCS will ignore smart transmitter fault codes and throw intermittent AI COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before rack insertion.❗Hot-Swap Misuse Warning: While rated hot-swap, removing the unit during active heavy motor load transients can create backplane voltage spikes that corrupt adjacent I/O scan data. Always pause Profibus fieldbus communication before card exchange for high EMI cabinet environments.❗Wiring Incompatibilities: Unshielded field wiring introduces mains interference into current inputs, creating ±0.3% full scale reading drift. Use OEM shielded twisted pair cable with single-point chassis ground at the rack terminal bar, follow 0.8 N·m torque specs for terminal screws.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple AO810 analog output cards during controller cold startup, triggering repeated backplane resets and total analog data loss. Recalculate total rack load before swapping the card.❗ESD Dangers: Ungrounded handling exposes analog A/D traces to static discharge from dry control room air. Field records show unprotected handling burns input signal circuits; full boiler/turbine unit downtime labor cost exceeds $1,580. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare rack chassis ground for 3 seconds before handling the PCB.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power for low-EMI sites; pause Profibus fieldbus communication if performing live hot-swap. Photograph terminal wiring layout and existing channel range assignments from the old unit.
2. Removal: Release the rack slide latch, pull the old card free and disconnect terminal wiring one channel at a time to avoid cross-channel miswiring.
3. Install: Transfer wiring harness to the new unit’s terminal header, slide the card fully into the MTU rack slot and lock the slide latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all channel LEDs activate correctly, connect a HART communicator to confirm secondary variable polling before resuming full DCS fieldbus communication.

FAQ (Frequently Asked Questions)

Q: Can this module be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for standard low-EMI control rooms. For cabinets housing medium voltage drives or high-frequency VFDs, lock out auxiliary power first to avoid backplane data corruption from voltage transients.Q: Does this card carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during bench validation.Q: Can AI810 serve as a direct drop-in replacement for the module?A: Mechanical rack fit only. AI810 lacks built-in HART pass-through circuitry and cannot read digital smart transmitter diagnostic data. Swapping without reworking DCS tag logic disables all remote transmitter calibration and fault monitoring workflows.Q: What minimum controller firmware version enables full HART secondary variable diagnostic support?A: AC800M controller firmware v5.2.0 or newer. Older builds lack register addresses for multi-variable HART data, only returning raw unflagged 4–20mA primary process values with no transmitter health alerts.Q: Will the unit retain channel signal range settings after power loss?A: No configuration data stores on-board. All channel mA/V range parameters reside in the controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with Symphony Plus SD Series DCS racks?A: No. The module uses the proprietary Profibus backplane bus, which is electrically incompatible with Symphony HN800 I/O rack architecture and cannot be cross-mounted.Q: Can I mix voltage and current sensor signals on the same module?A: No. All 8 channels must be configured for identical signal type (all current or all voltage). Mixed wiring triggers persistent range mismatch fault codes on the DCS HMI.
