Full Part Number & Core Brief
- Complete Assembly Order Code: 3BHB030310R0001 (factory pre-assembled one-piece unit)ABB Group
- Internal Semiconductor Chip Model: 5SHY4045L0006 (Reverse Conducting RC-IGCT)
- Brand: ABB Power Semiconductors (Swiss original manufacturing)
- Applicable Equipment: Exclusive high-current power switching component for high-power frames of ABB ACS1000 air-cooled medium voltage IGCT converters (3kV / 4.16kV / 6kV high-power drives, 2500–5000kW); also compatible with PCS6000 SVC static var compensator systems. Widely used in thermal power large induced draft fans, mine main drainage pumps, cement kiln auxiliary drives, offshore platform medium voltage frequency conversion equipment.
- Integrated Combined Core Function
- 5SHY4045L0006 RC-IGCT Chip: 4500V reverse-conducting integrated gate commutated thyristor, built-in freewheeling diode inside silicon chip; complete DC-link to AC variable frequency power switching, ultra-low on-state loss, support stable high-frequency switching without external discrete flywheel diodes.
- Integrated Built-in GDU Gate Driver PCB: Pre-mounted on the assembly carrier frame, adopt bidirectional fiber optical communication; receive PWM trigger optical signals from drive main control cabinet, output high-amplitude gate drive pulses to switch IGCT; real-time monitor gate bias voltage, IGCT conduction current and chip junction temperature; microsecond ultra-fast short-circuit lockout protection, transmit multi-level graded fault codes back to drive main CPU via optical fiber.
- Integrated Mechanical Carrier Frame (3BHB030310R0001 overall housing): Integrated high-life foil snubber capacitors, standardized copper bus bar positioning terminals, unified swing-frame slide-in mechanical structure for ACS1000 phase module, realizing plug-and-play quick maintenance.
- Form Factor: Integrated single-sided air-cooled flat disc press-pack assembly, clamped and installed on ACS1000 phase module air cooling heat sink.
- Key Specs: 4500V repetitive off-state blocking voltage; 2600A rated average on-state current; RC integrated internal freewheeling diode design; full fiber galvanic isolation; <1μs ultra-fast short-circuit protection; full anti-corrosion conformal coated GDU PCB; 24VDC auxiliary power supply for gate drive circuit; factory fully calibrated one-piece assembly.
- Stock Status: EOL discontinued OEM power semiconductor spare part, limited original new surplus complete assembly stock, Condition: New SurplusABB Group.
Product Introduction

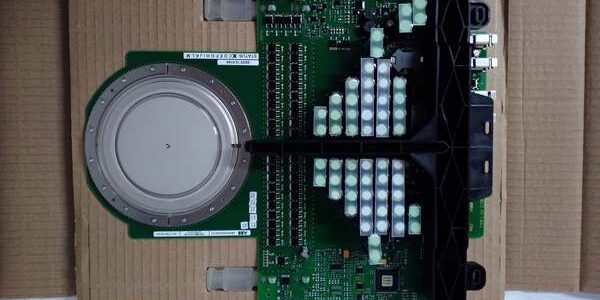

ABB 3BHB030310R0001 is a high-current integrated RC-IGCT complete assembly specially developed for high-power air-cooled ACS1000 medium voltage drives, the unified factory order number for the whole set of 5SHY4045L0006 chip + gate driver + carrier frame.Compared with discrete diode split IGCT schemes, this RC-IGCT embeds freewheeling diode inside the chip, greatly simplifies the internal layout of the power stack, reduces wiring inductance and overall converter power loss by about 22%. Single-sided air-cooled flat press-pack packaging does not require complex water cooling circulation systems, suitable for conventional indoor cabinet forced ventilation cooling scenarios, significantly reducing project transformation and later maintenance costs.The built-in integrated GDU gate driver PCB adopts bidirectional full fiber optical communication to completely isolate low-voltage control logic and 4500V high-voltage power stacks, thoroughly eliminate high-frequency common-mode switching noise interference generated by high-power semiconductors, avoid false overvoltage/overcurrent protection tripping caused by grid fluctuations and motor heavy load impact. The onboard multi-stage fast protection circuit instantly cuts off IGCT gate drive pulses under short-circuit faults, effectively preventing permanent burnout of expensive high-power IGCT chips, drastically reducing unplanned production line downtime for thermal power, mining and cement heavy industry.The integrated swing frame carrier integrates long-life foil snubber capacitors and standardized installation brackets, realizing one-piece pull-out maintenance of phase modules and greatly shortening on-site replacement time. Without intact complete assembly, the high-power drive cannot establish DC link voltage and will report POWER STACK FAULT alarm to refuse startup.
Key Technical Specifications
1) 5SHY4045L0006 RC-IGCT Semiconductor Core Parameters
| Parameter | Technical Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
| Rated Average On-State Current (ITAV) | 2600 A |
| Maximum Safe Turn-Off Pulse Current (ITGQM) | 2550 A (≤1ms pulse) |
| Maximum Allowable Junction Temperature (Tj max) | 150 ℃ |
| Package Form | Flat disc single-sided air cooling press-pack, RC integrated internal freewheeling diode |
| Standard Continuous Switching Frequency | Up to 1000Hz |
| Maximum Sustainable DC Link Operating Voltage | 2800 V DC |
| Thermal Resistance (Single-Side Air Cooled) | ≤0.04 ℃/W |
| Single IGCT Chip Net Weight | ~1.3 kg |
2) Integrated Built-in GDU Gate Driver Board Parameters
| Parameter | Technical Value |
|---|---|
| Auxiliary Operating Supply | 24 V DC ±10 %, max 8 W power consumption |
| Signal Communication Interface | Bidirectional fiber optic transceivers (PWM trigger input + multi-grade fault feedback output) |
| Gate Drive Output Performance | High peak current pulse optimized exclusively for 4.5kV 2600A high-current RC-IGCT switching |
| Internal Circuit | Integrated isolated SMPS gate bias power generation circuit, independent power supply without external gate wiring |
| Protection Response Speed | Short-circuit lockout <1μs; gate undervoltage / PCB overtemperature fault <0.8ms |
| Galvanic Isolation Performance | Complete optical electrical isolation, withstand >10kV transient high voltage interference |
| PCB Surface Protection | Thickened heavy-duty acrylic conformal coating, anti-dust, workshop oil mist and mild corrosive flue gas |
| Status Indicators | Green POWER OK LED, optical LINK status LED, yellow pre-alarm lamp, red short-circuit FAULT diagnostic lamp |
| Mechanical Mounting | Pre-fixed on the 3BHB030310R0001 integrated carrier frame together with IGCT; power stack must be fully de-energized and discharged before replacement |
| Operating Ambient Range | -20 ℃ ~ +70 ℃ full rated performance; linear performance derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
3) Complete Assembly 3BHB030310R0001 Overall Feature
- Integrated long-life foil snubber capacitors, eliminate electrolytic capacitor aging failure risk
- Standard swing frame slide-in mechanical structure, unified bus bar positioning terminals
- Overall dimensions: 290 × 300 × 45 mmABB Group
- Total assembly net weight: ~3.0 kgABB Group
Exclusive System Compatibility
Only matching high-current frame ABB air-cooled medium voltage IGCT converters, compatible with PCS6000 SVC static var compensator; completely incompatible with ACS2000/ACS6000 water-cooled high-power MV drives, UNITROL generator excitation thyristor stacks, Symphony DCS racks, IRC5 robot controller hardware and AC31 PLC systems.
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB semiconductor spare parts databases; inspect IGCT press-pack metal sealing without cracks/deformation, GDU PCB thickened conformal coating intact, fiber socket plastic housing undamaged, all multi-color LED indicators full functionality, fiber transceiver signal transmission integrity test, carrier frame capacitor no bulging leakage. Verify intact OEM anti-static vacuum packaging to screen counterfeit surplus stock.
- Combined Aging Functional Test: Clamp full assembly on air-cooled test heat sink, connect optical fiber to drive main control signal simulator; run continuous 24-hour cyclic PWM high-speed switching aging test, sequentially simulate fiber disconnection, IGCT short-circuit, GDU overtemperature and gate supply undervoltage faults; record stable 24V auxiliary supply voltage and PCB surface temperature via Fluke multimeter through full test cycle.
- Electrical & Isolation Test: Use 500V Megger to measure insulation resistance between IGCT high-voltage power terminals and GDU low-voltage signal circuits, pass threshold ≥10 MΩ. Inject high differential common-mode industrial noise to verify zero false fault triggering and stable optical communication link.
- Calibration Data Recording: Read factory IGCT short-circuit threshold, gate bias voltage and graded fault calibration parameters via ABB DriveWindow diagnostic software; photograph fiber port layout, IGCT anode/cathode terminal wiring labels for on-site power stack commissioning reference.
- Final Packaging QC: Cover all optical fiber sockets with anti-dust plastic caps, wrap IGCT press-pack metal surface with anti-static insulating film; place full IGCT+GDU+carrier assembly into foam-lined static shielding carton, attach QC Passed label printed with inspection date before sealing original factory outer carton.
Replacement Pitfall Guide
❗Drive Firmware Mismatch Risk: Outdated main CPU firmware lacks register mapping matching this high-current 4.5kV RC-IGCT assembly’s fault detection timing. After replacement, drive continuously reports LINK LOSS or ambiguous OVERCURRENT alarms during startup, cannot close torque control loop normally.Mitigation: Upgrade main control firmware to v5.3.5 or newer before power stack assembly.
❗GDU Jumper Misconfiguration Risk: All gate dead-time, short-circuit detection threshold and gate bias trim jumpers on built-in GDU are factory pre-calibrated exclusively for 5SHY4045L0006 4.5kV 2600A RC-IGCT. Unauthorized jumper adjustment will cause IGCT shoot-through catastrophic short-circuit and permanent burnout of the entire phase module power stack.Mitigation: Photograph all jumper positions on old assembly before disassembly and replicate exactly; never modify factory calibration jumpers without official ABB service manual guidance.
❗Optical Fiber Cable Incompatibility Risk: Generic non-OEM optical fiber jumpers have mismatched core diameter or poor end-face polishing, resulting in light attenuation, unstable optical link and intermittent drive tripping under heavy load fluctuations.Mitigation: Only adopt OEM matched fiber optic cables specified for IGCT assemblies, maintain fiber bending radius ≥15mm inside power stack, avoid sharp bending and extrusion damage.
❗Cabinet 24V Auxiliary Power Capacity Mismatch Risk: Degraded cabinet internal 24V auxiliary power supply with insufficient output current cannot support multiple high-current IGCT assemblies plus cooling fans simultaneously during drive startup, triggering repeated auxiliary power shutdown and loss of IGCT gate bias voltage.Mitigation: Calculate total power consumption of all internal power stack PCBs, reserve 20% current headroom for cabinet 24V auxiliary power supply before replacement.
❗ESD Damage Risk: Dry industrial cabinet air generates static discharge to exposed GDU fiber transceiver chips and IGCT sensitive gate structure traces. Field data shows ungrounded handling burns optical signal circuits and semiconductor gate layers, full pump/fan production line downtime labor cost exceeds $1,820.Mitigation: Place anti-static mat under MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 full seconds before installing or removing the full IGCT assembly.
Compatibility Matrix & Performance Benchmarks
Compatibility Matrix
- Full Assembly 3BHB030310R0001 → Low-current 5SHY3545L0014 / 5SHY3545L0016 IGCT assemblies: Not interchangeable; different current rating, chip RC diode parameters and GDU protection threshold, cannot direct drop-in replacement, must re-tune drive overcurrent protection parameters after full phase module replacement.
- Full IGCT Assembly + High-Power Frame Air-Cooled ABB Medium Voltage IGCT Power Stack: Direct swing frame heat sink mounting fit, native optical signal timing mapping after firmware upgrade, no major drive control logic edits after assembly swap.
- This IGCT Unit + ACS2000 / ACS6000 / ACS800 / ACS880 MV Drives: Fully incompatible — different semiconductor voltage grade, cooling method, fiber communication timing and heat sink clamping mechanical structure.
- This IGCT Unit + Symphony Plus HR DCS Racks: Partial compatibility — only dry contact fault status signals can be wired to DCS I/O via external 24V isolation relays, no direct optical power stack bus interoperability.
- This IGCT Unit + UNITROL Generator Excitation Cabinets: Incompatible — designed exclusively for MV converter AC variable frequency power switching, not excitation rectifier thyristor trigger circuits.
Performance Benchmarks
- IGCT short-circuit fault response latency: < 1 μs instantaneous gate cutoff upon overcurrent detection
- Optical signal transmission delay: < 450 ns from control fiber input to IGCT gate drive pulse output
- Gate supply undervoltage fault response time: < 0.8 ms multi-level graded fault flag transmitted back to main CPU
- Built-in GDU common-mode high voltage noise rejection: >140 dB at 50/60 Hz industrial mains interference frequency
- GDU overtemperature lockout threshold: PCB surface ≥70 ℃ automatic gate drive shutdown
- IGCT maximum junction temperature protection threshold: 150 ℃ chip temperature trigger drive safe stop
- Air cooling thermal performance: Support continuous full-load operation at ambient 40℃ cabinet environment with standard cabinet forced ventilation cooling system
