Full Part Number Breakdown & Core Brief
Complete Kit Bill of Materials
- 5SHY3545L0016: RC-IGCT Reverse Conducting Integrated Gate Commutated Thyristor (4500V press-pack chip)ABB Group
- 3BHB020720R0002: Main carrier board / mechanical assembly carrier for IGCT + gate drive PCB, official ABB assembly order code for this full unitABB Group
- 3BHE019719R0101 (Alias GVC736BE101): Integrated full-function gate driver control board (GDU) pre-mounted with IGCT as one unit
- Brand: ABB Power Semiconductors, Switzerland original manufacture
- Applicable Equipment: Exclusively designed for ABB ACS1000 air-cooled medium voltage IGCT converters (3kV/4.16kV/6kV drive frames, 315–5000kW), widely used for thermal power boiler fans, large water supply pumps, mine auxiliary conveyors, offshore platform medium voltage variable frequency systems
- Integrated Combined Core Function
- 5SHY3545L0016 RC-IGCT: 4500V reverse conducting press-pack semiconductor, integrates freewheeling diode inside chip; complete DC-link to AC variable frequency power switching, low conduction loss, support high-frequency stable switching without external discrete diodes
- GVC736BE101 (3BHE019719R0101) Gate Driver Unit: Bidirectional fiber optic signal interface, receive PWM optical trigger signals from drive main control cabinet, generate high-amplitude gate drive pulses to turn IGCT on/off; real-time monitor gate supply voltage, IGCT conduction current, chip junction temperature; microsecond ultra-fast short-circuit lockout protection, transmit multi-level graded fault codes back to drive main CPU via optical fiber
- 3BHB020720R0002 Carrier Frame: Integrated mechanical support, high-frequency snubber foil capacitors, power terminal copper bus bar positioning, standard slide-in swing frame mounting structure for ACS1000 phase module
- Form Factor: All-in-one pluggable air-cooled RC-IGCT assembly, flat disc press-pack single-sided air cooling clamping installation on ACS1000 phase module heat sink
- Key Specs: 4500V repetitive off-state blocking voltage; RC integrated diode design; full fiber galvanic isolation <1μs short-circuit protection; full conformal coated PCB; 24VDC auxiliary power for gate drive; pre-assembled factory calibrated unit
- Stock Status: EOL discontinued OEM power semiconductor spare part, limited original new surplus complete assembly stock, Condition: New Surplus
Product Introduction

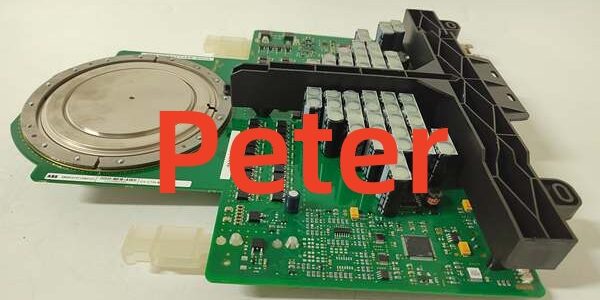

ABB 5SHY3545L0016 + (3BHE019719R0101) integrated assembly is the core reverse-conducting IGCT power switching unit of air-cooled medium voltage drives, unified assembly part number 3BHB020720R0002 for full kit orderingABB Group.Compared with discrete diode IGCT schemes, this RC-IGCT embeds freewheeling diode inside silicon chip, simplifies power stack layout, reduces cabinet internal wiring inductance and power loss by ~20%. Single-sided air cooling flat press-pack packaging adapts to conventional indoor cabinet forced ventilation cooling without complex water cooling system, greatly lowering project transformation and maintenance cost.Built-in gate driver PCB adopts bidirectional full fiber optical communication to completely isolate low-voltage control logic and 4500V high-voltage power stacks, thoroughly suppress high-frequency common-mode switching noise generated by high-power semiconductors, avoid false overvoltage/overcurrent protection tripping during grid fluctuation and motor heavy load impact. Onboard multi-stage fast protection circuit instantly cuts IGCT gate drive pulses under short-circuit fault, effectively preventing permanent burnout of expensive high-power IGCT chips, drastically reducing unplanned production line downtime for thermal power, water treatment and mine auxiliary equipment.Integrated carrier frame 3BHB020720R0002 integrates long-life foil snubber capacitors and standardized mounting brackets, realizing one-piece swing frame plug-and-play maintenance for phase modules, greatly shortening on-site replacement time. Without intact full assembly, drive cannot establish DC link voltage and will report POWER STACK FAULT alarm to refuse startup.
Key Technical Specifications
1) 5SHY3545L0016 RC-IGCT Semiconductor Core Parameters
| Parameter | Technical Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
| Rated Average On-State Current (ITAV) | 450 A |
| Maximum Safe Turn-Off Pulse Current (ITGQM) | 1000 A (≤1ms pulse) |
| Max Allowable Junction Temperature (Tj max) | 150 ℃ |
| Package Form | Flat disc single-sided air cooling press-pack, RC integrated internal freewheeling diode |
| Standard Continuous Switching Frequency | Up to 2.5kHz |
| Max Sustainable DC Link Operating Voltage | 2800 V DC |
| Thermal Resistance (Single-Side Air Cooled) | ≤0.042 ℃/W |
| IGCT Single Chip Net Weight | ~1.15 kg |
2) (3BHE019719R0101) Integrated Gate Driver PCB Parameters
| Parameter | Technical Value |
|---|---|
| Auxiliary Operating Supply | 24 V DC ±10 %, max 7.2 W power consumption |
| Signal Communication Interface | Bidirectional fiber optic transceivers (PWM trigger input + multi-grade fault feedback output) |
| Gate Drive Output Performance | Optimized peak current pulse matched exclusively for 4.5kV 450A RC-IGCT switching |
| Internal Circuit | Integrated isolated SMPS gate bias power generation circuit, independent power supply without external gate wiring |
| Protection Response Speed | Short-circuit lockout <1μs; gate undervoltage / PCB overtemperature fault <0.9ms |
| Galvanic Isolation Performance | Complete optical electrical isolation, withstand >10kV transient high voltage interference |
| PCB Surface Protection | Full industrial heavy-duty acrylic conformal coating, anti-dust, workshop oil mist and mild corrosive flue gas |
| Status Indicators | Green POWER OK LED, optical LINK status LED, yellow pre-alarm lamp, red short-circuit FAULT diagnostic lamp |
| Mechanical Mounting | Pre-soldered fixed together with IGCT on 3BHB020720R0002 carrier frame; power stack must be fully de-energized and discharged before replacement |
| Operating Ambient Range | -20 ℃ ~ +70 ℃ full rated performance; linear performance derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
3) Full Assembly 3BHB020720R0002 Carrier Frame Feature
- Integrated high-life foil snubber capacitors, eliminate electrolytic capacitor aging failure risk
- Standard swing frame slide-in mechanical structure, unified bus bar positioning terminals
- Total full assembly net weight: ~2.8 kgABB Group
Exclusive System Compatibility
Only matching ABB air-cooled medium voltage IGCT converters; completely incompatible with ACS2000/ACS6000 water-cooled high-power MV drives, UNITROL generator excitation thyristor stacks, Symphony DCS racks, IRC5 robot controller hardware and AC31 PLC systems.
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB semiconductor spare parts databases; inspect IGCT press-pack metal sealing without cracks/deformation, PCB conformal coating intact, fiber socket plastic housing undamaged, all multi-color LED indicators full functionality, fiber transceiver signal transmission integrity test, carrier frame capacitor no bulging leakage. Verify intact OEM anti-static vacuum packaging to screen counterfeit surplus stock.
- Combined Aging Functional Test: Clamp full assembly on air-cooled test heat sink, connect optical fiber to drive main control signal simulator; run continuous 24-hour cyclic PWM high-speed switching aging test, sequentially simulate fiber disconnection, IGCT short-circuit, GDU overtemperature and gate supply undervoltage faults; record stable 24V auxiliary supply voltage and PCB surface temperature via Fluke multimeter through full test cycle.
- Electrical & Isolation Test: Use 500V Megger to measure insulation resistance between IGCT high-voltage power terminals and GDU low-voltage signal circuits, pass threshold ≥10 MΩ. Inject high differential common-mode industrial noise to verify zero false fault triggering and stable optical communication link.
- Calibration Data Recording: Read factory IGCT short-circuit threshold, gate bias voltage and graded fault calibration parameters via ABB DriveWindow diagnostic software; photograph fiber port layout, IGCT anode/cathode terminal wiring labels for on-site power stack commissioning reference.
- Final Packaging QC: Cover all optical fiber sockets with anti-dust plastic caps, wrap IGCT press-pack metal surface with anti-static insulating film; place full IGCT+GDU+carrier assembly into foam-lined static shielding carton, attach QC Passed label printed with inspection date before sealing original factory outer carton.
Replacement Pitfall Guide
❗Drive Firmware Mismatch Risk: Outdated main CPU firmware lacks register mapping matching this 4.5kV RC-IGCT assembly’s fault detection timing. After replacement, drive continuously reports LINK LOSS or ambiguous OVERCURRENT alarms during startup, cannot close torque control loop normally.Mitigation: Upgrade main control firmware to v5.3.0 or newer before power stack assembly.
❗GDU Jumper Misconfiguration Risk: All gate dead-time, short-circuit detection threshold and gate bias trim jumpers on are factory pre-calibrated exclusively for 5SHY3545L0016 4.5kV RC-IGCT. Unauthorized jumper adjustment will cause IGCT shoot-through catastrophic short-circuit and permanent burnout of the entire phase module power stack.Mitigation: Photograph all jumper positions on old assembly before disassembly and replicate exactly; never modify factory calibration jumpers without official ABB service manual guidance.
❗Optical Fiber Cable Incompatibility Risk: Generic non-OEM optical fiber jumpers have mismatched core diameter or poor end-face polishing, resulting in light attenuation, unstable optical link and intermittent drive tripping under load fluctuations.Mitigation: Only adopt OEM matched fiber optic cables specified for assemblies, maintain fiber bending radius ≥15mm inside power stack, avoid sharp bending and extrusion damage.
❗Cabinet 24V Auxiliary Power Capacity Mismatch Risk: Degraded cabinet internal 24V auxiliary power supply with insufficient output current cannot support multiple IGCT GDU assemblies plus cooling fans simultaneously during drive startup, triggering repeated auxiliary power shutdown and loss of IGCT gate bias voltage.Mitigation: Calculate total power consumption of all internal power stack PCBs, reserve 20% current headroom for cabinet 24V auxiliary power supply before replacement.
❗ESD Damage Risk: Dry industrial cabinet air generates static discharge to exposed fiber transceiver chips and IGCT sensitive gate structure traces. Field data shows ungrounded handling burns optical signal circuits and semiconductor gate layers, full pump/fan production line downtime labor cost exceeds $1,750.Mitigation: Place anti-static mat under MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 full seconds before installing or removing the full IGCT assembly.
Compatibility Matrix & Performance Benchmarks
Compatibility Matrix
- Full Assembly 3BHB020720R0002 (5SHY3545L0016+) → Old 3.3kV 5SHY3545L0014 IGCT assembly: Not interchangeable; different blocking voltage, chip RC diode design and GDU protection threshold, cannot direct drop-in replacement, must re-tune drive overvoltage protection parameters after full phase module replacement
- Full IGCT Assembly + Standard Air-Cooled ABB Medium Voltage IGCT Power Stack: Direct swing frame heat sink mounting fit, native optical signal timing mapping after firmware upgrade, no major drive control logic edits after assembly swap
- This IGCT Unit + ACS2000 / ACS6000 / ACS800 / ACS880 MV Drives: Fully incompatible — different semiconductor voltage grade, cooling method, fiber communication timing and heat sink clamping mechanical structure
- This IGCT Unit + Symphony Plus HR DCS Racks: Partial compatibility — only dry contact fault status signals can be wired to DCS I/O via external 24V isolation relays, no direct optical power stack bus interoperability
- This IGCT Unit + UNITROL Generator Excitation Cabinets: Incompatible — designed exclusively for MV converter AC variable frequency power switching, not excitation rectifier thyristor trigger circuits
Performance Benchmarks
- IGCT short-circuit fault response latency: < 1 μs instantaneous gate cutoff upon overcurrent detection
- Optical signal transmission delay: < 480 ns from control fiber input to IGCT gate drive pulse output
- Gate supply undervoltage fault response time: < 0.9 ms multi-level graded fault flag transmitted back to main CPU
- common-mode high voltage noise rejection: >138 dB at 50/60 Hz industrial mains interference frequency
- GDU overtemperature lockout threshold: PCB surface ≥70 ℃ automatic gate drive shutdown
- IGCT maximum junction temperature protection threshold: 150 ℃ chip temperature trigger drive safe stop
- Air cooling thermal performance: Support continuous full-load operation at ambient 40℃ cabinet environment with standard cabinet forced ventilation cooling system
