Product Core Brief
- Full Part Numbers

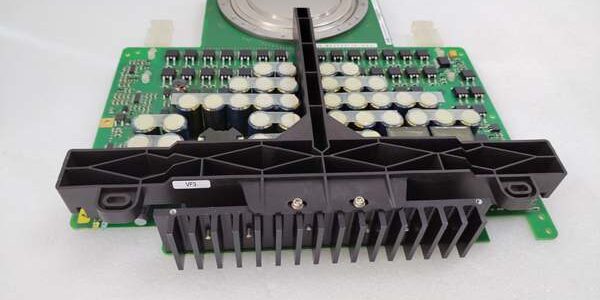

- Power Semiconductor Chip: 5SHY3545L0014 (3300V asymmetric press-pack IGCT)
- Integrated Gate Driver Board (GDU): 3BHB013085R0001 (factory pre-assembled together with IGCT as one complete unit)
- Brand: ABB Power Semiconductors, Switzerland original production
- Applicable Equipment: Exclusively matched for ABB ACS1000 medium voltage IGCT converters (1.8kV/2.3kV/3.3kV motor drives), widely used in large water supply pumps, boiler induced draft fans, mine auxiliary transport drives, offshore platform medium voltage frequency conversion systems
- Combined Core Function
- 5SHY3545L0014 IGCT: 3300V high-power press-pack switching device, complete DC-link to AC variable frequency conversion for medium voltage motors, integrated commutated gate structure, no bulky external snubber circuits, low conduction loss, support high-frequency stable switching
- 3BHB013085R0001 Integrated GDU: Bidirectional fiber-optic communication interface, receive PWM trigger signals from main control cabinet, generate high-amplitude gate drive pulses to control IGCT on/off; real-time monitor gate supply voltage, IGCT conduction current and chip temperature; microsecond-level fast short-circuit lockout protection, transmit multi-level fault codes back to drive main CPU via optical fiber
- Form Factor: Integral assembly of circular flat press-pack IGCT + fixed integrated gate driver PCB, air-cooled clamping installation on ACS1000 phase module heat sink
- Key Specs: 3300V repetitive off-state voltage, 450A rated average current; full fiber galvanic isolation; <1μs ultra-fast short-circuit protection; air-cooled flat press-pack packaging; full anti-corrosion conformal coated GDU PCB; 24VDC auxiliary power supply for gate drive
- Stock Status: EOL discontinued OEM power semiconductor spare part, limited original new surplus complete assembly stock, Condition: New Surplus
Product Introduction
ABB 5SHY3545L0014 is ABB classic 3.3kV medium-current air-cooled IGCT, factory integrated with dedicated 3BHB013085R0001 gate driver board into a single plug-and-play power unit, the core power switching component of ACS1000 medium voltage drives.Different from high-power water-cooled 4.5kV/6kV IGCT models, this unit adopts single-sided air cooling flat press-pack design, low system transformation cost, suitable for conventional indoor cabinet ventilation cooling scenarios. Integrated commutated gate technology cancels complex external absorption circuits, simplifies power stack layout and reduces overall drive power loss by about 18% compared with traditional GTO thyristor schemes.The integrated 3BHB013085R0001 GDU uses bidirectional fiber communication to completely isolate low-voltage control signals and 3300V high-voltage power stacks, thoroughly eliminate high-frequency common-mode switching noise interference, avoid false overvoltage/overcurrent protection tripping during grid fluctuation and motor heavy load impact. Onboard multi-stage fast protection circuit instantly cuts off IGCT drive pulses when short-circuit fault occurs, preventing permanent burnout of expensive IGCT chip, drastically reducing unplanned downtime and maintenance costs for water treatment, mine auxiliary and thermal power auxiliary fan equipment. Without intact 5SHY3545L0014+3BHB013085R0001 assembly, ACS1000 drive cannot establish DC link voltage and will report POWER STACK FAULT alarm to refuse startup.
Key Technical Specifications
1) 5SHY3545L0014 IGCT Semiconductor Parameters
| Parameter | Technical Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 3300 V |
| Rated Average On-State Current (ITAV) | 450 A |
| Maximum Safe Turn-Off Current (ITGQM) | 1000 A (pulse ≤1ms) |
| Maximum Allowable Junction Temperature (Tj max) | 150 ℃ |
| Package Form | Flat disc single-sided air cooling press-pack |
| Standard Continuous Switching Frequency | Up to 3kHz |
| Maximum Sustainable DC Link Operating Voltage | 2000 V DC |
| Thermal Resistance (single-sided air cooling) | ≤0.04 ℃/W |
| IGCT Single Unit Net Weight | ~1.1 kg |
2) 3BHB013085R0001 Integrated GDU Gate Driver Board Parameters
| Parameter | Technical Value |
|---|---|
| Auxiliary Operating Supply | 24 V DC ±10 %, max 7 W power consumption |
| Signal Communication Interface | Bidirectional fiber optic transceivers (PWM trigger input + multi-grade fault feedback output) |
| Gate Drive Output | Optimized peak current pulse matched for 3300V 450A IGCT switching |
| Internal Circuit | Integrated isolated SMPS gate bias power generation circuit, independent power supply without external gate wiring |
| Protection Response Speed | Short-circuit lockout <1μs; gate undervoltage / PCB overtemperature fault <0.9ms |
| Galvanic Isolation Performance | Complete optical electrical isolation, withstand thousands of volts transient high voltage interference |
| PCB Surface Protection | Full industrial acrylic conformal coating, anti-dust, workshop oil mist and mild corrosive gas |
| Status Indicators | Green POWER OK LED, optical LINK status LED, red multi-stage FAULT diagnostic lamp |
| Mechanical Mounting | Integrated circular PCB fixed together with IGCT, air-cooled heat sink clamping installation; power stack must be fully de-energized and discharged before replacement |
| Operating Ambient Range | -20 ℃ ~ +70 ℃ full rated performance; linear performance derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
| Total Assembly Net Weight (IGCT+GDU) | ~2.7 kg |
Exclusive System Compatibility
Only matching ABB medium voltage IGCT converters; completely incompatible with ACS2000/ACS6000 water-cooled high-power MV drives, UNITROL generator excitation thyristor stacks, Symphony DCS racks, IRC5 robot controller hardware and AC31 PLC systems.
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB semiconductor spare parts databases; inspect IGCT press-pack metal sealing without cracks/deformation, GDU PCB conformal coating intact, fiber socket plastic housing undamaged, all LED indicators full functionality, fiber transceiver signal transmission test. Verify intact OEM anti-static packaging to screen counterfeit surplus stock.
- Combined Aging Functional Test: Clamp IGCT+GDU assembly on air-cooled test heat sink, connect optical fiber to drive main control signal simulator; run continuous 24-hour cyclic PWM high-speed switching aging test, sequentially simulate fiber disconnection, IGCT short-circuit, GDU overtemperature and gate supply undervoltage faults; record stable 24V auxiliary supply voltage and PCB surface temperature via Fluke multimeter through full test cycle.
- Electrical & Isolation Test: Use 500V Megger to measure insulation resistance between IGCT high-voltage power terminals and GDU low-voltage signal circuits, pass threshold ≥10 MΩ. Inject high differential common-mode industrial noise to verify zero false fault triggering and stable optical communication link.
- Calibration Data Recording: Read factory IGCT short-circuit threshold, gate bias voltage and fault grading calibration parameters via ABB DriveWindow diagnostic software; photograph fiber port layout, IGCT anode/cathode terminal wiring labels for on-site power stack commissioning reference.
- Final Packaging QC: Cover all optical fiber sockets with anti-dust plastic caps, wrap IGCT press-pack metal surface with anti-static insulating film; place full assembly into foam-lined static shielding carton, attach QC Passed label printed with inspection date before sealing original factory outer carton.
Replacement Pitfall Guide
❗Drive Firmware Mismatch Risk: Outdated main CPU firmware lacks register mapping matching this 3.3kV IGCT assembly’s fault detection timing. After replacement, drive continuously reports LINK LOSS or ambiguous OVERCURRENT alarms during startup, cannot close torque control loop normally.Mitigation: Upgrade main control firmware to v5.2.5 or newer before power stack assembly.
❗GDU Jumper Misconfiguration Risk: All gate dead-time, short-circuit detection threshold and gate bias trim jumpers are factory pre-calibrated exclusively for 5SHY3545L0014 3300V IGCT. Unauthorized jumper adjustment will cause IGCT shoot-through catastrophic short-circuit and permanent burnout of the entire phase module power stack.Mitigation: Photograph all jumper positions on old assembly before disassembly and replicate exactly; never modify factory calibration jumpers without official ABB service manual guidance.
❗Optical Fiber Cable Incompatibility Risk: Generic non-OEM optical fiber jumpers have mismatched core diameter or poor end-face polishing, resulting in light attenuation, unstable optical link and intermittent drive tripping under load fluctuations.Mitigation: Only adopt OEM matched fiber optic cables specified for GDU assemblies, maintain fiber bending radius ≥15mm inside power stack, avoid sharp bending and extrusion damage.
❗Cabinet 24V Auxiliary Power Capacity Mismatch Risk: Degraded cabinet internal 24V auxiliary power supply with insufficient output current cannot support multiple IGCT GDU assemblies plus cooling fans simultaneously during drive startup, triggering repeated auxiliary power shutdown and loss of IGCT gate bias voltage.Mitigation: Calculate total power consumption of all internal power stack PCBs, reserve 20% current headroom for cabinet 24V auxiliary power supply before replacement.
❗ESD Damage Risk: Dry industrial cabinet air generates static discharge to exposed GDU fiber transceiver chips and IGCT sensitive gate structure traces. Field data shows ungrounded handling burns optical signal circuits and semiconductor gate layers, full pump/fan production line downtime labor cost exceeds $1,680.Mitigation: Place anti-static mat under MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 full seconds before installing or removing the IGCT+GDU assembly.
Compatibility Matrix & Performance Benchmarks
Compatibility Matrix
- 5SHY3545L0014+3BHB013085R0001 → ACS6000 series 4.5kV/6kV water-cooled IGCT assemblies: Not interchangeable; different blocking voltage, cooling structure and GDU protection threshold, cannot direct drop-in replacement, must replace full phase module and re-tune drive parameters
- Full IGCT+GDU Assembly + Standard ABB Medium Voltage IGCT Power Stack: Direct air-cooled heat sink mounting fit, native optical signal timing mapping after firmware upgrade, no major drive control logic edits after assembly swap
- This IGCT Unit + ACS2000 / ACS800 / ACS880 MV Drives: Fully incompatible — different semiconductor voltage grade, cooling method, fiber communication timing and heat sink clamping mechanical structure
- This IGCT Unit + Symphony Plus HR DCS Racks: Partial compatibility — only dry contact fault status signals can be wired to DCS I/O via external 24V isolation relays, no direct optical power stack bus interoperability
- This IGCT Unit + UNITROL Generator Excitation Cabinets: Incompatible — designed exclusively for MV converter AC variable frequency power switching, not excitation rectifier thyristor trigger circuits
Performance Benchmarks
- IGCT short-circuit fault response latency: < 1 μs instantaneous gate cutoff upon overcurrent detection
- Optical signal transmission delay: < 500 ns from control fiber input to IGCT gate drive pulse output
- Gate supply undervoltage fault response time: < 0.9 ms multi-level graded fault flag transmitted back to main CPU
- GDU common-mode high voltage noise rejection: >135 dB at 50/60 Hz industrial mains interference frequency
- GDU overtemperature lockout threshold: PCB surface ≥70 ℃ automatic gate drive shutdown
- IGCT maximum junction temperature protection threshold: 150 ℃ chip temperature trigger drive safe stop
- Air cooling thermal performance: Support continuous full-load operation at ambient 40℃ cabinet environment with standard cabinet ventilation cooling system
