Product Core Brief
- Full Part Numbers:
- Power Chip: 5SHX1445H0001 (4500V high-power press-pack IGCT semiconductor chip)
- Matching Gate Driver Board (GDU): 3BHL000391P0101 (integrated gate drive, signal detection & protection PCB)
- Brand: ABB Power Semiconductors, Switzerland original production
- Applicable Equipment: Exclusively matched for ABB ACS6000 medium voltage IGCT converters (inverter phase module & AFE active front-end rectifier), widely used in mine hoists, cement kiln main drives, large fan/pump MV drives, metallurgical rolling mill converters
- Core Combined Function
- 5SHX1445H0001 IGCT: High-voltage high-current power switching, realize DC-AC frequency conversion for medium voltage motor drives, low conduction loss, fast turn-off without bulky snubber circuits
- 3BHL000391P0101 GDU Board: Receive fiber-optic PWM trigger signals from main control cabinet, generate high-amplitude gate drive pulses to control IGCT on/off; real-time monitor IGCT anode current, gate supply voltage and chip temperature; microsecond-level short-circuit lockout protection, transmit multi-level fault feedback to main CPU via bidirectional optical fiber

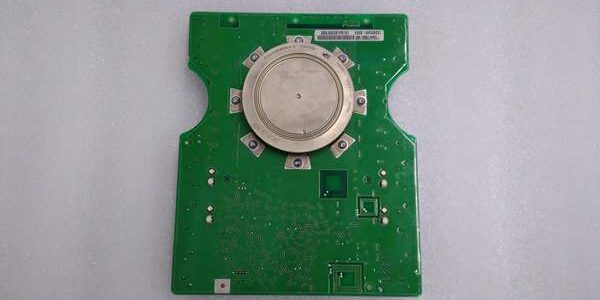

- Form: Integrated press-pack IGCT + fixed-mount gate driver PCB assembly, directly installed on phase module heat sink
- Key Specs: 4500V repetitive off-state voltage, 1445A rated average current; full fiber galvanic isolation; ultra-fast <1μs short-circuit protection; double-sided water/air cooling press-pack housing; full conformal coated GDU PCB; 24VDC auxiliary power for gate driver
- Stock Status: EOL discontinued OEM power semiconductor spare part, limited original new surplus assembly stock, Condition: New Surplus
Product Introduction
ABB 5SHX1445H0001 is ABB classic 4.5kV high-power IGCT press-pack chip, paired factory-matched with 3BHL000391P0101 dedicated gate driver board, forming the core power switching unit of ACS6000 medium voltage drives.Different from traditional GTO thyristors, IGCT integrates commutated gate structure, eliminates complex external snubber circuits, greatly simplifies power stack layout and reduces system loss. The press-pack flat package achieves double-sided efficient heat dissipation, suitable for long-term 24/7 heavy-load operation under high temperature and high vibration industrial conditions.Supporting 3BHL000391P0101 GDU adopts bidirectional fiber communication to completely isolate low-voltage control signals and high-voltage power stacks, thoroughly eliminate high-frequency common-mode noise interference generated by high-power switching, avoid false overvoltage/overcurrent protection tripping during motor heavy load impact and grid fluctuation. Built-in multi-stage fast protection circuit cuts off IGCT drive pulses within microseconds when short-circuit fault occurs, preventing permanent burnout of expensive IGCT chip, drastically reducing production line unplanned downtime and maintenance costs for mining, cement and metallurgy heavy industry. Full anti-corrosion conformal coating on GDU PCB adapts to high-dust, high-humidity industrial cabinet environments. Without intact IGCT+GDU assembly, the ACS6000 drive cannot build DC link voltage and will report POWER STACK FAULT alarm to refuse startup.
Key Technical Specifications
1) 5SHX1445H0001 IGCT Semiconductor Parameters
| Parameter | Technical Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
| Rated Average On-State Current (ITAV) | 1445 A |
| Max Turn-off Current (ITGQM) | 1400 A |
| Max Junction Operating Temperature (Tj) | 150 ℃ |
| Package Form | Press-pack flat disc, silicon chip diameter 68mm |
| Cooling Mode | Double-sided water cooling / forced air cooling heat sink clamping |
| Typical Switching Frequency | Up to 500Hz standard, 1kHz burst mode |
| Maximum Withstand DC Link Voltage | 2800V DC |
2) 3BHL000391P0101 Gate Driver Unit (GDU) Parameters
| Parameter | Technical Value |
|---|---|
| Operating Auxiliary Supply | 24 V DC ±10 %, max 7.5W power consumption |
| Signal Interface | Bidirectional fiber optic transceiver (PWM trigger input + multi-level fault feedback output) |
| Gate Drive Output | Optimized high peak current pulse for 4500V IGCT switching |
| Internal Integrated SMPS | Isolated gate bias power generation circuit, no external gate power wiring required |
| Protection Response Speed | Short-circuit lockout <1μs; gate undervoltage / overtemperature fault <1ms |
| Galvanic Isolation Performance | Full optical electrical isolation, withstand tens of kV transient high voltage interference |
| PCB Protection | Full industrial acrylic conformal coating, anti-dust, oil mist and mild corrosive gas |
| Status Indicators | Green POWER OK LED, optical LINK status LED, red multi-stage FAULT diagnostic lamp |
| Mechanical Mounting | Screw fixed directly on ACS6000 phase module heat sink; power stack must be fully de-energized and discharged before disassembly |
| Operating Ambient Range | -20 ℃ ~ +70 ℃ full rated performance; linear derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
| Total Assembly Net Weight | ~1.5kg (IGCT chip + GDU board assembly) |
System Compatibility
Exclusive matching ABB medium voltage IGCT converters (AFE rectifier & inverter phase modules); completely incompatible with ACS1000/ACS2000/ACS800/ACS880 MV drives, UNITROL excitation systems, Symphony DCS racks, IRC5 robot controllers and AC31 PLC hardware.
Quality Control Process
- Incoming Inspection: Cross-reference serial numbers against ABB power semiconductor spare parts database; inspect IGCT press-pack sealing integrity without crack, GDU PCB conformal coating intact, fiber socket plastic housing no damage, all LED indicators full functionality, fiber transceiver signal transmission test. Verify original OEM anti-static packaging to screen counterfeit surplus stock.
- Combined Aging Functional Test: Clamp IGCT+GDU assembly on test heat sink, connect optical fiber to drive main control signal simulator; run continuous 24-hour cyclic PWM high-speed switching aging test, sequentially simulate fiber disconnection, IGCT short-circuit, GDU overtemperature and gate supply undervoltage faults; record stable 24V auxiliary supply voltage and PCB surface temperature via Fluke multimeter during full test cycle.
- Isolation & Electrical Test: Use 500V Megger to measure insulation resistance between IGCT high-voltage power terminals and GDU low-voltage signal circuits, pass threshold ≥10 MΩ. Inject high differential common-mode industrial noise to verify zero false fault triggering and stable optical communication link.
- Calibration Data Recording: Read factory IGCT short-circuit threshold, gate bias voltage and fault grading calibration parameters via ABB DriveStudio diagnostic software; photograph fiber port layout, IGCT anode/cathode terminal wiring labels for on-site power stack commissioning reference.
- Final Packaging QC: Cover all optical fiber sockets with anti-dust plastic caps, wrap IGCT press-pack with anti-static insulating film; place full assembly into foam-lined static shielding carton, attach QC Passed label printed with inspection date before sealing original factory outer box.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Outdated main CPU firmware lacks matching fault register mapping for this IGCT+GDU assembly. After replacement, drive continuously reports LINK LOSS or ambiguous OVERCURRENT alarms during startup, cannot close torque control loop normally.Mitigation: Upgrade main control firmware to v7.3.0 or newer before power stack assembly.
❗Jumper Misconfiguration Risk: All GDU gate dead-time, short-circuit detection threshold and gate bias trim jumpers are factory pre-calibrated for 5SHX1445H0001 4500V IGCT. Unauthorized jumper adjustment will cause IGCT shoot-through catastrophic short-circuit and permanent burnout of entire phase module power stack.Mitigation: Photograph all jumper positions on old GDU before disassembly and replicate exactly; never modify factory calibration jumpers without official ABB service manual guidance.
❗Fiber Cable Incompatibility Risk: Generic non-OEM optical fiber jumpers have mismatched core diameter or poor end-face polishing, resulting in light attenuation, unstable optical link and intermittent drive tripping under heavy load fluctuations.Mitigation: Only use OEM matched fiber optic cables specified for GDU assemblies, maintain fiber bending radius ≥15mm inside power stack, avoid sharp bending and extrusion.
❗Auxiliary Power Capacity Mismatch Risk: Degraded cabinet internal 24V auxiliary power supply with insufficient output current cannot support multiple IGCT GDU assemblies plus cooling fans simultaneously during drive startup, triggering repeated auxiliary power shutdown and loss of IGCT gate bias voltage.Mitigation: Calculate total power consumption of all internal power stack PCBs, reserve 20% current headroom for cabinet 24V auxiliary power supply before replacement.
❗ESD Damage Risk: Dry mining/cement plant cabinet air generates static discharge to exposed GDU fiber transceiver chips and IGCT gate drive logic traces. Field data shows ungrounded handling burns optical signal circuits and semiconductor gate structures, full mine hoist downtime labor cost exceeds $2,450.Mitigation: Place anti-static mat under MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 full seconds before installing or removing the IGCT+GDU assembly.
Compatibility Matrix & Performance Benchmarks
Compatibility Matrix
- 5SHX1445H0001+3BHL000391P0101 → Older generation IGCT assembly: Mechanical 1:1 drop-in fit; drive firmware upgrade required to match updated fault detection timing parameters, no cabinet mechanical modification needed
- Full IGCT+GDU Assembly + Complete Medium Voltage IGCT Power Stack: Direct heat sink mounting fit, native optical signal timing mapping after firmware upgrade, no major drive control logic edits after assembly swap
- This IGCT Unit + ACS800 / ACS880 / ACS1000 / ACS2000 MV Drives: Fully incompatible — different semiconductor voltage grade, fiber communication timing and heat sink clamping structure
- This IGCT Unit + Symphony Plus HR DCS Racks: Partial compatibility — only dry contact fault status signals can be wired to DCS I/O via external 24V isolation relays, no direct optical power stack bus interoperability
- This IGCT Unit + UNITROL Generator Excitation Cabinets: Incompatible — designed exclusively for MV converter power switching, not excitation thyristor trigger circuits
Performance Benchmarks
- IGCT short-circuit fault response latency: < 1 μs instantaneous gate cutoff upon overcurrent detection
- Optical signal transmission delay: < 480 ns from control fiber input to IGCT gate drive pulse output
- Gate supply undervoltage fault response time: < 0.8 ms multi-level fault flag transmitted back to main CPU
- Common-mode high voltage noise rejection of GDU: >145 dB at 50/60 Hz industrial mains interference frequency
- GDU overtemperature lockout threshold: PCB surface ≥70 ℃ automatic gate drive shutdown
- IGCT maximum junction temperature protection threshold: 150 ℃ chip temperature trigger drive safe stop
- Press-pack double-sided heat dissipation thermal resistance: Ultra-low thermal resistance, support continuous full-load operation at ambient 40℃ cabinet environment
