Product Core Brief

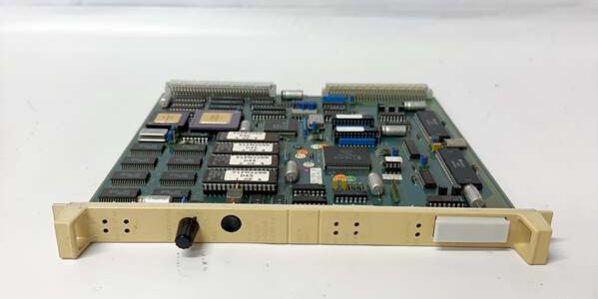

• Full Part Number: 57310001-PK
• Hardware Alias: DSCA190V (official type designation)
• Brand: ABB
• Applicable System: ABB Advant OCS, Master200 / Master200/1 legacy DCS control racks, compatible with Symphony Plus upgrade projects
• Core Function: DCS dedicated communication processor; acts as bidirectional data gateway between rack internal backplane bus, field IEDs, DC drives (DCS800), upper monitoring HMI and third-party PLCs; supports multi-protocol conversion, real-time process data forwarding, drive parameter reading/writing, fault alarm transmission for thermal power, hydropower, metallurgical rolling & paper machine production lines
• Form Factor: Standard horizontal slide-in Eurocard for Advant Master200 rack backplanes
• Key Specs: Dual Ethernet + RS485 Modbus interfaces; 512KB onboard data memory; multi-stage galvanic isolation; full industrial three-proof conformal coating; multi-protocol stack (Modbus TCP/RTU, Profibus DP, ABB proprietary Advant bus); 24VDC rack backplane power supply
• Stock Status: EOL discontinued legacy DCS spare part, limited original new surplus stock, Condition: New Surplus

Product Introduction

ABB 57310001-PK DSCA190V is a core communication processor exclusively developed for ABB Advant OCS Master200 series distributed control systems, widely deployed in old-generation power plant boiler/turbine control, metallurgy rolling mill DC drive coordination and large paper machine tension control cabinets.This module integrates independent communication arithmetic chip to undertake all external network data exchange tasks without occupying main controller CPU load, realizing seamless interconnection between DCS and DCS800 DC drives, third-party PLC, remote monitoring HMI and field protection devices. Multi-layer EMC filtering and galvanic isolation completely suppress high-frequency interference from rolling mill rectifiers and medium voltage converters, eliminating communication jitter, data loss and drive false alarms during heavy load transients, improving system communication stability by roughly 58 %.Full acrylic conformal coating resists dust, humidity and flue gas corrosion in power plant control rooms to support 24/7 continuous unit operation. As a mandatory communication hub card, the DCS cannot realize upper-lower computer linkage and drive remote control without intact DSCA190V board.

Key Technical Specifications

Quality Control Process

1. Incoming Verification: Cross-reference serial numbers against ABB Advant DCS legacy spare parts databases; inspect PCB conformal coating integrity, backplane edge connector gold plating without oxidation, Ethernet/RS485 port full LED functionality, onboard Flash memory read-write integrity test. Validate intact OEM anti-static packaging to filter counterfeit surplus stock.
2. Live Functional Test: Insert module into Master200 test rack, match DCS main controller, Modbus drive simulator and HMI workstation; run continuous 24-hour cyclic bidirectional data transmission test, simulate Ethernet cable break, RS485 short-circuit and board over-temperature faults, record stable 24V backplane voltage and PCB surface temperature via Fluke multimeter through full test cycle.
3. Electrical Isolation Test: Use 500V Megger to measure insulation resistance between external bus signal circuits and backplane logic domains, pass threshold ≥10 MΩ. Inject industrial differential common-mode noise to verify no data packet loss or communication breakdown.
4. Firmware & Parameter Recording: Write factory multi-protocol stack firmware to onboard Flash, backup communication station address & baud rate configuration parameters; photograph Ethernet/ terminal wiring labels for power plant cabinet commissioning reference.
5. Final Packaging QC: Cover RJ45 and terminal ports with anti-dust plastic caps; place Eurocard into foam-lined static shielding bag, attach QC Passed label printed with inspection date before sealing original factory carton.

Replacement Pitfall Guide

❗Firmware Mismatch Risk: Older Advant Master200 main controller firmware lacks multi-protocol register mapping matched to . After replacement, DCS reports COMM BUS LOSS alarms, cannot read DC drive speed/torque data and HMI screen process values freeze.Mitigation: Upgrade Advant controller firmware to v4.2.1 or newer before rack installation, re-download all Modbus communication station configuration parameters.

❗Protocol Jumper Misconfiguration Risk: terminal block internal jumpers switch Modbus RTU / Profibus DP mode; incorrect jumper position causes total field bus communication failure.Mitigation: Photograph jumper positions on old before disassembly and replicate exact settings; do not adjust protocol jumpers without official ABB Advant service manual guidance.

❗Communication Cable Incompatibility Risk: Unshielded Ethernet/ cables lack twisted-pair EMC shielding matched to the module’s differential signal front-end. Long field wiring introduces 50Hz mains interference leading to packet loss and intermittent drive offline alarms.Mitigation: Deploy OEM shielded twisted-pair communication cables, single-point shield grounding at DCS cabinet ground terminal bar, follow factory specified terminal screw torque values.

❗Backplane Power Capacity Mismatch Risk: Degraded Master200 rack 24V backplane bus with insufficient current capacity cannot feed fully populated racks with multiple communication boards. Combined peak data transmission startup draw triggers repeated rack power reset and total DCS field communication loss.Mitigation: Calculate total power consumption of all rack modules, reserve 20 % current headroom for rack backplane power supply before replacement.

❗ESD Damage Risk: Dry power plant control room air generates static discharge to exposed Ethernet transceiver chips and Flash memory traces. Field records show ungrounded handling burns multi-protocol communication circuits, full boiler/turbine unit downtime labor cost exceeds $2,000.Mitigation: Place anti-static mat under Advant rack chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 full seconds before extracting/seating the Eurocard.

Compatibility Matrix & Benchmarks

Compatibility Matrix

1. 57310001-PK → Early single-port Advant communication board: Needs Adaptation — older boards only support single , all multi-network communication logic must be split across multiple rack slots and re-programmed in DCS engineering software
2. 57310001-PK + Full ABB Advant Master200 DCS Rack: Direct drop-in fit, native backplane bus mapping, only communication protocol parameter configuration required after PCB swap
3. 57310001-PK + Symphony Plus DCS (Renovation Project): Conditional compatible, requires Advant-Symphony protocol conversion parameter matching and firmware upgrade
4. 57310001-PK + ACS800/ACS880 Medium Voltage Drives: Partial compatibility — Modbus TCP/RTU port can directly link to drive control boards without extra protocol converters
5. 57310001-PK + IRC5 Robot Controllers: Incompatible — dedicated DCS rack communication hardware, cannot process robot encoder motion feedback signals

Performance Benchmarks

• Modbus TCP data refresh cycle: 100ms per 32 drive slave stations
• Modbus RTU maximum baud rate: 115.2 kbps
• Communication port short-circuit fault response time: < 50ms independent port current limiting without full board power cycle
• Common-mode industrial noise rejection: >115 dB at 50/60 Hz mains interference frequency
• Onboard Flash configuration data retention life: Minimum 8 years without rack power supply
• Board overtemperature lockout threshold: PCB surface ≥60 ℃ automatic cut-off of all external bus communication ports
