Product Core Brief
- Full Part Number: 5SHX1960L0004
- Matching OEM Gate Driver Unit (GDU): 3BHL000390P0104
- Brand: ABB Power Semiconductors (Swiss original)
- Applicable Equipment: Exclusively designed for ABB ACS6000 high-power medium voltage IGCT converters (active front-end AFE rectifier & main inverter phase modules, 15–27MVA high-power frames), applied for mine hoists, large cement kiln main drives, metallurgical rolling mills, water pump & fan heavy-load MV variable frequency systems
- Core Function: Integrated Gate Commutated Thyristor (IGCT) high-voltage high-current power switching element; realize DC-link to AC variable frequency conversion for medium voltage motors, combine GTO’s low conduction loss and IGBT’s fast turn-off performance, eliminate bulky external snubber circuits, reduce system power loss and cabinet volume

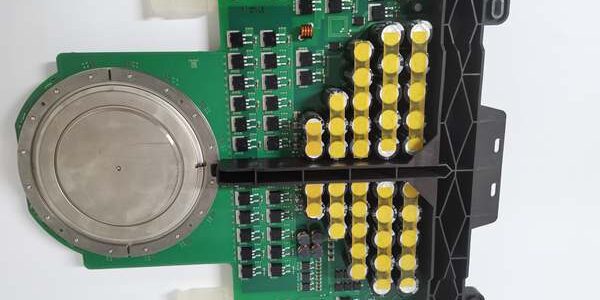

- Package Form: Flat disc press-pack double-sided cooling packaging, direct clamping on phase module water cooling heat sink, paired with dedicated circular ring GDU gate driver PCB
- Key Specs: 6000V repetitive off-state blocking voltage, 1960A rated average on-state current; ultra-fast microsecond-level short-circuit withstand capability; double-sided liquid cooling design; bidirectional fiber optical trigger isolation with matched GDU; EOL discontinued OEM spare, limited original new surplus stock, Condition: New Surplus
Product Introduction
ABB 5SHX1960L0004 is ABB flagship 6kV high-current press-pack IGCT, the core power switching device for high-capacity ACS6000 medium voltage drives above 15MVA, factory matched with dedicated 3BHL000390P0104 gate driver assembly as a complete phase module power unit.Different from low/medium voltage IGCT models, this device adopts large-diameter silicon chip and double-sided flat press-pack structure, ultra-low thermal resistance, supporting long-term full-load continuous water cooling operation under high vibration, high-dust industrial heavy-duty conditions. The integrated commutated gate structure realizes fast safe turn-off without external snubber capacitors, greatly simplifying power stack internal layout and lowering overall converter loss by over 20% compared with traditional GTO thyristor solutions.Supporting GDU 3BHL000390P0104 adopts bidirectional fiber optic communication to fully isolate low-voltage control logic and 6kV high-voltage power stacks, completely suppress high-frequency common-mode switching noise, avoid false overvoltage/overcurrent protection tripping during grid fluctuation and motor heavy load impact. Onboard microsecond-level fast short-circuit protection circuit instantly cuts IGCT gate drive pulses under short-circuit fault, effectively preventing permanent burnout of expensive high-power IGCT chips, drastically reducing unplanned production downtime and maintenance costs for mining, metallurgy and cement heavy industry. Without intact 5SHX1960L0004 IGCT + matching GDU assembly, the ACS6000 high-power drive cannot build DC link voltage and will report POWER STACK FAULT alarm to refuse startup.
Key Technical Specifications
1) 5SHX1960L0004 IGCT Semiconductor Core Parameters
| Parameter | Technical Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 6000 V |
| Rated Average On-State Current (ITAV) | 1960 A |
| Maximum Safe Turn-Off Current (ITGQM) | 1900 A |
| Maximum Allowable Junction Temperature (Tj max) | 150 ℃ |
| Package Form | Large flat disc press-pack, double-sided water cooling clamping structure |
| Standard Operating Switching Frequency | Up to 400Hz continuous, 800Hz burst transient |
| Maximum Sustainable DC Link Operating Voltage | 3600 V DC |
| Typical On-State Voltage Drop | Low Vt for high-efficiency heavy-load operation |
| Total Net Weight (IGCT Only) | ~2.8 kg |
2) Matching GDU 3BHL000390P0104 Gate Driver Board Parameters
| Parameter | Technical Value |
|---|---|
| Auxiliary Operating Supply | 24 V DC ±10 %, max 8 W power consumption |
| Signal Communication Interface | Bidirectional fiber optic transceivers (PWM trigger input + multi-grade fault feedback output) |
| Gate Drive Output Performance | High peak current pulse optimized for 6kV 1960A IGCT switching |
| Internal Circuit | Integrated isolated SMPS gate bias power supply, no external gate power wiring required |
| Protection Response Speed | Short-circuit lockout <1μs; gate undervoltage / PCB overtemperature fault <0.8ms |
| Galvanic Isolation | Complete optical electrical isolation, withstand tens of kV transient high voltage interference |
| PCB Protection | Thickened heavy-duty acrylic conformal coating for mine/cement corrosive cabinet environments |
| Status Indicators | Green POWER OK LED, optical LINK status LED, yellow pre-alarm lamp, red short-circuit FAULT diagnostic lamp |
| Mechanical Mounting | Circular ring PCB fixed directly on ACS6000 high-power phase module water cooling heat sink; power stack must be fully de-energized and discharged before replacement |
| Operating Ambient Range | -25 ℃ ~ +70 ℃ full rated performance; linear performance derating above 65 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃, 5–95 % RH non-condensing |
Exclusive System Compatibility
Only matching high-power frame ABB medium voltage IGCT converters (15–27MVA AFE & inverter phase modules); completely incompatible with ACS1000/ACS2000/ACS800/ACS880 MV drives, UNITROL generator excitation thyristor stacks, Symphony DCS racks, IRC5 robot controller hardware and AC31 PLC systems.
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB high-power semiconductor spare parts databases; inspect IGCT press-pack metal sealing without cracks/deformation, GDU PCB thickened conformal coating intact, fiber socket plastic housing undamaged, all multi-color LED indicators full functionality, fiber transceiver signal transmission integrity test. Verify intact OEM anti-static vacuum packaging to screen counterfeit surplus stock.
- Combined Aging Functional Test: Clamp IGCT+GDU assembly on high-power test water cooling heat sink, connect optical fiber to drive main control signal simulator; run continuous 24-hour cyclic PWM high-speed switching aging test, sequentially simulate fiber disconnection, IGCT short-circuit, GDU overtemperature and gate supply undervoltage faults; record stable 24V auxiliary supply voltage and PCB surface temperature via Fluke multimeter through full test cycle.
- Electrical & Isolation Test: Use 500V Megger to measure insulation resistance between IGCT high-voltage power terminals and GDU low-voltage signal circuits, pass threshold ≥10 MΩ. Inject high differential common-mode industrial noise to verify zero false fault triggering and stable optical communication link.
- Calibration Data Recording: Read factory IGCT short-circuit threshold, gate bias voltage and graded fault calibration parameters via ABB DriveStudio diagnostic software; photograph fiber port layout, IGCT anode/cathode terminal wiring labels for on-site high-power power stack commissioning reference.
- Final Packaging QC: Cover all optical fiber sockets with anti-dust plastic caps, wrap IGCT press-pack metal surface with anti-static insulating film; place full IGCT+GDU assembly into foam-lined static shielding carton, attach QC Passed label printed with inspection date before sealing original factory outer carton.
Replacement Pitfall Guide
❗Drive Firmware Mismatch Risk: Outdated main CPU firmware lacks register mapping matching this 6kV high-current IGCT assembly’s fault detection timing. After replacement, drive continuously reports LINK LOSS or ambiguous OVERCURRENT alarms during startup, cannot close torque control loop normally.Mitigation: Upgrade main control firmware to v7.3.5 or newer before power stack assembly.
❗GDU Jumper Misconfiguration Risk: All gate dead-time, short-circuit detection threshold and gate bias trim jumpers are factory pre-calibrated exclusively for 5SHX1960L0004 6kV IGCT. Unauthorized jumper adjustment will cause IGCT shoot-through catastrophic short-circuit and permanent burnout of the entire high-power phase module power stack.Mitigation: Photograph all jumper positions on old GDU before disassembly and replicate exactly; never modify factory calibration jumpers without official ABB service manual guidance.
❗Optical Fiber Cable Incompatibility Risk: Generic non-OEM optical fiber jumpers have mismatched core diameter or poor end-face polishing, resulting in light attenuation, unstable optical link and intermittent drive tripping under heavy load fluctuations.Mitigation: Only adopt OEM matched fiber optic cables specified for high-power GDU assemblies, maintain fiber bending radius ≥15mm inside power stack, avoid sharp bending and extrusion damage.
❗Cabinet 24V Auxiliary Power Capacity Mismatch Risk: Degraded cabinet internal 24V auxiliary power supply with insufficient output current cannot support multiple high-power IGCT GDU assemblies plus cooling fans simultaneously during drive startup, triggering repeated auxiliary power shutdown and loss of IGCT gate bias voltage.Mitigation: Calculate total power consumption of all internal power stack PCBs, reserve 20% current headroom for cabinet 24V auxiliary power supply before replacement.
❗ESD Damage Risk: Dry mining/cement plant cabinet air generates static discharge to exposed GDU fiber transceiver chips and IGCT sensitive gate structure traces. Field data shows ungrounded handling burns optical signal circuits and semiconductor gate layers, full mine hoist downtime labor cost exceeds $2,600.Mitigation: Place anti-static mat under MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, hold bare cabinet ground metal for 3 full seconds before installing or removing the IGCT+GDU assembly.
Compatibility Matrix & Performance Benchmarks
Compatibility Matrix
- 5SHX1960L0004 + Matching GDU 3BHL000390P0104 → Low-current 4.5kV IGCT assembly: Not interchangeable; different blocking voltage, current rating and GDU protection threshold, cannot direct drop-in replacement, must replace full phase module and re-tune drive parameters
- Full IGCT+GDU Assembly + High-Power Frame (15–27MVA) Medium Voltage IGCT Power Stack: Direct water cooling heat sink mounting fit, native optical signal timing mapping after firmware upgrade, no major drive control logic edits after assembly swap
- This IGCT Unit + ACS800 / ACS880 / ACS1000 / ACS2000 MV Drives: Fully incompatible — different semiconductor voltage grade, current capacity, fiber communication timing and heat sink clamping mechanical structure
- This IGCT Unit + Symphony Plus HR DCS Racks: Partial compatibility — only dry contact fault status signals can be wired to DCS I/O via external 24V isolation relays, no direct optical power stack bus interoperability
- This IGCT Unit + UNITROL Generator Excitation Cabinets: Incompatible — designed exclusively for MV converter AC variable frequency power switching, not excitation rectifier thyristor trigger circuits
Performance Benchmarks
- IGCT short-circuit fault response latency: < 1 μs instantaneous gate cutoff upon overcurrent detection
- Optical signal transmission delay: < 450 ns from control fiber input to IGCT gate drive pulse output
- Gate supply undervoltage fault response time: < 0.8 ms multi-level graded fault flag transmitted back to main CPU
- GDU common-mode high voltage noise rejection: >148 dB at 50/60 Hz industrial mains interference frequency
- GDU overtemperature lockout threshold: PCB surface ≥70 ℃ automatic gate drive shutdown
- IGCT maximum junction temperature protection threshold: 150 ℃ chip temperature trigger drive safe stop
- Press-pack double-sided heat dissipation thermal resistance: Ultra-low thermal resistance, support continuous full-load operation at ambient 40℃ cabinet environment with standard water cooling system
