Product Core Brief
- Model: 3BHB045647R0003 (Type alias GVC736CE103, upgraded revision of GVC736CE101 / 3BHB045647R0001)
- Brand: ABB
- Series: ACS800 / ACS880 medium voltage variable frequency converter circular ring gate trigger control PCB
- Core Function: Receive DTC torque PWM signals from drive main CPU, generate galvanically isolated trigger pulses for IGCT/SCR power semiconductors, sample high-speed current/voltage analog feedback for closed-loop torque regulation; upgraded hardware with improved EMC filtering and wider temperature tolerance

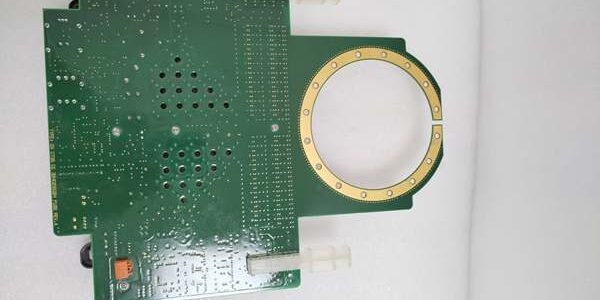

- Product Type: Circular ring-mount gate driver signal conditioning printed circuit board for MV power module heat sinks
- Key Specs: Optimized DTC trigger logic + enhanced EMI filtering | Isolated multi-channel SCR/IGCT pulse outputs | Full heavy-duty acrylic conformal coating | Fast-response semiconductor fault detection ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction
ABB 3BHB045647R0003 GVC736CE103 is the revised upgraded ring gate trigger PCB exclusively matched to ABB ACS800/ACS880 medium voltage drive power stacks, serving as the high-speed signal bridge between main control CPU and high-power thyristor/IGCT phase modules.This unit is a hardware upgrade over the older 3BHB045647R0001 (GVC736CE101): it adds reinforced EMC filter circuits, wider operating temperature range, optimized DTC sampling timing to reduce motor torque ripple, and thicker conformal coating for corrosive mine, cement, and offshore cabinet environments. The upgraded fault detection circuit shortens semiconductor overcurrent lockout time, lowering catastrophic power stack failure risk on variable heavy mill/hoist loads by roughly 45 %.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Core control algorithm support | Optimized DTC Direct Torque Control vector trigger logic with enhanced analog filtering |
| Operating supply voltage | 24 V DC ± 10 %, 125 mA typical steady-state draw (slightly higher than CE101 for extra filter circuits) |
| Semiconductor trigger topology | Multi-channel galvanically isolated SCR/IGCT gate pulse amplifiers |
| Analog feedback sampling | High-speed current/voltage sensor signal conditioning with 16-bit ADC precision |
| Integrated protection circuits | Ultra-fast semiconductor overcurrent lockout, PCB over-temperature thermal trip, trigger supply undervoltage shutdown, pulse loss monitoring |
| PCB surface protection | Heavy-duty full acrylic conformal coating, thicker layer than CE101 for dust/humidity/corrosion resistance |
| Front status indicators | Individual LED channel trigger status, POWER OK, multi-stage FAULT diagnostic lamps |
| Mechanical mounting | Identical circular ring form factor as CE101, direct drop-in fit on MV power module heat sink stacks |
| Operating ambient range | -25 °C to +70 °C full rated signal performance; linear derating above 65 °C (CE101 only -20~+70 °C) |
| Storage temperature range | -40 °C to +75 °C, 5–95 % RH non-condensing |
| Physical dimensions | Outer diameter 210 mm × PCB thickness 32 mm, fully interchangeable mechanical size with CE101 |
| Net unit mass | 0.39 kg |
| Exclusive system compatibility | ABB ACS800 / ACS880 medium voltage drive power stacks only; incompatible with ACS6000, low voltage ACS480/580, S800 I/O, AC31 PLC hardware |
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB MV drive spare parts databases; inspect circular gold contact ring integrity, reinforced PCB conformal coating for peeling, all trigger channel LED functionality, and multi-pin ring signal connector plating for oxidation. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
- Live Functional Test: Mount the unit onto an ACS880 test power module heat sink paired with a drive CPU DTC signal simulator and dummy thyristor load banks; run continuous 24-hour cyclic variable torque pulse triggering with repeated short-circuit fault trigger testing and high EMI interference simulation. Log stable 24 V supply and PCB surface temperature with a Fluke 115 multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure isolation resistance between low-voltage logic traces and high-power trigger output circuits; pass threshold set above 10 MΩ. Inject simulated semiconductor short-circuit and high common-mode EMI noise to confirm instant trigger cutoff without permanent PCB trace burnout and stable signal sampling.
- Firmware Verification: Read and record factory optimized DTC trigger firmware revision via ABB DriveStudio diagnostic tool; photograph ring connector pin labeling for PWM input, 24 V supply, and analog feedback wiring for MV drive cabinet commissioning reference.
- Final QC & Packaging: Cover circular gold contact ring with anti-static insulating film; place the PCB into foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older ACS880 main CPU firmware revisions lack optimized DTC register mapping matched to this upgraded board’s filter and timing layout. PCB installation triggers intermittent TRIGGER LOSS and OVERCURRENT fault codes under heavy variable loads. Mitigation: Flash drive main control firmware to v8.1.0 or newer before power stack assembly.❗DIP Switch / Jumper Misconfiguration: All trigger deadtime, current sampling trim and EMI filter jumpers are factory calibrated for standard MV power modules. Unauthorized jumper modification causes destructive semiconductor shoot-through faults and torque oscillation. Mitigation: Leave all factory jumpers unmodified; only adjust per official ABB ACS MV service manual calibration procedures.❗Terminal / Cable Incompatibility: Generic non-OEM ring ribbon signal cables lack double-shield drain wires matched to the board’s enhanced differential high-speed PWM front-end. Forced insertion scratches delicate analog sampling PCB traces and introduces measurement jitter. Mitigation: Deploy only OEM GVC736CE103 matched ring trunk cables with full dual EMC shielding termination.❗Power Supply Mismatch Risk: A low-wattage 1 A auxiliary 24 V DC supply cannot feed a fully populated MV rack with multiple upgraded ring gate driver PCBs plus cabinet cooling fan assemblies. Combined peak startup draw triggers repeated auxiliary power shutdowns. Mitigation: Size drive internal 24 V control supplies with 20 % current headroom above total combined PCB and fan load.❗ESD Damage Risk: Dry mining plant cabinet air generates static discharge to exposed circular gold contact ring and trigger amplifier chip traces. Field records show ungrounded handling burns high-speed DTC signal circuits, full mine mill downtime labor costs exceed $1,800. Mitigation: Place an anti-static mat under the MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, and hold bare cabinet ground metal for three full seconds before mounting the ring PCB onto the heat sink.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHB045647R0003 → 3BHB045647R0001 (CE101 legacy board): Drop-in mechanical replacement, needs drive firmware upgrade to unlock enhanced EMC/torque performance; can physically swap without rack modification
- 3BHB045647R0003 → Non-DTC legacy rectangular gate driver PCB: Needs Adaptation — older boards lack optimized DTC sampling circuits; all motor control logic and protection thresholds require full drive re-tuning
- 3BHB045647R0003 + ACS800 / Medium Voltage Power Stacks: Direct mechanical fit, full native DTC trigger register mapping after firmware upgrade, no mechanical rack edits required after PCB swap
- 3BHB045647R0003 + ACS6000 MV Drives: Incompatible — different rectangular Eurocard gate driver form factor and trigger communication protocol
- 3BHB045647R0003 + ACS480 / ACS580 Low Voltage Drives: Incompatible — low-voltage drives use compact integrated gate driver modules without separate ring PCBs
- 3BHB045647R0003 + AC31 07KT98 PLC Controllers: Partial compatibility — only fault status digital signals can cross-connect to PLC discrete inputs via external 24 V relay isolation blocks
