Product Core Brief

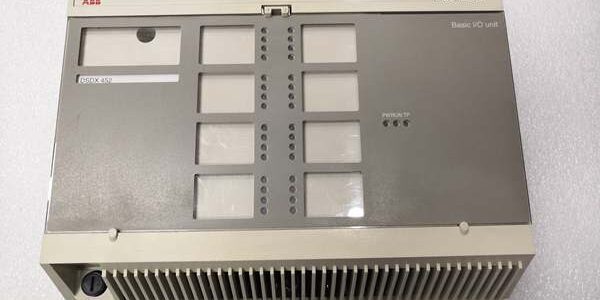

• Model: DSDX452, low-current relay variant DSDX452L
• Brand: ABB
• Series: S400 distributed remote I/O for Advant Master legacy DCS systems
• Core Function: Capture 24VDC discrete field switch feedback and drive relay outputs for solenoids, pump contactors, and safety interlocks via MasterFieldbus serial trunk
• Product Type: Standalone die-cast aluminum DIN rail remote mixed digital I/O unit, integrated front screw terminal blocks
• Key Specs: 20 isolated 24VDC digital inputs | 12 independent relay outputs | 500VAC group isolation | Max 750m fieldbus cable lengthNote: Discontinued legacy remote I/O hardware, stocked inventory is New Surplus with intact factory anti-static packaging.

Key Technical Specifications

• Auxiliary operating supply: 24VDC ±20% DC input, total power consumption ≤44WManualsLib
• Digital input bank: 20-channel single-ended 24VDC sinking contact sensing, 5mA typical input draw per channel
• Relay output ratings (standard ): 24–240V AC/DC, 2A maximum per contact; minimum load 2.5VA / 100mA at 24VDC
• Low-power variant DSDX452L: 200mA max contact load, minimum load 0.05VA / 5mA for small 24VDC solenoids
• Galvanic isolation: Entire I/O bank group separated 500VAC from MasterFieldbus logic circuit
• Fieldbus interface: Isolated two-wire MasterFieldbus serial bus, maximum trunk distance 750m to Advant Master process stationABB Group
• Input filter debounce: Software configurable contact bounce suppression for mechanical limit switches
• Circuit protection: Per-channel transient surge clamping, reverse 24VDC supply blocking, relay flyback suppression diodes
• Continuous operating temperature: -20°C to +60°C full rated load; linear performance derate above 60°C
• Storage environmental limits: -40°C to +85°C, 5%–95% RH non-condensing
• Physical construction: Die-cast aluminum heat sink chassis, TS35 DIN rail mounting
• Unit mass: 2.3kg
• Compliance standards: CE, UL, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Advant Master DCS with AC410 / AC460 process stations; incompatible with Mod300 S100, S800, AC800M, UNITROL platforms

Product Introduction

This all-in-one remote discrete I/O unit combines high-density contact status reading and high-voltage relay actuation for field cabinets positioned far from central Advant Master control rooms. The aluminum chassis dissipates internal heat without auxiliary cooling fans for low-maintenance remote tank and boiler installations.MasterFieldbus two-wire serial cabling consolidates all 32 discrete signal paths into one trunk cable back to the process station, cutting field wiring material and labor costs for geographically spread process equipment.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Advant Master S400 component trace databases; inspect cast chassis for deformation, front terminal screw spring tension, channel LED segment integrity, internal PCB conformal coating for peeling; verify factory static packaging seal remains unbroken for surplus stock.
2. Live Testing: Mount the unit to an S400 field test bench paired with an Advant Master process station simulator, dry contact input signal simulators, and resistive relay load banks up to 2A; run uninterrupted 24-hour cyclic DI state polling and DO relay switching across all channels; use a Fluke 115 to log steady 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between the full digital I/O group and MasterFieldbus logic ground; pass threshold set at >10MΩ insulation resistance; inject reversed 24VDC supply faults to confirm hardware polarity lockout activates without damaging input optocouplers or relay drive semiconductors.
4. Firmware/Config Backup: Record factory MasterFieldbus interface firmware revision via Advant Master configuration software; photograph front terminal pin assignments and document factory debounce filter default values for remote cabinet commissioning reference.
5. Final QC & Packaging: Torque all front field terminal screw connections to OEM torque specifications; enclose the unit in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated Advant Master process station firmware lacks calibrated MasterFieldbus timing profiles for the unit. Fault outcome: Intermittent loss of all remote discrete status readings, untriggered relay actuation during process load transients. Mitigation: Flash matching validated firmware revisions to the AC410/AC460 process station before cabinet power-up; archive compatible firmware files to plant engineering servers.❗Relay Contact Overload Risk: Connecting loads exceeding 2A standard / 200mA low-current rating burns internal relay contacts permanently. Fault outcome: Stuck open or stuck closed interlock signals leading to unplanned process trips. Mitigation: Install intermediate power relays for high-current pump and motor contactor loads.❗Platform Incompatibility Risk: Attempting to deploy the unit on Mod300 S100 or S800 racks creates unsupported bus protocol mismatch and unregulated supply exposure. Fault outcome: No MasterFieldbus communication, burned digital I/O circuit semiconductors, permanent unit failure. Mitigation: Only deploy the unit within Advant Master S400 remote cabinet architectures paired with matching MasterFieldbus process station interfaces.❗Unseparated Power & Signal Wiring Error: Routing high-current AC power cables parallel to MasterFieldbus trunk wiring induces heavy EMI interference. Fault outcome: Cyclic bus communication fault counters that spike during pump/fan startup events. Mitigation: Separate shielded MasterFieldbus wiring and AC power cabling with minimum 120mm physical spacing inside cabinet cable trays per S400 wiring schematics.❗ESD Dangers: Low-humidity remote field cabinet air generates static charge that damages delicate input optocoupler and relay driver integrated circuits on the internal PCB. Field service logs show ungrounded handling creates intermittent fluttering discrete status faults that require multiple diagnostic shifts to isolate. Mitigation: Establish direct contact with bare aluminum chassis ground metal for three full seconds before touching front field terminal blocks or opening the unit’s service access lid.

4-Step Replacement Guide

1. Pre-install: Set the Advant Master process station to manual hold mode to lock all remote interlock logic states; photograph all field valve and pump wiring terminal assignments on the unit’s front terminal block and record current MasterFieldbus node address DIP switch settings for the faulty hardware.
2. Removal: Disconnect every field discrete wiring harness one channel at a time and label conductors; unplug the two-wire MasterFieldbus trunk cable, release DIN rail mounting latches and slide the faulty unit straight off the rail without scraping internal PCB components against cabinet metal framing.
3. Install: Clip the new unit fully onto the TS35 DIN rail and engage the chassis ground contact; replicate every photographed front terminal wiring connection to match channel numbering exactly, reconfigure the DIP switch MasterFieldbus node address to match the original setting, then reattach the MasterFieldbus trunk cable fully seated into the bus terminal port.
4. Power-on Test: Energize 24VDC auxiliary cabinet supply (main process field equipment stays offline for initial validation); toggle simulated open/closed contact signals to all 20 input channels and cycle on/off relay commands to all 12 output channels via the process station simulator, confirm consistent discrete status reporting and reliable relay switching with zero transient fault flags accumulating during 30 minutes of idle channel polling before restoring live remote process interlock logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly swap with Mod300 DSDP140B rack digital output hardware without full DCS point rework?A: No, this unit uses MasterFieldbus serial remote architecture while Mod300 S100 relies on rack backplane ModuleBus. Cross swap requires full remote cabinet wiring rework, bus interface hardware replacement, and complete discrete point database reindexing in Advant configuration software.Q: Does the hardware support hot-swapping while the MasterFieldbus trunk remains energized?A: Hot-swap operation is not OEM-rated or approved. Removing the unit under live bus power creates unfiltered discrete transients that trigger uncontrolled relay energization and unplanned safety interlock trips. Full 24VDC auxiliary power shutdown is mandatory for all unit swaps.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from overloaded relay contacts, ungrounded ESD handling, cross-platform DCS installation, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If a single input optocoupler or relay output channel fails, can individual internal circuit components be repaired on-site?A: Field repair of damaged internal discrete circuits is not recommended for critical remote boiler and tank farm interlock systems. Repaired PCB trace paths degrade group isolation performance and raise risk of unplanned safety trip events; full unit swap is the standard site maintenance procedure.Q: Can multiple units share a single MasterFieldbus two-wire trunk segment for multi-cabinet remote field installations?A: The MasterFieldbus bus supports up to 32 unique node addresses on one unbroken trunk line. Each installed unit must carry a distinct DIP switch node ID to avoid bus conflict events that drop all discrete I/O communication.Q: Is this mixed digital I/O unit rated for Class 1 Div 2 hazardous cabinet deployment inside refinery remote pump MCC rooms?A: No, the open service-lid aluminum chassis design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated I/O enclosures are required for hazardous area remote process installations.Q: What long-term hardware upgrade path exists as this component reaches ABB end-of-support status?A: Modern ABB distributed control deployments use S800 DI810 / DO810 rack modules paired with CI810B AF100 fieldbus interfaces for new cabinet builds. Full Advant Master cabinet migration, remote field wiring rework, and complete discrete channel parameter reconfiguration in the DCS control database are required for a direct functional retrofit.
