Product Core Brief

• Model: DSAO120, order code 57120001-EY, variant DSAO120A (3BSE018293R1)
• Brand: ABB
• Series: S100 rack I/O for Advant Mod300 legacy DCS systems
• Core Function: Convert digital controller setpoints to standard ±10V / 4–20mA analog signals for modulating field valves and dampers

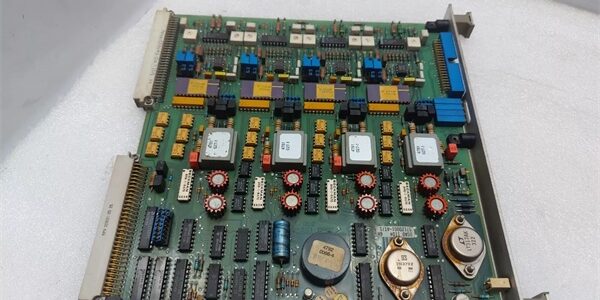

• Product Type: Full-size S100 rack slide-in analog output PCB, paired with DSTA001B connection unit
• Key Specs: 8 independent output channels | 16-bit DAC resolution | Individual channel 500VAC isolation | Modbus RTU supportNote: Discontinued legacy hardware, available inventory is New Surplus with intact factory anti-static packaging.

Key Technical Specifications

• Auxiliary operating supply: 24VDC, ±20% tolerance, total power draw ≤3W
• Configurable output signal ranges: ±10V bipolar voltage, 0–20mA, 4–20mA unipolar current loops
• DAC resolution: 16-bit including sign, maximum full-scale static error ±0.1%
• Galvanic isolation: Separate 500VAC dielectric separation on every single output channel
• Maximum load resistance for mA outputs: 850 Ohms per channel
• Onboard diagnostics: Per-channel short-circuit detection, module undervoltage warning
• Circuit protection: Per-channel self-resetting PTC foldback limiting, reverse supply voltage blocking
• Communication port: Isolated RS485 Modbus RTU for remote parameter configuration
• Hot-swap certification: Rated for live backplane replacement on energized Mod300 S100 racks
• Operating temperature range: -20°C to +60°C full rated load; linear accuracy derate above 60°C
• Storage environmental limits: -40°C to +85°C, 5%–95% RH non-condensing
• Physical dimensions: 324mm D × 27mm W × 234mm H; unit mass 0.46kg
• Compliance standards: CE, UL, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Advant Mod300 S100 racks (AC410/AC460 controllers); incompatible with S800, AC800M, Symphony HR, UNITROL, AC500 platforms

Product Introduction

This high-density analog output rack board translates digital loop setpoints from Mod300 controllers into standard current and voltage signals to position modulating process valves and dampers. Per-channel galvanic isolation eliminates cross-loop signal crosstalk common in multi-valve cabinet wiring bundles.Hardware short-circuit protection prevents permanent DAC damage from field wiring faults, while Modbus RTU access enables remote adjustment of signal range and fail-safe output values without physical rack access.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Mod300 legacy component trace databases; inspect backplane gold edge fingers for oxidation, front channel LED segment integrity, conformal PCB coating for peeling; verify factory static packaging seal remains unbroken for surplus inventory.
2. Live Testing: Mount the unit to a Mod300 rack test bench paired with a controller simulator and adjustable resistive load banks up to 850Ω; run uninterrupted 24-hour cyclic full-range 4–20mA signal generation across all eight channels; use a Fluke 115 to log steady 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between every output channel and rack backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject short-circuit and reversed 24VDC supply faults to confirm hardware lockout activates without damaging DAC semiconductors.
4. Firmware/Config Backup: Record factory Modbus interface firmware revision via Mod300 configuration software; photograph DSTA001B terminal pin layouts and document factory fail-safe output values for site commissioning reference.
5. Final QC & Packaging: Torque all DSTA001B terminal screw connections to OEM torque specifications; enclose the board in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated Mod300 rack controller firmware lacks calibrated DAC timing profiles for the module. Fault outcome: Non-linear analog output ramps, unsteady valve modulation during process load transients. Mitigation: Flash matching validated firmware revisions to the Mod300 CPU before rack power-up; archive compatible firmware files to plant engineering servers.❗Excessive Field Load Resistance Risk: Connecting actuators with total loop resistance above 850Ω clips full-scale 20mA output. Fault outcome: Valves cannot reach full open or closed stroke positions, incomplete process modulation range. Mitigation: Calculate total cable + actuator resistance before loop wiring; add signal repeaters for long trunk runs exceeding resistance limits.❗Platform Incompatibility Risk: Attempting to install the module into S800 or UNITROL racks creates mismatched backplane pinouts and unregulated supply exposure. Fault outcome: Burned DAC output circuits, permanent channel failure. Mitigation: Only deploy the unit within dedicated Mod300 racks paired with DSTA001B connection units.❗Shared Common Rail Wiring Error: Jumping negative return lines across multiple isolated output channels breaks per-channel galvanic separation. Fault outcome: Fluctuating valve position drift when adjacent channels ramp simultaneously. Mitigation: Maintain isolated return wiring for every individual current loop per the DSTA001B wiring schematic.❗ESD Dangers: Low-humidity power plant control room air generates static charge that damages delicate DAC integrated circuits on the PCB. Field service logs show ungrounded handling creates intermittent output offset faults that require multiple calibration passes to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching backplane edge fingers or field terminal blocks.

4-Step Replacement Guide

1. Pre-install: Set the Mod300 controller to manual hold mode to lock all valve setpoints; photograph all 4–20mA actuator loop wiring assignments on the DSTA001B connection unit.
2. Removal: Unlatch the module from the rack slot by releasing retention clips and pulling straight outward off gold backplane contacts; leave all field wiring terminated to the connection unit to eliminate full retermination labor.
3. Install: Align the new unit’s rear backplane contacts with the rack slot and push fully seated until retention clips audibly lock; replicate loop resistance calculations and fail-safe output parameter settings within Mod300 configuration software to match original process requirements.
4. Power-on Test: Energize 24VDC auxiliary rack supply; send full-range 4–20mA setpoint commands to all eight channels via the controller simulator and confirm linear, unclipped output current values with zero short-circuit fault flags accumulating during 30 minutes of idle loop testing before restoring live process control logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly replace the 4-channel DSAO110 analog output hardware without control logic edits?A: No, the module provides double the channel count with a different DSTA terminal pinout layout. Cross swap requires full retermination of all field loop wiring and re-indexing all analog channel point addresses in the Mod300 database.Q: Does hot-swap capability remove the requirement to set the controller to manual hold mode during replacement?A: Hot-swap only protects the module’s internal circuits from power surge damage; it does not maintain steady analog output values during the swap window. Manual hold mode remains mandatory to prevent unplanned valve stroke movement.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from over-resistance field loops, ungrounded ESD handling, cross-platform rack installation, or sustained channel short-circuits is excluded from warranty claims.Q: Can multiple units share a single 24VDC auxiliary power circuit in one Mod300 rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined module power draw. Independent auxiliary feed wiring is recommended for racks with five or more installed analog output modules to eliminate voltage sag during simultaneous full-scale ramping events.Q: Is this analog output module rated for Class 1 Div 2 hazardous cabinet deployment inside refinery MCC rooms?A: No, the open rack slide-in PCB design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated analog I/O enclosures are required for hazardous area process plant installations.Q: What Modbus functions are supported for remote configuration?A: The unit supports Modbus RTU read/write holding register commands to adjust output signal range, fail-safe mA value, and digital filter damping without physical access to the rack cabinet.Q: What long-term upgrade path exists as this component reaches ABB end-of-support status?A: Modern ABB control deployments use S800 AO810 HART-enabled analog output modules for new cabinet builds. Retrofit swaps require full Mod300 rack migration, connection unit wiring rework, and complete analog channel parameter reconfiguration in the DCS control database.
