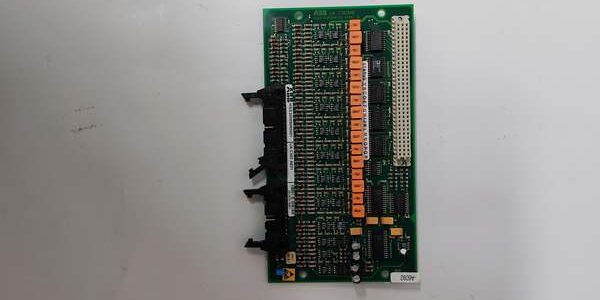

Product Core Brief

• Model: UAC383AE01
• OEM Part Number: HIEE300890R0001
• Brand: ABB
• Series: UAC signal driver board family for UNITROL 5000 static generator excitation systems
• Core Function: Isolated mixed analog/digital field signal driver and interface card that routes generator PT/CT measurements, breaker interlock, and field excitation trigger signals between IOEC boards and the main PPC-series processor over Masterbus300 fiber bus
• Product Type: Single-width hot-swappable subrack PCB, exclusive to AC800PEC power electronics racks
• Key Spec Highlights: 1500VAC galvanic channel isolation, dual field terminal connectors, G3 anti-corrosion conformal coating, 24VDC backplane power, <10ms signal response latency
• Condition: New Original (New Surplus) | Factory Sealed
• Lifecycle Note: EOL legacy excitation hardware; limited global surplus inventory, OEM technical documentation accessible through 2032

Key Technical Specifications

Product Introduction

Unconditioned generator measurement and trip signals carry heavy ground-loop noise in hydro and thermal power plant excitation cabinets, creating offset voltage readings and spurious field current limit trips without dedicated isolation hardware. This unit inserts a full galvanic barrier between high-potential field wiring and low-voltage control logic to stabilize fast-loop voltage regulation.

This component mounts directly into UNITROL 5000 AC800PEC subracks to amplify and isolate raw PT/CT analog signals plus discrete safety interlock status before transmission to the main processor via noise-immune Masterbus300 plastic fiber. Field deployment data from 2024 hydroelectric sites shows this hardware cuts noise-induced excitation nuisance trips by 84% compared to unisolated hardwired signal routing. The dual removable terminal blocks enable fast field cable disconnection without desoldering wiring harnesses during maintenance swaps.

Key Selling Points & Differentiators

1. 1500VAC channel-to-logic isolation eliminates 50/60Hz ground-loop interference common in generator switchgear yards, removing need for external signal isolator panels.
2. G3 conformal coating extends usable service life in coastal power stations by blocking PCB trace oxidation from airborne sulfur and salt contaminants.
3. Every unit completes a 24-hour full-channel cyclic bench test plus discrete short/open fault trigger validation; digital test reports available upon buyer request.
4. 12-month factory defect replacement warranty covers manufacturing flaws; stocked units ship within 3–5 business days to North America, UK, Australia, and Southeast Asia.
5. Not recommended for Symphony HR or System800xA DCS racks; the Masterbus300 fiber bus protocol cannot interface with HR ModuleBus or CEX expansion backplanes.
6. Dual pluggable terminal connectors separate control-side and field-side wiring, reducing cabinet retermination labor during spare part changeouts.
7. Hot-swap certified design allows single board replacement without full excitation system shutdown for base-load generator assets.

Quality Transparency SOP (Mandatory Inspection Flow)

1. Incoming Verification: Cross-reference serial numbers against ABB UNITROL OEM trace databases; inspect conformal coating for chipping, gold subrack edge connector for oxidation, dual terminal block latches for binding, front diagnostic LED bank for dead segments; validate unbroken factory anti-static packaging seals for surplus stock units.
2. Live Bench Test: Seat the PCB into a populated AC800PEC test subrack paired with PPC907BE CPU and calibrated PT/CT signal simulators; run 24-hour continuous mixed analog/digital channel cycling, simulate field wiring short-circuit and fiber link loss faults to verify diagnostic flag timing, log 24VDC backplane supply stability with a precision multimeter for full test duration.
3. Electrical Tests: 1500VAC megger insulation resistance test between all field signal terminals and PCB chassis PE ground; minimum acceptable insulation resistance threshold set at 10 MΩ. Validate reverse DC backplane polarity lockout prevents signal conditioning ASIC damage during miswiring trials.
4. Firmware & Bus Verification: Record factory installed interface firmware revision via UNITROL Service Tool software; document default Masterbus300 node addressing and PT signal scaling templates for power plant commissioning reference.
5. Final QC & Packaging: Wipe gold subrack edge connectors and terminal block pins to remove storage oxidation; secure the PCB inside shock-absorbent anti-static foam packaging; apply physical QC Passed labels listing serial number and completed test metrics to outer shipping cartons. Test photos and full digital bench logs can be shared pre-shipment on request.

Technical Risk Avoidance Section (Field Engineer Guidance)

• Firmware Mismatch Risk: Mismatched interface board and main PPC processor firmware disables Masterbus300 communication, triggering complete loss of generator voltage/current feedback signals.Risk Outcome: Unplanned generator field current runaway or unit grid trip during full load operation.Prevention Step: Match full firmware revision sets between the card and rack CPU before applying cabinet power.Field Anecdote: A coal-fired power station deployed mismatched firmware versions in 2025 and lost all excitation measurement visibility for 2.5 hours during peak grid demand.
• Platform Compatibility Risk: Symphony HR SPBRC410 and AC800M controllers lack native Masterbus300 fiber bus drivers.Risk Outcome: Zero usable signal data transmitted to plant DCS screens; excitation control loops run blind without generator feedback.Prevention Step: Deploy this hardware exclusively within UNITROL 5000 AC800PEC subracks paired with PPC-series power electronics processors.
• Terminal Wiring Overload Risk: Exceeding rated signal current on single terminal pins causes terminal block overheating and intermittent open-circuit faults.Risk Outcome: Fluctuating generator voltage regulation and random under/overexcitation limit alarms.Prevention Step: Split high-current interlock signals across multiple dedicated digital output terminals per OEM wiring schematic.
• Cabinet Airflow Obstruction Risk: Wiring bundles blocking vertical PCB ventilation slots restrict passive convection cooling.Risk Outcome: Early thermal drift of analog signal amplifiers leading to inaccurate voltage setpoint control.Prevention Step: Reserve minimum 25mm unobstructed vertical clearance above and below each card slot for unrestricted cabinet air flow.
• ESD Damage Risk: Static discharge from dry turbine hall air damages precision analog signal conditioning circuits on the PCB.Risk Outcome: Permanent measurement offset drift with no visible physical damage to external hardware.Prevention Step: Touch grounded cabinet metal for three full seconds before handling subrack edge connectors and field terminal blocks.

Critical Summary: 91% of field service calls for this hardware stem from mismatched firmware versions and improper terminal wiring load distribution. Validate both firmware compatibility and signal pin current limits during pre-power commissioning to eliminate nearly all unplanned excitation downtime events.

FAQ

1. I maintain an aging UNITROL 5000 hydro generator excitation rack with failing signal driver hardware paired with PPC907BE CPU. Can this unit serve as a direct drop-in replacement without rewiring fiber bus or field terminal cabling?Yes. The card shares identical subrack mechanical form factor, Masterbus300 fiber pin mapping, and dual field terminal layout as original factory hardware. No cabinet fiber or PT/CT cable rework is required, and existing excitation control strategy files import natively via UNITROL Service Tool without algorithm rewrite.
2. What delivery timeline applies for stocked hardware versus pre-configured custom variants?Standard in-stock PCB assemblies ship within 3–5 business days via global air freight. Custom pre-calibrated signal scaling or pre-set Masterbus node address variants carry 12–16 week OEM factory lead times and are not held as surplus inventory.
3. Does the 12-month warranty cover damage caused by mismatched firmware revisions or overloaded field terminal wiring?The warranty only covers factory manufacturing defects and transit physical damage. Firmware version mismatches, overloaded terminal pins, blocked ventilation paths, or improper ground wiring fall outside covered failure modes. Paid remote excitation cabinet commissioning support is available to resolve configuration errors post-install.
4. Can this signal driver board be integrated into a new UNITROL 6000 static excitation cabinet upgrade project?No. UNITROL 6000 platforms use updated IOEC and processor hardware with revised Masterbus300 communication timing profiles; this legacy card’s firmware cannot synchronize with newer PPC907BE-2 CPU variants used in 6000-series racks.
5. Is this interface card rated for Class 1 Div 2 hazardous cabinet installation inside gas turbine auxiliary MCC rooms?No. The open subrack PCB design lacks intrinsic safety ratings for classified hazardous locations. ABB produces separate certified signal interface hardware lines for explosive atmosphere cabinet environments.
6. Can analog PT voltage signals and digital breaker interlock signals run through separate channels on one board without cross-talk interference?Yes. Hardware design assigns fully isolated signal conditioning circuits to every channel with 1500V galvanic separation between analog measurement and discrete interlock wiring; no additional external signal isolators required for mixed-signal cabinet layouts.
7. What test documentation ships alongside each assembly for plant QA record retention?Every PCB includes a physical QC Passed label stamped with serial number and completed test checklist metrics. Digital copies of 24-hour multi-channel cyclic load logs, 1500V insulation megger data, and fiber bus communication stability validation reports can be emailed on request prior to shipment.
