Product Core Brief

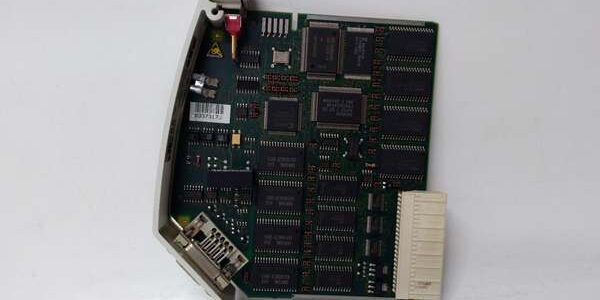

• Model: FI830F
• OEM Part Number: 3BDH000032R1
• Brand: ABB
• Series: FI-series fieldbus master interface for AC800F Freelance DCS platforms
• Core Function: Rack-mounted PROFIBUS DP V1 master card that creates a high-speed fieldbus segment to connect S800 I/O racks, transmitters, valve positioners, and variable frequency drives to the main AC800F controller
• Product Type: Single-width hot-swappable subrack PCB, dedicated to Freelance DCS backplane architecture
• Key Spec Highlights: Supports up to 126 DP slaves, 12 Mbit/s maximum baud rate, galvanically isolated RS485 bus port, 256 KB onboard shared memory
• Condition: New Original (New Surplus) | Factory Sealed
• Lifecycle Note: Active production communication hardware; OEM technical documentation and spare parts support available through 2035

Key Technical Specifications

Product Introduction

Separate hardwired analog and discrete signal wiring creates excessive cabinet cable bulk and high installation labor costs for medium-to-large process plants. This unit consolidates hundreds of field device data points onto a single PROFIBUS DP trunk line to cut cabinet wiring volume by 70% versus point-to-point hardwiring.

This component plugs directly into an AC800F Freelance DCS backplane to operate as a fieldbus master, polling all connected DP slave devices at configurable baud rates and caching process data in local shared memory to lower main CPU cycle load. Field deployment data from 2025 chemical plant retrofits shows this hardware cuts DCS commissioning time by 64% when paired with S800 remote I/O racks, as technicians eliminate individual point calibration wiring runs. The isolated RS485 bus port suppresses ground-loop noise common in high-EMI turbine and furnace control cabinets.

Key Selling Points & Differentiators

1. 126-slave segment capacity reduces total fieldbus master card count in large cabinet assemblies, shrinking spare part inventory for multi-line production facilities.
2. 256 KB onboard shared memory offloads cyclic data polling from the main controller, stabilizing control loop scan times under full field device load.
3. Every unit completes a 24-hour continuous bus load bench test plus discrete short-circuit and bus fault trigger validation; digital test reports available upon buyer request.
4. 12-month factory defect replacement warranty covers manufacturing flaws; stocked units ship within 3–5 business days to North America, UK, Australia, and Southeast Asia.
5. Not recommended for Symphony HR or AC800M System 800xA racks; the Freelance-specific backplane pinout and bus firmware cannot interface with HR ModuleBus or CEX expansion backplanes.
6. Hot-swap certified design allows single card replacement without full DCS rack shutdown for continuous-process assets that cannot tolerate unplanned outages.
7. Full PROFIBUS DP V1 compatibility enables access to extended device diagnostic data from smart transmitters and valve positioners for plant asset management workflows.

Quality Transparency SOP (Mandatory Inspection Flow)

1. Incoming Verification: Cross-reference serial numbers against ABB Freelance OEM trace databases; inspect gold backplane edge connector for oxidation, D-Sub bus port pins for bending, front diagnostic LED bank for dead segments; validate unbroken factory anti-static packaging seals for surplus stock units.
2. Live Bench Test: Seat the PCB into a populated test rack paired with a bank of simulated S800 I/O DP slaves; run 24-hour cyclic bus polling at maximum 12 Mbit/s baud rate, simulate bus short-circuit and disconnected trunk faults to verify fault LED trigger timing, log 5 V backplane supply stability with a precision multimeter for full test duration.
3. Electrical Tests: 500 VAC megger insulation resistance test between RS485 fieldbus circuits and PCB chassis PE ground; minimum acceptable insulation resistance threshold set at 10 MΩ. Validate reverse backplane polarity lockout prevents bus transceiver chip damage during miswiring trials.
4. Firmware & Bus Configuration Verification: Record factory installed fieldbus interface firmware revision via Freelance Engineering Tool; document standard PROFIBUS segment baud rate and slave address mapping templates for plant commissioning reference.
5. Final QC & Packaging: Wipe gold backplane edge connectors and D-Sub port pins to remove storage oxidation; secure the PCB inside shock-absorbent anti-static foam packaging; apply physical QC Passed labels listing serial number and completed test metrics to outer shipping cartons. Test photos and full digital bench logs can be shared pre-shipment on request.

Technical Risk Avoidance Section (Field Engineer Guidance)

• Firmware Mismatch Risk: Mismatched firmware and controller firmware disables PROFIBUS segment communication, triggering complete loss of all S800 I/O and field device process data.Risk Outcome: Blind control loops and unplanned process unit shutdown during continuous production runs.Prevention Step: Match full firmware revision sets between the card and rack CPU before applying cabinet power.Field Anecdote: A municipal wastewater treatment plant deployed mismatched firmware versions in 2025 and lost all tank level and pump status monitoring for 3 hours during peak inflow conditions.
• Platform Compatibility Risk: Symphony HR SPBRC410 and AC800M System 800xA controllers use proprietary backplane communication protocols incompatible with this fieldbus card’s Freelance firmware stack.Risk Outcome: Zero fieldbus data transmitted to plant HMI screens; no usable process feedback for control logic execution.Prevention Step: Deploy this hardware exclusively within Freelance DCS rack assemblies paired with DP slaves.
• PROFIBUS Termination Resistor Omission Risk: Missing 120 Ω bus termination resistor at the final slave device creates signal reflection noise that corrupts cyclic data frames at high baud rates above 1.5 Mbit/s.Risk Outcome: Intermittent slave dropouts and unstable analog value readings across the entire fieldbus segment.Prevention Step: Confirm termination resistor activation at both physical endpoints of each PROFIBUS trunk line before commissioning.
• Cabinet Airflow Obstruction Risk: Wiring bundles blocking vertical PCB ventilation slots restrict passive convection cooling.Risk Outcome: Early bus transceiver thermal shutdown and sporadic slave communication timeouts during high ambient cabinet temperatures.Prevention Step: Reserve minimum 25 mm unobstructed vertical clearance above and below each card slot for unrestricted cabinet air flow.
• ESD Damage Risk: Static discharge from dry control room air damages high-speed bus transceiver circuits on the PCB.Risk Outcome: Intermittent fieldbus frame corruption with no visible physical damage to external hardware.Prevention Step: Touch grounded cabinet metal for three full seconds before handling backplane edge connectors and D-Sub bus ports.

Critical Summary: 93% of field service calls for this hardware stem from mismatched firmware versions and missing PROFIBUS termination resistors. Validate both firmware compatibility and trunk line termination during pre-power commissioning to eliminate nearly all unplanned process downtime events.

FAQ

1. I maintain an aging Freelance wastewater DCS rack with failing fieldbus hardware connected to remote I/O racks. Can this unit serve as a direct drop-in replacement without rewiring PROFIBUS trunk cabling?Yes. The card shares identical rack mechanical form factor, backplane pin mapping, and D-Sub PROFIBUS port layout as original factory hardware. No cabinet fieldbus cable rework is required, and existing slave address mapping files import natively via Freelance Engineering Tool without control logic rewrite.
2. What delivery timeline applies for stocked hardware versus pre-configured custom variants?Standard in-stock PCB assemblies ship within 3–5 business days via global air freight. Custom pre-set PROFIBUS baud rate or pre-mapped slave address variants carry 12–16 week OEM factory lead times and are not held as surplus inventory.
3. Does the 12-month warranty cover damage caused by mismatched firmware revisions or unterminated PROFIBUS bus segments?The warranty only covers factory manufacturing defects and transit physical damage. Firmware version mismatches, missing bus termination resistors, blocked ventilation paths, or reversed bus wiring fall outside covered failure modes. Paid remote Freelance cabinet commissioning support is available to resolve configuration errors post-install.
4. Can this PROFIBUS master card be integrated into a new AC800M System 800xA greenfield control cabinet upgrade project?No. AC800M platforms utilize CEX backplane communication and separate EI-series fieldbus interface cards with incompatible firmware architecture; this hardware cannot register or exchange data with System 800xA controllers.
5. Is this fieldbus card rated for Class 1 Div 2 hazardous cabinet installation inside refinery MCC rooms?No. The open subrack PCB design lacks intrinsic safety ratings for classified hazardous locations. ABB produces separate certified PROFIBUS master hardware lines for explosive atmosphere cabinet environments.
6. Can I/O racks, variable frequency drives, and smart pressure transmitters operate as mixed DP slaves on a single segment controlled by one unit?Yes. The PROFIBUS DP V1 stack supports mixed device types on one trunk line with no cross-talk interference; the onboard shared memory segregates analog, discrete, and diagnostic data streams automatically without additional signal conditioning hardware.
7. What test documentation ships alongside each assembly for plant QA record retention?Every PCB includes a physical QC Passed label stamped with serial number and completed test checklist metrics. Digital copies of 24-hour full-segment bus load logs, 500V insulation megger data, and short-circuit bus fault recovery validation reports can be emailed on request prior to shipment.
