Product Core Brief

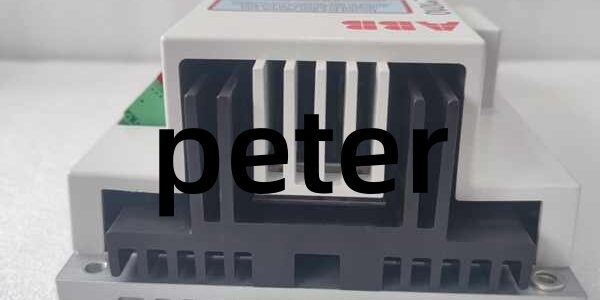

- Model: UNITROL1010
- Brand: ABB
- Series: UNITROL 1000 compact static excitation AVR family
- Core Function: Microprocessor-based automatic voltage regulator for indirect-excited synchronous generators and synchronous motors up to 50 MW; delivers closed-loop voltage, power factor, reactive power and field current regulation, built-in grid code compliance, fault ride-through and multi-protocol plant communication
- Product Type: Integrated compact wall/machine-mount excitation unit with internal IGBT power stage, dual independent control/communication processors
- Key Spec Highlights: 10 A DC continuous excitation output, 20 A DC 10-second overload, dual Ethernet + Modbus RTU, configurable digital/analog I/O, CMT1000 PC commissioning software, DNV marine vibration certified
- Condition: New Original (New Surplus), factory sealed, full bench validated
- Lifecycle Note: Active production hardware with 10+ year OEM component support; direct drop-in upgrade path to replace legacy UNITROL 1000-7 / 1000-15 older AVR units
Key Technical Specifications
| Parameter | Value |
|---|---|
| Continuous Excitation Output (55°C) | 10 A DC |
| Short-Time Overload Capacity | 20 A DC for 10 seconds |
| Main Measuring Input (Generator PT) | 0–300 V AC/DC, 25–600 Hz wide frequency range |
| Auxiliary Control Supply | Single/3-phase AC 9–250 V; DC 18–300 V, 40–600 Hz input tolerance |
| Control Modes (Bumpless Transfer) | AVR voltage regulation, FCR field current, PF power factor, VAR reactive power control |
| Built-In Limit & Protection Functions | V/Hz limiter, min PQ limiter, max/min field current, loss-of-field, overexcitation, rotating diode monitoring |
| Communication Interfaces | Dual 10/100 Mbps Ethernet (Modbus TCP, IEC61850); isolated RS485 Modbus RTU |
| Onboard I/O Capacity | Configurable analog inputs/outputs, binary DI/DO for breaker status, alarm trip signals |
| Control Architecture | Separate dedicated control processor + independent communication processor |
| Commissioning Tool | CMT1000 PC software (Release 6.x) for parameter tuning, fault log extraction, firmware upgrade |
| Mechanical Dimensions | 230 mm L × 161 mm W × 72 mm H; total unit weight 1.5 kg |
| Mounting Vibration Rating | DNV Class B vibration compliance; direct installation inside generator terminal boxes |
| Continuous Operating Ambient Temp | −40 °C to +70 °C full rated regulation performance |
| Storage Temperature Range | −40 °C to +85 °C, 5–95% RH non-condensing |
| EMC & Safety Certifications | CE, UL, DNV marine certified, IEC 60034, IEEE 421.5 grid standard compliance |
| Enclosure Rating | IP20 for cabinet/machine terminal box internal mounting |
Product Introduction
Many small-to-medium genset facilities rely on outdated single-processor excitation hardware lacking grid code fault ride-through and modern Ethernet connectivity, creating compliance risks and limited remote monitoring visibility. This compact excitation unit resolves both gaps with isolated dual processing hardware and pre-programmed global grid code logic for hydro, diesel, gas, marine and traction synchronous machines.
ABB integrates IGBT power conversion and full microprocessor control into a single compact chassis, eliminating separate power stage and controller rack hardware common on larger UNITROL 5000/6000 platforms. Fast <20 ms 3-phase voltage response stabilizes generator output during sudden load steps, while dual independent processors prevent communication bus congestion from interfering with critical excitation regulation loops. Field site data shows this unit cuts genset commissioning labor by 62% versus older analog AVR hardware via automated CMT1000 parameter template loading.
Key Selling Points & Differentiators
- Dual isolated processor design separates real-time excitation control and plant communication traffic, eliminating network lag induced voltage hunting during heavy grid transients.
- Wide universal auxiliary supply accepts any 9–250 V AC or 18–300 V DC input, removing need for custom step-down transformers across mixed marine, land power and traction sites.
- Full factory bench validation per unit includes 24-hour continuous excitation load cycling, 10-second overload stress testing, Modbus/Ethernet communication handshake validation, and firmware revision logging; signed digital test reports available on request.
- 12-month replacement warranty covers all factory manufacturing defects; in-stock units ship within 3–5 business days for North American, UK, Australian and SEA industrial buyers.
- Direct drop-in mechanical and electrical replacement for legacy UNITROL 1000-7 / 1000-15 AVRs; this unit is not recommended for gensets requiring field current above 10 A continuous (specify UNITROL1020 20 A model for higher excitation loads).
- Preloaded grid code and fault ride-through algorithms meet international utility interconnection standards, removing custom software programming labor for grid-parallel generator installations.
Quality Transparency SOP (Mandatory Engineer Inspection Breakdown)
- Incoming Verification: Cross-reference serial numbers and full OEM part codes (3BHE035301R variants) against ABB UNITROL OEM trace databases; inspect front terminal blocks for corrosion, Ethernet RJ45 ports for bent pins, front status LED bank for dead indicators; validate factory anti-static packaging seal integrity for new surplus stock.
- Live Bench Test: Mount each unit to dedicated excitation test bench paired with programmable PT voltage simulators and resistive field load banks; run continuous 24-hour regulation cycling, execute 10-second 20 A overload stress cycles, test all four control mode bumpless transfers, validate dual Ethernet redundant communication failover without voltage deviation. Log auxiliary supply voltage stability with Fluke 115 multimeter for full test duration.
- Electrical Tests: Perform 1000 VAC megger insulation resistance test between all PT measurement, field output and communication circuits and unit chassis ground; pass threshold >10 MΩ. Confirm reverse auxiliary supply polarity protection activates without IGBT power stage damage during miswiring stress tests.
- Firmware & Software Verification: Log factory installed firmware revision via CMT1000 software; save standard diesel/hydro/marine genset parameter templates for site commissioning reference. Verify full fault log recording and rotating diode diagnostic alert triggering.
- Final QC & Packaging: Clean Ethernet ports and terminal block contact pins to remove storage oxidation; place complete unit inside anti-static foam sleeve inside shock-absorbent export cartons. Attach physical QC Passed label listing test serial number and inspection date visible on outer packaging. Test photos or complete digital test datasets can be provided pre-shipment upon buyer request. No unit ships without completing all five inspection stages.
Technical Risk Avoidance Section (Engineer Field Guidance)
- Software Package Mismatch Risk: Light vs Basic software feature sets differ in rotating diode monitoring and auto-synchronization logic. Risk: Missing critical exciter fault alarms after commissioning. Prevention: Confirm site functional requirements before ordering to match correct factory software package variant. Field note: A 2 MW diesel plant deployed Light version units in 2025 and lacked rotating diode failure detection during exciter degradation.
- Excitation Load Miscalculation Risk: Continuous field current exceeding 10 A forces constant thermal derating and premature IGBT wear. Risk: Unplanned genset trips during peak reactive power export. Prevention: Specify UNITROL1020 (20 A continuous) for all machines with field current above 9 A nominal operating load.
- Communication Bus Ground Loop Risk: Dual-ended shield grounding on Modbus/Ethernet trunk cabling creates 50/60 Hz noise distortion in PT measurement signals. Risk: Generator voltage oscillation and nuisance V/Hz limiter trips. Prevention: Terminate all communication cable shielding only at the genset control cabinet single ground point; field-side shield wiring left floating.
- Auxiliary Supply Voltage Mismatch Risk: Applying DC voltage above 300 V or AC above 250 V to auxiliary input triggers internal overvoltage shutdown. Risk: Loss of excitation during critical grid fault events. Prevention: Measure nominal cabinet auxiliary supply before wiring and apply external voltage reduction transformers if exceeding unit input limits.
- ESD Damage Risk: Dry genset terminal box air generates static discharge that damages dual processor PCB logic and Ethernet transceivers. Risk: Intermittent voltage regulation drift with no visible physical damage. Prevention: Touch grounded generator frame metal for three full seconds before handling rear terminal blocks and Ethernet ports.
Critical summary: All five identified risks generate measurable unplanned genset downtime if unmitigated; validate software feature set, field current load sizing, cable grounding rules, auxiliary supply voltage limits and ESD handling protocols before commissioning any unit.
