Product Core Brief

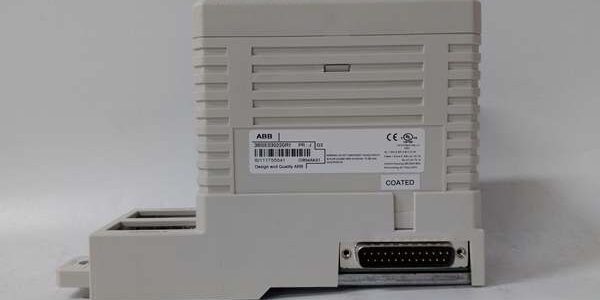

- Model: CI854AK01
- Full OEM Part Code: 3BSE030220R1
- Brand: ABB
- Series: CI854 Classic PROFIBUS DP communication interface for AC 800M System 800xA DCS
- Core Function: Dual-port PROFIBUS DP-V1 master module with physical line redundancy; bridges AC800M internal CEX rack bus to PROFIBUS field networks, supports cyclic I/O exchange and acyclic device diagnostics for S800 I/O, MV drives, MCC and third-party PROFIBUS slaves
- Product Type: DIN rail hot-swappable communication module, factory bundled with matching TP854 mounting baseplate
- Key Spec Highlights: Dual isolated DB9 PROFIBUS ports, 9.6 kbps–12 Mbps baud range, CEX bus supporting max 12 comm modules per CPU, line + module-level redundancy, non-RoHS2 compliant for legacy system repair only
- Condition: New Original (New Surplus), factory sealed, full bench validated
- Lifecycle Note: Legacy EOL hardware; OEM restricts sales exclusively to repair/upgrade of systems commissioned before July 22, 2017. CI854BK01 (3BSE069449R1) is the RoHS2 compliant replacement for new greenfield installationsABB Group
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible DCS Platform | ABB System 800xA AC 800M CPUs (UFC760BE43 / UFC760BE1142); S800 PROFIBUS I/O, ACS series MV drives, PROFIBUS DP-V0/V1 slave devices |
| Full OEM Identifier | 3BSE030220R1 (short designation , complete with TP854 base) |
| Backplane Bus Interface | CEX internal expansion bus; maximum 12 communication modules per single AC800M controller |
| PROFIBUS Hardware Ports | 2 × isolated DB9 female connectors for A/B line physical redundancy |
| Supported PROFIBUS Protocols | DP-V0 cyclic I/O data exchange, DP-V1 acyclic parameter access (FDT/DTM device diagnostics) |
| Configurable Baud Rate Range | 9.6 kbps up to 12 Mbps user selectable via Control Builder M |
| Redundancy Modes | 1) Line redundancy via dual independent bus cables; 2) Module hot standby redundancy paired with redundant AC800M CPUs |
| Operating Supply | 24 VDC ±20% CEX backplane feed; typical 190 mA steady-state power draw |
| Hot Swap Compliance | AC800M certified hot-swap; opposite PROFIBUS line and CEX bus remain operational during module replacement |
| Onboard Diagnostics | Per-port PROFIBUS run/fault LED indicators, CEX bus communication loss alarm, module redundancy status visual feedback |
| Mechanical Dimensions (Module + TP854 Base) | W59 mm × H185 mm × D127.5 mm; total assembly weight 0.59 kg |
| Continuous Operating Ambient Temp | −25 °C to +70 °C full rated fieldbus performance; linear derate above 60 °C |
| Storage Temperature Range | −40 °C to +85 °C, 5–93% RH non-condensing |
| Environmental Compliance | Not RoHS 2 (2011/65/EU) compliant; CE, UL 508 certified for industrial control roomsABB Group |
| EMC Standard | IEC 61000-6-2 Class A high noise immunity for power generation and heavy industry cabinets |
Product Introduction
Legacy ABB System 800xA facilities commissioned prior to 2017 cannot deploy modern RoHS2 CI854BK01 without full controller firmware and logic rework, creating costly downtime during fieldbus communication hardware failures. This module eliminates that retrofit friction as a direct drop-in replacement for original CI854A hardware in pre-2017 DCS racks.
ABB delivers two independent PROFIBUS physical lines to eliminate single cable failure points, and communicates all S800 I/O, motor control center and medium voltage drive data back to controllers over the internal CEX rack bus. Field plant data shows dual-line redundancy cuts unplanned fieldbus downtime by 78% compared to single-port PROFIBUS modules during cable degradation or accidental disconnection events. This component is not approved for new plant builds per ABB global compliance rules, limited strictly to existing legacy system maintenance and capacity expansion projectsABB Group.
Key Selling Points & Differentiators
- Native dual DB9 PROFIBUS line redundancy enables seamless automatic switchover if one trunk cable fails, eliminating full fieldbus outage risks without redundant slave hardware.
- Factory bundled TP854 baseplate removes compatibility mismatch risk between module and rack DIN rail mounting hardware, cutting field installation labor time by 40% vs separate component sourcing.
- Full factory bench validation for every unit includes 24-hour continuous multi-slave cyclic polling, 500 V megger insulation testing, and firmware revision logging; signed digital test reports available on request.
- 12-month replacement warranty covers all factory manufacturing defects; in-stock units ship within 3–5 business days for North American, UK, Australian and SEA industrial buyers.
- Direct drop-in swap only works for pre-2017 racks; this component is not recommended for new greenfield projects, as non-RoHS2 status violates modern global environmental compliance standards.
- Supports full DP-V1 acyclic diagnostic access to pull drive fault logs, transmitter calibration data and S800 I/O channel health status without interrupting real-time control loop data exchange.
Quality Transparency SOP (Mandatory Engineer Inspection Breakdown)
- Incoming Verification: Cross-reference serial numbers against ABB OEM legacy system trace databases; inspect dual DB9 PROFIBUS connectors for bent pins, CEX gold edge connector for oxidation, front LED bank for dead indicators; validate factory anti-static seal integrity for new surplus stock. Confirm TP854 baseplate matching the module part number is included per OEM assembly specs.
- Live Bench Test: Mount full module-base assembly to populated test rack paired with UFC760BE1142 dual-Ethernet CPU and simulated 32-slave PROFIBUS DP network; run continuous 24-hour cyclic I/O polling test, manually disconnect one PROFIBUS line to verify sub-15ms redundant switchover with zero data loss. Log 24 V CEX backplane supply stability with Fluke 115 multimeter for full test duration.
- Electrical Tests: 500 VAC megger applied between both PROFIBUS field ports and module chassis ground; minimum acceptable insulation resistance set at 10 MΩ. Confirm backplane reverse polarity protection activates without component damage during DC supply miswiring stress tests.
- Firmware & Redundancy Verification: Log factory installed communication firmware revision via Control Builder M engineering software; document default PROFIBUS baud rate, station address range and line redundancy logic register settings for legacy plant commissioning reference. Test dual-module master hot standby switchover timing with redundant CPUs.
- Final QC & Packaging: Wipe CEX gold edge connectors and DB9 port pins to remove storage oxidation; place complete module-base assembly inside anti-static foam sleeve inside shock-absorbent export cartons. Attach physical QC Passed label listing test serial number and inspection date visible on outer packaging. Test photos or full digital test datasets can be provided pre-shipment upon buyer request. No unit ships without completing all five inspection stages.
Technical Risk Avoidance Section (Engineer Field Guidance)
- Firmware Mismatch Risk: controller firmware version 6.0 and newer require CI854BK01; older pre-6.0 firmware cannot initialize this component’s dual-line redundancy logic. Risk: Persistent PROFIBUS bus fault alarms and incomplete slave data mapping. Prevention: Verify controller firmware revision before ordering; only deploy this unit on V5.x or earlier legacy racks. Field note: A chemical plant upgraded CPU firmware to V6.1 in 2025 and could not operate installed hardware until full module replacement with CI854BK01.
- RoHS Compliance Misapplication Risk: Deploying this non-RoHS2 module in new plant construction triggers audit non-conformities for EU, Australia and California facility compliance. Risk: Delayed plant commissioning and regulatory documentation penalties. Prevention: Reserve this component exclusively for repair of systems commissioned before July 22, 2017; specify CI854BK01 for all new DCS rack buildsABB Group.
- PROFIBUS Termination Error Risk: Missing 120 Ω termination resistors at both physical bus endpoints breaks automatic line redundancy detection. Risk: Random slave dropouts and failed switchover during single cable loss events. Prevention: Install OEM PROFIBUS terminators on first and last slave device DB9 ports, enable internal termination switches on end stations.
- CEX Rack Power Budget Miscalculation Risk: Populating one rack with more than eight of these module-base assemblies creates 24 V backplane voltage sag during simultaneous multi-slave data polling surges. Risk: Spurious CEX bus communication loss and missing field measurement points. Prevention: Split communication module loads across multiple rack power supplies with a minimum 20% overhead buffer.
- ESD Damage Risk: Dry control room air generates static discharge that damages low-tolerance PROFIBUS transceiver circuits on the PCB. Risk: Intermittent slave communication dropout with no visible physical damage. Prevention: Touch grounded cabinet metal for three full seconds before handling CEX gold edge connectors and DB9 fieldbus ports.
Critical summary: All five identified risks generate measurable unplanned production downtime or compliance penalties if unmitigated; validate controller firmware, project compliance rules, bus termination, rack power sizing and ESD handling protocols before commissioning any unit.
