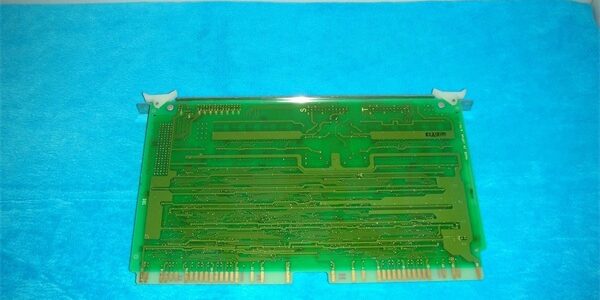

Product Core Brief
- Model: LYA100A
- Brand: HITACHI
- Series: LYA100 compact combined analog I/O DCS module family
- Core Function: Sample 4 differential analog input signals from field transmitters and output 2 isolated analog control signals for modulating valves, all within one single-slot rack card.
- Product Type: Single-slot hot-swappable combined analog input/output DCS personality module
- Key Specs: 4 differential AI + 2 single-ended AO | Software-selectable 4–20mA / 0–10V ranges | 12-bit A/D & D/A conversion | 500 V channel-to-backplane opto-isolation ⚠️ EOL — limited surplus stock remaining
Product Introduction
The HITACHI integrates both analog input and analog output circuits onto one compact rack card to cut cabinet slot usage for small-scale process control loops. It requires a compatible Hitachi DCS main chassis and CPU to execute signal scaling and closed-loop PID logic.This unit differs from separate standalone AI and AO cards by merging six process channels into one slot, reducing wiring labor for skid-mounted equipment. OEM field data lists a 51,000 hour MTBF under steady 50 °C control cabinet runtime.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Hardware | Hitachi standard LY-series DCS main rack backplanes and matching CPU controllers |
| Analog Input Channels | 4 fully differential isolated inputs |
| Analog Output Channels | 2 single-ended isolated output channels |
| Configurable Signal Ranges | AI/AO individually selectable: 4–20 mA DC or 0–10 V DC |
| Conversion Resolution | 12-bit for all input sampling and output generation |
| Input Scan Speed | 2 ms per channel sequential sampling cycle |
| Output Update Latency | 1 ms simultaneous refresh for both AO channels |
| Max AO Loop Load | 600 Ω resistive load for 4–20 mA current mode; minimum 2 kΩ for 0–10 V voltage mode |
| Galvanic Isolation Rating | 500 Vrms opto-isolation between each field channel and DCS backplane logic |
| Hot Swap Compliance | Hitachi DCS certified hot-swap; chassis main communication bus stays active during card replacement |
| Onboard Diagnostics | Per-channel open loop break detection, short-circuit overload, over/under range fault flagging |
| Module Operating Supply | 24 VDC rack backplane logic feed; 330 mA typical steady-state draw |
| Status Indicators | Global Power OK, Rack Comms Fault LED; dedicated LED for each input/output channel status and faults |
| Mechanical Dimensions | 175 mm L × 100 mm W × 50 mm D |
| Net Unit Weight | 0.4 kg |
| Continuous Operating Ambient Temp | -20 °C to +60 °C full rated signal accuracy; linear performance derate above 60 °C |
| Storage Temperature Range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Integrated Protection Circuits | Analog line transient surge clamping, backplane reverse polarity lockout, channel short-circuit auto current limiting |
| Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering for chemical and power plant control rooms |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against Hitachi OEM trace databases; inspect front channel LED arrays for dead segments, gold rack edge connectors for oxidation, analog signal PCB solder joints for microcracks. Photograph the edge connector pinout for field cabinet wiring reference.
- Live Functional Test: Seat the unit into a populated Hitachi LY-series test chassis paired with adjustable 4–20 mA signal simulators and resistive AO load banks; run a continuous 24-hour cyclic ramp test across all four input and two output channels. Log loop signal stability with a Fluke 115 digital multimeter for the full test duration.
- Electrical Parameter Test: Perform a 500 V Megger insulation resistance test between every analog field circuit and module ground; pass threshold set at >10 MΩ. Verify 4–20 mA output current regulation holds within ±0.06 mA across full 0–600 Ω load resistance range.
- Firmware Verification: Read and record factory analog I/O module firmware revision via Hitachi DCS engineering software; document default signal range register settings for customer site commissioning reference.
- Final QC & Packaging: Wipe gold edge connectors to remove surface oxidation; seal the unit inside an anti-static foam bag, affix a dated QC Pass label listing all completed linearity, isolation, and fault diagnostic test metrics before rigid shock-resistant carton packing.
Replacement Pitfall Guide
❗ ❗ Partial Chassis Slot Insertion Risk: Uneven card seating creates high-resistance edge contact points that distort analog readings and trigger random loop break fault alarms during critical process setpoint modulation. Push the card fully into the slot and lock front retention latches flush against the chassis faceplate.❗ Analog Cable Shield Ground Misconfiguration Risk: Unshielded twisted-pair field wiring routed parallel to high-current motor power cables injects EMI noise that causes process value hunting. Terminate cable shield ground at only the DCS cabinet terminal block end per Hitachi wiring standards.❗ Cabinet Power Headroom Miscalculation Risk: A rack loaded with eight of these combined I/O modules draws 2.64 A total from the cabinet 24 V auxiliary supply. Always calculate total load with a mandatory 20% power margin to avoid voltage sag during simultaneous channel updates.❗ Uncontrolled ESD Damage Risk: Dry central control room air builds static charge rapidly. Touch a grounded anti-static mat for three full seconds before handling the gold edge connector; ungrounded contact destroys low-tolerance analog signal conditioning ASICs.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- Standalone LY-series 4AI analog input module → : Needs Adaptation — must add matching separate AO card, expand rack slot capacity and rework DCS I/O point mapping
- Hitachi LY-series standard DCS main chassis backplane → : Direct — factory edge pinout natively matches chassis 24 V logic supply and Hitachi proprietary DCS bus routing
- Hitachi LY-series main CPU controller → : Direct — CPU reads all four input channels and writes setpoints to the two output channels over the rack backplane bus
- VM310 24 V cabinet auxiliary power supply → : Direct — regulated 24 V output matches the module’s operating voltage window without extra voltage conditioning
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → : Needs Adaptation — wire analog deviation fault dry contacts to PLC digital inputs, map process value and setpoint registers via Modbus RTU gateway bridging the Hitachi DCS bus
