Product Core Brief

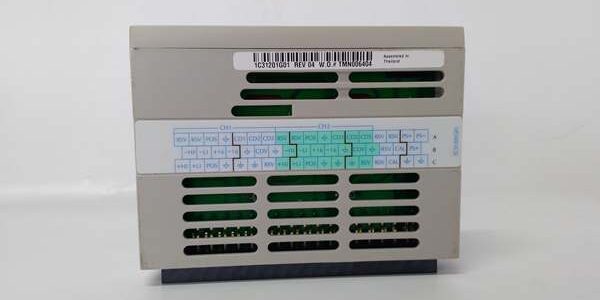

- Model: 1C31201G01
- Brand: WESTINGHOUSE (Emerson Ovation DCS turbine special function personality module)
- Series: Ovation LVDT servo driver valve position control module family
- Core Function: Generate precision excitation signals for DC LVDT valve position transducers, process position feedback signals, execute closed-loop servo regulation for steam/gas turbine electro-hydraulic actuators; support startup, normal, local manual and calibration four operation modes, provide full per-channel fault diagnostics to Ovation controllers.
- Product Type: Single-slot plug-in Ovation I/O rack personality module, hot-swappable, compatible with 5X00497G01 4-slot DIN remote I/O backplane
- Key Specs: 6 independent LVDT servo control channels | Configurable 1kHz / 3kHz AC excitation + 16VDC LVDT drive | High-precision position closed-loop control | Four selectable operating modes | Per-channel LVDT break / short circuit diagnostics | 1000 V channel-to-backplane galvanic isolation | Hot-swap compliant | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL legacy power plant turbine DCS spare
- Version note: 1C31201G01 is base DC LVDT servo driver; 1C31201G02 upgraded variant with enhanced high-temperature operating range.
Product Introduction
The WESTINGHOUSE 1C31201G01 is a turbine-dedicated special function module exclusively built for Emerson Ovation DCS, widely deployed in fossil, combined-cycle and nuclear power plants to control critical steam turbine throttle, governor and bypass valve EH actuators. It integrates LVDT excitation, signal conditioning and servo control algorithms into one compact single-slot card, eliminating external signal converter racks.This unit differentiates from standard analog I/O modules by native LVDT transducer excitation and closed-loop servo logic critical to turbine safety and precise load regulation. OEM field logging places its rated MTBF at 55,000 operating hours under continuous 24/7 turbine cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | All Ovation I/O backplanes, 5X00497G01 4-slot remote DIN subrack, Ovation turbine control logic controllers |
| Control Channel Count | 6 independent DC LVDT servo closed-loop channels |
| LVDT Excitation Output | 19 Vpp 1kHz / 19 Vpp 3kHz AC; 16 VDC DC excitation selectable per channel |
| Operating Modes | Startup, Normal Auto, Local Manual, Calibration mode software switchable |
| Position Measurement Resolution | 14-bit A/D conversion, ±0.05 % full stroke position accuracy |
| Closed-Loop Update Rate | 1 ms full 6-channel simultaneous refresh |
| Galvanic Isolation Rating | 1000 Vrms LVDT field circuit to DCS backplane isolation |
| Hot Swap Functionality | Ovation compliant; replace without turbine trip logic interruption when redundant rack configured |
| Onboard Diagnostic Logic | LVDT coil open break detection, short-circuit excitation overload, position deviation fault flagging |
| Module Operating Supply | 5 V DC rack backplane logic supply; typical 380 mA steady-state draw |
| Status Indicators | Global Power OK, Communication Fault LED; 6 individual channel status/fault LEDs on front panel |
| Mechanical Form Factor | Single slot Ovation I/O rack plug-in module; net weight 0.45 kg |
| Overall Module Dimensions | 125 mm L × 51 mm W × 113 mm D |
| Continuous Operating Ambient Temp | -20 °C to +60 °C full rated control accuracy; linear performance derate above +60 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Protection Circuits | LVDT excitation surge clamping, backplane reverse polarity lockout, servo output short-circuit auto-limit |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, turbine safety IEC standard qualified |
Quality Control Process
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect front channel LED array for dead segments, rack gold edge connector pins for oxidation, LVDT signal terminal solder joints for cold cracks. Photograph rack backplane pinout for field turbine cabinet wiring reference.
- Live Functional Test: Insert module into 5X00497G01 four-slot test backplane paired with simulated LVDT transducers and EH servo valve load banks; run 24 hour cyclic position ramp profiles across all six channels simultaneously, cycle all four operating modes continuously. Use a Fluke 115 signal logger to track position linearity and LVDT fault trigger consistency.
- Electrical Parameter Test: 1000 V Megger isolation test between each LVDT field circuit and module backplane ground (pass threshold >10 MΩ); verify excitation voltage holds stable amplitude across full LVDT coil impedance range without waveform distortion.
- Diagnostic & Comms Verification: Simulate broken LVDT wiring and excitation short-circuit overload conditions to validate per-channel fault LED illumination and DCS turbine trip alarm register feedback; retain full channel calibration configuration tables over a 12 hour rack power-off cycle to validate non-volatile memory retention.
- Final QC & Packaging: Clean rack edge connector gold plating during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front LED panel, seal unit in anti-static PE foam bag, apply dated QC Pass label listing position linearity, isolation resistance, and LVDT break fault diagnostic function test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ Special Servo / Standard Analog I/O Module Mismatch Risk: Generic Ovation AI/AO analog modules cannot replace this dedicated 1C31201G01 LVDT servo driver unit. Standard I/O lacks built-in LVDT excitation and closed-loop turbine valve control algorithms, disabling critical steam turbine load and overspeed protection logic. Match full 1C31201G01 part number for all turbine EH valve control racks only. Photograph original DCS LVDT stroke scaling and excitation frequency parameters before module extraction from the rack.❗ Partial Rack Insertion Hazard: Uneven module insertion creates high-resistance backplane contact points that break DCS communication and generate random valve position drift during critical turbine startup and load change sequences. Tighten rack retainer latches fully to lock the module flush against the backplane edge connector.❗ LVDT Field Cable Shielding Miswiring Risk: Unshielded LVDT transducer wiring run parallel to high-current generator excitation cabling introduces EMI noise and unstable valve hunting. Use twisted-pair shielded LVDT cabling per OEM turbine wiring standards, terminate cable shield at cabinet ground on one end only.❗ Turbine Cabinet Condensation Short-Circuit Risk: Cold-stored modules moved into warm humid turbine control enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before inserting into powered Ovation I/O racks to prevent LVDT excitation ASIC corrosion and intermittent valve position dropout faults.❗ ESD LVDT Signal Circuit Damage: Onboard high-precision analog signal conditioning circuits carry low electrostatic discharge tolerance. Always rest the module on a grounded anti-static mat during rack insertion or field LVDT terminal wiring rewiring, especially in low-humidity climate-controlled central control rooms.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- Standard Ovation 4-channel analog output module → 1C31201G01 : Needs Adaptation — cannot generate LVDT excitation or execute closed-loop valve servo control; full turbine EH control logic redesign required
- 5X00497G01 4-slot DIN remote I/O backplane → 1C31201G01 : Direct — factory edge connector pinout natively matches backplane 5 V logic supply and Ovation proprietary I/O bus communication routing
- VM310 24 V cabinet auxiliary power supply → 1C31201G01 : Direct — regulated 24 V DC auxiliary rail powers LVDT excitation test circuits via terminal base
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 1C31201G01 : Direct — DCS valve position deviation fault dry contacts wire directly to motion PLC 24 V digital input channels for generator-train coordinated interlock logic
