Product Core Brief
- Model: 1C31227G01
- Brand: WESTINGHOUSE (Emerson Ovation DCS compact remote I/O analog input personality module)
- Series: Ovation compact remote analog input module family
- Core Function: Collect 4–20mA analog current signals from field pressure, temperature, flow transmitters; support field-powered or rack-local powered two-wire transmitters, convert analog signals to digital values for Ovation controllers, detect open/short field loops and report per-channel fault diagnostics.
- Product Type: Single-slot hot-swappable personality card, exclusively matched with 5X00497G01 4-slot DIN remote I/O backplane
- Key Specs: 8 independent analog input channels | Fixed 4–20mA input range | 14-bit A/D conversion resolution | Dual power mode (field/rack local 24VDC) | Per-channel open-loop break detection | 500V channel-to-backplane galvanic isolation | Hot-swap compliant | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL legacy power plant DCS spare
- Design note: Compact remote I/O dedicated AI card, cannot be used on large main Ovation rack backplanes; must install inside 5X00497G01 DIN subrack together with MAU communication module 1C31179G01 to realize remote I/O data transmission.
Product Introduction

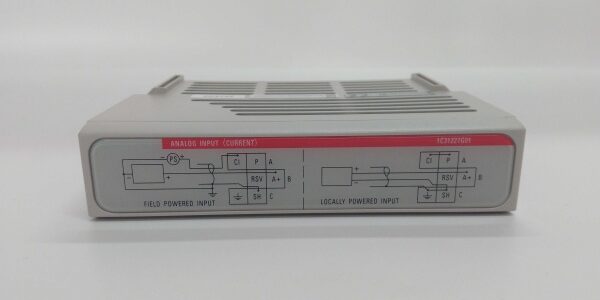

The WESTINGHOUSE 1C31227G01 is a compact 8-channel analog input module built for decentralized Ovation remote I/O systems, widely deployed in power generation, chemical, and water treatment plants to collect process transmitter signals near field equipment, shortening long high-noise analog cable runs back to central control rooms.This unit differentiates from rack-mounted 4-channel AI modules by higher channel density and dual transmitter power supply modes, adapting to both passive two-wire field transmitters and externally powered signal sources. OEM field logging places its rated MTBF at 53,000 operating hours under continuous 24/7 cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | 5X00497G01 4-slot DIN remote I/O backplane, 1C31179G01 MAU remote communication module, all Ovation central DCS controllers |
| Input Channel Count | 8 fully independent analog current input channels |
| Standard Signal Range | 4–20mA DC (0–20mA full span measurement) |
| A/D Conversion Resolution | 14-bit, ±0.1 % full-scale accuracy at 25°C ambient |
| Supported Transmitter Power Modes | Field-powered (transmitter self-powered); Locally rack 24VDC powered two-wire transmitters |
| Maximum Loop Load Resistance | 600 Ω for local 24VDC powered transmitters |
| Galvanic Isolation Rating | 500 Vrms per channel field circuit to DCS backplane isolation |
| Hot Swap Functionality | Ovation compliant; replaceable without remote subrack communication interruption |
| Onboard Diagnostic Logic | Per-channel open loop break detection, short-circuit overload, over/under range fault flagging |
| Module Operating Supply | 5 V DC subrack backplane logic supply; typical 350 mA steady-state draw |
| Status Indicators | Global Power OK, Communication Fault LED; per-channel green status / red fault LEDs on front panel |
| Mechanical Form Factor | Single slot compact Ovation remote I/O plug-in module; net weight 120 g |
| Overall Module Dimensions | 118 mm L × 28 mm W × 93 mm D |
| Continuous Operating Ambient Temp | -20 °C to +60 °C full rated measurement accuracy; linear performance derate above +60 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Protection Circuits | Analog input transient surge clamping, backplane reverse polarity lockout, channel short-circuit auto-limit |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation control standard qualified |
Quality Control Process
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect front channel LED array for dead segments, rack gold edge connector pins for oxidation, analog input terminal solder joints for cold cracks. Photograph rack backplane pinout for field remote cabinet wiring reference.
- Live Functional Test: Insert module into 5X00497G01 four-slot test backplane paired with adjustable resistance 4–20mA signal simulator; run 24 hour cyclic 4–20mA ramp profiles across all eight channels simultaneously, test both field-powered and local rack power supply modes. Use a Fluke 115 signal logger to track analog linearity and loop break fault trigger consistency.
- Electrical Parameter Test: 500 V Megger isolation test between each analog input circuit and module backplane ground (pass threshold >10 MΩ); verify local 24VDC transmitter supply holds stable voltage across full 0–600 Ω loop resistance range without droop.
- Diagnostic & Comms Verification: Simulate open loop break and short-circuit overload conditions to validate per-channel fault LED illumination and DCS controller alarm register feedback; retain full channel scaling configuration tables over a 12 hour subrack power-off cycle to validate non-volatile memory retention.
- Final QC & Packaging: Clean rack edge connector gold plating during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front LED panel, seal unit in anti-static PE foam bag, apply dated QC Pass label listing analog linearity, isolation resistance, and loop fault diagnostic function test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ Compact Remote / Main Rack AI Module Mismatch Risk: Main rack 4-channel analog input modules cannot replace this dedicated 1C31227G01 compact remote AI unit. Standard rack AI cards lack compatibility with 5X00497G01 DIN subrack backplane and dual transmitter power supply logic, disabling remote field signal acquisition. Match full 1C31227G01 part number for all decentralized near-field transmitter monitoring subracks only. Photograph original DCS analog input range scaling parameters before module extraction from the subrack.❗ Partial Subrack Insertion Hazard: Uneven module insertion creates high-resistance backplane contact points that break remote I/O communication and generate random analog signal drift during critical process monitoring. Tighten module front retainer latches fully to lock the card flush against the subrack backplane edge connector.❗ Analog Loop Cable Shielding Miswiring Risk: Unshielded 4–20mA transmitter wiring run parallel to high-current turbine excitation cabling introduces EMI noise and unstable process value hunting. Use twisted-pair shielded analog cabling per OEM power plant remote I/O wiring standards, terminate cable shield at cabinet ground on one end only.❗ Remote Cabinet Condensation Short-Circuit Risk: Cold-stored modules moved into warm humid field control enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before inserting into powered 5X00497G01 subracks to prevent analog A/D chip corrosion and intermittent channel dropout faults.❗ ESD Analog Input Circuit Damage: Onboard high-precision signal conditioning ASIC circuits carry low electrostatic discharge tolerance. Always rest the module on a grounded anti-static mat during subrack insertion or field analog terminal wiring rewiring, especially in low-humidity climate-controlled central control rooms.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- Main rack 4-channel analog input module 1C31129G03 → 1C31227G01 : Needs Adaptation — cannot mount on 5X00497G01 DIN subrack; full remote I/O cabinet mechanical and wiring redesign required
- 5X00497G01 4-slot DIN remote I/O backplane → 1C31227G01 : Direct — factory edge connector pinout natively matches subrack 5 V logic supply and Ovation proprietary remote I/O bus communication routing
- 1C31179G01 MAU remote I/O communication master module → 1C31227G01 : Direct — MAU module collects 8-channel analog data from 1C31227G01 and forwards to central Ovation controllers over fiber/Ethernet backbone
- VM310 24 V cabinet auxiliary power supply → 1C31227G01 : Direct — regulated 24 V DC auxiliary rail supplies local transmitter excitation power via subrack terminal blocks
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 1C31227G01 : Direct — DCS analog deviation fault dry contacts routed via subrack terminal blocks wire directly to motion PLC 24 V digital input channels for process-motion coordinated interlock logic
