Product Core Brief
- Model: 5X00497G01
- Brand: WESTINGHOUSE (Emerson Ovation DCS remote I/O subrack base unit family)
- Series: Ovation remote compact I/O 4-slot backplane terminal base
- Core Function: Provide mechanical mounting, DCS proprietary communication bus routing, 24 VDC auxiliary power distribution, and field terminal wiring interface for up to four hot-swappable Ovation I/O electronic modules (DI, DO, analog input/output, speed detection, serial communication personality cards). It acts as intermediate subrack between Ovation remote controller and field process wiring.

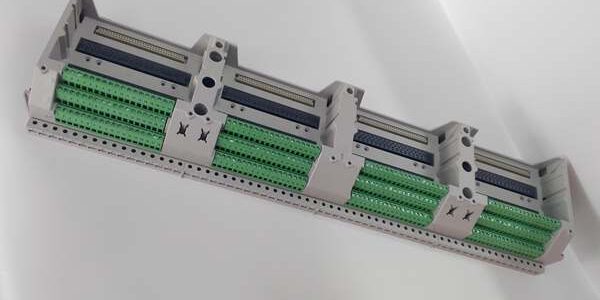

- Product Type: DIN rail mount 4-slot I/O backplane base assembly, integrated screw terminal blocks for field signal and auxiliary power wiring
- Key Specs: 4 independent hot-swap I/O module slots | 24 VDC system auxiliary power input | Built-in per-slot overcurrent fuses | Isolated field signal terminal bank | Compatible all standard single-slot Ovation personality modules | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL legacy power plant DCS spare
- Design note: This is a passive-active hybrid backplane base unit; it cannot operate standalone and requires insertion of Ovation electronic I/O modules (1C31xxx series) to implement field signal acquisition/output functions.
Product Introduction
The WESTINGHOUSE 5X00497G01 is a compact 4-slot remote I/O subrack exclusively built for Emerson Ovation DCS, widely deployed in power generation, chemical, and water treatment plants to decentralize field signal wiring away from main central control racks. Its four-slot design enables flexible mixed deployment of discrete, analog, and special function I/O modules within a single compact DIN-mount enclosure.This unit differentiates from 8-slot large backplane variants by delivering space-saving localized I/O installation near turbine, valve, and breaker field equipment, reducing long high-noise field cable runs. OEM field logging places its rated MTBF at 58,000 operating hours under continuous 24/7 power plant cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | All single-slot Ovation I/O personality modules (1C31129G03, 1C31234G01, 1C31219G01, 1C31189G01, 1C31166G01 etc.) |
| I/O Slot Capacity | 4 hot-swap compatible single-slot module positions |
| Auxiliary Operating Supply | 24 VDC ±10 % cabinet input; max total load 20 W for full four-slot populated configuration |
| Per-Slot Circuit Protection | Independent miniature overcurrent fuse for each module slot power rail |
| Field Wiring Interface | Large bank of detachable green screw terminal blocks, grouped by each slot’s signal channels |
| Communication Bus | Ovation proprietary isolated remote I/O backplane bus, noise filtered for high EMI turbine hall environments |
| Mechanical Mounting | Standard 35 mm DIN rail panel mount; optional wall mounting brackets |
| Overall Physical Dimensions | 134 mm W × 173 mm H × 40 mm D; net assembly weight 1.2 kg |
| Continuous Operating Ambient Temp | -10 °C to +60 °C full rated bus stability; linear performance derate above +60 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Circuit Protection | Backplane reverse 24 V polarity lockout, field signal transient surge clamping, bus short-circuit isolation |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation safety standard qualified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect DIN rail mounting clips for deformation, backplane gold edge slot connectors for oxidation, screw terminal block threads for stripping. Photograph terminal block wiring pinout for field power plant cabinet wiring reference.
- Live Functional Test: Populate all four slots with mixed Ovation DI/AO/DO personality modules; mount base unit to DIN test rack paired with VM310 24 V auxiliary power supply and Ovation remote controller simulator; run 24 hour cyclic I/O signal exchange profiles across all slots simultaneously. Use a Fluke 115 signal logger to track slot power rail voltage stability and backplane communication throughput consistency.
- Electrical Parameter Test: 500 V Megger isolation test between each slot’s field signal terminal bank and backplane power ground (pass threshold >10 MΩ); verify per-slot fuses trigger cutoff at 120 % rated module load without backplane trace burnout.
- Hot-Swap & Bus Verification: Execute repeated hot insertion/removal of individual I/O modules to validate no full subrack communication dropout; retain full slot configuration tables over a 12 hour 24 V supply power-off cycle to validate non-volatile bus mapping retention.
- Final QC & Packaging: Clean backplane gold slot edge contacts during refurbishment cycles to remove surface oxidation; fit plastic protective dust covers over empty module slots, seal entire base assembly in anti-static PE foam bag, apply dated QC Pass label listing bus communication integrity, fuse protection function, and terminal continuity test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ 4-Slot / 8-Slot Backplane Mismatch Risk: 8-slot large Ovation backplane base units cannot replace this compact 5X00497G01 subrack. Direct substitution requires full cabinet panel rework and expansion of auxiliary power load capacity; small localized field I/O cabinets lack physical space for larger racks. Match full 5X00497G01 part number for compact near-field valve/turbine I/O subracks only. Photograph original terminal block field wiring mapping before disassembly of the base unit.❗ Partial Module Slot Insertion Hazard: Uneven personality module insertion creates high-resistance backplane edge contact points that break DCS communication and generate random channel fault alarms during critical unit startup sequences. Tighten each module’s front retainer latch fully to lock the card flush against the slot backplane connector.❗ 24 V Auxiliary Supply Polarity Reversal Risk: Reversed positive/negative 24 V input wiring blows all four slot internal fuses instantly, disabling the entire remote I/O subrack until fuse replacement. Label supply conductors clearly before disconnecting terminal block wiring from the cabinet VM310 power supply.❗ Subrack Cabinet Condensation Short-Circuit Risk: Cold-stored base units moved into warm humid power plant control enclosures form backplane PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before applying 24 V auxiliary supply to prevent bus transceiver chip corrosion and intermittent slot communication dropout faults.❗ ESD Backplane Bus Circuit Damage: Onboard isolated communication bus transceiver circuits carry low electrostatic discharge tolerance. Always rest the base unit on a grounded anti-static mat during module insertion or field terminal wiring rewiring, especially in low-humidity climate-controlled central control rooms.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 8-slot Ovation large I/O backplane base → 5X00497G01 : Needs Adaptation — redesign cabinet panel mounting layout, recalculate total 24 V auxiliary power load budget for compact four-slot subrack layout
- All single-slot Ovation electronic I/O modules (1C31xxx series) → 5X00497G01 : Direct — factory backplane slot edge connector pinout natively matches all personality module communication and power rail routing
- VM310 multi-channel cabinet auxiliary power supply → 5X00497G01 : Direct — regulated 24 V DC auxiliary rail matches base unit operating supply requirements without voltage conditioning
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 5X00497G01 : Direct — Ovation DCS I/O fault dry contacts routed via 5X00497G01 terminal blocks wire directly to motion PLC 24 V digital input channels for power-train coordinated interlock logic
