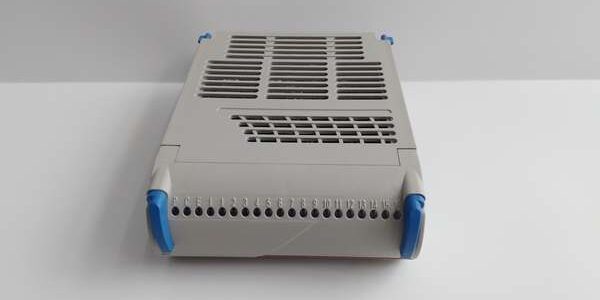

Product Core Brief
- Model: 1C31129G03
- Brand: WESTINGHOUSE (Emerson Ovation legacy analog output electronic module)
- Series: Ovation multi-range analog output I/O module family
- Core Function: Convert DCS digital setpoints into isolated analog current/voltage signals to modulate field proportional valves, variable frequency drives, heat control actuators; deliver full per-channel loop diagnostic feedback (open loop, short circuit, over-range) to Ovation controllers.
- Product Type: Single-slot plug-in Ovation I/O rack electronic module, hot-swappable, matched 1C31132G01 dual-slot terminal base unit installation
- Key Specs: 4 fully independent isolated AO channels | Configurable 4–20mA / 0–20mA / 0–5V / 0–10V output | 12-bit DAC resolution | 1000V channel-to-channel / channel-to-backplane galvanic isolation | Built-in loop break & overload diagnostics | Hot-swap compliant | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL legacy power plant DCS spare
- Suffix version breakdown reference:
- 1C31129G01 = 0–5V voltage only, no full diagnostics
- 1C31129G02 = 0–10V voltage only
- 1C31129G03 = 4–20mA / 0–20mA current + full channel fault diagnostics
- 1C31129G04 = 4–20mA without advanced diagnostics
Product Introduction
The WESTINGHOUSE 1C31129G03 is a precision multi-range analog output module exclusively built for Emerson Ovation DCS, widely deployed across power generation, chemical, and water treatment plants to drive modulating field control devices. Its independent channel galvanic isolation eliminates ground-loop distortion common in long analog field wiring runs.This unit differentiates from G01/G02 voltage-only and G04 non-diagnostic variants by supporting standard 4–20mA industrial current loops and adding continuous per-channel loop health monitoring for predictive maintenance alerts. OEM field logging places its rated MTBF at 52,000 operating hours under continuous 24/7 control cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | Emerson Westinghouse Ovation DCS local / remote I/O racks; paired base 1C31132G01 |
| Output Channel Count | 4 fully independent, galvanically isolated analog output channels |
| Software Configurable Signal Ranges | 4–20mA sourcing current; 0–20mA; 0–5V DC; 0–10V DC voltage |
| DAC Resolution | 12-bit digital-to-analog conversion |
| Full-Scale Accuracy | ±0.1 % FS at 25 °C ambient; 30 ppm/°C temperature drift coefficient |
| Maximum Update Latency | 2 ms full 4-channel simultaneous refresh |
| Current Mode Load Capacity | 0–750 Ω maximum loop resistance (4–20mA) |
| Voltage Mode Load Rating | Max 10 mA sink per channel |
| Galvanic Isolation Rating | 1000 Vrms channel-to-backplane and channel-to-channel isolation |
| Hot Swap Functionality | Ovation compliant; replaceable without full rack or controller shutdown |
| Onboard Diagnostic Logic | Per-channel open loop break detection, short-circuit overload, over/under range fault flagging |
| Module Operating Supply | 5 V DC rack backplane logic supply; typical 4 W power draw (current mode) |
| Status Indicators | Global Power OK, Communication Fault LED; per-channel status/fault LEDs on front panel |
| Mechanical Form Factor | Single slot Ovation I/O plug-in module; net weight 0.88 kg |
| Overall Module Dimensions | 125 mm L × 51 mm W × 113 mm D |
| Continuous Operating Ambient Temp | 0 °C to +60 °C full rated output accuracy; linear performance derate above +60 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Protection Circuits | Analog output transient surge clamping, backplane reverse polarity lockout, short-circuit auto-limit |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation control standard qualified |
Quality Control Process
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect front channel LED array for dead segments, rack gold edge connector pins for oxidation, analog output terminal solder joints for cold cracks. Photograph rack backplane pinout for field DCS cabinet wiring reference.
- Live Functional Test: Insert module into standard Ovation I/O test rack paired with adjustable resistance loop load banks; run 24 hour cyclic 4–20mA ramp profiles across all four channels simultaneously. Use a Fluke 115 signal logger to track output linearity and diagnostic fault trigger consistency.
- Electrical Parameter Test: 1000 V Megger isolation test between each analog output circuit and module backplane ground (pass threshold >10 MΩ); verify 4–20mA output holds stable current across full 0–750 Ω loop resistance range without droop.
- Diagnostic & Comms Verification: Simulate open loop break and short-circuit overload conditions to validate per-channel fault LED illumination and DCS controller alarm register feedback; retain full channel range configuration tables over a 12 hour rack power-off cycle to validate non-volatile memory retention.
- Final QC & Packaging: Clean rack edge connector gold plating during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front LED panel, seal unit in anti-static PE foam bag, apply dated QC Pass label listing analog linearity, isolation resistance, and loop fault diagnostic function test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ AO Module Suffix Model Mismatch Risk: 1C31129G01/G02 voltage-only or G04 non-diagnostic analog output modules cannot replace this 1C31129G03 unit. Direct substitution removes standard 4–20mA loop support and critical loop break fault detection, disabling valve/actuator failure predictive alarms. Match full 1C31129G03 part number for 4–20mA modulating field device control racks only. Photograph original DCS analog output range scaling parameters before module extraction from the rack.❗ Partial Rack Insertion Hazard: Uneven module insertion creates high-resistance backplane contact points that break DCS communication and generate random output drift during critical process setpoint modulation. Tighten rack retainer latches fully to lock the module flush against the backplane edge connector.❗ Analog Loop Cable Shielding Miswiring Risk: Unshielded analog 4–20mA wiring run parallel to high-current motor/excitation cabling introduces EMI noise and unstable valve hunting. Use twisted-pair shielded analog cabling, terminate cable shield at cabinet ground on one end only per OEM power plant wiring standards.❗ DCS Cabinet Condensation Short-Circuit Risk: Cold-stored modules moved into warm humid power plant control enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before inserting into powered Ovation I/O racks to prevent DAC driver chip corrosion and intermittent analog output dropout faults.❗ ESD Analog Output Circuit Damage: Onboard DAC signal conditioning ASIC circuits carry low electrostatic discharge tolerance. Always rest the module on a grounded anti-static mat during rack insertion or field analog terminal wiring rewiring, especially in low-humidity climate-controlled central control rooms.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 1C31129G01 voltage-only analog output module → 1C31129G03 : Needs Adaptation — reconfigure all field actuator wiring to support 4–20mA current loops, enable loop break fault alarm logic inside DCS control software
- Ovation dual-slot terminal base 1C31132G01 → 1C31129G03 : Direct — factory edge connector pinout natively matches backplane 5 V logic supply and analog signal terminal routing
- VM310 24 V cabinet auxiliary power supply → 1C31129G03 : Direct — regulated 24 V DC auxiliary rail powers field analog loop test excitation circuits via terminal base
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 1C31129G03 : Direct — DCS analog fault alarm dry contacts wire directly to motion PLC 24 V digital input channels for process-motion coordinated interlock logic
