Product Core Brief

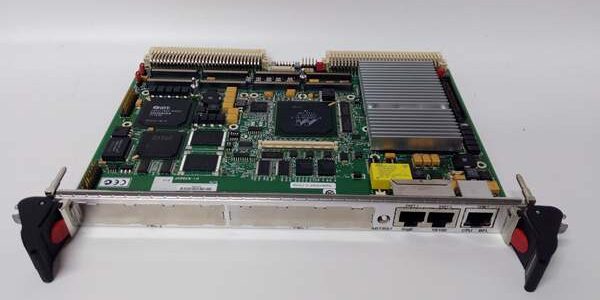

• Model: VME172PA644SE
• Brand: Motorola Computer Group (Artesyn / Emerson Embedded)
• Series: VME172PA High-Density Analog Input PMC Mezzanine family
• Core Function: High-density analog data acquisition mezzanine to capture isolated differential voltage readings from chamber RTD, pressure, and gas sensor transducers for VME master CPUs
• Product Type: Single-width PMC PCI mezzanine DAQ card, fits dual PMC slots on MVME5100 / MVME5500 series SBCs
• Key Specs: 64 isolated differential analog input channels | 16-bit ADC resolution | ±10V full scale | 1500VAC channel-to-bus galvanic isolation
• Note: OEM production discontinued; factory-new surplus and fully tested refurbished inventory available.

Key Technical Specifications

• Channel Configuration: 64 fully isolated differential analog input channels, banked into 8 groups of 8 channels per isolation barrier
• ADC Resolution: 16-bit successive approximation analog-to-digital converter per channel bank
• Input Voltage Range: Programmable ±10V full scale; software-selectable ±5V, ±2V, ±1V sub-ranges via VME register writes
• Galvanic Isolation: 1500VAC reinforced isolation between analog field wiring and PMC digital logic to block 13.56MHz plasma RF noise
• Sample Rate: Maximum aggregate scan rate 1200 channels per second; single-channel sampling latency 0.8ms
• Input Impedance: >100MΩ per differential pair to avoid loading low-output process transducers
• Bus Interface: 32-bit 66MHz PMC PCI bus, DMA-supported block data transfer to host SBC memory
• Onboard Storage: Small serial EEPROM storing channel calibration offset/gain tables per channel bank
• Power Draw: 6.2W typical steady power draw from PMC 3.3V / 5V rails
• Mechanical: Single-height PMC mezzanine form factor, compatible with all MVME5100 / MVME5500 dual PMC slot SBCs
• Operating Temperature: 0°C to +70°C standard cleanroom cabinet operation
• Compliance: CE, UL, SEMI S2 certified for semiconductor front-end process monitoring hardware

Product Introduction

This high-density analog PMC mezzanine expands the analog input capacity of compatible VME single board controllers used on Lam TCP9400 and Kiyo 300mm etch systems. It eliminates the need for multiple low-channel analog VME boards inside cramped control cabinets.Per-channel bank galvanic isolation suppresses plasma-induced signal noise that creates false process deviation alarms, while 16-bit ADC precision maintains consistent sensor trending for critical pressure and thermal control loops.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Serial number cross-reference against OEM component databases to flag counterfeit assemblies; visual inspection for cracked solder joints, damaged terminal headers, or burned isolation barrier traces. All EEPROM calibration data logged pre-test.
2. Live Bench Testing: Mount the mezzanine to an MVME5500 host SBC inside a full VME64x backplane chassis; signal generator injects calibrated ±10V differential signals across all 64 channels for continuous 24-hour scan load testing.
3. Electrical Testing: Megger insulation tester validates 1500VAC isolation resistance >10GΩ between analog field side and digital PMC bus side; channel linearity error measured below 0.03% full scale.
4. Firmware & Calibration Backup: Restore factory gain/offset calibration tables to onboard EEPROM; export full channel mapping profile encrypted for post-install recovery.
5. Final QC & Packaging: Secure loose header pins, wrap unit in anti-static foam, affix printed QC tag with channel linearity test metrics before sealed ESD bag packaging.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ PMC Slot Mapping Mismatch Risk: Host SBC PMC0 and PMC1 slots use distinct VME memory address offsets. Misinstalling into the secondary slot without HMI address remapping triggers 200–500ms analog scan lag. Capture photos of the old mezzanine slot position before removal.❗ Unbalanced Differential Wiring Risk: Single-ended sensor wiring bypasses galvanic isolation, allowing plasma RF noise to corrupt ADC readings. Always run twisted shielded differential pairs to every transducer terminal block.❗ Terminal Header Overload Risk: Each 8-channel isolation bank has a maximum combined input current limit of 12mA. Parallel multiple high-draw transducers on one bank causes signal attenuation.❗ Host CPU Power Headroom Check: This mezzanine adds 6.2W steady load to the host SBC’s PMC power rails. Verify chassis backplane 3.3V rail maintains minimum 5A rated output to avoid voltage sag during full channel scanning.❗ Catastrophic ESD Damage Risk: ADC input ICs sustain permanent damage from ungrounded handling; ESD wrist strap and grounded mat mandatory before touching analog terminal headers or edge connectors.4-Step Replacement Guide:

1. Pre-install: Export all chamber analog sensor scaling tables via tool HMI; lock out RF power and vent chamber vacuum per SEMI S2 lockout-tagout protocols.
2. Removal: Power down the host controller fully, unlatch PMC retention clips, slide the mezzanine straight out of its slot, place immediately on ESD foam.
3. Install: Align the PMC edge connector parallel to the host SBC slot, seat fully, lock retention clips, re-terminate all differential sensor twisted pairs to the terminal header.
4. Power-on Test: Boot the VME host, run full 64-channel auto-calibration routine, execute a 30-minute continuous analog scan to validate linearity and noise floor stability.

FAQ (Frequently Asked Questions)

Q: Can this mezzanine mount to MVME2434 series legacy SBCs?A: MVME2434 hardware only supports single PMC slots with older 33MHz PCI timing. While physically compatible, full 64-channel DMA scan performance drops by 60%. Full rework of analog channel address mapping in tool software is required for stable operation.Q: Does this mezzanine support hot-swapping while the host VME controller remains powered?A: The PMC slot mechanical retention does not include hot-swap power sequencing. Live removal injects voltage transients into the host SBC PCI bus, risking corruption of NVRAM process calibration data. Full host controller power-down is mandatory before extraction.Q: What warranty separates factory-new surplus stock from refurbished units?A: Factory-new surplus carries a 12-month industrial warranty covering ADC channel drift and isolation barrier failure. Refurbished units ship with a 4-month limited warranty; aged opto-isolator components introduce gradual channel gain shift over long runtime.Q: Will swapping this mezzanine erase stored sensor scaling and offset calibration values?A: All channel gain/offset calibration tables reside on the mezzanine’s onboard serial EEPROM, independent of the host SBC NVRAM. Export sensor scaling profiles via the tool HMI pre-replacement to match existing transducer ranges post-install.Q: Can this hardware operate on Lam tools running PCS v6.x legacy software built for low-channel analog boards?A: PCS v6.x analog register mapping only supports up to 32 input channels natively. A custom VxWorks driver patch for the host SBC must be installed to access the full 64-channel bank architecture.Q: What expected service window applies in 24/7 high-volume fab operation?A: Factory-new units target replacement at 45,000 operating hours. Refurbished variants degrade at 36,000 hours; opto-isolator leakage increases over time under cabinet heat and RF exposure, widening analog noise floor and reducing trending accuracy.Q: Can multiple copies of this mezzanine install on one dual-PMC host SBC simultaneously?A: Two units may mount to the dual PMC slots of MVME5100 / MVME5500 controllers for a total 128 analog input channels. Separate isolation bank grounding is required for each mezzanine to prevent cross-channel signal crosstalk between chamber subsystems.
