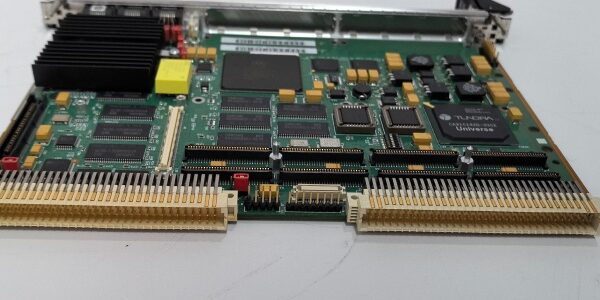

Product Core Brief

• Model: MVME55006E-0163R
• Brand: Motorola Computer Group (Artesyn / Emerson Embedded)
• Series: MVME5500 Enhanced VME64x Single Board Computer family
• Core Function: Primary real-time master controller for 300mm plasma etch cluster hardware, running wafer recipe sequencing, synchronized multi-axis motion control, and parallel gas/thermal telemetry processing
• Product Type: 6U Eurocard VME64x SBC; R suffix denotes fully tested refurbished hardware
• Key Specs: 1GHz MPC7457 PowerPC G4 with AltiVec | 512MB ECC SDRAM expandable to 1GB | Dual Gigabit Ethernet | Dual 66MHz PMC expansion | Enhanced 13.56MHz RF EMI filtering
• Note: OEM manufacturing discontinued; factory-new non-R 0163 units carry 12-month OEM warranty, while R stock offers limited short-term coverage post bench validation.

Key Technical Specifications

• Processor: MPC7457 PowerPC G4 at 1GHz, integrated AltiVec SIMD vector coprocessor, 133MHz system bus clock
• Cache: 32KB L1 Instruction / 32KB L1 Data on-die cache, 2MB dedicated L3 DDR SRAM cache
• Memory: 512MB soldered ECC-protected PC133 SDRAM; RAM5500 mezzanine extends capacity to 1GB, single-bit error correction active at all times
• Non-Volatile Storage: 8MB primary boot Flash + 32MB application program Flash; 8KB battery-backed NVRAM + RTC for process calibration data retention
• VME Bus Controller: Tundra Universe II ASIC supporting VME64x / 2eSST block transfers, maximum 160MB/s burst throughput, full auto-detect system arbitration
• PCI Expansion: Two independent 32/64-bit 66MHz PMC slots, compatible with IPMC712 / IPMC761 rear transition I/O assemblies
• Front Panel I/O: Dual isolated 10/100/1000BASE-TX Gigabit RJ45 ports; dual multi-mode RS232/422/485 16550 UART serial channels
• Power Consumption: 18–24W steady full-load draw from standard VME backplane +5V / ±12VDC rails
• Mechanical: 6U VME Eurocard form factor, passive copper heat sink, IEEE metal ejector latches, fanless cleanroom-safe design
• Operating Temperature: 0°C to +70°C standard cabinet operation; conformal coated variants rated -40°C to +85°C
• Compliance: CE, UL, SEMI S2 certified for semiconductor front-end manufacturing equipment

Product Introduction

This refurbished VME SBC serves as a high-performance drop-in upgrade for legacy MPC750 controllers deployed on Lam TCP9400 and Kiyo 300mm etch systems. It eliminates processing latency during parallel motion and analog signal workloads common to older MVME2432 and MVME2434 hardware.The unit’s upgraded multi-stage EMI filter stack suppresses 13.56MHz chamber plasma noise far better than the base 0161 variant, while AltiVec DSP hardware cuts analog scan cycle time to 0.5ms for consistent thermal and gas telemetry capture.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Serial number cross-reference against OEM component databases to reject counterfeit PCB assemblies; visual inspection for cracked traces, swollen electrolytic capacitors, and bent ejector hardware. All jumper pin positions photographed for post-test restoration.
2. Live Bench Testing: Mount the device to a full VME64x backplane chassis with a Fluke 115 multimeter tracking rail voltage stability; run continuous 24-hour load tests replicating Lam TCP9400 motion and gas telemetry runtime profiles.
3. Electrical Testing: Megger insulation tester verifies all field I/O isolation exceeds 10MΩ; ground loop resistance held below 0.1Ω to mitigate plasma RF induced signal distortion.
4. Firmware & Config Backup: Flash validated MOTLoad firmware versions matching customer tool PCS release levels; dump complete NVRAM calibration tables and store encrypted copies for post-replacement recovery workflows.
5. Final QC & Packaging: Re-seat loose edge connectors, apply anti-static foam wrapping, affix printed QC tags with full test timestamps and measured voltage tolerances before sealed ESD bag packaging.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: MOTLoad builds compiled for PCS v6.x will fail VME64x 2eSST handshakes on this hardware. Load MOTLoad v2.0 or newer before chassis power-up to avoid 10–20 second communication timeouts with VIOP motion subassemblies.❗ Jumper Mapping Error: J6, J7, J28, J32 control Ethernet link modes and PMC slot functionality. Capture high-resolution photos of jumper positions on the old controller before removal; misconfigured jumpers fully disable one gigabit port.❗ Rear IPMC Pinout Incompatibility: IPMC761 transition boards use distinct pin assignments compared to MVME2400-series hardware. Cross-check the OEM datasheet before terminating analog RTD sensor cables to prevent shorted input circuits.❗ Power Draw Headroom Check: This unit draws 4–7W more power than an MVME2434. Confirm the VME chassis +5V supply maintains a minimum 10A rated output to avoid voltage sag during recipe initialization sequences.❗ Catastrophic ESD Damage Risk: Ungrounded technicians regularly destroy the dual gigabit PHY ICs on this PCB; a certified wrist strap and grounded anti-static mat are mandatory before handling edge connectors or exposed circuit traces.4-Step Replacement Guide:

1. Pre-install: Export full chamber calibration parameter sets via the tool HMI; execute SEMI S2 lockout-tagout to disable RF generators and vent chamber vacuum.
2. Removal: Release IEEE ejector latches evenly on both sides to avoid bent P1/P2 backplane pins; place the old unit directly on ESD foam immediately after extraction.
3. Install: Align the module parallel to the backplane for even seating, restore jumpers to photographed positions, reattach all IPMC rear signal cables.
4. Power-on Test: Apply standby low voltage first, validate MOTLoad POST completes with zero memory errors, run a 30-minute dry wafer transfer cycle to verify motion synchronization stability.

FAQ (Frequently Asked Questions)

Q: Can this refurbished unit directly replace factory-new non-R MVME55006E-0163 hardware?A: Hardware pinouts, bus registers, and MOTLoad firmware are fully cross-compatible. The only material difference is service life and warranty terms. The upgraded EMI filter stack built into the 0163 base layout reduces baseline RF noise in high-power etch chambers, though refurbished units require periodic ferrite bead rechecks after installation. Full chamber re-calibration is mandatory post-swap regardless of variant.

Q: Does this unit support hot-swapping while the chamber remains pressurized and RF power active?A: The VME64x backplane includes electrical hot-swap protection, but plasma RF fields create transient voltage spikes that overwrite battery-backed NVRAM calibration data. Full lockout of RF supplies and complete chamber vacuum venting is required before extraction to avoid permanent loss of motion axis offset and MFC trim values.

Q: What warranty coverage differentiates this refurbished module from factory-new hardware?A: Refurbished stock carries a 6-month limited functional warranty covering PCB trace and memory failures only. Factory-new non-R MVME55006E-0163 units ship with a 12-month full industrial warranty that includes RF noise immunity validation guarantees. The shorter refurbished term reflects reused electrolytic capacitors with reduced remaining thermal service life.

Q: Will removing the existing controller erase stored chamber recipes and sensor calibration offsets?A: All motion trajectories, MFC trim tables, and thermal interlock thresholds reside in the board’s battery-backed NVRAM flash bank. Export a full parameter backup via the tool HMI before disassembly. If the onboard backup battery degraded during refurbishment, NVRAM data may not persist through full power cycles post-installation.

Q: Can this hardware serve as a full system master on Lam TCP9400 tools running legacy PCS v6.x software?A: It cannot execute unmodified PCS v6.x releases designed for MPC750 CPUs. A Wind River VxWorks BSP patch matching the MPC7457 architecture must be applied, and all VME I/O address ranges remapped in the tool configuration before full production operation is permitted.

Q: What expected service window applies to this refurbished controller in a 24/7 high-volume fab environment?A: Target replacement window sits at 38,000 operating hours. Refurbished hardware reuses original flash storage and memory ICs with accumulated thermal fatigue, leading to gradual ECC memory bit-error drift that degrades etch CD uniformity consistency over extended continuous runtime.

Q: Is this module compatible with older MVME2432 and MVME2434 rack chassis without full software reconfiguration?A: The VME slot form factor physically fits identical rack backplanes, but the G4 processor architecture and dual gigabit networking require complete chamber reconfiguration. Motion axis tuning, gas sensor scaling, and robot handoff timing all require revalidation after installation to prevent wafer misplacement during transfer cycles.
