Product Core Brief
- Model: D201189 (AI8H series; D201189L = long connector extended variant)
- Brand: Metso / Valmet Automation (legacy MasterPiece 2001 pulp & paper DCS platform)
- Series: ACN CS MasterPiece 2001 analog input I/O family ⚠️ Fully Discontinued EOL, only new original surplus / factory refurbished spare stock available
- Core Function: Collect 4–20mA analog signals + bidirectional HART7 digital data from field transmitters, ND9xxx valve positioners and flow/temperature/pressure sensors; isolate field loops from DCS backplane, transmit high-precision process values and device diagnostic logs to D201925 main CPU via proprietary MasterPiece rack bus.
- Product Type: 3U Eurocard hot-swappable rack-mounted HART analog input I/O module
- Key Specs: 8 fully isolated input channels; 4–20mA loop powered + HART7 multidrop communication; 0.05% full scale measurement accuracy; native matching with D201925 ACN CS CPU & D200175 PMM personality module; Condition: New Original Surplus / Factory Refurbished
Product Introduction

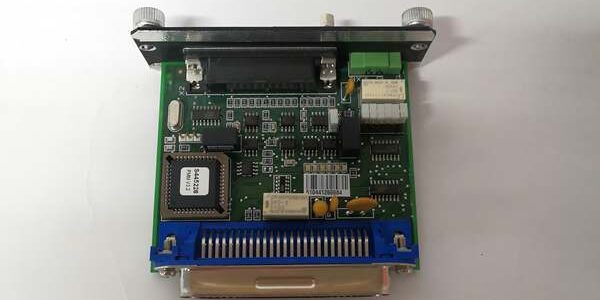

The Metso (AI8H) is the standard high-density analog input card for all Metso MasterPiece 2001 distributed control systems deployed on pulp, paper, tissue and board production lines. It is the dedicated interface for all HART-compatible field devices including Metso ND9103HX valve positioners, pressure/temperature transmitters and mass flow meters.Each of its 8 channels features full galvanic isolation to prevent ground loop noise from distorting basis weight, tension and moisture control loop signals. The module supports HART multidrop, enabling reading valve diagnostic data (friction, leakage, stroke deviation) without separate field communicators.It supports hot-swap replacement without triggering full process safe-stop, and integrates channel-by-channel short-circuit/overvoltage protection to isolate faulty field loops without crashing the main D201925 CPU. OEM reliability testing records an MTBF of 96,000 operating hours under standard 40°C pulp mill cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model Definition | = Standard AI8H 8CH HART Input; D201189L = Long terminal connector variant |
| Channel Count | 8 galvanically isolated analog input channels |
| Field Input Signal | 4–20 mA DC loop powered; HART 7 bidirectional digital overlay |
| Measurement Precision | ±0.05% full scale high-precision conversion |
| Channel Isolation | 2500 VAC photo-isolation per channel, anti-ground-loop interference |
| Backplane Supply Voltage | 18–36 VDC 24VDC nominal rack power from D201832 IPSPS power supply |
| Single Channel Max Loop Current | 22 mA (overload detection & auto cutoff protection) |
| Supported HART Functions | Process variable reading, device tag edit, valve signature diagnostics, fault log upload |
| Hot-Swap Capability | Live rack insertion/removal, maintains safe-state hold logic during replacement |
| Operating Ambient Temp | -20°C to +60°C cabinet mounting; storage -40°C to +85°C |
| Integrated Protection | Per-channel overvoltage, short-circuit, reverse polarity, ESD surge suppression |
| Form Factor | Standard 3U single-slot vertical Eurocard for MasterPiece 2001 control racks |
| Mechanical Dimensions | 305 mm L × 235 mm H × 68 mm D; unit weight approx. 0.60 kg |
| Status Indication | Front panel LED per channel: Loop OK, HART communication fault, short-circuit alarm |
| Safety Compliance Certifications | CE, UL, RoHS, SIL2 functional safety qualified for pulp & paper continuous process control |
| Mandatory Matching Hardware | D201925 ACN CS main CPU, D200175 PMM personality memory module, D201832 rack power supply |
| Typical Field Devices Matched | ND9102HX / ND9103HX HART valve positioners, temperature/pressure/flow HART transmitters |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial batch codes against original Metso factory production manifests to filter counterfeit aftermarket copies. Visually inspect backplane gold edge pins, front channel LED array, terminal connector pins and PCB solder joints for scratches or deformation.
- Live Functional Test: Insert into complete MasterPiece 2001 test rack with D201925 CPU + D200175 PMM + D201832 power supply. Connect 4–20mA signal generator + HART communicator to all 8 channels, run a 24-hour continuous soak cycle with cyclic signal sweep and HART diagnostic data upload; log measurement accuracy and communication stability hourly.
- Electrical Parameter Test: Use a 500 V Megger insulation tester to verify channel-to-backplane isolation resistance; pass threshold >10 MΩ. Validate rapid short-circuit channel cutoff (<5ms) and overvoltage lockout protection per channel.
- System Compatibility Verification: Upload paper mill process personality logic via D200175 PMM; confirm CPU reads all 8-channel analog values and HART device diagnostic data normally via Metso MasterTool software. Photograph front panel LED alarm states for on-site commissioning reference records.
- Final QC & Packaging: Place module inside anti-static ESD foam packaging with plastic dust caps covering backplane and field terminal connectors. Affix dated QC Pass sticker listing insulation resistance test data and total soak runtime before warehouse storage.
Replacement Pitfall Guide
❗ Module Variant Mismatch Risk: (short connector) and D201189L (long extended terminal) cannot be cross-used without matching terminal base adapters; mismatched connectors create loose field wiring and intermittent signal dropout alarms.❗ HART Loop Wiring Ground Loop Risk: Each 4–20mA field cable must use shielded twisted pair with single-point cabinet ground only. Dual-end grounding introduces low-frequency noise leading to analog value drift and unstable ND9103HX valve positioning.❗ Hot-Swap Operation Misstep Risk: Do not short field loop terminals before hot-swapping ; sudden channel short creates transient backplane noise that corrupts D200175 PMM recipe storage data.❗ Channel Overload Risk: Do not connect field transmitters drawing more than 22mA loop current to any channel; sustained overload triggers permanent channel cutoff and requires module power cycle recovery.❗ ESD Damage Risk: Exposed backplane edge connectors and field terminal pins are highly ESD sensitive during cabinet disassembly. Use a grounded anti-static wrist mat during module swapping in low-humidity workshop environments; static discharge corrupts onboard A/D conversion PCB and generates uncommanded analog signal freeze faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- ACN CS Main Process Controller → : Direct Mandatory Match — Native backplane I/O bus pinout matching, zero cabinet mechanical modification required
- PMM Personality Memory Module → : Indirect Compatible — stores loop tuning parameters read via HART channels
- D201832 IPSPS Rack Power Supply → : Native Power Match — Isolated 24VDC logic rail supplies noise-free power for analog conversion circuits
- ND9102HX / ND9103HX HART intelligent valve positioners → : Field Device Native Match — Full HART diagnostic read/write support
- Newer Valmet DNA / Advant 400 DCS Controllers → : Incompatible — Different rack form factor and I/O bus communication protocol, cannot intermix hardware
Benchmarks
- Analog measurement deviation across full 4–20mA span: ≤ ±0.04% FS
- HART full device diagnostic log upload time per channel: ≤ 0.8 seconds
- Continuous idle power consumption: 7.5 W; full 8-channel loaded maximum power draw: 9.2 W
