Product Core Brief
- Model: T8431
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Acquire triplicated 0–22 mA / 0–6 VDC analog sensor signals via 2oo3 hardware voting for pressure, temperature and flow SIS monitoring
- Product Type: Backplane-mount TMR analog input I/O module
- Key Specs: 40 triplicated analog input channels | 0.5 ms global sample refresh | Native SmartSlot interface for T8830 input FTA | Condition: New Original Surplus
Product Introduction

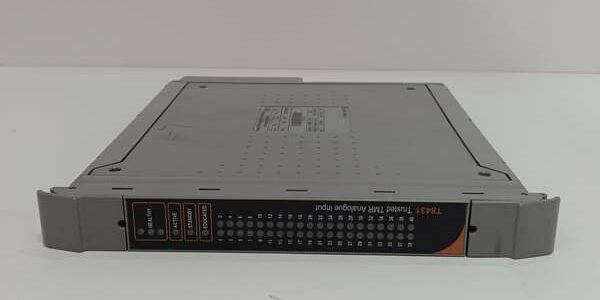

The ICS Triplex T8431 is a single-slot TMR analog input card built for high-density safety instrumented signal collection, using three parallel voted sigma-delta circuits to eliminate single-point sensor acquisition faults. It pairs exclusively with the T8830 field termination assembly to separate rack backplane wiring from live 2-wire transmitter cabling.This module outperforms lower-density T8430 variants with a faster 0.5 ms system sample cycle and 3.9 µA fine current resolution. OEM reliability testing records an MTBF of 110,000 operating hours at a steady 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Total Input Channels | 40 fully triplicated TMR analog input channels |
| Channel Grouping | Five independent 8-channel isolated banks |
| System Backplane Supply | 20 VDC to 32 VDC nominal 24 VDC dual redundant chassis power |
| Supported Field Signal Ranges | 0–22 mA loop current, 0–6 VDC direct voltage input |
| Signal Resolution | 3.9 µA minimum current step (1/256 mA full scale) |
| Global Sample Update Latency | 0.5 ms across all 40 active channels |
| Safety Measurement Accuracy | ±1 % of full span; lab calibration precision ±0.03 % FS |
| Per-Channel Field Protection | 50 mA fuse located on matching T8830 FTA (no onboard fusing) |
| Galvanic Isolation Rating | 2500 V impulse withstand channel-to-backplane isolation barrier |
| Backplane Interface | SmartSlot gold edge connector, mechanical lock for T8830 analog input FTA |
| Hot-Swap Support | Compatible with spare companion SmartSlot chassis slot configurations |
| Operating Ambient Temp | -20 °C to +60 °C; storage -40 °C to +85 °C |
| Safety Certification | IEC 61508 SIL 3, TÜV AK6, UL/cUL, CE, IP20 cabinet-only |
| Physical Dimensions | 241 mm H × 30 mm W × 300 mm D; net weight 1.15 kg |
| Field Loop Diagnostics | Detect open/short circuit via minimum 1 mA threshold current measurement |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial numbers against Rockwell OEM batch manifests to reject counterfeit aftermarket copies. Visually scan PCB traces for cold solder joints, bent SmartSlot edge pins, and cracked front-panel channel status LED lenses.
- Live Functional Test: Insert module into a Trusted chassis test rack, connect a Fluke 115 regulated 24 VDC supply and matched T8830 FTA. Run a 24-hour soak cycle with calibrated 0–22 mA signal simulators, log sample cycle latency and span accuracy every 60 minutes.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between isolated channel banks and chassis ground; pass threshold is >10 MΩ. Verify open/short circuit diagnostic trigger thresholds across each channel bank.
- Firmware Verification: Read and record installed firmware build number via DumpTrux utility; photograph front-panel DIP switch jumper positions for site configuration reference records.
- Final QC & Packaging: Place module inside static-dissipative poly bag. Affix dated QC Pass sticker listing measured insulation resistance and total soak test runtime before palletized storage.
Replacement Pitfall Guide
❗ Firmware Mismatch Risk: firmware build 6+ cannot hot-swap with chassis running build 5 without SIS logic threshold reconfiguration. Unmodified older chassis trigger persistent analog channel vote mismatch critical faults.❗ Power Group Isolation Misconfiguration Risk: Jumping separate 8-channel power group feeds on the FTA erases galvanic separation, introducing cross-loop noise that distorts low-level 4–20 mA transmitter measurement signals.❗ Cable Shield Grounding Incompatibility Risk: The chassis ground lug bonds to cabinet protective earth. Grounding field analog cable shields at both the FTA and transmitter creates ground loops that inject low-frequency noise into sensitive input loops.❗ Power Supply Headroom Miscalculation Risk: A fully loaded draws 23 W backplane power at 24 VDC. Size cabinet power supplies with 20% overhead; underrated supplies drop voltage below 20 VDC and trigger SIL3 safe-state interlocks.❗ ESD Damage Risk: SmartSlot gold contacts remain exposed when the FTA is detached. Use a grounded anti-static mat during card swaps in low-humidity cabinet spaces; static discharge scratches plating and generates intermittent analog signal dropout faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- (40-Ch Analog Input FTA) → : Direct Replacement — Native SmartSlot mechanical and electrical matching, zero wiring rework
- T8431C (Enhanced Calibration Analog Input Module) → : Needs Adaptation — Chassis rack slot fits, firmware build revisions require full channel span recalibration post swap
- T8451 (Digital Output Module) → : Incompatible — Output signal conditioning circuits cannot process low-level analog transmitter input currents
Benchmarks
- Full 40-channel analog input sample cycle latency: 0.5 ms (calibrated 22 mA simulated transmitter loads, 24 VDC nominal supply)
- Inter-group isolation resistance: >10 MΩ between separate 8-channel power banks (500 V Megger test)
- Continuous power consumption: 21 W average under full 40-channel 22 mA analog load split evenly across all five power groups
