Product Core Brief
- Model: T8403
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Capture triplicated 24 VDC discrete safety contact signals via 2oo3 hardware voting for E-stop, pressure switch, and limit switch SIS monitoring

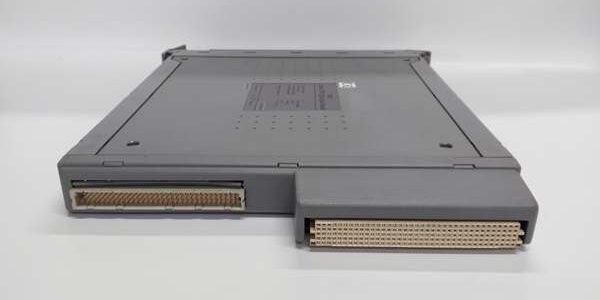

- Product Type: Backplane-mount TMR digital input I/O module
- Key Specs: 40 triplicated input channels | 2 mA nominal loop current | Native SmartSlot interface for T8800 fused input FTA | Condition: New Original Surplus
Product Introduction
The ICS Triplex is a single-slot TMR digital input card built for high-density safety signal acquisition, using three parallel voted sigma-delta circuits to eliminate single-point contact monitoring faults. It pairs exclusively with the T8800 field termination assembly to separate rack backplane wiring from live safety switch cablingRockwell A….This module differs from dual non-redundant T8402 input boards via full 2oo3 hardware voting and 1 ms resolution SOE logging. OEM reliability testing records an MTBF of 113,000 operating hours at a steady 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Total Input Channels | 40 fully triplicated TMR digital input channels |
| Channel Power Grouping | 5 isolated banks of 8 channels each, galvanically separated |
| System Backplane Supply | 20 VDC to 32 VDC nominal 24 VDC dual redundant chassis power |
| Nominal Field Input Voltage | -6 VDC to 36 VDC wide surge withstand range, 24 VDC standard |
| Per-Channel Loop Current | 2 mA steady-state for contact diagnostic monitoring |
| Field Overcurrent Protection | 50 mA mini blade fuses located on matching T8800 FTA |
| Event Logging Resolution | 1 ms Sequence of Events (SOE) timestamping for contact state transients |
| Galvanic Isolation Rating | 2500 V impulse withstand channel-to-backplane barrier |
| Backplane Interface | SmartSlot gold edge connector, mechanical lock for T8800 input FTA |
| Hot-Swap Support | Compatible with spare companion SmartSlot chassis slots |
| Operating Ambient Temp | -20 °C to +60 °C; storage -40 °C to +85 °C |
| Safety Certification | IEC 61508 SIL 3, TÜV AK6, UL/cUL, CE, IP20 cabinet-only |
| Physical Dimensions | 241 mm H × 30 mm W × 300 mm D; net weight 1.15 kg |
| Field Loop Diagnostics | Detect open/short circuit via minimum 0.5 mA threshold measurement |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial numbers against Rockwell OEM batch manifests to reject counterfeit aftermarket copies. Visually scan PCB traces for cold solder joints, bent SmartSlot edge pins, and cracked front-panel channel status LED lenses.
- Live Functional Test: Insert module into a Trusted chassis test rack, connect a Fluke 115 regulated 24 VDC supply and matched T8800 FTA. Run a 24-hour soak cycle with simulated safety contact resistive loads, log SOE timestamp integrity and loop diagnostic trigger thresholds every 60 minutes.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between isolated power groups and chassis ground; pass threshold is >10 MΩ. Verify per-bank fuse continuity and open-circuit fault detection behavior.
- Firmware Verification: Read and record installed firmware build number via DumpTrux utility; photograph front-panel DIP switch jumper positions for site configuration reference records.
- Final QC & Packaging: Place module inside static-dissipative poly bag. Affix dated QC Pass sticker listing measured insulation resistance and total soak test runtime before palletized storage.
Replacement Pitfall Guide
❗ Firmware Mismatch Risk: firmware build 5+ cannot hot-swap with chassis running build 4 without SIS logic contact threshold reconfiguration. Unmodified older chassis trigger persistent channel vote mismatch critical faults.❗ Power Group Isolation Misconfiguration Risk: Jumping separate 8-channel power group feeds on the FTA erases galvanic separation, introducing cross-loop noise that generates false open-circuit safety switch alarms.❗ Cable Shield Grounding Incompatibility Risk: The chassis ground lug bonds to cabinet protective earth. Grounding field digital cable shields at both the FTA and safety switch creates ground loops that inject low-frequency noise into discrete input lines.❗ Power Supply Headroom Miscalculation Risk: A fully loaded draws 20 W backplane power at 24 VDC. Size cabinet power supplies with 20% overhead; underrated supplies drop voltage below 20 VDC and trigger SIL3 safe-state interlocks.❗ ESD Damage Risk: SmartSlot gold contacts remain exposed when the FTA is detached. Use a grounded anti-static mat during card swaps in low-humidity cabinet spaces; static discharge scratches plating and generates intermittent contact dropout faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- (40-Ch Fused Digital Input FTA) → : Direct Replacement — Native SmartSlot mechanical and electrical matching, zero wiring rework
- T8402 (Dual Non-TMR Digital Input Module) → : Needs Adaptation — Chassis rack slot fits, SIS safety voting logic must be fully reconfigured post swap
- T8451 (Digital Output Module) → : Incompatible — Output signal conditioning circuits cannot process low-current discrete contact input signals
Benchmarks
- Full 40-channel digital input state scan latency: 230 µs (simulated safety contact loads, 24 VDC nominal supply)
- Inter-group isolation resistance: >10 MΩ between separate 8-channel power banks (500 V Megger test)
- Continuous power consumption: 18 W average under full 40-channel 2 mA discrete input load split evenly across all five power groups
