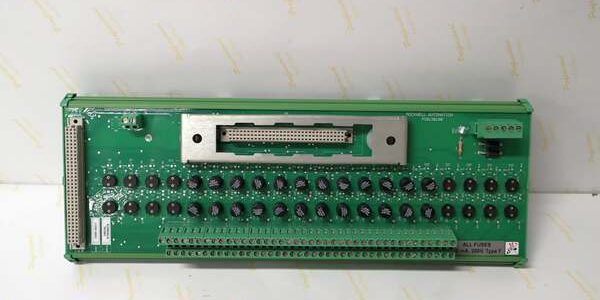

Product Core Brief
- Model: T8800
- Brand: ICS Triplex
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Terminate, fuse, and buffer 40 discrete 24 VDC field digital signals for T8403 safety input modules
- Product Type: Field Termination Assembly (FTA) Digital Input Terminal Base
- Key Specs: 40 isolated input channels | Per-channel 50 mA fuse | SmartSlot hot-swap interface | Condition: New Original Surplus
Product Introduction
The ICS Triplex serves as the field wiring interface for Trusted TMR safety systems, routing 24 VDC discrete sensor signals to T8403 input modules with individual circuit protection. It eliminates direct field wiring to backplane-mounted I/O cards to reduce chassis maintenance downtime.This FTA differs from low-channel FTAs like T8830 via its 40-channel density and dual redundant 24 VDC field power diodes. Its published MTBF exceeds 100,000 operating hours under 40 °C continuous cabinet loading, per OEM reliability testing data.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 40 digital discrete input channels |
| Nominal Field Voltage | 20 VDC to 32 VDC (24 VDC standard) |
| Per-Channel Overcurrent Protection | 50 mA mini blade fuse, field side only |
| Backplane Interface | SmartSlot edge connector for T8403 I/O modules |
| Field Wiring Standard | 2-wire sink/source sensor wiring |
| Power Consumption | 5 W maximum full-channel loaded |
| Signal Update Latency | 250 ms system-wide input refresh |
| Mounting | Standard 35 mm DIN rail horizontal install |
| Operating Ambient Temp | 0 °C to 55 °C; storage -40 °C to 85 °C |
| Safety Certification | IEC 61508 SIL 3, TÜV, UL/cUL, CE |
| Enclosure Rating | IP20 cabinet-only installation |
| Weight | 0.4 kg unpopulated, 0.48 kg with full fuse set |
| Maximum Channel Sink Current | 50 mA per individual loop |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match unit serial numbers to OEM factory batch manifests to reject counterfeit aftermarket copies. Visually scan the PCB for solder joint cold spots, cracked terminal blocks, or deformed SmartSlot gold contacts.
- Live Functional Test: Mount the unit on a DIN rail test bench, connect a 24 VDC Fluke 115 regulated supply, and mate a production T8403 module. Run a 24-hour soak cycle with 20 active channel load simulators, logging channel state integrity every 60 minutes.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between field terminals and chassis ground; pass threshold is >10 MΩ. Verify dual redundant power diode path continuity.
- Component Verification: This passive FTA holds no firmware. Inspect each installed 50 mA fuse to confirm OEM part numbers match datasheet specs; photograph fuse layout for traceability records.
- Final QC & Packaging: Insert the assembly into a static-dissipative poly bag. Affix a dated QC Pass sticker listing measured insulation resistance and full soak test duration before pallet storage.
Replacement Pitfall Guide
❗ Module Pairing Mismatch Risk: The only interoperates with T8403 digital input cards. Pairing it with analog T8431 modules creates open-circuit channel faults the safety logic cannot suppress.❗ Fuse & Terminal Misconfiguration Risk: Factory blank fuses ship installed in unused channels. Leaving blank fuses in active loops cuts signal paths; always populate every live channel with 50 mA rated spares.❗ Cable Shield Grounding Incompatibility Risk: The FTA chassis ground lug ties to the control cabinet earth. Grounding field cable shields at both the FTA and field sensor creates ground loops that inject 2–8 V noise into discrete signal lines.❗ Power Supply Headroom Miscalculation Risk: A fully loaded draws 5 W at 24 VDC. Size cabinet power supplies with 20% overhead; underrated supplies drop voltage below 20 VDC and trigger SIL3 fault interlocks.❗ ESD Damage Risk: SmartSlot gold contacts sit unshielded when the T8403 module is removed. Use a grounded anti-static mat during card swaps in low-humidity cabinet environments; static discharge erodes contact plating and generates intermittent channel dropouts.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- (40-Ch Digital Input Module) → : Direct Replacement — Native SmartSlot mechanical and electrical matching, no wiring rework
- T8830 (16-Ch Digital Input FTA) → : Needs Adaptation — DIN rail footprint differs; panel bracket modifications required
- T8431 (Analog Input Module) → : Incompatible — Signal conditioning circuits do not match discrete 24 VDC field loops
Benchmarks
- Full channel input scan latency: 250 ms (40 active sink sensor loops, 24 VDC nominal supply)
- Isolation breakdown resistance: >10 MΩ between field terminals and chassis ground (500 V Megger test)
- Continuous power draw: 4.1 W average under full 40-channel 50 mA load
