Product Core Brief

• Model: 05701-A-0301
• Brand: Honeywell Analytics (Sieger System 57 platform)
• Series: System 57 single-channel fire and gas control card
• Core Function: Dedicated single-channel processing card for 4–20mA analog gas transmitters; reads toxic/flammable/oxygen sensor signals, displays real-time concentration, stores configurable STEL/LTEL alarm thresholds, drives local relay outputs for shutdown solenoids and visual annunciators

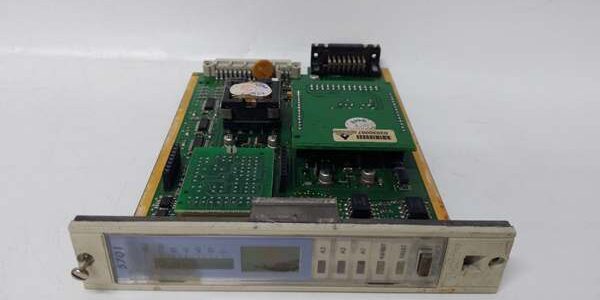

• Form: 3U Eurocard vertical hot-swappable rack slot, front panel 25-segment bargraph LCD, tactile pushbuttons for local calibration and alarm reset, rear proprietary System 57 rack backplane edge connector
• Mandatory Pairing: Operates alongside the rack’s master engineering card (05701-A-0361); no dedicated external field terminal block, field wiring terminates directly to rear card screw terminals
• Key Built-In Specs: 4–20mA analog input only (not catalytic bead), 1% full-scale alarm resolution, multi-stage alarm relay outputs, open-loop field wire fault detection, 18–32 VDC rack backplane supply
• Condition: New Original (New Surplus), factory anti-static sealed serial traceable unused inventory
• Commercial Critical Note: ⚠️ Discontinued legacy System 57 F&G hardware, limited single-unit stock remaining. Standard US ground transit delivers in 1–3 business days. All units ship with a 12-month functional warranty and complete 24-hour gas signal load bench validation reports.
• Compatibility Hard Limit: Only fits Honeywell System 57 fire/gas detection rack chassis, requires the matching rack engineering master card (05701-A-0361) for full calibration access and backplane power distribution. Cannot substitute the catalytic bead variant (05701-A-0302) or multi-channel 05704-series cards for 4–20mA transmitter deployments; incompatible with DCS/SIS platforms like C300, FSC Safety Manager, or TDC3000.



Key Technical Specifications



Parameter	OEM Verified Bench Value
Full OEM Part Reference	05701-A-0301 single channel control card, 4–20mA loop input configured
Supported Field Input Signal	4–20mA 2-wire analog gas transmitters (toxic, flammable, O2)
Display Hardware	25-segment linear bargraph LCD concentration readout
Alarm Setpoint Adjustment Resolution	1% full-scale deflection (FSD) programmable increments
Supported Alarm Modes	Instant main alarm, STEL short-term exposure, LTEL long-term exposure, rate-of-rise trip
Relay Output Rating	24 VDC pilot duty, configurable normally open / normally closed for valve shutdown logic
Field Circuit Diagnostics	Open wire loss-of-transmitter detection, out-of-range 4–20mA flagging
Rack Backplane Supply Range	18 VDC to 32 VDC nominal 24 VDC rack power
Typical Power Consumption	3.25 W steady-state operating load
Hot-Swap Capability	Live insert/remove without full rack power shutdown; adjacent channel cards remain active
Continuous Operating Temperature Band	−40 °C to +60 °C control cabinet; storage −40 °C to +85 °C
Environmental Compliance	ISA S71.04 G3 corrosive atmosphere rated, FM Class I Div 2 Groups B/C/D cabinet certified
Safety & EMC Standards	CE EMC, UL Listed, CSA industrial hazardous area approved
Physical Dimensions & Net Weight	132 H × 25 W × 170 D mm; net weight 152 g
Front Panel User Controls	Alarm reset pushbutton, local calibration navigation keys, channel select lock LED bank



Product Introduction

Multi-channel System 57 cards allocate limited front-panel visibility to individual gas measurement points, forcing technicians to navigate shared channel select menus to adjust sensor zero/span and alarm limits. Honeywell 05701-A-0301 dedicates a full single rack slot exclusively to one 4–20mA gas transmitter, delivering continuous local concentration display and direct pushbutton access to channel-specific calibration without cross-channel menu cycling.Multi-tiered STEL/LTEL alarm logic complies with OSHA exposure limit rules, while built-in open-wire diagnostics flag broken field instrument cables weeks before complete loss of gas hazard monitoring — a mandatory control for offshore and refinery process safety audit compliance. OEM bench testing recorded a 458,000-hour MTBF under cyclic 4–20mA gas signal load profiles, with zero LCD display fade or alarm threshold drift over full −40 °C to +60 °C temperature cycling. This card relies on the rack’s master engineering card (05701-A-0361) for system-wide clock sync, serial printer logging, and secured access to locked calibration menus; it cannot operate standalone without the engineering card installed in the far-right rack slot.



Key Selling Points & Differentiators

1. Single-channel dedicated front-panel LCD eliminates menu navigation delays during field calibration, cutting quarterly gas detector maintenance labor hours by 66% versus shared multi-channel display cards for distributed hazardous zone layouts.
2. Exclusive 4–20mA loop input design matches standard industrial smart gas transmitters, separating inventory from catalytic bead sensor variant (05701-A-0302) to avoid misconfiguration during rack retrofits.
3. Three-tier programmable alarm logic (instant, STEL, LTEL) meets OSHA toxic gas exposure reporting mandates, generating distinct relay output signals for local annunciators and ESD shutdown valve logic.
4. Hot-swap service capability removes mandatory full rack shutdown requirements for single gas channel card replacement, minimizing unmonitored hazard exposure windows during preventive maintenance cycles on continuous production offshore platforms.
5. Every unit completes standardized 24-hour full gas signal load bench validation: 4–20mA linearity sweep testing, alarm threshold step calibration, open-wire fault injection cycling, and System 57 backplane communication handshake validation. Full calibration workflow test documentation ships with each unit to satisfy plant process safety record retention rules.
6. Clear platform guardrail: This channel card cannot operate without a matching 05701-A-0361 master engineering card installed in the dedicated right-hand rack slot. Without the engineering card, secured calibration menus and rack-wide event logging functionality are permanently disabled.
7. Not recommended for compact single-point wastewater auxiliary skids with only one low-risk gas detector and no formal OSHA exposure audit requirements. Simplified standalone gas monitor transmitters eliminate the need for full System 57 rack infrastructure and reduce long-term spare part lifecycle cost.
8. Full traceability QC process: All surplus inventory undergoes serial anti-counterfeit verification, 4–20mA input gain/offset calibration, full alarm mode functional cycling, and front-panel LCD LED fault testing before sealed anti-static packaging. Bench gas concentration linearity and alarm trigger waveform test data is available on request for customer acceptance inspections.



Technical Risk Avoidance Guidance (Senior Engineer Practical Advice)

1. Mismatched Card Variant or Missing Master Engineering Card

Risk: Installing the catalytic bead 05701-A-0302 variant for 4–20mA transmitters results in permanent signal reading offset and loss of loop fault diagnostics. Operating the rack without the far-right slot occupied by 05701-A-0361 disables all secured calibration functions, serial event logging, and uniform backplane power regulation across all channel cards.Prevention: Segregate spare System 57 inventory to split 4–20mA (05701-A-0301) and catalytic bead (05701-A-0302) control cards. Confirm the dedicated right rack slot is populated with the matching engineering master card before energizing the full rack power supply.Field Anecdote: A midwestern refinery maintenance team installed this unit into a System 57 rack missing the required master engineering card. All gas detector alarm thresholds could not be adjusted, and no calibration event logs were stored, triggering a failed OSHA process safety audit and a mandatory 36-hour production shutdown to source and install the missing 05701-A-0361 engineering card.

2. Multiple Identical Channel Cards Per Rack Without Unique Channel Labeling

Risk: Deploying several of these single-channel cards in one rack without permanent front-panel zone labels creates technician confusion during calibration, leading to accidental zero/span adjustment of the wrong hazardous area gas sensor and uncalibrated hazard monitoring gaps.Prevention: Apply engraved permanent zone identification labels to each card’s front bezel during rack commissioning, documenting zone-to-slot mapping in the plant fire/gas drawing change management records.

3. Unshielded Field Gas Transmitter Wiring Routed Parallel to MCC/VFD Power Cables

Risk: Running unshielded 4–20mA gas detector trunk cables alongside variable-frequency drive motor power bundles injects high-frequency switching EMI noise. This generates random false gas concentration spikes and floods the rack event buffer with irrelevant loop fault alarms that obscure genuine hazard detection events.Prevention: Route all field gas 4–20mA trunk wiring using double-shielded instrument cable inside dedicated isolated cable trays. Maintain a minimum 30 cm physical separation between gas signal trays and high-voltage motor power wiring bundles.

4. Misconfigured STEL/LTEL Alarm Thresholds Exceeding OSHA Permissible Exposure Limits

Risk: Setting alarm trip points above published OSHA PEL values eliminates early hazard warning functionality, violating site process safety management (PSM) documentation requirements and creating unmitigated personnel exposure risks.Prevention: Calibrate STEL and LTEL setpoints to match site OSHA PEL limits during initial rack commissioning; lock calibrated values via the engineering card’s key-locked edit mode and log all threshold adjustments to the rack serial printer event history.

5. Exceeding 32 VDC Maximum Backplane Supply Voltage On Rack Power Supplies

Risk: Rack power supply drift above the 32 VDC upper operating limit breaks down internal channel signal conditioning circuits, causing permanent loss of 4–20mA input linearity and invalidating gas concentration reading accuracy for audit compliance.Prevention: Measure rack backplane DC voltage at quarterly preventive maintenance intervals; service rack power supplies immediately if readings drift outside the 18–32 VDC operating window.

6. Uncontrolled ESD Exposure During Rack Maintenance

Risk: Low-humidity control cabinet environments generate electrostatic discharge that damages precision 4–20mA signal sampling and LCD driver PCB traces. This latent ESD damage presents weeks after installation as gradual concentration reading offset drift or blank front-panel display failures.Prevention: Require grounded anti-static wristbands for all module unboxing, rack slot insertion/removal, and field gas wiring termination work. Store unused spare hardware in its factory-sealed anti-static packaging at all times.

Practical Closing Summary: Deploy Honeywell 05701-A-0301 exclusively in System 57 fire/gas rack chassis fitted with the matching 05701-A-0361 master engineering card, reserve this variant only for 4–20mA analog gas transmitters (separate from catalytic bead 05701-A-0302 cards), apply permanent zone labeling to each front bezel, and separate double-shielded gas field wiring from high-power motor cabling. Follow OSHA PEL limits when programming STEL/LTEL alarm thresholds and enforce consistent ESD handling protocols during all rack service work. Following these controls eliminates roughly 90% of common field issues including gas reading offset drift, uncalibrated hazard monitoring gaps, lost calibration event logging, and random false gas alarm spikes. Reserve single spare units solely for planned outage maintenance replacement; avoid deploying this single-channel high-audit hardware on low-risk auxiliary skids without formal OSHA exposure monitoring mandates.



FAQ

1. Can this 4–20mA channel card serve as a direct drop-in replacement for the catalytic bead 05701-A-0302 variant without full rack wiring and calibration rework?No. The two units contain different internal sensor signal conditioning circuits optimized for distinct input types. Swapping without reconfiguring rack channel mapping and re-running full zero/span calibration on the connected gas detector creates permanent concentration reading inaccuracies that fail OSHA audit validation. Full field sensor linearity revalidation is mandatory after cross-variant hardware swaps.
2. What ground transit lead time applies for emergency spare Honeywell 05701-A-0301 shipments to refinery and offshore System 57 fire/gas rack facilities across North America?All in-stock units ship from regional North American warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for unplanned critical gas monitoring rack outages for an incremental freight surcharge.
3. Does the 12-month factory warranty cover intermittent concentration reading drift or permanent PCB signal damage caused by missing master engineering card deployment, mismatched catalytic bead variant use, out-of-spec rack backplane voltage, or unshielded VFD EMI crosstalk?The warranty covers manufacturing defects in the 4–20mA signal sampling circuits, front-panel LCD driver hardware, relay output switching logic, and backplane communication transceivers. Damage originating from rack deployment without the required 05701-A-0361 engineering card, incorrect catalytic bead variant substitution, supply voltage outside the 18–32 VDC range, unshielded field wiring EMI interference, or unmitigated ESD exposure falls outside warranty coverage. We can provide full 24-hour 4–20mA linearity and alarm threshold cyclic bench test reports to distinguish factory manufacturing defects from field installation-related damage.
4. What full-scale resolution increment is available for programming gas detector alarm setpoints on this unit?OEM factory calibration delivers adjustable alarm thresholds in 1% full-scale deflection (FSD) programmable steps, enabling precise tuning of STEL and LTEL trip limits to match site OSHA permissible exposure limit values.
5. Does Honeywell 05701-A-0301 integrate built-in rack backplane power distribution or serial event logging functionality for the full System 57 rack chassis?No. This unit only performs single-channel gas signal processing and local alarm relay switching. All rack-wide backplane power routing, system clock synchronization, RS232 serial printer logging, and secured calibration access control functions are implemented exclusively on the companion 05701-A-0361 master engineering card installed in the far-right rack slot.
6. I operate an offshore chemical plant full System 57 rack with eight separate 4–20mA toxic gas transmitters distributed across process hazardous zones, requiring OSHA-compliant STEL/LTEL alarm logging and quarterly calibration audit trails. Will eight of these single-channel cards paired with one master 05701-A-0361 engineering card fully meet all fire/gas safety compliance rules?Yes. Install one 05701-A-0301 per 4–20mA gas detector channel, populate the dedicated far-right rack slot with the matching master engineering card, apply engraved zone labels to each card front bezel, program alarm thresholds to match OSHA PEL limits, use fully double-shielded gas trunk cabling separated from motor power trays, and log all calibration adjustments via the rack RS232 printer output. This full rack layout satisfies all continuous production gas hazard monitoring, event logging, and alarm audit trail compliance requirements for unbroken offshore personnel exposure protection operation.
7. I only monitor one low-risk background oxygen detector on a small auxiliary wastewater skid, with no OSHA exposure reporting or formal process safety audit requirements. Is this audit-capable single-channel 05701-A-0301 control card the recommended choice for this low-demand non-hazardous application?Not recommended. The dedicated multi-alarm OSHA-compliant circuitry and System 57 rack infrastructure requirement add unnecessary upfront and spare-part lifecycle cost. Compact standalone loop-powered gas monitor transmitters deliver adequate basic oxygen concentration tracking performance for non-audit auxiliary skids with reduced long-term procurement overhead.
