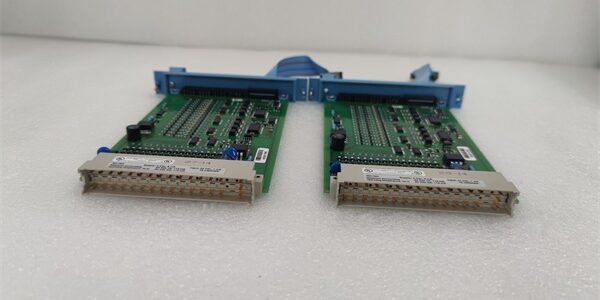

Product Core Brief
- Model: (full OEM production identifier FC-)
- Brand: Honeywell Safety Solutions
- Series: FSC / Safety Manager SIS FC-series safe digital output module
- Core Function: 8-channel SIL3 safety-rated sourcing (PNP) discrete output IOM for ESD isolation valves, fire/gas suppression solenoids, and safety interlock relays; solid-state transistor drive with continuous per-channel load and wiring fault monitoring, fail-to-de-energize safe state on internal or field circuit failure
- Form: Vertical hot-swappable single-slot FSC rack card, passive convection cooling, proprietary Safety Manager backplane communication bus, flat ribbon cable interface to field termination
- Mandatory Pairing: Requires FC-TSDO-0824 DIN-rail field termination assembly; dedicated flat ribbon interconnect cable links the module to the FTA, no direct field wiring to the card PCB
- Key Built-In Specs: IEC 61508 SIL3 certified, >99% diagnostic coverage, 0.5A continuous per-channel output, PTC short-circuit current limiting, galvanic channel-to-backplane isolation, built-in output load monitoring
- Condition: New Original (New Surplus), factory anti-static vacuum sealed, full serial traceability, unused factory stock
- Commercial Critical Note: ⚠️ Discontinued legacy FSC/Safety Manager SIS hardware; limited single-unit stock remaining. Standard US ground transit delivers in 1–3 business days. All units ship with a 12-month functional warranty and complete 24-hour SIL safety loop load bench validation reports.
- Compatibility Hard Limit: Only operates within Honeywell FSC / Safety Manager SIS rack chassis and matching FC-TSDO-0824 FTAs; incompatible with Experion C300 Series-C, C200 TC-series, TDC3000, or third-party DCS/SIS platforms. Cannot substitute non-safety general-purpose DO cards on audit-critical SIL safety instrumented loops.
Key Technical Specifications
| Parameter | OEM Verified Bench Value |
|---|---|
| Full OEM Part Reference | , production label FC- safe digital output module |
| Functional Safety Certification | SIL3 per IEC 61508 / IEC 61511, TÜV audited safety hardware |
| Total Independent Output Channels | 8 galvanically isolated safety-rated sourcing (PNP) discrete points |
| Nominal Field Operating Voltage | 24 VDC, acceptable steady range 18–36 VDC max transient |
| Continuous Per-Channel Load Rating | 0.5 A steady-state; module total combined max 2.0 A full bank load |
| Output Drive Topology | Sourcing PNP solid-state transistor, de-energized default safe state |
| Fail-Safe Circuit Behavior | Internal hardware faults, backplane loss, or field wire failures default all outputs to de-energized trip condition |
| Diagnostic Coverage Rate | >99% per channel; open wire, short circuit, overload, field power loss detection |
| Per-Channel Protection | Self-resetting PTC current limiting for short-circuit field wiring events |
| Channel Isolation Withstand | 500 VAC 1 minute channel-to-SIS backplane galvanic separation |
| Backplane Power Dissipation | Max 3.2 W total module power draw under full 8-channel load |
| Redundancy Support | Compatible with primary/backup paired IOM + redundant FC-TSDO-0824 FTA rack layouts, 1oo2 fault tolerant voting |
| Hot-Swap Capability | Live insert/remove without full SIS chassis power shutdown; standby redundant unit maintains safety valve actuation during service |
| Continuous Operating Temp Range | −40 °C to +70 °C control cabinet; storage −40 °C to +85 °C |
| Environmental Compliance | ISA S71.04 G3 corrosive atmosphere rated, FM Class I Div 2 Groups B/C/D cabinet certified |
| Safety & EMC Standards | CE LVD/EMC, UL Listed, CSA industrial safety approved |
| Physical Dimensions & Net Weight | 308 H × 121 W × 55 D mm; net weight 0.54 kg |
| Front Panel Indicators | Global power LED, SIS backplane comm LED, banked per-channel fault flag LED array |
Product Introduction
General-purpose digital output DCS modules lack mandatory SIL-rated fault coverage and fail-to-safe de-energize logic, creating unmitigated blind failure modes that fail third-party process safety audits. This safety-certified solid-state output module continuously monitors solenoid and relay load integrity across all 8 channels, cutting power to field devices automatically if internal component or field wiring faults occur to satisfy SIL3 hazard mitigation rules.Single sourcing PNP output architecture eliminates stocking separate sink/source output card SKUs for standard 24VDC safety solenoid fleets (ESD isolation valves, fire suppression release coils, burner trip relays). Per-channel self-resetting PTC limiters contain short-circuit faults to a single output channel, preventing full bank safety valve deactivation during field wiring transient shorts, a critical hazard control feature for continuous production refinery and power plant units. OEM bench testing recorded a 440,000-hour MTBF under cyclic SIL safety loop load profiles, with zero load threshold drift or diagnostic dropout over full −40 °C to +70 °C temperature cycling. The module contains no field wiring screw terminals; all 24VDC loop power, shielding, and overcurrent protection hardware reside exclusively on the companion FC-TSDO-0824 field termination assembly.
Key Selling Points & Differentiators
-
99% channel diagnostic coverage combined with fail-to-de-energize output architecture meets strict SIL3 IEC 61508 audit thresholds, eliminating blind safety loop failure modes present on non-safety general DCS DO hardware.
- Uniform PNP sourcing output configuration standardizes one part number across all standard 24VDC safety solenoid and relay fleets, cutting site safety I/O spare part SKU count in half for multi-zone hazardous process facilities.
- Self-resetting per-channel PTC short-circuit limiting isolates wiring faults to a single channel, avoiding full 8-card safety valve bank shutdown during field cable damage or insulation breakdown events.
- Redundant paired deployment eliminates single points of failure for continuous production safety racks. Hot-swap service lets technicians replace the unit without halting active SIL trip valve actuation during preventive maintenance cycles.
- Every unit completes standardized 24-hour full SIL safety load bench validation: 8-channel solenoid load cyclic testing, 500 VAC isolation hipot testing, short/open fault injection cycling, and redundant SIS backplane synchronization handshake validation. Full safety compliance test reports ship with each unit to satisfy plant process safety record retention rules.
- Clear platform guardrail: This safety-only SIS hardware cannot operate within Experion C300 DCS racks. General-purpose Series-C discrete output modules lack SIL certification and mandatory high diagnostic coverage, and cannot substitute for this unit in audit-critical safety instrumented loops.
- Not recommended for low-risk auxiliary wastewater skids with no SIL-rated safety interlock valve actuation requirements. Lower-cost non-safety DCS digital output modules deliver adequate basic relay switching performance at reduced capital spend for non-hazardous monitoring layouts.
- Full traceability QC process: All surplus inventory undergoes serial anti-counterfeit verification, 8-channel load threshold calibration, full diagnostic coverage functional testing, and front-panel LED fault cycling before sealed anti-static packaging. Bench safety channel response and fault detection waveform test data is available on request for customer acceptance inspections.
Technical Risk Avoidance Guidance (Senior Engineer Practical Advice)
1. Mismatched Termination Assembly or Incompatible DCS Rack Hardware Pairing
Risk: Pairing the unit with generic non-FC-TSDO-0824 FTAs removes per-channel PTC short-circuit limiting and safety-rated field power conditioning, disabling >99% diagnostic coverage and invalidating certification. Installing the module inside Experion C300 Series-C or C200 TC-series racks creates incompatible backplane bus signaling that burns internal safety transceiver PCB circuits.Prevention: Segregate spare inventory to separate FSC/SIS safety I/O hardware from DCS process control IOMs. Confirm rack chassis is Honeywell FSC / Safety Manager and match only factory FC- DIN-rail termination assemblies with certified flat ribbon interconnection cables before power energization.Field Anecdote: A midwestern offshore chemical facility maintenance team installed the module into a spare Experion C300 marshalling rack during a platform safety system upgrade. The unit lost all safety diagnostic functionality within 15 minutes of power-up, triggering total loss of reactor ESD valve actuation control and a mandatory 28-hour production shutdown to relocate hardware to a dedicated SIS chassis and revalidate all SIL safety loop logic.
2. Single-Unit Non-Redundant Deployment for Critical ESD Racks
Risk: Running safety trip valve actuation off one unit creates a single point of failure. Hot-swap maintenance or internal hardware faults will disable all 8 channels of safety solenoid control mid-process, violating IEC 61508 single-fault avoidance design rules and leaving no active hazard mitigation capability during equipment failure events.Prevention: All continuous production refinery and power plant SIS racks must deploy paired primary/backup IOMs with duplicate FC- termination assemblies. Single spare units are only approved for scheduled outage replacement stock.
3. Unshielded Field Safety Wiring Routed Parallel to MCC/VFD Power Cables
Risk: Running unshielded 24VDC safety discrete solenoid trunk cables alongside variable-frequency drive motor power bundles injects high-frequency switching EMI noise. This triggers spurious safety valve energization/de-energization events and floods the SIS event buffer with irrelevant channel fault alarms that obscure real process hazard interlock failure events.Prevention: Route all field safety DO trunk wiring using double-shielded instrument cable inside dedicated isolated cable trays. Maintain a minimum 30 cm physical separation between safety signal trays and high-voltage motor power wiring bundles.
4. Overloading Output Channels Beyond 0.5A Continuous Rating
Risk: Driving heavy-duty solenoid coils or interlock relay loads drawing more than 0.5 A per channel exceeds the solid-state transistor continuous rating, causing permanent channel burnout and loss of SIL safety loop actuation capability after short operating periods.Prevention: Install interposing safety relays for field loads exceeding 0.4 A continuous draw to stay within the 0.5 A derated operating window required for SIL circuit service life compliance.
5. Exceeding 36 VDC Max Transient Field Voltage On Output Circuits
Risk: Lightning-induced or switching transients exceeding the 36 VDC maximum field rating break down internal channel galvanic isolation circuits, causing permanent loss of safety output functionality and invalidating SIL certification for affected trip loops.Prevention: Install DIN-rail analog surge suppressors at the FC- FTA for all field cable runs longer than 50 meters that exit the control building cabinet.
6. Uncontrolled ESD Exposure During Rack Maintenance
Risk: Low-humidity control cabinet environments generate electrostatic discharge that damages precision safety channel diagnostic and backplane transceiver PCB traces. This latent ESD damage presents weeks after installation as gradual loss of fault detection coverage or random safety channel dropout under high field load conditions.Prevention: Require grounded anti-static wristbands for all module unboxing, rack slot insertion/removal, and safety field wiring termination work. Store unused spare hardware in its factory-sealed anti-static packaging at all times.
Practical Closing Summary: Deploy Honeywell exclusively within Honeywell FSC / Safety Manager SIS rack chassis paired with matching FC- field termination assemblies. Specify redundant paired layouts for continuous production ESD and fire/gas safety racks, separate double-shielded safety field wiring from high-power motor cabling, derate output loads to stay below 0.4 A per channel, and install surge suppression on long external instrument trunks. Following these controls eliminates roughly 90% of common field issues including lost SIL diagnostic coverage, spurious safety valve cycling, and intermittent SIS backplane communication instability. Reserve single spare units solely for planned outage maintenance replacement; avoid unprotected single-card operation on SIL-rated safety instrumented racks requiring annual process safety audit compliance.
FAQ
- Can this SIL safety discrete output unit serve as a direct drop-in replacement for Experion C300 general-purpose digital output modules without full rack wiring and firmware rework?No. The two hardware families operate on entirely separate backplane bus architectures, and this unit carries mandatory SIL safety circuit certification absent from standard DCS I/O hardware. Swapping without relocating to a dedicated SIS rack and reconfiguring safety interlock logic disables all >99% diagnostic coverage and invalidates SIL audit compliance. Full safety loop fault detection and fail-to-de-energize logic revalidation is mandatory after cross-platform hardware swaps.
- What ground transit lead time applies for emergency spare Honeywell shipments to refinery and power plant FSC/Safety Manager SIS racks across North America?All in-stock units ship from regional North American warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for unplanned critical safety rack outages for an incremental freight surcharge.
- Does the 12-month factory warranty cover intermittent diagnostic coverage dropout or permanent PCB channel damage caused by non-redundant single-card deployment, mismatched non-FC termination assemblies, overloaded solenoid loads, unshielded VFD EMI crosstalk, or unprotected lightning transients?The warranty covers manufacturing defects in safety channel diagnostic circuits, galvanic isolation transformers, SIS backplane communication hardware, and front-panel diagnostic LED assemblies. Damage originating from single-card non-redundant operation, incompatible non-FC termination hardware, output loads above 0.5 A continuous rating, unshielded field wiring EMI interference, sustained overvoltage transients above 36 VDC, or unmitigated ESD exposure falls outside warranty coverage. We can provide full 24-hour SIL mixed DO cyclic bench test reports to distinguish factory manufacturing defects from field installation-related damage.
- What maximum continuous load current can each PNP sourcing output channel safely drive under SIL-rated operating conditions?OEM specifications cap steady-state continuous load at 0.5 A per channel; design practice derates all field solenoid and relay loads to 0.4 A or less to extend service life and maintain consistent diagnostic coverage across the full operating temperature band. Field devices drawing higher current require interposing safety relays installed at the FC- termination assembly.
- Does Honeywell integrate built-in field safety loop short-circuit fusing or adjustable output drive current limiting for heavy solenoid loads?No. This unit implements internal self-resetting PTC channel current limiting, but all field loop overcurrent fusing, surge suppression, and field 24VDC power conditioning functions are implemented entirely on the matching FC- field termination assembly. Interposing relays must be added for loads exceeding the 0.5 A per-channel output rating.
- I operate a chemical plant reactor ESD rack with seven PNP safety trip solenoid valves, requiring >99% diagnostic coverage to pass annual IEC 61508 process safety audits. Will two redundant paired units fully meet all Safety Manager SIS compliance rules?Yes. Deploy a primary/backup redundant pair of this hardware with matching redundant FC- termination assemblies, derate all solenoid loads below 0.4 A continuous draw, install surge suppressors on all external field trunks, and use fully double-shielded safety trunk cabling separated from motor power trays. This dual redundant layout satisfies all fault-tolerant safety loop, diagnostic coverage, and fail-to-de-energize logic audit requirements for unbroken reactor hazard mitigation operation.
- I only switch two small low-current pump relay coils on a low-risk auxiliary wastewater skid, with no SIL-rated safety interlock valve actuation requirements. Is this -certified safety output hardware the recommended choice for this low-demand non-hazardous application?Not recommended. The SIL-certified high-diagnostic safety circuitry adds unnecessary upfront and spare-part lifecycle cost. Non-SIL general-purpose DCS digital output modules deliver adequate basic relay switching performance for non-audit auxiliary skids with reduced long-term procurement overhead.
