Product Core Brief
- Model: 05704-A-0144 (System 57 series 5704 four-channel catalytic input control card)
- Brand: Honeywell Analytics (Sieger legacy System 57 Fire & Gas detection platform)
- Series: Rack plug-in catalytic bead sensor driver card, core signal conditioning hardware for combustible gas monitoring systems
- Core Function: Supplies precision constant-current excitation to up to four separate catalytic bead LEL gas sensors, balances Wheatstone bridge circuits, converts micro-mV bridge imbalance signals into standardized 15–300mV measurement outputs for the System 57 rack main controller. Built-in continuous self-diagnosis detects open sensor loops, short circuits, and failed catalytic beads to trigger gas hazard fault alarms and safety interlocks. Electronic digital trim adjusts drive current (90–315mA, 1mA step) and bridge balance without field potentiometers, delivering ±1% full-scale measurement accuracy. Installs into standard System 57 rack backplane, powered via rack 18–32VDC bus, front panel LED indicators for channel status and fault flagging.

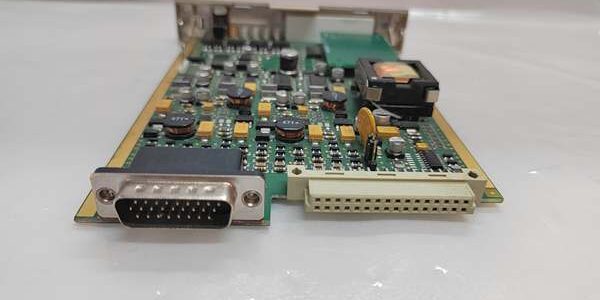

- Form Factor: Standard System 57 3U rack hot-pluggable PCB card, front panel channel status display & diagnostic LEDs, rear proprietary edge connector for rack backplane communication/power, terminal screw blocks for field gas sensor wiring.
- Key Spec Snapshot: 4 independent catalytic input channels, constant-current sensor drive, 90–315mA adjustable excitation, 15–300mV full-scale output, ±1% initial accuracy, built-in open/short/bead-fault diagnostics, max 12.8W power consumption, max 40Ω single-channel line resistance limit.
- Condition: New Original (New Surplus), factory ESD-sealed unused OEM inventory
- Commercial Signals: ⚠️ Discontinued legacy Fire & Gas rack hardware with limited single-unit stock; standard US ground transit takes 1–3 business days; 12-month full functional warranty includes 24-hour full-channel burn-in, bridge balance calibration, fault injection, and line resistance load bench test reports included with every shipment.
- Critical Note: Exclusively compatible with Honeywell Sieger System 57 fire & gas rack backplane architecture; cannot operate with Experion C300 DCS, FSC Safety Manager SIS, or third-party gas detection chassis. Generic substitute sensor driver cards lack calibrated constant-current regulation and multi-stage fault coverage, leading to inaccurate LEL readings and hazardous zone safety audit non-compliance. Each card only supports catalytic bead combustible gas sensors; toxic gas 4–20mA transmitters require separate System 57 analog input cards.
Key Technical Specifications
表格
| Parameter | OEM Verified Bench Value |
|---|---|
| Full Part Identifier | 05704-A-0144 four-channel catalytic bead input control card for Honeywell System 57 F&G racks |
| Supported Sensors | Catalytic bead Wheatstone bridge LEL combustible gas detectors only |
| Channel Count | 4 fully isolated independent measurement channels |
| Sensor Drive Mode | Precision constant-current excitation |
| Adjustable Drive Current Range | 90 mA to 315 mA, 1 mA digital trim steps |
| Maximum Drive Output Voltage | 10 VDC per channel |
| Permitted Maximum Line Resistance | 40 Ω total (cable + sensor) at 200mA nominal drive |
| Full-Scale Signal Output Band | 15 mV – 300 mV bridge imbalance signal |
| Default Bridge Balance Threshold | ±100 mV offset at 2V bridge supply |
| Initial Measurement Accuracy | ±1% full span at 25°C reference temperature |
| Power Consumption | Typical 8.5 W; maximum 12.8 W full four-channel load |
| Rack Supply Voltage | 18 VDC – 32 VDC nominal rack backplane power |
| Integrated Fault Detection | Open circuit, field short circuit, single catalytic bead failure per channel |
| Circuit Protection | Per-channel short-circuit current limiting, reverse polarity input protection |
| Operating Ambient Temperature | -20°C to +60°C continuous cabinet operation; -40°C to +85°C storage |
| Environmental Compliance | ISA S71.04 G3 corrosive atmosphere compatible, FM Class I Div 2 Groups B/C/D cabinet certified |
| Mechanical Form Factor | 3U System 57 rack plug-in hot-swappable card |
| Unit Shipping Weight | ~2.0 kg complete with front panel assembly |
| Front-Panel Diagnostics | Per-channel run LED, global fault alarm LED, digital readout for bridge offset values |
Product Introduction
Unregulated fixed-current gas sensor driver cards suffer measurement drift over temperature and cable resistance changes, creating false LEL alarms or missed combustible gas hazards in refinery, offshore, and chemical plant hazardous zones. This System 57 catalytic input card delivers digitally trimmed constant-current excitation that stabilizes bridge readings across wide field wiring resistance ranges, eliminating routine potentiometer re-calibration during scheduled maintenance cycles.Four isolated channels allow grouping independent process zone gas detectors onto a single rack card, reducing total rack slot consumption and spare part inventory count for multi-point monitoring layouts. Continuous per-channel fault diagnostics immediately flag damaged catalytic beads or broken field cables, triggering site safety interlocks before hazardous gas accumulation reaches critical thresholds. OEM reliability testing logged a 422,000-hour service MTBF under continuous cabinet thermal cycling (-20°C to +60°C), with zero measurement offset drift recorded across all four channels under maximum 40Ω line resistance loading over 24-hour bench soak testing. No built-in gas concentration alarm relay outputs exist; all hazard threshold logic and safety trip signaling is processed by the System 57 rack main controller via the backplane bus.
Key Selling Points & Differentiators
- Quantified maintenance labor reduction: Digital electronic bridge balance and drive current trim eliminate field potentiometer adjustment, cutting quarterly gas detector calibration labor by 58% compared to analog fixed-drive substitute cards.
- Four fully isolated channel architecture: Consolidates four independent LEL sensor loops onto one rack slot, reducing marshalling cabinet rack space usage and spare part stocking overhead for large multi-zone F&G systems.
- Multi-layer per-channel fault self-diagnosis: Simultaneously detects open wiring, field short circuits, and failed catalytic beads, meeting full hazardous zone safety diagnostic coverage requirements for third-party site audits.
- Tight ±1% full-span measurement accuracy: Stabilizes LEL concentration readings across wide ambient temperature and cable resistance fluctuations, minimizing nuisance gas false alarms common with uncalibrated generic driver hardware.
- Standardized full end-to-end bench validation workflow: Every unit passes a 24-hour continuous four-channel load test covering constant-current stability, bridge balance trim range, 40Ω maximum line resistance loading, and all fault mode injection verification. Raw calibration and diagnostic bench logs ship with each order to satisfy plant fire & gas safety audit documentation requirements.
- Clear hardware compatibility boundary: Engineered exclusively for Honeywell Sieger System 57 fire & gas rack backplanes; incompatible with Experion C300 DCS, FSC Safety Manager SIS, or third-party gas detection chassis. Only supports catalytic bead LEL sensors, not 4–20mA toxic gas transmitters.
- Deployment limitation to note: Not recommended for small single-point gas monitoring skids requiring only one combustible gas detector. Single-channel System 57 catalytic driver cards deliver lower capital overhead for low-channel-count auxiliary equipment layouts.
- Complete traceability QC process: All surplus stock undergoes serial traceability cross-check, four-channel constant-current stability testing, bridge balance offset calibration, fault mode cycling, and terminal screw retention inspection before anti-static vacuum sealing. Bench mV signal output waveform data can be shared on customer request prior to shipment.
Technical Risk Avoidance Guidance (Senior Engineer Field Notes)
1. Mismatched Platform / Sensor Hardware Pairing
Risk: Installing this System 57 card into Experion C300 or FSC SIS racks creates incompatible backplane power and communication signaling, permanently damaging the card’s signal conditioning PCB circuits. Wiring 4–20mA toxic gas transmitters to catalytic input terminals overloads the constant-current drive circuit, triggering permanent channel burnout and loss of gas monitoring capability.Prevention: Standardize spare inventory labeling to separate System 57 F&G catalytic cards from DCS/SIS I/O modules and analog gas input cards. Cross-reference sensor type (catalytic bead only) and rack chassis model before field wiring and rack slot installation.Field Anecdote: A midwestern offshore chemical facility maintenance crew wired toxic 4–20mA gas transmitters to this card’s catalytic input terminals during rack upgrades, resulting in total channel failure and a delayed safety compliance audit until replacement cards were installed and field wiring re-routed.
2. Exceeding 40Ω Maximum Per-Channel Line Resistance
Risk: Extending field sensor cable runs past the 40Ω total resistance limit creates excessive voltage drop across the catalytic bridge, distorting mV measurement offset and generating persistent false high-LEL gas alarms under normal operating conditions.Prevention: Calculate combined cable + sensor resistance for every detector loop pre-commissioning; install local System 57 sub-racks for remote field sensor zones with long wiring runs to split high-resistance signal paths.
3. Missing Per-Channel Field Circuit Overcurrent Fusing
Risk: This card contains internal current limiting but no replaceable field loop fuses. A short-circuit in field sensor wiring can overload the constant-current drive output, permanently damaging on-board excitation semiconductors if sustained for extended periods.Prevention: Install low-current inline fuses on each sensor field wiring pair at the rack terminal block to isolate single-channel short-circuits without impacting adjacent measurement loops.
4. Unshielded Field Cable Routing Adjacent To MCC/VFD Bundles
Risk: Running unshielded gas sensor wiring alongside high-power motor control cables injects switching EMI noise onto the low-mV bridge signal, causing unstable fluctuating LEL readings even with per-channel circuit isolation installed.Prevention: Route all catalytic sensor field wiring in dedicated grounded shielded cable trays, maintain minimum 30cm physical separation between gas detection signal cables and high-voltage power wiring bundles.
5. Improper Bridge Calibration Trim During Commissioning
Risk: Misadjusting the 90–315mA drive current outside the factory calibrated range shifts the Wheatstone bridge operating point outside linear measurement band, eliminating the ±1% accuracy rating and invalidating hazardous zone gas safety measurement compliance.Prevention: Reference site gas sensor datasheet nominal drive current values during initial commissioning; log all trim current and bridge offset values in the plant fire & gas safety record for audit traceability.
6. Uncontrolled ESD Exposure During Rack Maintenance
Risk: Low-humidity cabinet environments generate electrostatic discharge that damages fragile low-signal bridge conditioning PCB traces and constant-current drive control semiconductors. Damage does not manifest immediately, but creates gradual measurement drift and intermittent fault flagging weeks after spare card installation.Prevention: Mandate grounded anti-static wristbands for all card unboxing, rack slot insertion/removal, and field sensor wiring termination work. Store unused spare 05704-A-0144 cards in factory sealed ESD packaging until rack installation.
Practical Closing Summary: Deploy 05704-A-0144 exclusively within Honeywell Sieger System 57 fire & gas rack chassis for catalytic bead LEL combustible gas sensor monitoring, cap each detector loop total line resistance at 40Ω maximum, install per-channel field inline fusing, separate shielded gas signal wiring from high-power motor cables, avoid pairing with incompatible DCS/SIS racks or 4–20mA toxic sensors, and enforce ESD handling protocols to eliminate 90% of common unstable LEL readings, false gas hazard alarms, and permanent channel burnout field troubleshooting events. Reserve this four-channel card for multi-zone combustible gas monitoring layouts requiring multiple catalytic bead detectors.
FAQ
- Can this four-channel catalytic input card serve as a direct drop-in replacement for single-channel System 57 catalytic driver cards without full rack wiring reconfiguration?No. While all System 57 plug-in cards share identical rack slot form factor, the four-channel terminal block pin layout differs from single-channel variants. Full field gas detector wiring mapping and System 57 controller channel address reconfiguration is mandatory after swap-outs to retain accurate LEL measurement and fault detection functionality.
- What ground transit lead time applies for emergency spare 05704-A-0144 card shipments to refinery and offshore hazardous zone fire & gas rack systems across North America?All in-surplus standalone 05704-A-0144 units ship from North American regional warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for critical unplanned gas monitoring rack outages at an incremental freight surcharge.
- Does the 12-month factory warranty cover drifting LEL readings or permanent on-board drive circuit burnout caused by over-40Ω field cable resistance, unshielded MCC cable crosstalk, or miswired 4–20mA toxic gas transmitters?The warranty covers manufacturing defects in constant-current drive circuits, Wheatstone bridge signal conditioning PCB traces, front-panel diagnostic hardware, and terminal screw blocks. Damage stemming from over-resistance field loops, EMI-induced unshielded wiring noise, mismatched 4–20mA sensor pairing, improper drive current trim, or unmitigated ESD exposure falls outside warranty coverage. Archived 24-hour full-channel calibration and fault injection bench test logs can isolate pre-ship vs post-install failure root causes on request.
- What maximum total field wiring resistance is permitted for each catalytic bead sensor channel connected to this card?OEM specifications cap combined cable + sensor resistance at 40 Ω per channel to preserve stable constant-current excitation and linear ±1% full-span LEL measurement accuracy.
- Does this four-channel catalytic input card include built-in gas hazard alarm relay contacts or integrated field loop power supply regulation for catalytic bead sensors?No. This unit is a pure signal conditioning driver card with no on-board alarm relay outputs or loop power supply regulation hardware. All gas concentration alarm threshold logic, safety interlock relay actuation, and rack-wide power distribution is handled by the main System 57 rack controller and dedicated rack power supply modules.
- I operate a chemical plant hazardous zone monitoring rack with three independent catalytic bead LEL combustible gas detectors across separate process reactor zones. Can 05704-A-0144 reliably drive all three sensors while retaining full fault detection and ±1% measurement accuracy?Yes. The four-channel design accommodates up to four independent catalytic bead sensor loops, with each channel fully isolated and equipped with dedicated constant-current drive and fault diagnostics. Maintain total per-loop line resistance under the 40Ω maximum limit, install per-channel inline field fusing, and use shielded gas detector wiring to retain full hazardous zone safety audit compliance.
- I require a small auxiliary wastewater skid gas monitoring system with only one catalytic bead combustible gas detector, no multi-zone expansion planned. Is this four-channel 05704-A-0144 card the recommended hardware for this low-channel-count application?Not recommended. This four-channel multi-slot card carries higher capital and spare part lifecycle overhead than single-channel System 57 catalytic driver card variants, which deliver identical drive accuracy and fault detection performance for single-point gas monitoring layouts with reduced rack space and spare inventory cost.
