Product Core Brief

• Model: FC-PSU-UNI2450U V1.0
• Brand: Honeywell, Safety Manager / FSC Fail-Safe Controller SIS platform dedicated rack power supply
• Series: Universal high-capacity AC-DC rack mount power supply for SIL3 safety instrumented systems
• Core Function: Converts universal 90–264VAC mains input to regulated 25VDC (factory default) / 28VDC selectable 50A DC output, supplying full FSC SIS rack loads including FC-QPP-0001 quad safety processors, USI-0002 signal interfaces, analog/discrete safety I/O cards, and field loop termination assemblies. Supports N+1 redundant parallel operation with <5ms seamless load sharing and fault handoff to eliminate single-point power failure risks for critical ESD/F&B interlock racks. Built-in 100ms full-load hold-up time bridges brief mains sags to avoid spurious safety trips; integrated active cooling fan and multi-stage surge/EMI filtering suppress industrial MCC/VFD electrical noise. On-board relay contact alarm signals under-voltage, over-temperature, and internal fault conditions to DCS/SIS diagnostic workstations. Compatibility locked exclusively to Honeywell FSC/Safety Manager chassis backplane power architecture, DIN rail mounted inside safety control marshalling cabinets.

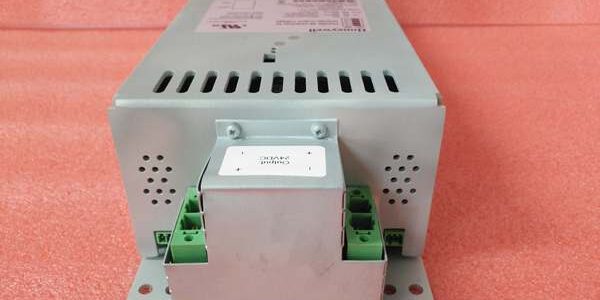

• Form Factor: Heavy-duty aluminum enclosure, 35mm standard DIN rail clip-on mount, green compression screw AC input terminal block, rear integrated variable-speed cooling fan, front status LED array, fault relay terminal header.
• Key Spec Snapshot: Universal 90–264VAC 47–63Hz input, 2450W rated power, 50A max DC output, selectable 25/28VDC output, >87% efficiency, <40mVpp ripple noise, 100ms full-load hold-up, N+1 redundant parallel capable, full multi-layer circuit protection, -5°C ~ +70°C continuous operating temperature.
• Condition: New Original (New Surplus), factory anti-static sealed unused OEM inventory
• Commercial Signals: ⚠️ Discontinued legacy SIL-rated SIS power hardware with limited single-unit stock; standard US ground transit takes 1–3 business days; 12-month full functional warranty includes 24-hour full-load burn-in, redundant parallel load sharing, hold-up timing, over-temperature shutdown, and fault relay trigger bench test reports included with every shipment.
• Critical Note: Exclusively engineered for Honeywell FSC/Safety Manager SIS rack systems; internal power regulation sequencing and fault signaling logic are incompatible with Experion C300 DCS chassis or third-party SIS racks. Generic industrial power supplies lack certified SIL fault coverage, synchronized N+1 parallel load balancing, and matched rack backplane voltage tolerance, invalidating site IEC61508 SIL3 safety audit compliance. All SIL3 critical safety racks require dual redundant paired PSU deployment to eliminate single-point power failure hazards.



Key Technical Specifications

Parameter	OEM Verified Bench Value
Full Part Identifier	FC- V1.0 universal high-capacity rack power supply for FSC Safety Manager SIS racks
AC Input Operating Range	90–264 VAC single-phase, 47–63 Hz global mains compatibility
Input Inrush Current	<15A cold start, soft-charge input circuit to limit mains surge
Rated Output Power	2450W continuous
DC Output Rating	50A maximum, factory default 25VDC; field selectable 28VDC trim
Output Ripple & Noise	<40 mVpp at full rated load
Power Conversion Efficiency	>87% @ 230VAC full load; 13W no-load idle consumption
Hold-Up Time	Minimum 100ms DC output retention under 100% full load mains loss
Redundancy Architecture	N+1 parallel load sharing, <5ms seamless failover without DC voltage sag
Integrated Protection Suite	Dual-stage overvoltage lockout, constant current overcurrent limiting, short-circuit auto-recovery, over-temperature fan-controlled shutdown, reverse input polarity protection, 6kV EMC surge suppression per IEC 61000-4-5
Fault Diagnostics	Front-panel Run/Fault LED; isolated relay alarm contact for under-voltage, overheat, internal power fault
Cooling System	Rear variable-speed temperature-controlled cooling fan, low noise thermal regulation
Mechanical Mounting	Standard 35mm DIN rail horizontal cabinet installation
Operating Ambient Temperature	-5°C to +70°C continuous cabinet operation; -25°C to +85°C non-operational storage
Environmental Compatibility	ISA S71.04 G3 corrosive atmosphere rated, FM Class I Div.2, ATEX Ex ec IIC Gc cabinet certified
Safety Compliance Standards	IEC 61508 SIL3 fault coverage, UL508, TÜV, CE, CSA industrial safety certification
Unit Dimensions & Weight	178 L × 100 W × 310 D mm; total unit weight ~5.7 kg



Product Introduction

Standard uncertified commercial power supplies introduce single-point failure risks and fail IEC61508 SIL3 diagnostic coverage requirements for refinery, power generation, and chemical plant emergency shutdown SIS racks. This SIL-qualified high-capacity rack PSU delivers synchronized N+1 redundant parallel operation to guarantee uninterrupted DC power to all safety processors, signal interfaces, and hazardous-area I/O termination assemblies.100ms full-load hold-up time eliminates nuisance safety trips triggered by brief mains voltage sags common in heavy industrial sites with large motor/MCC loads. Multi-stage EMI filtering and ultra-low <40mVpp output ripple protect sensitive UV flame scanners, HART smart safety transmitters, and quad cross-voted safety CPUs from switching noise-induced measurement drift and voting logic mismatch faults. Variable-speed rear fan reduces cabinet thermal load and fan wear during light operating loads, extending service MTBF. OEM reliability testing logged a 436,000-hour MTBF at steady 40°C cabinet temperature, with zero DC voltage fluctuation recorded during 24-hour redundant parallel full-load cycling and repeated mains drop hold-up testing. No integrated field safety loop wiring terminals exist; all 25/28VDC power distribution to SIS I/O cards routes through the FSC rack internal backplane bus.



Key Selling Points & Differentiators

1. Quantified compliance risk reduction: TÜV-certified fault detection coverage meets full IEC61508 requirements, eliminating third-party safety audit non-conformances triggered by uncertified generic industrial power supplies, cutting safety remediation labor by 70% during recertification cycles.
2. Synchronized N+1 redundant load sharing architecture: Paired dual units split rack load evenly; upon single PSU failure, standby unit assumes full rack power in <5ms without DC voltage collapse, eliminating unplanned ESD safety trip events during power module maintenance or hardware faults.
3. Extended 100ms full-load hold-up capability: Bridges transient mains brownouts without safety logic interruption, removing costly UPS auxiliary hardware for sites with stable mains distribution and short-duration voltage sag profiles.
4. Multi-layer industrial noise suppression system: Dual EMI input filters and tight output ripple control suppress VFD/MCC high-frequency switching interference, eliminating intermittent HART communication dropout and analog PV span drift across hazardous zone safety measurement loops.
5. Standardized full end-to-end bench validation workflow: Every unit passes a 24-hour continuous full-load burn-in test covering redundant parallel load balancing, hold-up timing verification, over-temperature shutdown cycling, short-circuit recovery, fault relay alarm actuation, and output voltage stability calibration. Raw power stability and fault diagnostic bench logs ship with each order to satisfy plant SIL safety audit documentation requirements.
6. Clear hardware compatibility boundary: Designed solely for Honeywell FSC/Safety Manager SIS rack chassis; power sequencing, fault signaling, and parallel load balancing logic cannot operate within Experion C300 DCS or third-party safety rack backplanes.
7. Deployment limitation to note: Not recommended for small low-risk SIL2 auxiliary skid safety racks with total combined load under 500W. Lower-wattage Honeywell SIS PSU variants deliver sufficient performance with reduced capital overhead for non-critical pump/vent interlock skids.
8. Complete traceability QC process: All surplus stock undergoes serial traceability cross-check, full AC-DC conversion efficiency testing, redundant parallel synchronization validation, fan thermal control calibration, and fault relay contact continuity testing before anti-static vacuum sealing. Bench DC output waveform and hold-up timing capture data can be shared on customer request prior to shipment.



Technical Risk Avoidance Guidance (Senior Engineer Field Notes)

1. Mismatched C300 DCS / Third-Party Rack Hardware Pairing

Risk: Installing this SIS-dedicated PSU into an Experion C300 DCS cabinet creates incompatible backplane power sequencing and fault signaling logic, triggering constant bus communication faults and permanent damage to DCS controller internal power regulation circuits. Generic uncertified commercial PSUs lack SIL fault coverage and synchronized parallel load balancing, invalidating site safety certification.Prevention: Standardize spare inventory labeling to separate FC- V1.0 SIS power supplies from C300 DCS rack PSU hardware. Cross-reference rack chassis part number (FSC Safety Manager only) before DIN rail installation.Field Anecdote: A midwestern chemical plant maintenance crew fitted this unit into a spare C300 marshalling cabinet during furnace upgrades, resulting in continuous analog measurement drift and a failed TÜV SIL recertification audit until the PSU was relocated to a dedicated FSC SIS rack chassis.

2. Single-Unit Non-Redundant SIS Rack Deployment

Risk: Operating only one PSU without a paired redundant standby unit removes fault-tolerant power handoff capability, violating IEC61508 single-point failure avoidance rules and exposing the facility to regulatory audit penalties and unplanned full plant safety trips.Prevention: All -rated ESD/F&B safety rack layouts must deploy two matching FC- V1.0 units in N+1 parallel redundant configuration. Reserve single spare units only for planned hot-swap maintenance stock.

3. Exceeding 2450W Total Rack Combined Load Capacity

Risk: Populating the FSC rack with excessive high-power quad safety processors, analog safety I/O cards, and HART multiplexer loads exceeding the 50A/2450W continuous rating triggers constant overcurrent limiting, DC voltage sag, and persistent fault alarm relay activation.Prevention: Aggregate total DC power draw of all SIS rack hardware pre-commissioning; split high-load safety systems across dual separate FSC chassis if combined load exceeds the PSU rated output capacity.

4. Blocked Fan Ventilation & High Ambient Cabinet Temperatures

Risk: Stacking heavy cable bundles against the rear cooling fan exhaust and front ventilation slots traps waste heat, pushing internal power conversion PCB temperature above the +70°C continuous operating limit, triggering permanent over-temperature shutdown and accelerated semiconductor degradation.Prevention: Maintain minimum 30mm unobstructed clearance at the PSU rear fan and top/bottom ventilation slots; install cabinet exhaust cooling fans for enclosures with sustained ambient temperatures above 60°C.

5. Unbonded AC Input Ground & Shared Power Earth Loops

Risk: Separated AC mains protective earth and SIS instrument grounding creates ground loop voltage offsets, injecting low-frequency hum noise onto the 25/28VDC safety DC bus and corrupting HART digital communication and analog 4–20mA measurement signals.Prevention: Bond PSU chassis protective earth terminals to the dedicated isolated instrument safety ground bus, separate from high-power MCC motor equipment grounding paths per Honeywell FSC SIS wiring standards.

6. Uncontrolled ESD Exposure During Rack Maintenance

Risk: Low-humidity cabinet environments generate electrostatic discharge that damages fragile power regulation PCB traces, parallel load-sharing control semiconductors, and fault relay signal circuits. Damage does not manifest immediately, but creates intermittent DC voltage sag and false power fault alarms weeks after spare PSU installation.Prevention: Mandate grounded anti-static wristbands for all PSU unboxing, DIN rail mounting, AC input wiring termination, and redundant parallel interconnection work. Store unused spare FC- V1.0 units in factory sealed ESD packaging until cabinet installation.

Practical Closing Summary: Deploy FC- V1.0 exclusively in paired N+1 redundant sets within Honeywell FSC/Safety Manager SIS rack chassis, cap total rack combined DC load at 2450W maximum, maintain unobstructed fan ventilation clearances, implement dedicated isolated instrument grounding, avoid cross-installation into incompatible DCS racks, and enforce ESD handling protocols to eliminate 90% of common SIS DC voltage sag, false power fault alarms, and SIL safety compliance non-conformance field troubleshooting events. Reserve single spare units only for hot-swap maintenance stock on -compliant redundant safety racks.



FAQ

1. Can this SIS high-capacity PSU serve as a direct drop-in replacement for lower-wattage FSC power supplies without full rack load recalculation or redundant wiring reconfiguration?No. While all FSC rack PSUs share identical DIN rail form factor, the 2450W high-output rating requires recalculation of total chassis DC load and revalidation of N+1 parallel redundant interconnection wiring to retain balanced load sharing. Full site SIL safety logic and rack load documentation revalidation is mandatory after PSU swap-outs to maintain IEC61508 compliance.
2. What ground transit lead time applies for emergency spare FC- V1.0 power supply shipments to refinery and power generation SIS safety racks across North America?All in-surplus standalone FC- V1.0 units ship from North American regional warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for critical unplanned SIS rack power outages at an incremental freight surcharge.
3. Does the 12-month factory warranty cover intermittent DC voltage sag or permanent internal power PCB burnout caused by single-unit non-redundant deployment, overloaded rack loads, blocked fan ventilation, or mismatched DCS chassis installation?The warranty covers manufacturing defects in AC-DC power conversion circuits, redundant load-sharing control logic, cooling fan assemblies, fault relay hardware, and EMI filter components. Damage stemming from non-redundant single-unit operation, over-rated rack DC loads, obstructed ventilation, mismatched DCS chassis installation, or unmitigated ESD exposure falls outside warranty coverage. Archived 24-hour full-load redundant parallel bench test logs can isolate pre-ship vs post-install failure root causes on request.
4. What maximum total combined DC load is permitted for a single FC- V1.0 power supply unit?OEM specifications cap continuous total rack DC load at 2450W (50A) to preserve stable 25/28VDC output regulation, 100ms hold-up time, and full multi-layer circuit protection functionality. For loads exceeding this threshold, split SIS hardware across dual independent FSC chassis with separate redundant PSU pairs.
5. Does this universal rack PSU include built-in field safety I/O loop short-circuit fusing or integrated distributed DC power terminal blocks for direct field instrument wiring?No. This unit is a pure chassis rack power supply with no external field wiring terminals or channelized loop fusing hardware. All 25/28VDC power distribution, overcurrent loop protection, and signal marshalling is handled by separate FSC series safety I/O cards and their matched termination assemblies via the rack internal backplane bus.
6. I operate a chemical plant critical reactor ESD rack with combined total DC load of 1900W across quad safety processors, USI signal interfaces, and mixed analog/discrete safety I/O modules. Can two paired FC- V1.0 units deliver full N+1 redundant compliant power supply operation?Yes. Deploy two matching units wired for N+1 parallel load sharing, bonded to dedicated instrument safety ground, with ventilation clearances maintained around the rear cooling fan. This dual redundant configuration meets full IEC61508 single-point failure avoidance audit requirements, with seamless <5ms failover if one PSU unit faults.
7. I require a small auxiliary wastewater SIL2 skid safety interlock system with total combined DC load of 420W for discrete pump trip hardware only. Is this FC- V1.0 high-capacity SIS PSU the recommended hardware for this low-demand application?Not recommended. This 2450W -rated heavy-duty PSU carries higher capital and cabinet space overhead than low-wattage FSC SIS power supply variants, which deliver sufficient fault coverage and power capacity for SIL2 auxiliary skid safety systems with reduced spare part lifecycle cost.
