Product Core Brief

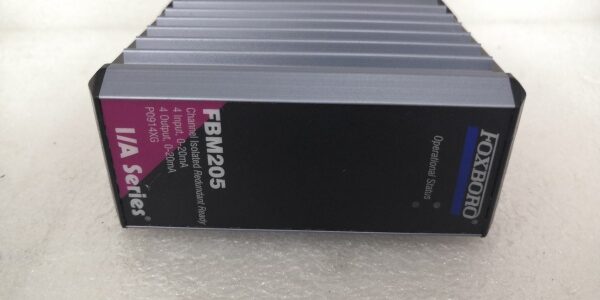

- Model: FBM205, OEM factory part number P0914XG
- Brand: FOXBORO, I/A Series Compact 200 DCS hardware platform
- Series: Mixed redundant analog input / analog output interface module
- Core Function: Combines four pairs of redundant 0–20.4mA analog inputs and four pairs of redundant 0–20.4mA analog outputs in one slot; reads HART-capable pressure, flow, level transmitters and outputs regulatory signals to modulating control valves. Every channel carries independent galvanic isolation to contain field short-circuit faults to a single loop.
- Form Factor: Hot-swappable DIN rail module with integrated aluminum heat sink; rear 37-pin D-Sub connector links to dedicated RH914XG passive termination assembly via Type 4 shielded interconnect cable (30m maximum total run length).
- Key Spec Snapshot: 4 redundant AI + 4 redundant AO channels, 600VAC per-channel isolation, HART 5/6/7 native compatibility, 16-bit Sigma-Delta conversion, configurable fail-safe output state (hold / 4mA zero).
- Condition: New Original (New Surplus), factory anti-static vacuum sealed unused OEM inventory
- Commercial Signals: ⚠️ Discontinued OEM hardware with limited matched module + RH914XG stock; standard US ground lead time 1–3 business days; 12-month full functional warranty with complete 24-hour load bench test reports provided with each shipment.
- Critical Note: Distinct from standalone AI (FBM211, FBM214) and standalone AO (FBM237) modules; this mixed unit consolidates measurement and regulation circuits to cut cabinet slot usage. Only RH914XG termination assembly passes OEM impedance and isolation matching validation; generic third-party terminal blocks disrupt HART FSK signaling and risk permanent channel burnout. Redundant deployments require two matching units sharing one RH914XG base.
Key Technical Specifications
| Parameter | OEM Verified Bench Value |
|---|---|
| Full Part Identifier | (P0914XG) redundant mixed analog I/O module |
| Channel Allocation | 4 redundant analog input loops, 4 redundant analog output loops; each signal path fully channel-isolated |
| Standard Signal Span | 0–20.4mA DC, fully compliant with 4–20mA industrial process control standard |
| Supported HART Protocol Revisions | HART 5, HART 6, HART 7 passive FSK signal path, compatible with handheld HART communicators |
| Signal Conversion Architecture | Independent 16-bit Sigma-Delta ADC / DAC per channel |
| Full Span Accuracy | ±0.05% FS typical, ±0.3% FS maximum across full operating temperature band |
| Temperature Drift Coefficient | 50 ppm/°C across calibrated measurement range |
| Noise Rejection Ratings | CMRR >100dB at 50/60Hz industrial mains; NMRR >40dB at 60Hz |
| Channel Isolation Dielectric Rating | 600VAC 1-minute withstand between individual channels and backplane ground |
| Input Circuit Nominal Impedance | 60Ω built-in redundant matching resistors |
| Onboard Local Processing | Digital signal filtering, user-defined rate-of-change limits, configurable fail-safe output mode, HART command parsing |
| Backplane Fieldbus | Dual redundant 2 Mbps HDLC Compact 200 proprietary bus |
| Module Logic Power Consumption | Max 4.5W, draws 24VDC exclusively from rack backplane; field transmitters and valve actuators require separate external loop power |
| Valid Matching Termination Assembly | RH914XG flame-retardant polyamide compression screw TA |
| Approved Interconnect Cable | Type 4 shielded jumper cable, maximum total run length 30m between module and TA |
| Operating Ambient Temperature | -20°C to +70°C continuous cabinet operation; -40°C to +85°C storage range |
| PCB Environmental Protection | ISA S71.04 G3 conformal coating for corrosive refinery, chemical and wastewater cabinet atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only installation) |
| Mechanical Dimensions & Weight | H102 × W45 × D104 mm; unit weight ~290g |
| Front-Panel Diagnostics | Run/fault LED indicator, hardware watchdog timer, single-channel open/short circuit fault telemetry transmitted to host FCP controller |
Product Introduction
Separate dedicated analog input and analog output modules consume twice the rack slot space and double field wiring labor for facilities running paired transmitter + control valve loops. This unit consolidates eight total redundant process signal paths into one single DIN rail slot, reducing cabinet footprint and marshalling overhead for refining, power and water treatment DCS deployments.Every input and output channel features standalone galvanic isolation, so a shorted field cable or grounded instrument only disables that individual loop without taking the entire module offline. The native HART signal path eliminates external multiplexer hardware, allowing control room operators to pull diagnostic alerts, calibration logs and sensor health data directly from smart field instruments without site visits. OEM reliability testing logged a 315,000-hour MTBF at steady 40°C cabinet ambient temperature, with <16ms bumpless switchover when paired for redundant hot-swap maintenance.
Key Selling Points & Differentiators
- Quantified cabinet space reduction: Consolidates four redundant measurement and four redundant regulation loops into one slot, cutting required rack real estate by 50% compared to deploying standalone AI and AO modules side-by-side. Field wiring terminal count drops by 55% for identical loop capacity.
- Independent per-channel fault containment: Isolation barriers restrict short-circuit damage to one single process loop; group-isolated I/O hardware disables an entire bank of signals during a single field fault, creating unplanned blind monitoring zones that raise safety risk.
- Native unmodified HART communication: No external signal conditioners or multiplexers required to read smart transmitter diagnostics, lowering field maintenance labor hours and eliminating extra points of signal failure.
- Redundant hot-swap compatible architecture: Two matching units share one termination assembly for fault-tolerant critical control loops; technicians can remove and replace one unit while the secondary channel maintains uninterrupted valve regulation.
- Full end-to-end standardized bench validation: Every complete set passes a 24-hour continuous load test covering signal accuracy, HART read/write cycles, short-circuit protection and redundant switchover timing. Full raw test logs ship with each order to satisfy plant quality audit requirements.
- Clear host firmware compatibility boundary: All feature sets unlock fully on FCP280 controllers; FCP270 hosts require minimum V11.0 firmware revision to access HART configuration, fail-safe output programming and redundant channel tuning menus.
- Deployment limitation to note: Not recommended for safety instrumented system (SIS) final element control. This mixed I/O device lacks SIL certification; dedicated SIL-rated discrete or analog modules are required for SIS valve and transmitter loops.
- Verified quality control workflow: All stock undergoes serial traceability cross-check, 500V megger insulation testing, power-on self-test handshake, and full I/O simulation before anti-static sealing. Test photos or bench video can be provided on customer request prior to shipment.
Technical Risk Avoidance Guidance (Senior Engineer Field Notes)
1. Host Firmware Mismatch
Risk: FCP270 controllers running firmware older than V11.0 lock HART configuration and redundant channel tuning menus. Operators cannot access smart instrument diagnostics or program safe valve fallback states, forcing all fault logic to run on the host bus and increasing HDLC latency.Prevention: Pull controller firmware revision before ordering spare hardware; schedule firmware upgrades to V11.0 or newer if deploying this component.Field Anecdote: A midwestern ethanol plant deployed unupdated FCP270 hardware alongside the unit and lost all HART diagnostic visibility for three weeks until a scheduled firmware patch window.
2. Mismatched Termination Assembly Hardware
Risk: Substituting non- TAs breaks calibrated HART signal impedance matching. FSK digital communication drops out randomly, and sustained short-circuit events can burn internal output driver semiconductors.Prevention: Standardize spare part labeling to separate for mixed analog I/O from RH-series TAs built for discrete input/output modules. Cross-reference the device part number before TA replacement.
3. Improper Compression Screw Torque on
Risk: Under-torqued field wiring creates variable contact resistance that generates drifting analog readings and erratic valve modulation. Over-torquing cracks the polyamide TA housing and fractures internal printed-circuit signal traces.Prevention: Follow OEM specified torque value for all field wire terminals; install copper wire ferrules on all stranded field cables to stabilize contact pressure during cabinet temperature cycling.
4. Non-Type 4 Interconnect Cable Installation
Risk: Analog or discrete Type 1/3/5 jumper cables have misaligned D-Sub pinouts, creating cross-circuit short circuits that permanently damage the unit’s internal conversion hardware.Prevention: Segregate interconnect cable types into color-coded rack trays; reserve Type 4 shielded cables exclusively for mixed analog I/O module to runs. Maximum total cable run length capped at 30m per OEM specification.
5. Under-Calculated Rack 24VDC Power Budget
Risk: Undersized rack power supplies cannot maintain stable 24VDC backplane voltage during simultaneous full-channel signal conversion cycles. The device triggers intermittent fault telemetry and drops redundant channel synchronization.Prevention: Sum total power draw of all I/O modules on each baseplate, add a mandatory 20% overhead buffer before sizing rack power hardware. Four fully populated sets draw approximately 18W combined at peak conversion load.
6. Uncontrolled ESD Exposure
Risk: Low-humidity winter cabinet environments generate electrostatic discharge that scratches gold-plated backplane edge connectors and degrades Sigma-Delta conversion chips. Damage does not appear immediately, but manifests as random single-channel measurement drift weeks after commissioning.Prevention: Mandate grounded anti-static wristbands for all module insertion, cable mating and field wiring work. Store unused spare hardware in factory sealed anti-static packaging until rack installation.
Practical Closing Summary: Deploy this component paired exclusively with TAs and Type 4 interconnect cables, confirm host controller firmware meets minimum revision standards, calculate rack power load with overhead buffer, and enforce ESD handling protocols to eliminate 90% of common mixed analog I/O field troubleshooting events.
FAQ
- Can this component serve as a direct drop-in replacement for separate standalone FBM214 AI and FBM237 AO modules without full rack rewiring?No. While backplane physical compatibility exists, the pinout and channel addressing layout differ from single-function analog TAs. Full workstation I/O reconfiguration and field terminal rewiring are required to swap from split AI/AO hardware to this mixed unit.
- What ground transit lead time applies for emergency spare shipments to refineries and power plants across the continental US?All in-surplus inventory ships from North American regional warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for critical unplanned outages at an incremental freight surcharge.
- Does the 12-month factory warranty cover channel measurement drift or communication failures caused by unapproved third-party termination assemblies?The warranty covers manufacturing defects in Sigma-Delta conversion circuits, isolation barriers, HDLC bus transceivers and terminal contact hardware. Damage stemming from mismatched TAs, improper wire torque, out-of-spec interconnect cables or unfiltered field surge transients falls outside warranty coverage. Archived 24-hour bench test logs can isolate pre-ship vs post-install failure root causes on request.
- What maximum total linear length of Type 4 shielded jumper cable can run between the unit and without measurable signal attenuation?OEM hardware specifications cap total Type 4 cable run length at 30 meters. Longer cable runs introduce excess loop resistance and industrial VFD-generated EMI noise that triggers unstable HART communication and drifting 4–20mA analog readings.
- Does include built-in channel fusing for short-circuit field wiring protection? is a fully passive termination assembly with no integrated per-channel fuses. Install inline field fuses sized for standard 4–20mA loop loads at each TA wire landing to prevent sustained short-circuit current from damaging the unit’s internal analog drivers.
- I need to deploy redundant flow and level monitoring paired with modulating valve control loops for SIS safety interlock racks. Is this mixed analog I/O hardware acceptable for SIS final element wiring?Not recommended. This component carries no SIL safety certification, and mixed input/output channel architecture does not meet independent segregation requirements outlined in IEC 61508 for safety instrumented systems. Deploy dedicated SIL-rated single-function analog modules for all SIS transmitter and valve control circuits.
- I run a wastewater treatment plant with a mix of HART and non-HART 4–20mA transmitters on the same cabinet rack. Can both instrument types connect to the same unit’s input channels?Yes. The passive HART signal path automatically ignores FSK digital modulation for non-smart analog transmitters, while fully decoding HART command traffic for compatible smart instruments on adjacent input channels. No jumper or DIP switch reconfiguration is required to switch channel operation modes.
