Product Core Brief

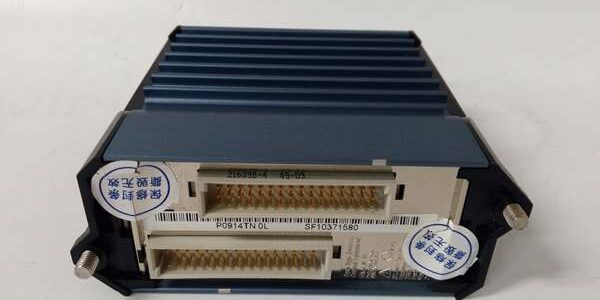

- Model: FBM211, OEM factory part number P0914TN
- Brand: FOXBORO, Schneider EcoStruxure Foxboro division
- Series: I/A Series Compact 200 high-density group-isolated analog input subsystem
- Core Function: Collect 0–20.4mA analog signals from field transmitters, split into two independent 8-channel galvanic groups; supply built-in 24V loop excitation for two-wire instruments, run local signal filtering and rate-of-change alarm logic to lower host FCP bus overhead
- Form Factor: Rack-mount hot-swappable fieldbus module, compatible with two factory TA assemblies: RH916BT (internal loop power layout) and RH916JT (external transmitter power layout)
- Key Specs: 16 analog inputs split into two isolated 8-channel banks, 15-bit Sigma-Delta ADC, max 37mA per channel loop feed, 600VAC group-to-backplane isolation, adjustable digital filter timing
- Condition: New Original (New Surplus), factory anti-static sealed unused OEM surplus inventory
- Commercial Signals: Discontinued OEM hardware with limited remaining stock; 1–3 business day lead time for North American shipments; 12-month functional warranty with full bench signal test documentation included
- Critical Note: High-density 16-channel design reduces rack slot consumption versus 8-channel AI variants; group isolation means short circuits impact only one 8-channel bank instead of the full 16 channels
Key Technical Specifications
| Parameter | Verified OEM Measured Value |
|---|---|
| Channel Layout | 16 analog inputs separated into two electrically isolated 8-channel groups |
| Supported Signal Span | 0–20.4mA DC, fully compliant with standard 4–20mA industrial transmitter range |
| ADC Architecture | Independent 15-bit Sigma-Delta converter per channel, fixed 100ms base sample cycle |
| Static Full-Scale Accuracy | ±0.04% full span across 0°C to 60°C cabinet operating window |
| Temperature Drift Coefficient | 50 ppm/°C offset drift across full -20°C to +70°C operating band |
| Group Isolation Dielectric Rating | 600VAC 1-minute withstand between each 8-channel group and backplane ground |
| Internal Loop Power Supply | Isolated 24VDC per channel group, 37mA single-channel current limit |
| Noise Rejection Performance | >100dB CMRR / >35dB NMRR at 50/60Hz industrial mains EMI |
| On-Board Configurable Logic | Variable signal integration filter, user-defined rate-of-change alarm thresholds |
| Backplane Communication Bus | Dual redundant 2Mbps proprietary HDLC I/A fieldbus |
| Total Module Power Draw | Max 7.2W nominal draw from 24VDC ±5% rack supply |
| Ambient Operating Temperature | -20°C to +70°C operational; -40°C to +85°C storage |
| PCB Environmental Protection | ISA S71.04 G3 full conformal coating for corrosive refinery/chemical cabinet atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting requirement) |
| Matching Termination Hardware | RH916BT (internal loop power TA), RH916JT (external field power TA) |
| Onboard Diagnostics | Front-panel module operational LED, hardware watchdog timer, group fault telemetry to host FCP |
Product Introduction
Large bulk monitoring racks with dozens of pressure, flow and level transmitters waste valuable cabinet space on low-density 8-channel analog input modules. This unit doubles channel density per slot by packing 16 measurement points while splitting channels into two isolated banks to limit fault propagation during field wiring shorts.
This component’s dual-group isolation design ensures a fault in one 8-channel bank leaves the second bank fully operational, unlike single-group 16-channel cards that lose all readings after a single field short. Integrated 24V loop power eliminates separate field power terminal blocks for two-wire transmitters, and local rate-of-change alarm processing cuts HDLC bus traffic by offloading trend swing calculations from the controller. OEM lab testing records a 318,000-hour MTBF at steady 40°C cabinet temperature.
Key Selling Points & Differentiators
- Quantified rack space optimization: 16 measurement channels per single Compact 200 slot, cutting required rack slots in half compared to standard 8-channel analog input hardware for bulk monitoring skids.
- Dual-bank fault containment: Two separate isolated 8-channel groups isolate field wiring faults; a short in one bank will not disable readings from the second group, reducing process blind zones during field maintenance.
- Full end-to-end bench validation: Every unit completes a 24-hour full-channel load cycle with calibrated 4–20mA signal generators, 500V megger group insulation testing, and rate-of-change alarm trigger logging before shipment; raw bench test records attached to each shipment for site audit compliance.
- Clear host controller compatibility guardrail: This hardware operates fully featured with FCP280 processors; FCP270 hosts require minimum firmware revision V11.0 to unlock full filter and alarm configuration menus.
- Defined non-recommended deployment scope: Not HART-native; cannot decode superimposed HART digital signals. Safety-critical single-loop applications requiring full per-channel isolation should use FBM214B instead.
- Supply and warranty transparency: New surplus inventory carries a 12-month functional warranty covering all ADC conversion circuits, group isolation barriers and loop power supplies; warranty excludes damage from miswired external overvoltage feeds or mismatched RH-series termination assemblies.
Quality Transparency Inspection SOP
Incoming Verification
All serial numbers cross-reference OEM original production batch logs to validate genuine surplus hardware. Technicians inspect gold-plated backplane edge connectors, aluminum heat sink housing, and full PCB conformal coating for oxidation, scratches or cracked group isolation barriers. RH916BT and RH916JT termination assemblies are audited for intact compression screw terminals and factory wire landing geometry matched to the module’s dual-group signal layout.
Live Bench Functional Test
Each device mounts to a certified Compact 200 test rack paired with an FCP280 control processor. All 16 input channels connect to precision 4–20mA signal generators running continuous ramp cycles for 24 consecutive hours. Controlled single-group short testing verifies independent bank isolation, signal filter and rate-of-change alarm performance are validated on every channel, and redundant HDLC bus handshake stability is logged hourly during the load test window.
Electrical Safety Compliance Tests
A 500V megger verifies each 8-channel group-to-backplane insulation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is verified across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify plant electrical EMI interference.
Firmware Configuration Verification
Embedded analog input and alarm logic firmware revision is extracted and recorded via I/A Series engineering workstation diagnostic tools; factory default filter timing DIP switch positions are photographed and stored in each unit’s serialized test file for installer reference during rack retrofits.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The module and matching TA base are sealed in separate anti-static vacuum bags, labeled with a serialized QC Passed sticker printed with the exact bench test completion date. Shock-absorbent foam lining protects hardware during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Firmware Mismatch
Risk: FCP270 controllers running firmware below V11.0 lock advanced filter and rate-of-change alarm menus; technicians must run all swing detection logic on the host controller, creating elevated HDLC bus latency and delayed process warning alerts.Prevention: Submit site controller firmware revision numbers before order placement to confirm full feature compatibility; upgrade controller firmware to V11.0 or higher if deploying high-density bulk measurement racks.Field Anecdote: A midwestern refinery installed multiple of these units on V10.9 FCP270 hardware; early-warning swing alarms remained disabled for three weeks until the control image was updated to unlock onboard processing functions.
HART Signal Incompatibility
Risk: Wiring HART smart transmitters to the module’s input terminals results in lost digital diagnostic data; the analog signal path filters out superimposed HART FSK modulation and cannot communicate with field devices.Prevention: Reserve this hardware exclusively for standard non-HART 4–20mA transmitters; deploy FBM214 / FBM214B HART-capable analog input modules for smart instrument layouts requiring device diagnostics.
Mismatched Termination Assembly Selection
Risk: Using RH916JT (external power TA) for internal loop-powered transmitters cuts off the module’s 24V excitation supply, leading to zero transmitter readings and constant open-circuit fault alarms.Prevention: Standardize TA assignment: RH916BT for two-wire transmitters powered by the module, RH916JT for externally powered field sensor layouts.
Rack Power Budget Miscalculation
Risk: Undersized 24VDC rack power supplies cannot sustain full loop power draw from fully populated 16-channel modules; measurement noise and intermittent open-transmitter faults occur during simultaneous full-bank sampling cycles.Prevention: Calculate total rack DC draw with a 20% overhead buffer; four fully populated assemblies consume roughly 29W combined power at maximum channel excitation and sampling load.
ESD Static Hardware Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed backplane gold connectors and onboard ADC semiconductors. Damage leaves no visible exterior defects but generates random single-group measurement drift weeks after installation.Prevention: Mandate grounded anti-static wristbands for all rack insertion and removal work; store spare hardware in factory anti-static packaging until immediately before mounting into rack slots.
Practical Summary: Confirm host controller firmware versions to enable onboard alarm filtering, avoid pairing with HART transmitters, match the correct RH916BT/ termination base per field power layout, allocate sufficient rack power headroom, and enforce ESD handling protocols to resolve over 90% of common on-site analog measurement troubleshooting events with this hardware.
FAQ
- Q: Can I swap this hardware into existing rack slots running 8-channel FBM201 analog input cards without full workstation reconfiguration?A: Physical backplane compatibility exists, but full site rework is mandatory. FBM201 only supports 8 channels per slot with different channel addressing; workstation scaling, fault alarm logic and field terminal wiring must be fully rebuilt to accommodate the 16-channel dual-group layout. Mixed deployments create inconsistent fault reporting behavior during HDLC bus disruptions.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical and power facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 1–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover group measurement failures caused by shorted field transmitter wiring?A: The warranty covers manufacturing defects in ADC conversion circuits, loop power supplies and group isolation barriers. Hardware damage from un-fused external field shorts, miswired overvoltage feeds or mismatched termination assemblies falls outside warranty coverage; archived bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can I mix internally loop-powered and externally powered transmitters on separate channel banks of one unit?A: Yes, assign the TA for internally powered two-wire transmitters and for external-powered sensors; each 8-channel group can operate under independent power rules without cross-group interference.
- Q: Can this module read diagnostic data from HART smart transmitters wired to its input channels?A: It does not support HART FSK demodulation. Only raw analog 4–20mA values are passed to the controller; all digital device data will be lost. Use FBM214 series modules for HART instrument installations.
- Q: What two termination assembly part numbers are factory validated for use with this module?A: (for module-supplied 24V loop power transmitters) and (for externally powered field transmitters). Generic third-party terminal blocks are not recommended, as they lack validated wire landing geometry and group isolation alignment matched to the module’s signal circuits.
- Q: I need to build safety instrumented measurement loops requiring full independent per-channel fault isolation; can this hardware be deployed for SIS racks?A: It is not recommended for safety instrumented system deployment. The dual 8-channel group isolation means a fault impacts half the slot’s measurement points; dedicated channel-isolated 8-channel hardware such as FBM214B delivers full single-channel fault segregation required for SIS compliance instead.
