Product Core Brief

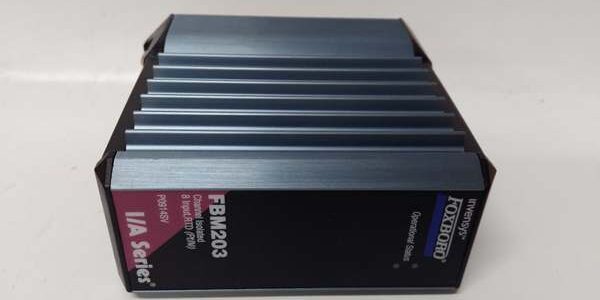

- Model: FBM203, OEM factory part number P0914SV
- Brand: FOXBORO, Schneider EcoStruxure Foxboro division
- Series: I/A Series Compact 200 channel-isolated RTD temperature analog input subsystem
- Core Function: Capture resistance signals from 2-wire or 3-wire RTD temperature transmitters, execute high-precision Sigma-Delta conversion, calculate process temperature values, and deliver configurable rate-of-change (RoC) alarm detection; full per-channel galvanic isolation prevents cross-channel noise bleed from MCC and VFD cabinets
- Form Factor: Rack-mount hot-swappable fieldbus module, mates exclusively with RH914SV DIN rail compression-screw termination assembly or baseplate-mounted dual-slot TA hardware
- Key Specs: 8 fully independent channel-isolated RTD inputs, 0–320Ω resistance span, 0.19mA constant sensor excitation current, 125dB CMRR at 50/60Hz, software-adjustable signal integration time
- Condition: New Original (New Surplus), factory anti-static sealed unused OEM surplus inventory
- Commercial Signals: Discontinued OEM hardware with limited remaining stock; 1–3 business day lead time for US/Canada shipments; 12-month functional warranty with full bench temperature simulation and insulation test documentation included
- Critical Note: Distinct from FBM203b (0–640Ω wide-range RTD) and FBM203c (low 0–30Ω winding RTD); this base variant is optimized for standard 100Ω Pt RTD furnace, reactor, and tank temperature layouts
Key Technical Specifications
| Parameter | Verified OEM Measured Value |
|---|---|
| Channel Layout | 8 fully galvanically isolated RTD analog input circuits (channel-to-channel + channel-to-backplane isolation) |
| Supported Sensor Wiring | 2-wire or 3-wire platinum, nickel, copper RTD sensors |
| Valid Resistance Measurement Span | 0 Ω to 320 Ω maximum input resistance |
| Fixed Sensor Excitation Current | 0.19 mA DC constant per channel |
| ADC Topology | Independent Sigma-Delta converter for each channel, 25ms base conversion cycle |
| Static Full-Scale Accuracy | ±0.1% full resistance span across 0°C to 60°C cabinet ambient |
| Temperature Drift Coefficient | 50 ppm/°C measurement offset drift across full rated operating band |
| Noise Rejection Performance | 125dB CMRR / >95dB NMRR at 50/60Hz industrial mains EMI |
| Configurable On-Board Logic | Adjustable signal integration time, user-defined rate-of-change alarm thresholds for temperature swing detection |
| Channel Isolation Dielectric Rating | 600VAC 1-minute withstand per individual channel |
| Backplane Communication Bus | Dual redundant 2Mbps proprietary HDLC I/A fieldbus |
| Total Module Power Draw | Max 3W nominal draw from 24VDC ±10% rack supply voltage |
| Ambient Operating Temperature | -20°C to +70°C operational; -40°C to +85°C storage |
| PCB Environmental Protection | ISA S71.04 G3 full conformal coating for corrosive refinery/chemical cabinet atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting requirement) |
| Matching Termination Hardware | RH914SV DIN rail compression screw-clamp TA assembly, dual-slot baseplate TAs for paired module deployments |
| Onboard Diagnostics | Front-panel global module fault LED, hardware watchdog timer, open/short RTD circuit fault telemetry to host FCP |
Product Introduction
Temperature monitoring racks mixing furnace, reactor, and storage tank RTD sensors frequently suffer cross-channel measurement drift from unisolated input hardware near variable-frequency drive motor control centers. This unit eliminates that failure mode via dedicated galvanic isolation on every single input channel, so a shorted field sensor wire only disables one temperature point instead of an entire group of measurements.
This component’s constant low-amperage excitation current minimizes self-heating error on precision Pt100 RTD probes, while onboard rate-of-change alarm processing offloads temperature swing detection workload from host FCP controllers to reduce HDLC bus traffic. OEM reliability testing records a 310,000-hour MTBF at steady 40°C cabinet temperature, and independent Sigma-Delta conversion maintains consistent resolution across low and high process temperature operating ranges. The passive RH914SV termination assembly requires no auxiliary power and delivers vibration-resistant wire landings for outdoor skid cabinet deployments.
Key Selling Points & Differentiators
- Quantified per-channel fault segregation: Individual isolation barriers limit field wiring shorts to a single temperature channel; group-isolated RTD modules disable all eight readings during a single sensor fault, creating costly blind process monitoring zones.
- Multi-sensor compatibility without reconfiguration: Native support for platinum, nickel, and copper RTD probe types across all eight slots allows mixed furnace and cooling water temperature layouts on one module footprint.
- Full third-party bench validation: Every unit completes a 24-hour full-channel load cycle with precision resistance decade boxes simulating full RTD temperature ranges, 500V megger per-channel insulation testing, and continuous rate-of-change alarm trigger validation before shipment; raw bench test data attached to each shipment for site audit compliance.
- Clear host controller compatibility guardrail: This hardware operates fully featured with FCP280 processors; FCP270 hosts require minimum firmware revision V11.0 to unlock full RTD type selection and rate-of-change alarm configuration menus.
- Defined non-recommended deployment scope: Not suited for 4-wire RTD layouts, millivolt thermocouple inputs, or wide-range winding resistance monitoring; 4-wire probes require FBM203d, thermocouple measurement uses FBM201b, and low-ohm winding monitoring uses FBM203c instead.
- Supply and warranty transparency: New surplus inventory carries a 12-month functional warranty covering all Sigma-Delta conversion circuits, isolation barriers, and constant-current excitation sources; warranty excludes damage from miswired external overvoltage feeds, unshielded field cable EMI interference, or substitution of unvalidated third-party termination blocks in place of RH914SV.
Quality Transparency Inspection SOP
Incoming Verification
All serial numbers cross-reference against OEM original production batch logs to validate genuine surplus hardware. Technicians inspect gold-plated backplane edge connectors, extruded aluminum heat sink housing, and full PCB conformal coating for oxidation, scratches, or cracked per-channel isolation barriers. Matching RH914SV termination assemblies are audited for intact anti-vibration compression screw terminals and factory wire landing labeling validated exclusively for 2/3-wire RTD field wiring runs.
Live Bench Functional Test
Each device mounts to a certified Compact 200 test rack paired with an FCP280 control processor. All eight input channels connect to calibrated resistance decade boxes simulating full 0–320Ω RTD temperature curves, running continuous resistance ramp cycles for 24 consecutive hours. RTD open/short circuit fault detection and configurable rate-of-change alarm performance are validated on every channel, and redundant HDLC bus handshake stability is logged hourly during the load test window. A controlled single-channel short test verifies independent isolation behavior (only the faulted channel drops offline, all seven remaining temperature readings remain stable).
Electrical Safety Compliance Tests
A 500V megger verifies each channel’s individual isolation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is verified across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify plant electrical EMI interference into precision resistance signal paths.
Firmware Configuration Verification
Embedded RTD conversion and alarm logic firmware revision is extracted and recorded via I/A Series engineering workstation diagnostic tools; factory default integration time and fault threshold DIP switch positions are photographed and stored in each unit’s serialized test file for installer reference during rack retrofits.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The module and matching TA base are sealed in separate anti-static vacuum bags, labeled with a serialized QC Passed sticker printed with the exact bench temperature simulation test completion date. Shock-absorbent foam lining protects hardware during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Firmware Mismatch
Risk: FCP270 controllers running firmware below V11.0 lock RTD type selection and rate-of-change alarm configuration menus; technicians cannot set dedicated temperature swing warning thresholds and must rely solely on host controller limit alarms, increasing HDLC bus latency.Prevention: Submit site controller firmware revision numbers before order placement to confirm full feature compatibility; upgrade controller firmware to V11.0 or higher if deploying multi-probe temperature monitoring racks.Field Anecdote: A midwestern ethanol batch plant installed multiple of these units on V10.9 FCP270 hardware; reactor temperature rate-of-change early warning functionality remained disabled for three weeks until the control image was updated to unlock onboard alarm processing logic.
4-Wire RTD Probe Misconnection
Risk: Direct wiring of 4-wire RTD sensors to this unit’s 2/3-wire input terminals creates uncompensated lead resistance error, producing consistent temperature measurement offset that drifts with ambient cabinet temperature swings.Prevention: Reserve this hardware exclusively for 2-wire and 3-wire RTD layouts; deploy FBM203d 4-wire dedicated modules for precision long-run probe installations.
Cable and Terminal Gauge Incompatibility
Risk: 18AWG thin unshielded wiring on compression screw terminals introduces variable lead resistance and 50/60Hz EMI interference on long field probe runs, generating random temperature reading noise and false open-circuit fault alerts.Prevention: Specify minimum 16AWG shielded twisted pair cable with single-point chassis grounding only at the termination assembly end; separate temperature I/O cable bundles from high-current MCC power wiring via physical conduit barriers.
Rack Power Budget Miscalculation
Risk: Undersized 24VDC rack power supplies cannot sustain full excitation current draw from fully populated temperature racks; measurement noise and intermittent open RTD fault telemetry occur during simultaneous eight-channel full-scale resistance sampling cycles.Prevention: Calculate total rack DC draw with a 20% overhead buffer; four fully populated assemblies consume roughly 12W combined power at maximum channel excitation and conversion load.
ESD Static Hardware Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed backplane gold connectors and onboard precision constant-current excitation semiconductors. Damage leaves no visible exterior defects but generates random single-channel temperature drift weeks after rack commissioning.Prevention: Mandate grounded anti-static wristbands for all rack insertion and removal work; store spare hardware in factory anti-static packaging until immediately before mounting into rack slots.
Practical Summary: Confirm host controller firmware versions to enable onboard temperature swing alarms, limit deployment to 2/3-wire RTD probe layouts only, use shielded low-resistance temperature cable with single-point grounding, allocate sufficient rack power headroom, and enforce ESD handling protocols to resolve over 90% of common on-site temperature measurement troubleshooting events with this hardware.
FAQ
- Q: Can I swap this hardware into existing rack slots running wide-range FBM203b RTD input cards without full workstation reconfiguration?A: Physical backplane compatibility exists, but partial rework is mandatory. FBM203b supports 0–640Ω extended resistance spans while this unit caps at 320Ω; workstation temperature scaling, RTD probe range mapping, and fault alarm logic must be rebuilt to accommodate the narrower measurement window. Mixed deployments create inconsistent high-resistance fault detection behavior during HDLC bus communication disruptions.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical and power facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 1–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover channel measurement drift caused by shorted field RTD probe wiring?A: The warranty covers manufacturing defects in Sigma-Delta conversion circuits, constant-current excitation sources, and per-channel isolation barriers. Hardware damage from un-fused external field shorts, miswired field overvoltage feeds, or third-party unvalidated termination block substitution falls outside warranty coverage; archived bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can I mix platinum, nickel, and copper RTD probes across the eight channels of one unit?A: Mixed sensor types are fully supported across all eight input channels; the workstation configuration tool allows independent probe type assignment per individual slot without cross-channel signal interference.
- Q: Does the onboard rate-of-change alarm logic replace the need for host FCP high/low temperature limit alarms entirely?A: Local RoC alarms detect rapid temperature transients for early process warning, but steady-state high/low shutdown interlock logic still requires host FCP programming. The onboard function only reduces bus traffic from continuous swing monitoring, not full safety interlock execution.
- Q: What termination assembly part number pairs with this hardware for standard 2/3-wire RTD field wiring marshalling?A: The matching anti-vibration compression screw-clamp DIN rail TA assembly is . Generic third-party terminal blocks are not recommended, as they lack validated wire landing geometry and per-channel isolation barrier alignment matched to the module’s precision resistance excitation circuits. Dual-slot baseplate TAs are available for paired redundant module rack layouts.
- Q: I need to measure furnace winding low-resistance temperature sensors spanning 0–30Ω; can this hardware resolve low-ohm winding resistance on unused channels?A: It is not recommended for low-ohm winding resistance monitoring use cases. The 0–320Ω input span lacks the resolution required for tight low-ohm winding tolerance checks; dedicated FBM203c low-range RTD input modules are purpose-built for motor and heater winding temperature signal acquisition instead.
