Product Core Brief
- Model: FPS400-24, OEM part number P0922YU
- Brand: FOXBORO, Schneider EcoStruxure Foxboro
- Series: I/A Series Compact 200 OEM-qualified rack power supply family
- Core Function: Deliver regulated, galvanically isolated 24VDC power to Compact 200 DIN rail baseplates loaded with FCP controllers, FBM I/O modules, and FCM fiber extenders; built-in active PFC and multi-layer fault protection to prevent DCS hardware damage from grid transients or overload conditions

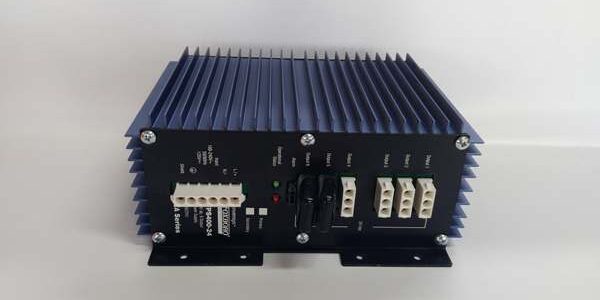

- Form Factor: Heavy-duty DIN rail mount power supply with integrated aluminum heat sink, isolated multi-terminal DC output banks
- Key Specs: 400W total continuous power, 16.7A @ 24VDC, universal 85–265VAC / 108–145VDC dual input, 3000VAC input-output isolation
- Condition: New Original (New Surplus), factory anti-static sealed unused OEM surplus stock
- Commercial Signals: End-of-life OEM hardware with limited remaining inventory; 2–3 business day lead time for North American shipments; 12-month functional warranty with full 24-hour load bench test reports included
- Critical Note: This is the factory-certified high-capacity PSU for fully populated Compact 200 racks; uncertified third-party power supplies void I/A Series hardware compatibility validation.
Key Technical Specifications
| Parameter | OEM Verified Value |
|---|---|
| Full Model ID | (P0922YU universal AC/DC input variant) |
| Rated Output Power | 400W continuous |
| DC Output Rating | 24.0VDC ±0.2VDC, 16.7A max continuous load |
| Input Voltage Window | 85–265VAC (47–63Hz) / 108–145VDC auxiliary DC input |
| Full-Load Efficiency | 92% typical at 230VAC input, minimum 77% low-line efficiency |
| Power Factor Correction | Integrated active PFC for industrial grid compliance |
| Dielectric Isolation Grade | 3000VAC separation between AC input and DC output circuits |
| Output Ripple & Noise | ≤100mV peak-to-peak (20MHz bandwidth measurement) |
| Built-In Protection Suite | Dual-stage overload foldback, 28VDC fixed overvoltage shutdown, auto-reset short-circuit recovery |
| Soft-Start Timing | 3s nominal turn-on delay to eliminate inrush voltage overshoot |
| Status Indicators | Green LED = Normal ≥23.5VDC; Red LED = Undervoltage <22VDC fault state |
| Operating Ambient Temp | -10°C to +60°C continuous rack operation; -40°C to +85°C storage range |
| PCB Coating Standard | ISA S71.04 G3 conformal coating for corrosive refinery/chemical cabinet air |
| Hazardous Ratings | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only installation) |
| Valid DCS Load Compatibility | All Compact 200 hardware: FCP270/FCP280, all analog/discrete/comms FBMs, FCM fiber extenders |
| Mounting Standard | Standard 35mm DIN rail, horizontal or vertical installation allowed |
Product Introduction
Fully loaded Compact 200 racks paired with redundant controllers and multiple fiber extenders demand high-wattage, noise-filtered rack power; smaller FPS120-24 and FPS240-24 power units lack sufficient capacity and create voltage sag during peak simultaneous I/O channel cycling. This OEM-certified unit delivers stable, galvanically separated 24VDC without high-frequency ripple that triggers intermittent HART communication dropouts on analog I/O cards.
This component’s active power factor correction reduces reactive power draw for site electrical metering, while dual-stage current limiting stops sustained overload from burning downstream FBM conversion circuits. OEM reliability testing records a 270,000-hour MTBF at steady 40°C cabinet ambient, and full transformer isolation blocks ground loop currents generated by mixed AC/DC field sensor wiring trunks routed near MCC motor control centers.
Key Selling Points & Differentiators
- Quantified full-rack load capacity: Single unit powers a complete baseplate carrying dual redundant FCP280 processors, eight mixed analog/discrete FBM modules, and two FCM2F2 fiber extenders; lower-wattage OEM PSUs require parallel stacking to match equivalent load capacity.
- Exclusive factory hardware validation: Only this high-wattage power supply passes OEM signal interference testing with all I/A Series Compact 200 hardware; generic industrial PSUs introduce unfiltered high-frequency ripple that causes random measurement drift on HART AI modules.
- Complete continuous load bench screening: Every unit undergoes a 24-hour 100% full-load cycling test across low-line to high-line AC input ranges, paired with 500V hipot isolation testing and output ripple logging before shipment; raw stability test data attached to each shipment for plant audit compliance.
- Clear cross-variant compatibility guardrail: This P0922YU variant accepts universal mains AC or 125VDC auxiliary input; the matching P0922YC variant only supports 24VDC input and cannot replace this unit in standard 120/240VAC control rooms.
- Defined non-recommended deployment scope: Not designed to supply direct field transmitter loop power; all 4–20mA instrument excitation must be sourced locally from individual FBM channel power feeds, not the rack PSU output terminals.
- Supply and warranty transparency: New surplus stock carries a 12-month functional warranty covering transformer, PFC control circuits, and output regulation semiconductors; warranty excludes damage from input surge spikes, insufficient DIN rail ventilation, or unregulated parallel stacking without Foxboro load-sharing adapters.
Quality Transparency Inspection SOP
Incoming Verification
All serial numbers cross-reference OEM original production batch logs to confirm genuine surplus hardware. Technicians inspect extruded aluminum heat sink fins, multi-pin power terminal contacts, and full PCB conformal coating for oxidation, scratches, or cracked isolation barriers. Terminal screw torque is calibrated to OEM specified values to avoid loose wiring hotspots inside sealed rack enclosures.
Live Bench Full-Load Functional Test
Each unit mounts to certified DIN rail test rack paired with calibrated 400W resistive load bank simulating a fully populated Compact 200 baseplate. Input voltage cycles from 85VAC low-line to 265VAC high-line for 24 consecutive hours; output voltage stability, ripple amplitude, and fault LED trigger thresholds are logged hourly during the load cycle. Overload foldback and short-circuit auto-reset functions are manually triggered to validate recovery behavior.
Electrical Safety Compliance Tests
500V hipot tester verifies input-to-output 3000VAC isolation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is validated across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify conducted electrical noise into sensitive DCS I/O circuits.
Configuration Verification
Factory preset 28VDC overvoltage shutdown threshold and soft-start timing values are cross-checked against OEM datasheet specifications; photographs of output bank terminal labeling are stored in each unit’s serialized test file for technician reference during rack retrofits.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The power supply unit is sealed inside static-dissipative vacuum bagging, labeled with serialized QC Passed sticker printed with exact full-load bench test completion date. Shock-absorbent foam lining protects heat sink fins and terminal blocks during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Mismatched PSU Input Variant Replacement
Risk: Installing P0922YC (24VDC input only) in standard mains-powered control rooms results in zero output voltage; technicians cannot feed 120/240VAC mains power into the DC-only variant’s input terminals.Prevention: Standardize spare rack inventory labeling to separate universal AC/125VDC P0922YU units and DC-input P0922YC variants; cross-check site cabinet mains wiring voltage before submitting purchase orders.Field Anecdote: A midwestern power plant installed a DC-input variant in a 120VAC control rack; the entire Compact 200 I/O baseplate lost power until maintenance swapped in the correct universal input model.
Insufficient Rack Ventilation Overheating
Risk: Mounting multiple power supplies side-by-side without minimum 25mm vertical clearance blocks natural heat sink airflow; internal thermal protection triggers automatic output shutdown during high summer cabinet ambient temperatures above 50°C.Prevention: Follow OEM mounting guidelines to maintain 25mm minimum vertical spacing between adjacent power supplies; install cabinet exhaust fans for enclosures operating at steady ambient temperatures over 50°C.
Parallel Redundancy Without Load Sharing Hardware
Risk: Direct parallel wiring of multiple units without dedicated Foxboro load-sharing adapters creates uneven current distribution; one single unit carries nearly 90% of total rack load and suffers accelerated thermal degradation.Prevention: Deploy OEM parallel load-sharing hardware for redundant rack power architectures, or split Compact 200 baseplates across independent separate PSUs instead of direct parallel stacking.
Rack Power Budget Miscalculation
Risk: Underestimating total rack DC load leads to sustained operation above the 110% overload threshold; dual-stage foldback current limiting drops output voltage, triggering random FBM module resets and lost real-time process measurements.Prevention: Sum total power draw of all FCP, FBM, and FCM hardware on each baseplate, add a 20% overhead buffer before selecting this 400W PSU; split loads across multiple PSUs if total continuous rack draw exceeds 360W.
ESD Static PCB Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed regulation semiconductors on the main control PCB. Damage leaves no visible exterior defects but generates slow output voltage drift and elevated ripple weeks after rack commissioning.Prevention: Mandate grounded anti-static wristbands for all PSU terminal wiring and DIN rail mounting work; store spare hardware in factory static packaging until immediately before rack installation.
Practical Summary: Confirm input variant compatibility before replacement, maintain required heat sink ventilation clearance, avoid unregulated parallel stacking without load-sharing hardware, calculate full rack power load with overhead buffer, and enforce ESD handling protocols to resolve over 90% of common on-site power-related DCS troubleshooting events with this hardware.
FAQ
- Q: Can this power supply directly replace smaller FPS240-24 PSUs on existing Compact 200 baseplates without rewiring rack terminal blocks?A: Physical DIN rail mounting and output terminal pin layout are fully interchangeable, but site load calculations must be updated to reflect the higher 400W capacity. No field wiring changes are required for direct drop-in replacement, though redundant parallel deployments require matching load-sharing accessories.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical and power facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 2–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover unit shutdown caused by cabinet overheating or unfiltered input voltage surges?A: The warranty covers manufacturing defects in transformers, PFC circuits, and output regulation semiconductors. Hardware damage from inadequate ventilation, unprotected mains transients, or parallel stacking without load-sharing hardware falls outside warranty coverage; archived full-load bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can this unit power FOUNDATION Fieldbus H1 trunk wiring and field transmitters directly from its 24VDC output terminals?A: It is not recommended for direct fieldbus trunk power feed. The PSU output is rated exclusively for Compact 200 backplane baseplate power; FF-H1 trunks require dedicated fieldbus power conditioners to maintain regulated 31.25kbps bus power specifications.
- Q: Does the integrated conformal coating withstand continuous exposure to high-sulfur vapor in refinery control cabinets?A: The ISA S71.04 G3 coating meets standard refinery environmental requirements for mild hydrocarbon and sulfur vapor concentrations. For high-acid vapor enclosures, seal all ventilation slots and route field wiring through sealed plastic conduit to limit corrosive gas contact with exposed PCB and terminal hardware.
- Q: What is the maximum number of Compact 200 FBM I/O modules a single unit can reliably power alongside two redundant FCP280 controllers?A: Under nominal 40°C cabinet ambient, one unit supports two FCP280 master-tracker processors plus up to eight mixed analog/discrete/serial FBM modules and two FCM2F2 fiber extenders without exceeding the 360W safe continuous operating limit.
- Q: I need to power non-Foxboro third-party PLC hardware from this PSU’s 24VDC output terminals; will the OEM warranty remain valid?A: Factory hardware compatibility validation only covers native I/A Series Compact 200 baseplate loads. Powering uncertified third-party PLCs voids OEM compatibility validation and may void functional warranty if overload damage occurs to internal regulation circuits.
