Product Core Brief
- Model: FBM214, OEM factory part number P0922VT
- Brand: FOXBORO, Schneider EcoStruxure Foxboro division
- Series: I/A Series Compact 200 group-isolated HART analog input subsystem
- Core Function: Capture 4–20mA analog sensor signals, supply shared onboard 24VDC loop power for two-wire transmitters, and act as HART master to pull bi-directional diagnostic, calibration, and fault data from smart field instruments; group isolation blocks ground loop interference across all eight input channels
- Form Factor: Rack-mount hot-swappable fieldbus module, mates exclusively with RH922VT compression-screw termination assembly
- Key Specs: 8 group-galvanically isolated analog inputs, dedicated per-channel HART FSK modems, 15-bit Sigma-Delta ADC, shared 37mA max channel loop feed, 600VAC group-to-backplane isolation
- Condition: New Original (New Surplus), factory anti-static sealed unused OEM surplus inventory
- Commercial Signals: Discontinued OEM hardware with limited remaining stock; 1–3 business day lead time for US/Canada shipments; 12-month functional warranty with full bench HART communication and insulation test documentation included
- Critical Note: Distinct from channel-isolated FBM214B; this unit uses group isolation for all eight channels and shares a single common loop power rail to reduce internal component count and rack power draw
Key Technical Specifications
| Parameter | Verified OEM Measured Value |
|---|---|
| Input Channel Layout | 8 group-isolated 4–20mA analog input circuits |
| Supported Signal Standards | Standard 4–20mA analog, superimposed HART FSK digital signaling (HART 5, 6, 7); burst mode unsupported |
| ADC Topology | Independent 15-bit Sigma-Delta converter per channel, fixed 100ms base sample cycle |
| Static Full-Scale Accuracy | ±0.03% full span across 0°C to 60°C cabinet operating window |
| Temperature Drift Coefficient | 50 ppm/°C measurement offset drift across full rated temperature band |
| Channel Group Isolation Dielectric Rating | 600VAC 1-minute withstand between the full 8-channel group and backplane bus |
| Internal Shared Loop Power Supply | Isolated 24VDC per module; single-channel 37mA current limit |
| HART Communication Performance | 1200 baud half-duplex; maximum 2 digital device messages per channel per second |
| Noise Rejection Performance | >100dB CMRR / >35dB NMRR at 50/60Hz industrial mains EMI |
| Backplane Communication Interface | Dual redundant 2Mbps proprietary HDLC I/A fieldbus |
| Total Module Power Draw | Max 7W nominal draw from 24VDC ±5% rack supply voltage |
| Ambient Operating Temperature | -20°C to +70°C operational; -40°C to +85°C storage |
| PCB Environmental Protection | ISA S71.04 G3 full conformal coating for corrosive refinery/chemical cabinet atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting requirement) |
| Matching Termination Assembly | RH922VT polyamide compression screw-clamp TA assembly |
| Onboard Diagnostics | Front-panel module operational status LED, hardware watchdog fault timer, per-channel HART activity telemetry to host FCP |
Product Introduction
Facilities deploying high-density HART transmitter racks face higher hardware costs with fully channel-isolated input cards; this group-isolated unit consolidates eight measurement channels onto one slot while retaining native HART master functionality and integrated loop power for two-wire sensors. Group galvanic isolation eliminates costly signal baluns for standard internally powered transmitter layouts, though a single field short will disable all eight inputs versus per-channel isolated variants.
This component’s shared 24VDC power rail removes external field power distribution wiring, cutting marshalling labor for bulk pressure, flow, and level transmitter skids. OEM lab testing records a 322,000-hour MTBF at steady 40°C cabinet temperature, and independent Sigma-Delta conversion ensures consistent measurement resolution across all process operating ranges. The unit’s embedded HART stack enables full access to device diagnostic logs without secondary multiplexer hardware connected to the field wiring trunks.
Key Selling Points & Differentiators
- Quantified rack cost reduction: Group isolation architecture delivers 8 HART input channels per slot at lower per-channel hardware cost than channel-isolated FBM214B; ideal for non-critical bulk measurement racks where full per-channel fault segregation is not mandatory.
- Integrated shared loop power design: Single onboard 24V power rail serves all eight channels, eliminating separate field power terminal blocks and reducing copper wiring runs between control cabinets and field instrument junction boxes.
- Full third-party bench validation: Every unit completes a 24-hour full-channel load cycle with calibrated HART transmitter simulators, 500V megger group insulation testing, and continuous HART read/write command logging before shipment; raw bench test footage available upon buyer request for site audit compliance.
- Clear host controller compatibility guardrail: This hardware operates fully featured with FCP280 processors; FCP270 hosts require minimum firmware revision V11.1 to load full HART device descriptor libraries and unlock complete diagnostic polling menus.
- Defined non-recommended deployment scope: Not suited for critical safety instrumented loops requiring per-channel fault isolation; safety-critical measurement racks must use channel-isolated FBM214B instead. Externally powered sensors require RH903SV cable baluns to suppress HART signal crosstalk.
- Supply and warranty transparency: New surplus inventory carries a 12-month functional warranty covering all ADC conversion circuits, HART FSK modems, and group isolation barriers; warranty excludes damage from miswired field overvoltage, unshielded field cable EMI interference, or missing baluns for external-powered transmitter layouts.
Quality Transparency Inspection SOP
Incoming Verification

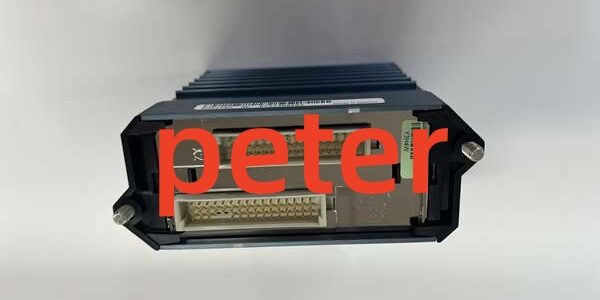

All serial numbers cross-reference against OEM original production batch logs to validate genuine surplus hardware. Technicians inspect gold-plated backplane edge connectors, extruded aluminum heat sink housing, and full PCB conformal coating for oxidation, scratches, or cracked group isolation barriers. Matching RH922VT termination assemblies are audited for intact anti-vibration compression screw terminals and factory wire landing labeling validated for group-isolated HART field wiring runs.
Live Bench Functional Test
Each device mounts to a certified Compact 200 test rack paired with an FCP280 control processor. All eight input channels connect to precision 4–20mA signal generators with HART simulation, running continuous signal ramp cycles for 24 consecutive hours. HART universal, common, and device-specific command read/write functionality is validated on every channel, and redundant HDLC bus handshake stability is logged hourly during the load test window. A controlled single-channel short test verifies group isolation behavior (all eight inputs drop offline during field short events).
Electrical Safety Compliance Tests
A 500V megger verifies the full 8-channel group-to-backplane insulation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is verified across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify plant electrical EMI interference into HART signal paths.
Firmware Configuration Verification
Embedded HART stack firmware revision is extracted and recorded via I/A Series engineering workstation diagnostic tools; factory default bus baud rate DIP switch positions are photographed and stored in each unit’s serialized test file for installer reference during rack retrofits.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The module and matching RH922VT TA base are sealed in separate anti-static vacuum bags, labeled with a serialized QC Passed sticker printed with the exact bench HART communication test completion date. Shock-absorbent foam lining protects hardware during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Firmware Mismatch
Risk: FCP270 controllers running firmware below V11.1 fail to load HART device descriptor libraries and restrict diagnostic polling functions; technicians cannot retrieve predictive fault alerts from smart transmitters without full firmware compatibility.Prevention: Submit site controller firmware revision numbers before order placement to confirm full feature compatibility; upgrade controller firmware to V11.1 or higher if deploying HART measurement racks.Field Anecdote: A midwestern chemical batch plant installed multiple of these units on V11.0 FCP270 hardware; valve positioner diagnostic data remained inaccessible for three weeks until the control image was updated to unlock complete HART stack functionality.
Group Isolation Single-Channel Short Consequence
Risk: Any short circuit on one field transmitter wiring line disables all eight input channels due to shared group isolation architecture; unplanned blind measurement zones occur until the shorted field cable is isolated and repaired.Prevention: Deploy channel-isolated FBM214B for safety-critical process loops; use this hardware exclusively for non-critical secondary monitoring racks where temporary full-group measurement loss does not trigger interlock or shutdown events.
External-Powered Transmitter Balun Omission
Risk: Field layouts using external 24V field power for sensors without RH903SV four-channel cable baluns generate severe HART FSK crosstalk across all eight channels, triggering constant device communication timeouts and missing diagnostic alarms.Prevention: Specify matching RH903SV balun hardware for all externally powered transmitter wiring runs longer than 20 meters; internal loop-powered sensors utilizing the module’s native 24V feed require no balun accessories.
Cable and Terminal Gauge Incompatibility
Risk: 18AWG thin unshielded wiring creates excessive voltage drop and EMI interference on long field sensor runs, reducing HART signal amplitude and generating random full-group measurement drift during temperature cycling.Prevention: Specify minimum 16AWG HART-certified shielded twisted pair cable with single-point chassis grounding only at the RH922VT termination assembly end; avoid multiple ground taps near MCC motor cabinets to eliminate ground loop currents.
ESD Static Hardware Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed backplane gold connectors and onboard HART FSK modem semiconductors. Damage leaves no visible exterior defects but generates random full-group HART communication failures weeks after rack commissioning.Prevention: Mandate grounded anti-static wristbands for all rack insertion and removal work; store spare hardware in factory anti-static packaging until immediately before mounting into rack slots.
Practical Summary: Confirm host controller firmware versions to unlock full HART diagnostic polling, limit deployment to non-safety-critical secondary measurement racks to mitigate group-short risk, deploy RH903SV baluns for all externally powered transmitter layouts, use shielded HART cable with single-point grounding, allocate sufficient rack power headroom, and enforce ESD handling protocols to resolve over 90% of common on-site HART communication troubleshooting events with this hardware.
FAQ
- Q: Can I swap this hardware into existing rack slots running channel-isolated FBM214B HART input cards without full workstation reconfiguration?A: Physical backplane compatibility exists, but partial rework is mandatory. FBM214B delivers per-channel fault segregation while this unit uses group isolation; workstation fault alarm logic, HART device mapping, and rack slot fault response programming must be rebuilt to accommodate full-group measurement loss during field wiring shorts. Mixed deployments create inconsistent safety interlock behavior during HDLC bus communication disruptions.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical and power facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 1–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover group-wide measurement failures caused by shorted field transmitter wiring?A: The warranty covers manufacturing defects in ADC conversion circuits, HART modems, and group isolation barriers. Hardware damage from un-fused external field shorts, miswired field overvoltage feeds, or omitted RH903SV signal baluns falls outside warranty coverage; archived bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can I mix internally loop-powered and externally powered transmitters across the eight channels of one unit?A: Mixed layouts are supported across the group of eight channels, but any externally powered sensor circuit requires RH903SV balun hardware to suppress HART crosstalk; internally powered two-wire transmitters utilize the module’s shared onboard 24V loop supply with no extra accessories needed.
- Q: Does the embedded HART stack support burst-mode continuous high-speed data transmission from smart field instruments wired to the terminals?A: Burst mode functionality is not implemented in the onboard firmware. The hardware processes HART universal, common, and device-specific commands at a maximum rate of two digital messages per channel per second. For continuous high-frequency HART data collection, dedicated FOUNDATION Fieldbus H1 gateway hardware is recommended instead.
- Q: What termination assembly part number pairs with this hardware for group-isolated HART transmitter field wiring marshalling?A: The matching anti-vibration polyamide compression screw-clamp TA assembly is . Generic third-party terminal blocks are not recommended, as they lack validated wire landing geometry and group isolation barrier alignment matched to the module’s shared loop power and HART signal circuits.
- Q: I need to monitor safety-critical reactor temperature transmitters with zero tolerance for full-group measurement blind spots; can this hardware be deployed for safety instrumented system input racks?A: It is not recommended for safety instrumented system deployment. The group isolation design creates total loss of all eight measurements during a single channel field short; dedicated channel-isolated hardware provides independent fault segregation required for safety loop compliance instead.
