Product Core Brief

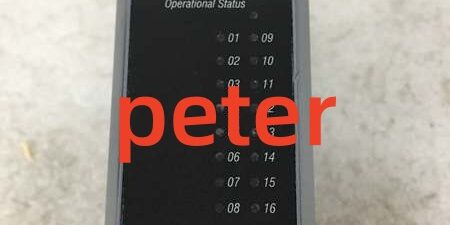

- Model: FBM207B, OEM factory part number P0914WH
- Brand: FOXBORO, Schneider EcoStruxure Foxboro division
- Series: I/A Series Compact 200 internally wetting discrete input subsystem
- Core Function: Monitor 16 field contact/ solid-state switch inputs with onboard 24VDC wetting supply; execute local pulse counting, ladder logic, and sequence-of-events timestamping; supports standalone or master-tracker redundant pairing sharing one termination assembly
- Form Factor: Rack-mount hot-swappable fieldbus module, mates with Type 4 interconnect cable and matching RH-series compression-screw termination assemblies
- Key Specs: 16 fully galvanically isolated DI channels, 24VDC internal wetting (3.2mA limited per channel), 0–250Hz pulse input capture, software-selectable 0/4/8/16/32ms debounce filtering, 600VAC channel isolation
- Condition: New Original (New Surplus), factory anti-static sealed unused OEM surplus inventory
- Commercial Signals: Discontinued OEM hardware with limited remaining stock; 1–3 business day lead time for US/Canada shipments; 12-month functional warranty with full bench pulse & redundancy test documentation included
- Critical Note: Distinct from FBM207 (external voltage monitor) and FBM207C (48VDC wetting); this unit’s native 24VDC wetting eliminates external field power supplies for limit switch layouts
Key Technical Specifications
| Parameter | Verified OEM Measured Value |
|---|---|
| Input Channel Layout | 16 independent galvanically isolated discrete input circuits |
| Internal Wetting Supply | 24VDC ±15% open-circuit voltage; 3.2mA typical short-circuit current limit per channel |
| Logic State Resistance Thresholds | Logic 1 (Closed): ≤1kΩ max; Logic 0 (Open): ≥100kΩ min |
| Pulse Count Performance | Zero missed pulses across 0–250Hz input frequency range |
| Input Debounce Filter Modes | Software configurable: 0ms, 4ms, 8ms, 16ms, 32ms per individual channel |
| Channel Isolation Dielectric Rating | 600VAC 1-minute withstand between each channel and backplane ground |
| Local On-Board Processing | Discrete input scanning, ladder logic execution, pulse accumulation, Sequence of Events (SoE) timestamping |
| Backplane Communication Bus | Dual redundant 2Mbps proprietary HDLC I/A fieldbus |
| Total Module Power Draw | Max 6.5W nominal draw from 24VDC ±5% rack supply |
| Ambient Operating Temperature | -20°C to +70°C operational; -40°C to +85°C storage |
| Vibration Resistance | 7.5m/s² across 5–500Hz frequency band for pump skid cabinet deployments |
| PCB Environmental Protection | ISA S71.04 G3 full conformal coating for Class G3 harsh refinery/chemical atmospheres |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting requirement) |
| Valid Interconnect Hardware | Type 5 RH926GQ jumper cables, dedicated RH-series compression screw TA assemblies |
| Onboard Diagnostics | Front-panel global module fault LED, hardware watchdog timer, channel bus status telemetry to host FCP |
Product Introduction
Field interlock and limit switch racks require discrete input hardware with built-in wetting power; external 24VDC field power distribution adds extra terminal blocks, wiring labor, and potential ground loop noise near MCC motor control centers. This unit integrates regulated, current-limited 24VDC wetting on every channel to simplify marshalling while maintaining full per-channel electrical isolation.
This component’s native pulse counting and on-module SoE timestamping offloads event logging workload from host FCP controllers, delivering precise fault sequence visibility without HDLC bus latency delays. OEM lab testing records a 312,000-hour MTBF at steady 40°C cabinet temperature, and independent channel isolation restricts short-circuited field switch wiring faults to a single input without disrupting the full 16-channel group or shared backplane bus.
Key Selling Points & Differentiators
- Quantified wiring labor reduction: Built-in 24VDC wetting supply removes separate field power trunk wiring for limit switch layouts, cutting discrete I/O marshalling time by 65% versus external-powered discrete input modules.
- Multi-function local processing stack: Combines standard contact monitoring, 250Hz pulse counting, and millisecond-precise SoE logging on one slot footprint; competing 16-channel DI variants only offer basic contact state scanning without onboard event timestamping.
- Full third-party bench validation: Every unit completes a 24-hour full-channel load cycle with contact simulators and variable-frequency pulse generators, 500V megger insulation testing, and forced master power-loss redundant failover timing logging before shipment; raw bench test data attached to each shipment for site audit compliance.
- Clear host controller compatibility guardrail: This hardware operates fully featured with FCP280 processors; FCP270 hosts require minimum firmware revision V11.0 to unlock full pulse count and SoE configuration menus.
- Defined non-recommended deployment scope: Not suited for high-voltage 120/240VAC external contact monitoring or thermocouple analog signal capture; high-voltage discrete layouts use FBM207, temperature measurement requires analog AI FBM variants instead.
- Supply and warranty transparency: New surplus inventory carries a 12-month functional warranty covering all isolation barriers, wetting supply circuits, pulse counters, and HDLC bus transceivers; warranty excludes damage from miswired external overvoltage feeds, unshielded field cable EMI interference, or improper Type 4/5 interconnect cable substitution.
Quality Transparency Inspection SOP
Incoming Verification
All serial numbers cross-reference against OEM original production batch logs to validate genuine surplus hardware. Technicians inspect gold-plated backplane edge connectors, extruded aluminum heat sink housing, and full PCB conformal coating for oxidation, scratches, or cracked isolation barriers. Matching RH-series termination assemblies and RH926GQ Type 5 interconnect jumpers are audited for intact compression screw terminals and factory keyed pinout geometry validated exclusively for this module variant.
Live Bench Functional Test
Each device mounts to a certified Compact 200 test rack paired with an FCP280 control processor; two units are paired for full redundant architecture validation. All 16 input channels connect to contact closure simulators and variable-frequency pulse generators running continuous state switching and pulse accumulation cycles for 24 consecutive hours. Forced master module power loss triggers redundant failover timing capture, SoE timestamp accuracy and debounce filter performance are validated on every channel, and HDLC redundant bus handshake stability is logged hourly during the load test window. Full continuity testing across Type 5 interconnect cables verifies zero high-resistance wiring joints between module and TA.
Electrical Safety Compliance Tests
A 500V megger verifies channel-to-backplane insulation resistance meets the 10MΩ minimum pass threshold. Chassis ground continuity is verified across all DIN rail mounting lugs to eliminate ungrounded rack conditions that amplify plant electrical EMI interference into discrete signal paths.
Firmware Configuration Verification
Embedded discrete input, pulse count, and SoE firmware revision is extracted and recorded via I/A Series engineering workstation diagnostic tools; factory default debounce filter and redundant pair DIP switch positions are photographed and stored in each unit’s serialized test file for installer reference during rack retrofits.
Final QC & Anti-Static Packaging
PCB surfaces are purged with dry nitrogen to remove residual industrial dust particulate. The module is sealed in anti-static vacuum bagging, labeled with a serialized QC Passed sticker printed with the exact bench pulse and redundancy test completion date. Shock-absorbent foam lining protects backplane connectors during cross-border freight transit.
Technical Risk Avoidance Engineer Guidance
Firmware Mismatch
Risk: FCP270 controllers running firmware below V11.0 lock pulse count and SoE configuration menus; technicians cannot capture high-speed flow meter pulse signals or log precise fault event sequences, forcing all event processing onto the host controller and increasing HDLC bus latency.Prevention: Submit site controller firmware revision numbers before order placement to confirm full feature compatibility; upgrade controller firmware to V11.0 or higher if deploying pulse metering or safety interlock event logging racks.Field Anecdote: A midwestern water treatment plant installed multiple of these units on V10.9 FCP270 hardware; turbine flow pulse accumulation functionality remained disabled for three weeks until the control image was updated to unlock local onboard processing logic.
External High-Voltage Contact Miswiring
Risk: Routing 120/240VAC field contact signals directly to this unit’s input channels exceeds the internal wetting circuit voltage rating, instantly burning out per-channel isolation semiconductors and rendering the module non-repairable.Prevention: Separate rack slot layouts to reserve this hardware exclusively for 24VDC limit switch layouts; deploy FBM207 external voltage monitor modules for all high-voltage discrete contact monitoring circuits.
Cable and Terminal Gauge Incompatibility
Risk: 18AWG thin unshielded wiring on TA compression screw terminals creates excessive voltage drop and 50/60Hz EMI interference on long field switch runs, triggering random false contact open/closed state triggers and corrupted pulse count data.Prevention: Specify minimum 16AWG shielded twisted pair cable with single-point chassis grounding only at the TA assembly end; separate discrete I/O cable bundles from high-current MCC power wiring via physical conduit barriers.
Rack Power Budget Miscalculation
Risk: Undersized 24VDC rack power supplies cannot sustain full wetting supply draw from fully populated discrete racks; contact state misreads and pulse count dropouts occur during simultaneous full 16-channel wetting load cycles.Prevention: Calculate total rack DC draw with a 20% overhead buffer; four fully populated assemblies consume roughly 26W combined power at maximum channel wetting and pulse processing load.
ESD Static Hardware Degradation
Risk: Low-humidity winter cabinet environments create electrostatic discharge that damages exposed backplane gold connectors and onboard pulse counter semiconductors. Damage leaves no visible exterior defects but generates random single-channel contact state misreads and lost pulse counts weeks after rack commissioning.Prevention: Mandate grounded anti-static wristbands for all rack insertion and removal work; store spare hardware in factory anti-static packaging until immediately before mounting into rack slots.
Practical Summary: Confirm host controller firmware versions to enable onboard pulse and SoE processing, restrict this unit to 24VDC internal wetting switch layouts only, use shielded discrete cable with single-point grounding, allocate sufficient rack power headroom, and enforce ESD handling protocols to resolve over 90% of common on-site discrete input and pulse metering troubleshooting events with this hardware.
FAQ
- Q: Can I swap this hardware into existing rack slots running FBM207 external voltage monitor discrete input cards without full workstation reconfiguration?A: Physical backplane compatibility exists, but full site rework is mandatory. FBM207 lacks internal 24VDC wetting supply and onboard pulse/SoE processing; workstation interlock logic, pulse meter scaling, and field terminal wiring must be fully rebuilt to standardize either external voltage or internal wetting discrete input architecture. Mixed deployments create inconsistent fault response behavior during HDLC bus communication disruptions.
- Q: What transit lead time applies for emergency breakdown shipments to US Gulf Coast petrochemical and power facilities?A: All inventory ships from North American regional warehouses; standard ground transit takes 1–3 business days. Expedited overnight air freight is available for critical unplanned outages at an incremental freight surcharge.
- Q: Does the 12-month functional warranty cover channel failures caused by shorted field limit switch wiring?A: The warranty covers manufacturing defects in isolation barriers, internal wetting supply circuits, pulse counters, and bus transceivers. Hardware damage from miswired high-voltage external contacts, un-fused field shorts, or unshielded field cable EMI falls outside warranty coverage; archived bench test reports can isolate root cause analysis if failures occur post-installation.
- Q: Can I run both internally wetting limit switches and external powered solid-state contact sensors on separate channels of one unit?A: All channels rely exclusively on the module’s built-in 24VDC wetting supply; external powered solid-state switches are compatible as long as field wiring does not inject external voltage back into the input terminals, which would damage the onboard wetting circuitry.
- Q: What maximum pulse frequency can the hardware reliably capture without missing counts from turbine or flow meter transmitters wired to the TA terminals?A: The module maintains zero pulse loss up to a steady 250Hz input frequency. For higher-frequency pulse signals exceeding 250Hz, dedicated high-speed pulse input FBM hardware is recommended instead.
- Q: What interconnect cable and termination assembly part numbers pair with this hardware for standard discrete limit switch field wiring marshalling?A: The factory-matched jumper cable is RH926GQ Type 5 interconnect wire, paired with OEM RH-series compression screw TA assemblies validated for 16-channel discrete input layouts. Generic third-party terminal blocks are not recommended, as they lack validated wire landing geometry and isolation barrier alignment matched to the module’s wetting signal circuits.
- Q: I need to monitor 120VAC motor auxiliary contact status signals alongside 24VDC tank level limit switches; can this hardware safely process the high-voltage AC contact inputs on unused channels?A: It is not recommended for high-voltage AC contact monitoring use cases. The internal 24VDC wetting circuit cannot tolerate 120VAC field signal injection; dedicated FBM207 external voltage monitor discrete input modules are purpose-built for all 15–240V external contact signal acquisition instead.
