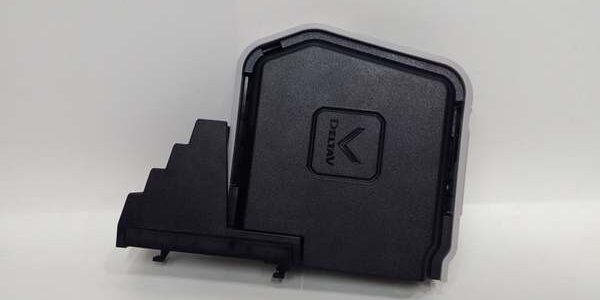

Product Core Brief
- Model: KJ3242X1-BA1 (cross PN: 12P2471X042, Series 2 Rev E)
- Brand: Emerson DeltaV
- Series: M-Series Traditional Rack I/O Communication Hardware
- Core Function: Dual-port FOUNDATION Fieldbus H1 interface to exchange process data and diagnostics with FF H1 smart transmitters and valve positioners
- Product Type: Plug-in rack-mounted FF H1 communication card, keyed D6 terminal block compatibility
- Key Specs: 2 independent FF H1 ports | 32 devices max per port | 9–32VDC fieldbus power @12mA/port | LocalBus 12VDC 300mA draw
- Note: New original surplus stock; only fits M-series 8-slot I/O carriers, incompatible with S-series racks
Key Technical Specifications
| Parameter | Value |
|---|---|
| Fieldbus Interface | 2 isolated FOUNDATION Fieldbus H1 segments (31.25 kbps) |
| Max Field Devices | 32 FF H1 instruments per single port |
| LocalBus Supply | 12 VDC, 300 mA continuous power draw from carrier backplane |
| Fieldbus Loop Power | 9–32 VDC external field power, 12 mA sourcing per port |
| Hot-Swap Support | Safe single-card hot removal on energized safe-zone racks |
| Keyed Terminal Position | D6 mechanical key to prevent misinsertion on mismatched bases |
| Operating Temperature | -40°C to +70°C operational; -40°C to +85°C storage |
| Environmental Rating | ISA S71.04 G3 corrosive gas resistant, full PCB conformal coating |
| Vibration & Shock | 1mm pp (2–13.2Hz); 0.7g (13.2–150Hz); 10g half-sine 11ms shock |
| Physical Dimensions | 107 mm W × 41 mm H × 105 mm D; net weight 0.20 kg |
| Hazardous Certifications | FM Class I Div2, ATEX Ex ec IIC Gc (Zone 2 only) |
| Compatibility Restriction | No physical or bus compatibility with DeltaV S-series I/O carriers |
Product Introduction
This rack-mounted communication card creates a digital bridge between DeltaV controllers and multi-drop FF H1 field devices. Each port supports up to 32 smart instruments to cut field wiring count versus discrete 4–20mA analog I/O.Full bidirectional H1 tunneling delivers real-time process values, device calibration records, and predictive diagnostic flags to the DeltaV HMI and AMS asset management software. Per-port electrical isolation contains short-circuit faults to one field segment without disrupting the second FF bus or rack LocalBus traffic.
QA & Testing SOP
- Incoming Inspection: Match unit serial number against OEM factory batch logs; inspect gold LocalBus edge connectors for oxidation and conformal coating for peeling. Reject units with cracked plastic housings or bent pin headers.
- Live Functional Testing: Install on matching M-series carrier, supply rack 12VDC LocalBus power via Fluke 115 multimeter. Connect each FF H1 port to a bench FF simulator, validate continuous data polling and device tag recognition to DeltaV workstation.
- Bus Fault Stress Test: Force fieldbus short circuits on each port to verify isolated fault containment; confirm the second H1 segment and rack communication remain fully operational.
- Firmware Logging: Capture installed Series 2 firmware revision through DeltaV Diagnostic Console and save screenshots tied to the unit serial number for full traceability.
- Final QC & Packaging: Blow PCB surfaces with dry nitrogen to remove industrial dust; seal in static-shield bag with printed test report containing 24-hour continuous FF bus runtime stability data.
Installation Pitfalls & Guide
❗ ESD Component Failure: Ungrounded contact with backplane pins destroys FF H1 transceiver ICs; component replacement labor exceeds $2,300. Always attach a grounded anti-static wrist strap to cabinet safety ground before handling the card.❗ Cross-Series Carrier Mismatch: This hardware only seats on M-series racks. Forced insertion into S-series carriers bends backplane gold pins and disables full rack LocalBus communication.❗ Zone 0/1 Hazardous Area Misuse: The card holds only Div2 safety certification. Deploying it in Zone 0 or 1 flammable gas zones voids all safety approvals and creates ignition risks.❗ Overloaded FF H1 Segments: Wiring more than 32 field instruments per port pulls loop voltage below communication thresholds, triggering intermittent device offline alarms during process transients.❗ EMI Wiring Separation Failure: Run high-current 24VDC power cables a minimum 10cm apart from FF H1 trunk wiring. Parallel routing induces bus noise and dropped field device communication.
4-Step Replacement Guide
- Pre-install: Activate control bypass logic on the DeltaV workstation for all FF H1 loops connected to both ports; photograph D6 terminal block fieldbus wiring layout for reference. Hot-swap is permitted in safe zone cabinets.
- Removal: Release the card’s front retention latch, pull the unit straight outward horizontally to avoid bending backplane edge pins.
- Install: Align the new module’s gold backplane connector with the carrier slot, push fully until the retention latch clicks into locked position. Confirm D6 key matches the terminal block mechanical profile.
- Power-on Test: Clear all loop bypasses; poll all connected FF H1 devices, simulate trunk short conditions to verify single-port fault isolation without cross-segment communication loss.
FAQ
Q: Can each FF H1 port operate independently if the other segment suffers a short circuit?A: Yes, galvanic isolation separates the two bus circuits. A wiring fault on one port will not interrupt data collection or control execution on the second fieldbus trunk.Q: Does hot-swapping the card disrupt other I/O modules on the same carrier rack?A: The M-series carrier includes buffered hot-swap circuitry; removing or inserting the unit while rack power stays energized will not interrupt signal processing for other installed I/O cards.Q: What physical limitation blocks use with S-series DeltaV racks?A: M-series and S-series carriers use incompatible backplane pinout geometries and LocalBus signaling timings; forced installation permanently damages the carrier’s backplane connector pins.Q: What hardware behavior signals a failed unit?A: One or both FF H1 ports show permanent device offline status, persistent LocalBus communication timeout on the carrier rack, missing port activity LED indicators, or consistent bus error counters under stable field wiring conditions.Q: What warranty coverage applies to new surplus stock?A: A 12-month limited warranty covers factory PCB and assembly defects. Damage from ESD mishandling, overloaded FF H1 segments, field-side overvoltage, or deployment in unapproved hazardous zones is excluded from coverage.Q: Can redundant cards be paired on a single carrier for fault-tolerant FF communication?A: Yes, DeltaV M-series supports dual redundant FF H1 card configurations on the same 8-slot carrier with automatic failover between primary and standby fieldbus segments.
