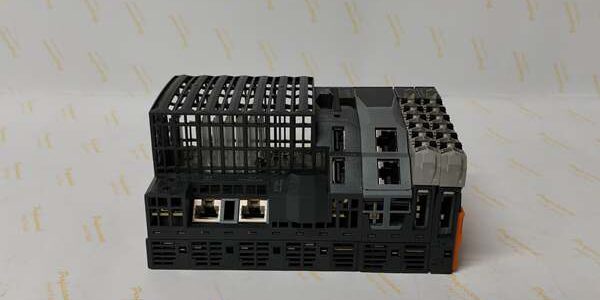

Product Core Brief

• Model: X20CP1586
• Brand: B&R Industrial Automation
• Series: X20 Modular Distributed I/O PLC Platform
• Core Function: Executes real-time logic, multi-axis POWERLINK motion sync, distributed X2X I/O management, and MES data uplink via Gigabit Ethernet
• Product Type: DIN Rail Plug-In PLC CPU Controller Module
• Key Specs: Intel Atom E680T 1.6GHz | 512MB DDR2 + 1MB battery-backed SRAM | Native POWERLINK V1/V2 PRC bus
• Note: New Original inventory; CompactFlash program storage and X20AC0SR1 terminator sold separately

Key Technical Specifications

• Main Processor: Intel Atom E680T x86 1.6GHz, independent dedicated I/O coprocessor
• Memory: 512MB DDR2 SDRAM; 1MB lithium battery-backed SRAM for recipes/counters
• Storage: Type I CompactFlash slot (industrial CF media required for program storage)
• Onboard Interfaces: 1×RS232; 1×10/100/1000BASE-T Gigabit Ethernet; 1×POWERLINK V1/V2 Type4; 2×USB 2.0 Type-A; X2X Link backplane master; 1×expansion slot for fieldbus modules
• Electrical Input: 24VDC, tolerance -15% ~ +20%; 9.7W nominal power draw without expansion modules
• Mechanical: 150mm W × 99mm H × 85mm D; 0.4kg weight; standard 35mm DIN vertical rail mounting
• Cooling: Fully passive fanless heat sink design, zero moving wear components
• Environmental Ratings: Horizontal mount -25°C to +60°C; vertical mount -25°C to +50°C; storage -40°C to +85°C; IP20 cabinet-only installation
• Built-In Diagnostics LEDs: CPU Run/Fault, Ethernet, POWERLINK, CF Card, Backup Battery status
• Certifications: CE, UL cULus, EAC, DNV, ATEX Zone 2 industrial compliance
• Supported Runtime: Automation Runtime AR V3.0 and newer IEC 61131-3 environments

Product Introduction

This mid-tier controller serves as the main processing node for X20 distributed automation racks, separating user logic and I/O bus scheduling across dual processors to hold consistent microsecond scan cycles for multi-axis motion equipment.

The unit’s native POWERLINK PRC protocol delivers synchronized servo interpolation with ACOPOS drive systems, while the Gigabit Ethernet port moves large batch and alarm datasets to upper MES/SCADA via Modbus TCP or OPC UA without extra gateway hardware.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference OEM serial database to validate genuine hardware; inspect orange locking latches for cracking, rear port pins for bending, and CF slot contact integrity.
2. Live Testing: Supply stabilized 24VDC from a Fluke 115 power supply; run 24-hour continuous operation with simulated X2X I/O racks, 16-axis POWERLINK servo emulation, and Ethernet OPC UA tag polling logged hourly.
3. Electrical Testing: 500V Megger insulation test between power terminals and chassis ground; pass threshold set to >10MΩ isolation resistance.
4. Firmware/Config Backup: Record exact AR runtime build number via Automation Studio; photograph expansion slot empty state and internal battery placement for configuration matching.
5. Final QC & Packaging: Wipe housing with ESD-safe isopropyl alcohol; seal in conductive anti-static bag; attach printed test tag with serial trace and 24hr stability pass metrics.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Runtime Version Mismatch: Projects compiled on AR V4.x will fail boot on hardware flashed with AR V3.2 or older. Flash matching runtime firmware before project download to eliminate Ethernet handshake timeouts.❗ POWERLINK MN/CN Mode Misconfiguration: Factory default sets the bus to Managing Node; switching to Controlled Node for secondary drive racks requires manual bus mode edits, otherwise all servo communication collapses instantly.❗ Missing X2X Termination Plate: The farthest I/O station on the X2X chain needs X20AC0SR1 end cap. Omitted termination creates bus jitter that pushes motion cycle latency above 1ms and triggers intermittent I/O NOT OK faults.❗ Consumer-Grade CF Media Risk: Retail flash cards degrade rapidly at sustained 60°C cabinet heat, corrupting program files during power cycles. Only deploy B&R industrial CFCRD series storage media.❗ Uncontrolled ESD Exposure: Low-humidity workshop static discharges destroy onboard Ethernet/POWERLINK transceivers; always wear grounded anti-static wristbands when plugging/unplugging the controller from the backplane.

4-Step Replacement Guide

1. Pre-install: Full machine power down; photograph old module expansion slot cards, bus wiring, and CF card partition layout for exact configuration replication.
2. Removal: Unplug all fieldbus, Ethernet, USB and X2X cabling; release DIN rail locking latches and slide the old unit free from the rack.
3. Install: Seat the new module flush to the DIN rail; reinsert all expansion fieldbus cards; reattach wiring matching photographed pinout positions.
4. Power-on Test: Apply 24VDC supply; verify CPU Run LED steady state, X2X I/O full point readback, and POWERLINK servo sync before resuming production runs.

FAQ (Frequently Asked Questions)

Q: Does the controller support hot-swapping while the rack remains powered?A: No. It acts as the X2X backplane master; live extraction cuts bus communication to all attached I/O stations, erases volatile motion setpoints, and risks permanent backplane trace damage. Full rack power down is mandatory for replacement.Q: How long will the internal lithium battery retain SRAM recipe data?A: Rated for 5 years continuous service life at 25°C ambient. After expiration, all production counters, batch recipes and alarm logs reset fully after every power outage.Q: Can this unit run redundant CPU control architectures?A: No. The hardware lacks crosslink redundant bus circuitry; X20CP3586 coated high-end variants are required for redundant process control setups.Q: What maximum number of X20 I/O modules can the controller scan reliably?A: Up to 32 cascaded X20 I/O modules with consistent <0.8ms full rack scan time; exceeding this count increases motion task jitter beyond acceptable machine control limits.Q: Are third-party firmware mirror downloads safe to use on this hardware?A: No. Unofficial runtime builds often omit critical POWERLINK timing patches, which brick the bootloader and render the unit unrecoverable without OEM service repair. Only retrieve firmware from the official B&R support portal.Q: What expansion fieldbus types fit the single rear slot?A: Compatible modules include PROFIBUS DP, CANopen, RS485, secondary POWERLINK slave, and EtherNet/IP; serial communication requires dedicated plug-in hardware as no native serial expansion ports exist.Q: What warranty coverage applies to surplus stock of the controller?A: Standard 12-month functional warranty covers factory hardware defects; damage from ESD mishandling, non-industrial CF card use, or incorrect 24VDC overvoltage input is fully excluded from coverage.
