Product Core Brief

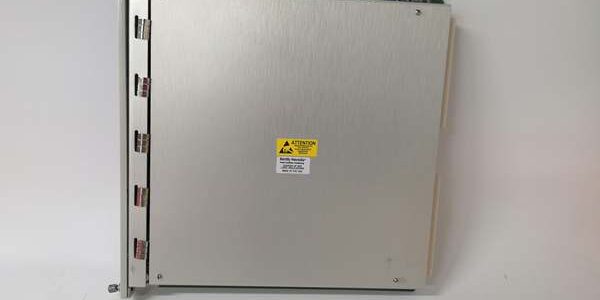

- Model: 3500/60, Front Card PWA 163179-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Turbine Supervisory Instrumentation (TSI) Machinery Protection Platform
- Core Function: Six-channel thermal monitor that processes mixed RTD and thermocouple inputs for bearing metal, lube oil, and stator winding temperature, executing user-programmable over-temperature alarm and trip logic per API 670 standards
- Product Type: Full-height hot-swappable split front/rear base M-series thermal input monitor; no native 4–20 mA recorder outputs
- Key Specs: 6 mixed configurable thermal channels | 7 W typical power draw | TMR redundant voting support | 10 MΩ per-lead input impedance
- Condition: New Original (New Surplus), active OEM production spare with no published obsolescence timeline
Key Technical Specifications
| Parameter | Defined Value |
|---|---|
| Channel Layout | 6 fully independent software-configurable thermal channels; mix RTD and TC types across slots |
| Supported RTD Sensors | 3/4-wire 100Ω Pt385/Pt392, 120Ω Ni, 10Ω Cu; Pt100 range −200°C to +700°C |
| Supported Thermocouples | Type E, J, K, T; Type K range −18°C to +1370°C |
| Measurement Accuracy | ±0.2% full scale ±2 digits at 25°C ambient |
| Input Impedance | 10 MΩ per individual sensor lead to suppress cable leakage noise |
| Power Consumption | 7 W steady-state draw from 24 VDC rack backplane bus |
| Channel Isolation Options | Rear base variants: non-isolated RTD/TC (133827-01); TC isolated (136711-01, 250 Vdc channel-to-channel isolation) |
| Backplane Bus Communication | Proprietary high-speed 3500 rack bus for alarm voting and data export to 3500/20 TDI gateway |
| Standard Operating Temp | −30°C to +65°C; conformal coated variants rated −40°C to +85°C offshore cabinet environments |
| Humidity Tolerance | 5%–95% RH non-condensing cabinet atmosphere |
| Physical Dimensions | 241.3 mm H × 24.4 mm W × 241.8 mm D; front card weight 0.80 kg |
| Compliance Standards | API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nA IIC T4, SIL 2 functional safety |
| Front Panel Indicators | OK (module health), TX/RX (backplane traffic), discrete channel fault LED for open/short sensor wiring |
Product Introduction
This thermal monitor consolidates six temperature sensor inputs into one rack slot to track critical machine heat signatures and trigger safety trips before bearing degradation or stator overheating occurs. It supports TMR triple redundant group installation for high-reliability turbine and compressor protection racks.
The split rear terminal base lets technicians rework field RTD/TC wiring without removing the front measurement hardware during planned shutdowns. The unit cannot process proximity vibration, seismic, or raw 4–20 mA process signals; dedicated 3500/40M, 3500/42M, and 3500/62 monitors handle those measurement tasks. It differs from the 3500/61 variant by omitting per-channel analog recorder outputs for local chart recording hardware.
Firmware/Software Versions & Upgrade Notes
Minimum compatible rack gateway firmware: 3500/20 TDI Revision G; minimum rack configuration software: 3500 Rack Configuration Software v2.00. All M-series modules installed in the chassis must run matching firmware builds; mismatched revisions disable TMR temperature voting and channel open/short fault diagnostics.Downgrades below Revision G remove mixed RTD/TC auto-sensing and drift compensation filtering for long sensor cable runs. Firmware flashes over the rack backplane bus via official Bently rack configuration software. Always export full channel setup (sensor type, alarm delays, trip thresholds) before initiating firmware updates to avoid complete rework of thermal protection logic. No firmware resides on rear terminal bases; all signal conditioning logic resides on the front board assembly.
Frequently Asked Questions (FAQ)
- Is hot-swapping the front measurement card safe while the 3500 rack remains energized?Yes, the front card supports hot-swap with rack power active. Active temperature alarm states retain their last valid reading during replacement, so machine over-temperature trip interlocks do not drop out mid-service. The paired rear terminal base cannot be detached while powered, as this breaks field sensor isolation and locks persistent channel fault flags.
- Is this part scheduled for obsolescence, and are direct drop-in hardware upgrades available?This monitor remains an active OEM catalog spare with no formal end-of-life date. No revised second-generation front card exists; all production batches maintain identical pinout and slot geometry for full backward compatibility. The only functional cross variant is 3500/61, which adds 4–20 mA recorder outputs and requires minor software reconfiguration, so it is not a zero-modification plug-and-play swap.
- Will sensor type assignments, over-temperature trip thresholds, or TMR voting logic erase if the full rack loses power?No, all thermal scaling values, Alert/Danger time delays, and voting parameters store in non-volatile flash memory on the unit itself. Full rack power loss does not permanently erase any channel configuration data; the rear terminal base contains zero user-programmable settings.
- What warranty terms separate New Surplus inventory from refurbished alternatives?New Surplus stock carries a 12-month functional warranty covering RTD/TC analog conditioning circuits, backplane transceivers, channel isolation barriers, and LED diagnostic hardware. Refurbished units typically offer only 3–6 month limited coverage and carry hidden risks of aged electrolytic capacitors, untested channel isolation, and undocumented prior field fault exposure that cause drifting temperature readings during unit load transients.
- Why does New Surplus pricing sit higher than generic used/refurbished marketplace listings?All New Surplus inventory completes mandatory QC validation: serial traceability cross-check against OEM production logs, 24-hour continuous thermal load bench testing with simulated Pt100 and Type K thermocouple signals, 500 V megger insulation testing verifying >10 MΩ channel-to-ground isolation, full firmware backup, and anti-static sealed foam packaging. Refurbished lots skip this multi-step validation workflow, introducing avoidable operational risk for safety-critical turbine bearing temperature protection racks.
- Can raw eddy-current proximity probes or seismic velocity sensors wire directly to the input channels?No, the unit only processes resistive thermal and thermocouple signals. Vibration monitoring requires 3500/40M or 3500/42M mixed I/O monitors. Verify with the OEM datasheet before modifying field wiring to prevent permanent channel circuit damage.
- Does the unit locally store over-temperature fault snapshots or long-term machine temperature trending logs?No, all thermal trending records, timestamped over-temperature fault events, and sensor diagnostic counters are captured and retained exclusively by the Slot1 3500/20 TDI master communication gateway. The unit performs real-time temperature conversion and alarm comparison only, with no on-board data storage memory.
