Product Core Brief

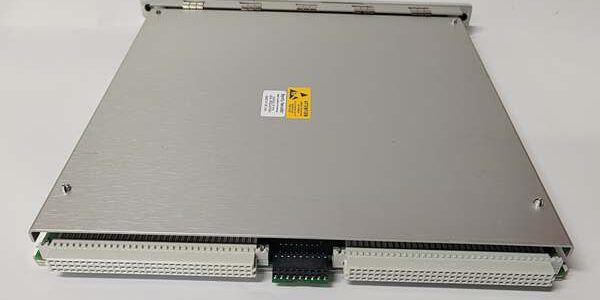

• Model: 3500/42M, Front Card PWA 176449-02
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Four-channel universal monitor that simultaneously processes eddy-current proximity probes and seismic Velomitor/accelerometer inputs for shaft position, radial vibration, casing vibration, and rolling element bearing diagnostics
• Product Type: Single full-height hot-swappable split front/rear base M-series mixed I/O monitor; compatible with standard external or internal IS barrier rear terminal bases
• Key Specs: 4 software-configurable paired channels | Dual transducer family support | 7.7 W typical power consumption
• Condition: New Original factory sealed with OEM production lead time; fully calibrated refurbished surplus stock ships within 3 working days

Key Technical Specifications

• Channel Layout: Four independent inputs grouped into two programmable channel pairs (Ch1/Ch2, Ch3/Ch4) for separate measurement functions
• Supported Transducers:
  • Proximity: All 3300 XL eddy-current probes (5 mm, 8 mm, 11 mm, 25 mm long-range displacement variants)
  • Seismic: Velomitor velocity sensors, piezoelectric accelerometers
• Measurable Variables: Radial vibration, thrust position, eccentricity, differential expansion, REBAM bearing wear, shaft absolute vibration, circular acceptance orbit plots, acceleration, velocity spectra
• Transducer Excitation: Regulated −24 VDC oscillator supply dedicated to proximity probe coils
• Frequency Bandwidth: DC to 10 kHz; DC static range for slow thermal shaft displacement capture
• Analog Recorder Output: Isolated 4–20 mA scaled signal per channel, maximum 550 Ω load resistance for DCS trending
• Buffered Front-Panel Transducer Output: Short-circuit protected BNC tap for oscilloscope field troubleshooting
• Power Draw: 7.7 W steady-state load from rack 24 VDC backplane bus
• Galvanic Isolation: 1500 VAC separation between each field input circuit and rack ground bus
• Operating Ambient: −30 °C to +65 °C standard cabinet; conformal coated variants extend service range to −40 °C to +85 °C offshore platforms
• Physical Dimensions: 241.3 mm H × 24.4 mm W × 241.8 mm D; full assembly weight 0.91 kg
• Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4, SIL 2 functional safety
• Front Panel Indicators: OK (module health), TX/RX (backplane communication), BYPASS (channel inhibit mode)

Product Introduction

Gas turbines and multi-stage compressors require simultaneous monitoring of shaft displacement via proximity probes and casing vibration via seismic sensors, and this unit eliminates the need to deploy separate dedicated proximity-only and seismic-only monitor cards in adjacent rack slots. It delivers native orbit and circular acceptance region logic unavailable on single-function modules to detect shaft rubs and bowing during cold startup transients.Its modular rear terminal base allows maintenance technicians to rework field transducer cabling, install intrinsic safety barriers, or replace damaged terminal blocks without extracting the front measurement card during planned machinery outages. This hardware cannot read RTD, thermocouple, or 4–20 mA process transmitter signals; dedicated 3500/60, 3500/61, and 3500/62 modules handle thermal and analog process variable measurements. Not recommended for pure differential expansion monitoring layouts with zero casing vibration measurement requirements, as the dedicated 3500/45 position monitor provides optimized long-range displacement filtering at lower slot cost.

Key Selling Points & Differentiators

1. Dual transducer compatibility consolidates position and vibration measurement into one rack slot, cutting slot consumption by 50% compared to pairing discrete 3500/40M and 3500/44M cards.
2. Pairwise channel programming enables mixed measurement tasks on one unit (e.g., thrust position on Ch1/2, casing velocity on Ch3/4) to match multi-bearing heavy frame compressor and steam turbine layouts.
3. Built-in circular acceptance orbit monitoring captures subtle shaft rub and eccentricity faults that narrow-band single-function modules cannot resolve.
4. Native TMR triple redundant voting capability meets API 670 single-point failure elimination rules for critical turbomachinery emergency shutdown interlock design.
5. Refurbished surplus units carry a 12-month functional warranty covering analog signal conditioning, backplane communication, and 4–20 mA linear scaling circuits; factory-new OEM assemblies ship with a full 36-month manufacturer performance warranty.
6. Per-channel adjustable Alert and Danger threshold time delays suppress nuisance alarms from transient startup load spikes without masking genuine bearing or shaft failure events.

Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM M-series production archives to filter counterfeit assemblies. Complete visual audit of PCB proximity oscillator and seismic ADC traces, rear base screw terminals, front panel BNC port and status LEDs, and rack edge gold pins; timestamp photos of connector corrosion or cracked PCB substrates.
2. Live Bench Test: Mount the front card and matched rear base (standard PN 128240-01; IS barrier PN 135489 series) into a calibrated full-size test rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour thermal soak test with simulated proximity gap signals and Velomitor vibration waveforms across all four channels to validate linear scaling and stable backplane timing data sent to the Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between each transducer input terminal and rack protective ground; verify all short-circuit and overvoltage protection trigger thresholds match OEM factory limits.
4. Firmware & Layout Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank four-channel mixed proximity/seismic configuration file to offline storage. Record baseline LED behavior during TMR voting simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject full-scale proximity gap and velocity test signals to validate linear 4–20 mA recorder output across full measurement range. Separate front card and rear base into anti-static foam inserts, attach serialized QC Passed tag with timestamped linearity test data, and seal inside rigid shock-resistant cardboard crates. Bench test logs and raw signal readouts are available to buyers on formal written request.

Technical Risk Avoidance Section

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide M-series firmware revisions trigger permanent TX/RX communication faults and disable TMR redundant voting and orbit analysis logic. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots. Field anecdote: A combined-cycle power plant installed mismatched firmware and lost all turbine thrust position trip interlocks and orbit diagnostic data for 10 hours during startup commissioning.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with an unmatched I/O base breaks mixed proximity/seismic wiring pinouts and removes built-in channel surge suppression, creating erratic gap and vibration readings and false machinery fault alarms. Confirm rear base PN matches site wiring requirements (standard 128240-01 or IS barrier 135489 variants) before installation.❗ Dual-End Ground Loop Wiring Risk: Grounding transducer coaxial cable shielding at both the rear terminal base and machinery mounting boss creates circulating low-frequency ground loop current that distorts analog signal linearity, triggering persistent nuisance high-vibration or high-gap annunciations. Prevention: Terminate cable shield at only the rack side of the wiring run.❗ ESD Damage Risk: Ungrounded field tools touching exposed rear base terminal pins or front BNC port discharge static and destroy delicate proximity/seismic ADC front-end circuits; OEM PCB repair labor costs exceed $1,600 for production M-series hardware. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal service work while the chassis is energized.❗ Missing Mixed Measurement Configuration Backup Risk: Failing to export validated channel pairing, transducer sensitivity, and Alert/Danger threshold values prior to replacement resets all position and vibration protection limits to blank factory defaults, removing critical turbomachinery safety interlock coverage.

Quick summary: Pair only with OEM matched rear terminal base, unify rack firmware versions, implement single-point cable shield grounding, and maintain stored channel configuration backups to eliminate nearly all common mixed vibration/position measurement field failures for this component.

FAQ

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front mixed I/O measurement card is rated for hot-swap without full rack power loss. Existing channel alarm states hold their last valid condition during removal and replacement, so machinery position and vibration trip interlocks do not drop out mid-service. The rear terminal base cannot be removed while energized.

Q: Can this assembly fully replace separate 3500/40M proximity-only and 3500/44M seismic-only modules to reduce rack slot consumption?A: Yes, one unit handles both eddy-current shaft position and seismic casing vibration inputs that would otherwise require two separate single-function monitor cards, cutting total slot usage in half for multi-measurement turbine and compressor racks.

Q: What warranty coverage applies to refurbished surplus inventory of this mixed proximity/seismic monitor?A: Refurbished assemblies carry a 12-month functional warranty covering analog signal isolation circuits, backplane communication, and channel fault detection hardware. Cosmetic surface scuffs and minor terminal screw wear are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored channel pairing, transducer scaling, alarm thresholds, and TMR voting configurations?A: No. All position/vibration linearization parameters, trip limits, and redundant voting logic write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved measurement configuration data.

Q: Can RTD temperature sensors or 4–20 mA process transmitters be wired directly to this module’s input channels?A: No. This hardware only processes proximity eddy-current and seismic velocity/acceleration signals. Thermal and analog process variable measurements require dedicated 3500/60, 3500/61, or 3500/62 monitor modules.

Q: I operate an auxiliary pump rack that only requires two radial vibration channels. Is it acceptable to leave the remaining two input channels unpopulated?A: Yes. Unused channels do not draw excess backplane power or create cross-channel signal interference. Install factory blank terminal jumpers on empty channel terminals to block dust buildup inside the rear base and reduce long-term insulation degradation.

Q: Does this module independently store transient shaft orbit or vibration fault waveform snapshots on its PCB?A: No. All timestamped transient fault waveform capture and local flash storage functionality is managed exclusively by the rack’s Slot1 TDI master communication module; this hardware only processes steady-state position and vibration measurements and threshold alarm logic.
