Product Core Brief

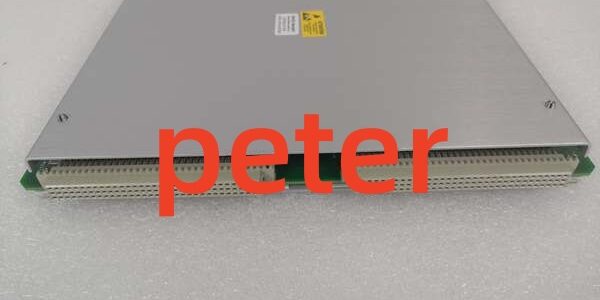

• Model: 135799-01 (3500/93 Display Interface Module, DIM)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Rack-slotted communication bridge that pulls real-time measurement, alarm, and event data from the rack backplane to drive local or remote LCD operator displays for turbomachinery status visualization
• Product Type: Single full-height hot-swappable rack interface module, dedicated for pairing with 3500 system display panels
• Key Specs: Supports up to 2 independent display panels | RS485 display communication | 5.6 W typical power draw
• Condition: New Original factory sealed with standard OEM lead time; fully bench-tested refurbished surplus ships within 3 working days

Key Technical Specifications

• Physical Form Factor: Standard full-width single rack slot, hot-swap capable
• Backplane Communication: High-speed internal 3500 rack system bus to exchange data with all monitor, relay, Keyphasor, and TDI modules
• Display Port: Rear-mounted RS485 serial port for wired connection to 3500 LCD display units
• Maximum Supported Displays: 2 separate local/remote LCD panels per single 135799-01 unit
• Cable Distance Limit: 30.48 m (100 ft) without external display power supply; up to 1219 m (4000 ft) with external auxiliary power adapter
• Power Consumption: 5.6 W continuous draw from rack 24 VDC backplane bus
• Front Panel Indicators: OK steady green = healthy module; TX/RX flashing = active display data traffic
• Operating Ambient: −30 °C to +65 °C standard cabinet; conformal coated variants rated −40 °C to +85 °C offshore platforms
• Physical Dimensions: 241.3 mm H × 24.4 mm W × 241.8 mm D; unit weight 0.82 kg
• Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4
• Data Visibility Scope: Pulls all channel vibration/thrust/temp/pressure values, Alert/Danger alarms, fault logs, and system event history for display rendering

Product Introduction

Most turbine and compressor control panels require on-site operator readouts independent of DCS workstations, and this unit acts as the dedicated rack-side bridge to feed all TSI system data to local LCD displays without occupying external PLC communication ports. It continuously syncs live channel measurements, active alarm states, and historical fault event logs across the rack backplane and serializes data for the connected operator screen.This component only handles display communication routing; it contains no transducer signal conditioning or safety relay logic. It cannot substitute for Slot1 TDI gateway cards that handle remote DCS/Modbus uplinks. Not recommended for small pump racks with zero local operator HMI requirements, as omitting this module eliminates unnecessary rack slot consumption.

Key Selling Points & Differentiators

1. Dual-display support lets one module feed both a cabinet-front local LCD and a separate remote control room screen, cutting spare part count for multi-operator station layouts.
2. Extended cable range option with external power supply enables remote display mounting far from the TSI rack, ideal for large power plant and refinery compressor house layouts.
3. Full API 670 alignment ensures all safety-critical vibration, thrust, and overspeed alarm data appears on operator displays with matching trip thresholds configured in the rack.
4. Hot-swap design allows replacement without powering down the full rack, preserving active machinery protection interlocks during HMI interface maintenance.
5. Refurbished surplus units carry a 12-month functional warranty covering backplane bus logic, RS485 communication transceivers, and front indicator LEDs; factory-new OEM assemblies ship with a full 36-month manufacturer warranty.
6. Native synchronization with all M-series monitor cards eliminates manual signal mapping work during commissioning, cutting HMI configuration labor by roughly 60% versus third-party display converters.

Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM production archives to filter counterfeit assemblies. Complete visual audit of PCB backplane communication traces, rear RS485 terminal port, front panel status LEDs, and rack edge gold pins; timestamp photos of connector corrosion or cracked PCB substrates.
2. Live Bench Test: Mount the unit into a calibrated full-size test rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour load test with a physical 3500 LCD display connected to validate steady data streaming, alarm refresh rates, and stable backplane polling to the Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between RS485 field wiring terminals and rack protective ground; verify short-circuit protection on the display serial port triggers correctly under wiring fault conditions.
4. Firmware & Layout Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and document planned display cable length and panel count for site maintenance records. No user-adjustable measurement scaling resides on this module.
5. Final QC & Packaging: Run 8-hour continuous display data soak test as final validation. Attach serialized QC Passed tag with timestamped communication throughput test data. Wrap the unit in anti-static foam and ship inside rigid shock-resistant cardboard crates. Bench test logs and serial communication readouts are available to buyers on formal written request.

Technical Risk Avoidance Section

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide M-series firmware revisions break backplane data sync, causing missing or stale readings on connected LCD displays. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots. Field anecdote: A combined-cycle gas turbine rack with mismatched firmware froze all local display alarm readouts for 9 hours during startup commissioning.❗ Display Cable Overlength Without Aux Power Risk: Running display cabling longer than 100 ft without the OEM external power adapter creates signal attenuation, flickering display values, and intermittent loss of alarm data. Prevention: Specify matching 3500 display power supply for long cable runs over 30 meters.❗ Ground Loop Wiring Risk: Grounding both the rack chassis and remote display cabinet creates circulating low-frequency noise that distorts serial data, triggering screen freezes and missing event logs. Prevention: Use isolated display power adapters and single-point earth reference at the TSI rack only.❗ ESD Damage Risk: Ungrounded field tools touching exposed rear port pins discharge static and destroy delicate serial transceiver ICs; OEM PCB repair labor costs exceed $1,500 for production hardware. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal service work while the chassis is energized.❗ Missing Display Layout Backup Risk: Failing to document display alarm groups and cable length requirements before module replacement forces full reconfiguration of the operator LCD screen after swap-out, delaying machinery return to service.

Quick summary: Unify rack firmware versions, use auxiliary display power for long cable runs, isolate display cabinet grounding, and retain display layout documentation to eliminate nearly all common local HMI interface field failures for this component.

FAQ

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front DIM module is rated for hot-swap without full rack power loss. Active machinery protection interlocks on all monitor and relay cards remain fully functional during removal and replacement; only the connected LCD display will temporarily freeze data refresh until the new module completes backplane handshake.

Q: Can two separate 135799-01 modules be installed in one rack to drive four total remote LCD panels?A: Yes, each DIM card supports up to two displays independently, so two modules can feed four operator screens from a single 14-slot rack chassis. Each display maintains isolated data streams with no cross-talk between panels.

Q: What warranty coverage applies to refurbished surplus inventory of this display interface module?A: Refurbished assemblies carry a 12-month functional warranty covering backplane bus communication, serial transceivers, and front panel indicator hardware. Cosmetic surface scuffs and minor port pin discoloration are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored display grouping or alarm filter configurations on this module?A: No. All display screen layout and alarm filter parameters reside on the rack’s Slot1 TDI master module, not the DIM card itself. Power cycling only temporarily interrupts live data streaming to the LCD panels, with no permanent loss of configured display logic.

Q: Can this module replace the Slot1 TDI communication gateway to send TSI data to a plant DCS via Modbus RTU?A: No. The 135799-01 only communicates with dedicated 3500 LCD display panels over ; remote DCS uplink Modbus/Ethernet functionality is exclusive to the 3500/20 TDI master module installed in Slot 1 of the rack.

Q: I only need one local cabinet-front LCD display for a steam turbine rack. Is it acceptable to leave the second display port unused?A: Yes. The unused second port draws negligible backplane power and creates no serial communication interference with the active connected panel. Install a factory blank terminal jumper on the empty port to block dust ingress into the rear connector housing.

Q: Does this module store historical vibration fault waveforms or permanent machinery measurement logs locally on its PCB?A: No. All transient fault waveform capture and long-term event log storage is managed exclusively by the rack’s Slot1 TDI master communication module; this component only forwards live real-time data streams to connected operator display panels with no local data retention capability.
