Product Core Brief

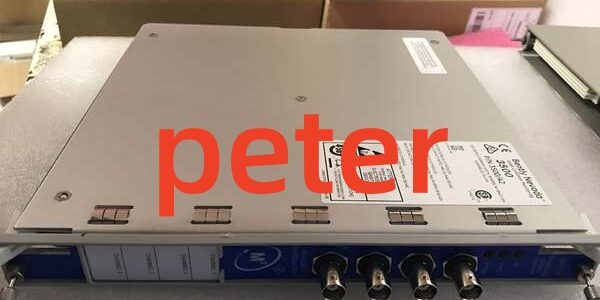

• Model: 3500/40M-03-00 (Front Card PWA 176449-01), matched rear terminal base PN 135489-04 (internal IS barrier termination)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Suffix Breakdown:03 = Internal intrinsic safety barrier + integrated rear termination for hazardous area wiring; 00 = No additional hazardous agency base certificationsBaker Hughes DAM
• Core Function: Four-channel dedicated eddy-current proximity monitor that conditions 3300 XL probe signals to measure radial vibration, thrust position, eccentricity, and REBAM for oil & gas and power turbomachinery in classified explosive zones
• Product Type: Single-slot hot-swappable split front/rear base M-series proximity-only monitor with factory integrated IS barriers
• Key Specs: 4 paired proximity input channels | Built-in IS energy limiting circuits | 7.7 W typical power draw
• Condition: New Original factory sealed with standard OEM lead time; fully calibrated refurbished surplus stock ships within 3 working days

Key Technical Specifications

• Channel Architecture: 4 independent proximity inputs configured as two channel pairs (Ch1/Ch2 and Ch3/Ch4) for separate measurement functions
• Supported Transducers: All 3300 XL eddy-current proximity probes (5 mm, 8 mm, 11 mm, 25 mm long-range displacement variants)
• Internal IS Barrier Rating: Factory integrated energy-limiting circuits compliant for Class I Div 2 / ATEX Zone 2 field transducer runs; eliminates external Zener barrier enclosures
• Transducer Excitation: Regulated −24 VDC constant oscillator supply for eddy-current probe coils
• Measurable Parameters: Radial shaft vibration, axial thrust position, shaft eccentricity, REBAM bearing wear monitoring, static gap offset
• Frequency Response: DC to 10 kHz; DC static range for slow thermal displacement capture
• Analog Recorder Output: Per-channel isolated 4–20 mA scaled signal, max 550 Ω load resistance for DCS trending
• Power Consumption: 7.7 W continuous draw from rack 24 VDC backplane bus
• Galvanic Isolation: 1500 VAC separation between each field input IS circuit and rack backplane ground bus
• Operating Ambient: −30 °C to +65 °C standard cabinet; conformal coated variants rated −40 °C to +85 °C offshore platform service
• Physical Dimensions: 241.3 mm H × 24.4 mm W × 241.8 mm D; total assembly weight 0.91 kg
• Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4, SIL 2 functional safety
• Front Panel Indicators: OK (module health), TX/RX (backplane communication), BYPASS (channel inhibit mode)

Product Introduction

Refinery and offshore gas turbine racks installed in classified hazardous enclosures require intrinsic safety protection for field proximity probes, and this unit eliminates separate external barrier cabinets by housing certified energy-limiting circuits directly on the matched rear terminal base. It only processes eddy-current probe signals, unlike mixed proximity/seismic modules, delivering optimized low-frequency filtering for static thrust and differential expansion readings.Its split rear base design lets maintenance crews rework hazardous field cabling without extracting the front measurement card during planned shutdowns. This hardware cannot read Velomitor, accelerometer, RTD, or 4–20 mA process transmitter signals; dedicated 3500/44M, 3500/60, or 3500/62 modules handle those measurement types. Not recommended for non-classified general industrial compressor racks without IS wiring requirements, as external-termination 3500/40M variants carry lower spare part cost.

Key Selling Points & Differentiators

1. Factory integrated internal IS barriers remove need for external Zener barrier junction boxes, cutting cabinet wiring footprint and installation labor for hazardous oil & gas facilities.
2. Pairwise channel programming enables dual independent measurement tasks on one slot (e.g., thrust position on Ch1/2, radial bearing vibration on Ch3/4) for multi-bearing heavy frame compressors.
3. Native REBAM bearing wear detection logic provides early rolling element fault alerts unavailable on generic mixed I/O monitor hardware.
4. TMR triple redundant voting capability meets API 670 single-point failure elimination rules for critical steam and gas turbine safety shutdown interlocks.
5. Refurbished surplus units carry a 12-month functional warranty covering IS barrier circuits, proximity signal conditioning, backplane communication, and 4–20 mA scaling; factory-new assemblies ship with a full 36-month OEM manufacturer warranty.
6. Per-channel configurable Alert and Danger threshold time delays suppress nuisance alarms from transient cold startup thermal shaft movement without masking genuine rub or thrust failure events.

Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM M-series production archives to filter counterfeit assemblies. Complete visual audit of PCB proximity oscillator and IS barrier traces, rear base screw terminals, front panel status LEDs, and rack edge gold pins; timestamp photos of connector corrosion or cracked PCB substrates.
2. Live Bench Test: Mount the front card and matched 135489-04 IS rear base into a calibrated full-size test rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour load test with simulated 3300 XL probe gap signals across all four channels to validate linear scaling, stable −24 VDC excitation, and consistent backplane polling to the Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between each IS-protected transducer input terminal and rack protective ground; verify IS barrier energy-limiting trip thresholds and all short-circuit/overvoltage protection match OEM factory limits.
4. Firmware & Layout Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank four-channel proximity measurement configuration file to offline storage. Record baseline LED behavior during TMR voting simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject full-scale proximity gap test signals to validate linear 4–20 mA recorder output across full measurement range. Separate front card and IS rear base into anti-static foam inserts, attach serialized QC Passed tag with timestamped linearity and IS barrier test data, and seal inside rigid shock-resistant cardboard crates. Bench test logs and raw signal readouts are available to buyers on formal written request.

Technical Risk Avoidance Section

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide M-series firmware revisions trigger permanent TX/RX communication faults and disable TMR redundant voting and IS barrier coordination logic. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots. Field anecdote: An offshore gas platform installed mismatched firmware and lost all turbine thrust position trip interlocks for 13 hours during startup commissioning.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with any I/O base other than 135489-04 removes internal IS energy-limiting protection, violating hazardous area certification and creating unfiltered EMI noise that generates erratic shaft gap readings and false machinery fault alarms.❗ Dual-End Ground Loop Wiring Risk: Grounding proximity probe coaxial cable shielding at both the IS rear terminal base and machinery mounting boss creates circulating low-frequency ground loop current that distorts analog gap signal linearity, triggering persistent nuisance high-gap annunciations. Prevention: Terminate cable shield at only the rack side of the wiring run.❗ ESD Damage Risk: Ungrounded field tools touching exposed rear base terminal pins discharge static and destroy delicate proximity oscillator and IS barrier front-end circuits; OEM PCB repair labor costs exceed $1,650 for production M-series hazardous-rated hardware. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal service work while the chassis is energized.❗ Missing Probe Configuration Backup Risk: Failing to export validated channel pairing, probe sensitivity, Alert/Danger threshold values, and IS wiring parameters prior to replacement resets all shaft position and vibration protection limits to blank factory defaults, removing critical turbomachinery safety interlock coverage for classified zone equipment.

Quick summary: Pair only with OEM dedicated IS rear terminal base, unify rack firmware versions, implement single-point cable shield grounding, and maintain stored channel configuration backups to eliminate nearly all common hazardous-area proximity measurement field failures for this component.

FAQ

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front proximity measurement card is rated for hot-swap without full rack power loss. Existing channel alarm states hold their last valid condition during removal and replacement, so machinery thrust and vibration trip interlocks do not drop out mid-service. The IS rear terminal base cannot be removed while energized.

Q: Can this assembly replace external-termination 3500/40M modules to eliminate Zener barrier enclosures in classified zones?A: Yes, the integrated internal IS barrier design removes the requirement for separate external safety barrier junction boxes, simplifying hazardous cabinet layout and cutting field wiring material costs.

Q: What warranty coverage applies to refurbished surplus inventory of this IS-rated proximity monitor?A: Refurbished assemblies carry a 12-month functional warranty covering IS barrier energy limiting circuits, proximity signal isolation, backplane communication, and channel fault detection hardware. Cosmetic surface scuffs and minor terminal screw wear are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored channel pairing, probe scaling, alarm thresholds, and TMR voting configurations?A: No. All shaft position linearization parameters, trip limits, redundant voting logic, and IS wiring settings write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved proximity measurement configuration data.

Q: Can Velomitor seismic sensors, RTD temperature probes, or 4–20mA process transmitters be wired directly to this module’s input channels?A: No. This hardware exclusively processes eddy-current proximity probe signals. Seismic, thermal, and analog process variable measurements require dedicated 3500/44M, 3500/60, or 3500/62 monitor modules respectively.

Q: I operate an auxiliary pump hazardous rack that only requires two radial vibration channels. Is it acceptable to leave the remaining two input channels unpopulated?A: Yes. Unused channels do not draw excess backplane power or create cross-channel signal interference. Install factory blank terminal jumpers on empty channel terminals to block dust buildup inside the IS rear base and reduce long-term insulation degradation in classified cabinet environments.

Q: Does this module independently store transient shaft orbit or rub fault waveform snapshots on its PCB?A: No. All timestamped transient fault waveform capture and local flash storage functionality is managed exclusively by the rack’s Slot1 TDI master communication module; this hardware only processes steady-state shaft position and vibration measurements and threshold alarm logic.
