Product Core Brief

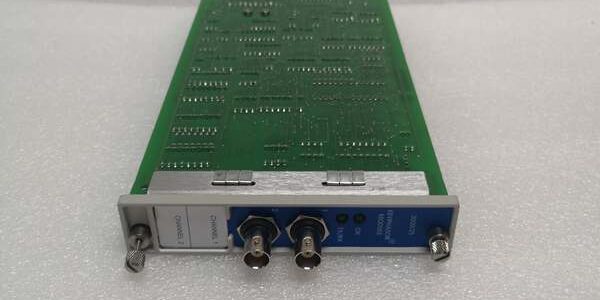

• Model: 3500/25 125792-01 (Enhanced Keyphasor front card; matched rear terminal base PN 149369-01)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Dual-channel Keyphasor reference module that processes pulse signals from proximity probes or magnetic pickups to supply synchronized phase reference data to all rack vibration, position, and speed monitor cards for orbit, harmonic, and order analysisBaker Hughes DAM
• Product Type: Half-height hot-swappable split front/rear base Keyphasor signal conditioner
• Key Specs: 2 isolated differential pulse inputs | −24 VDC transducer excitation per channel | 5 W typical power draw
• Condition: New Original factory sealed with OEM lead time; fully bench-calibrated refurbished surplus ships within 3 working days

Key Technical Specifications

• Channel Layout: Two fully independent differential Keyphasor input channels
• Supported Transducers: 3300 XL proximity Keyphasor probes, variable reluctance magnetic speed pickups
• Input Signal Range: −11 VDC to +5 VDC differential pulse; internal TVS surge clamping
• Transducer Excitation: Regulated −24 VDC, max 40 mA per channel for eddy-current probes
• Max Input Pulse Frequency: 20 kHz, RPM measurement span 0–99,999 RPM
• Buffered Front-Panel Keyphasor Output: 0–5 VDC square wave for external oscilloscope or analyzer connection
• Power Consumption: 5 W nominal continuous draw from rack 24 VDC backplane bus
• Galvanic Isolation: 1500 VAC separation between each field input circuit and rack ground bus
• Operating Ambient: −30 °C to +65 °C standard cabinet; conformal coated variant rated −40 °C to +85 °C offshore service
• Physical Dimensions: 241.3 mm H × 12.2 mm W × 241.8 mm D; unit weight 0.41 kg
• Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4
• Front Panel Indicators: OK (module health), TX/RX (backplane communication), FAULT (transducer/channel error)

Product Introduction

All turbomachinery vibration diagnostics require a consistent shaft phase marker to generate orbit plots, order tracking, and 1X/2X harmonic analysis, and this unit delivers dual redundant Keyphasor reference signals to eliminate single-point reference failure for TMR safety racks. It conditions raw pulse waveforms and distributes synchronized timing data across the rack backplane to every vibration and position monitor card.Its half-height footprint occupies only half a standard slot, conserving full-width rack space for measurement I/O cards. The split rear terminal base lets technicians rework Keyphasor cabling or add intrinsic safety barriers without extracting the front card during maintenance outages. This component cannot perform standalone RPM overspeed trip logic; dedicated 3500/50M or 3500/53M speed modules handle safety threshold voting. Not recommended for small auxiliary pump racks with no orbit or harmonic diagnostic requirements, as single-channel legacy Keyphasor hardware carries lower procurement cost.

Key Selling Points & Differentiators

1. Dual-channel redundant Keyphasor input enables primary/backup phase reference deployment to meet API 670 single-failure elimination rules for critical steam and gas turbine racks.
2. Half-height compact design cuts slot space usage in half versus full-width single-channel Keyphasor modules, freeing rack slots for additional vibration or temperature I/O.
3. Buffered front-panel BNC Keyphasor output simplifies on-site oscilloscope troubleshooting without tapping rear terminal wiring during unit startup commissioning.
4. Native compatibility with all M-series monitor cards delivers precise synchronous data for orbit, polar plot, and order spectrum analysis in System 1 diagnostic software.
5. Refurbished surplus units carry a 12-month functional warranty covering pulse conditioning, transducer excitation, and backplane communication circuits; factory-new assemblies ship with a full 36-month OEM manufacturer warranty.
6. Per-channel short-circuit and overvoltage protection prevents permanent damage to expensive Keyphasor proximity probes during field cable abrasion or wiring faults.

Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM M-series production archives to filter counterfeit assemblies. Complete visual audit of PCB pulse conditioning traces, rear base screw terminals, front BNC port, and rack edge gold pins; timestamp photos of connector corrosion or cracked PCB substrates.
2. Live Bench Test: Mount the front card and matched 149369-01 rear base into a calibrated full-size test rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour load test with dual-channel variable frequency pulse simulation to validate stable excitation voltage and consistent backplane timing signal distribution to the Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between each Keyphasor input terminal and rack protective ground; verify all short-circuit and overvoltage protection trigger thresholds match OEM factory limits.
4. Firmware & Layout Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank dual-channel Keyphasor configuration file to offline storage. Record baseline LED behavior during channel fault simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject calibrated pulse frequencies across full RPM operating range on both channels to validate clean buffered BNC output and stable backplane timing signals. Separate front card and rear base into anti-static foam inserts, attach serialized QC Passed tag with timestamped signal linearity test data, and seal inside rigid shock-resistant cardboard crates. Bench test logs and raw pulse readouts are available to buyers on formal written request.

Technical Risk Avoidance Section

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide M-series firmware revisions trigger permanent TX/RX communication faults and break synchronous orbit/harmonic data generation across all monitor cards. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots. Field anecdote: A combined-cycle power plant installed mismatched firmware and lost all turbine shaft orbit diagnostic data for 11 hours during startup commissioning.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with any I/O base other than 149369-01 breaks dual Keyphasor wiring pinouts and removes built-in channel surge suppression, creating distorted phase marker pulses and invalid vibration diagnostic plots.❗ Dual-End Ground Loop Wiring Risk: Grounding Keyphasor coaxial cable shielding at both the rear terminal base and machinery mounting boss creates circulating low-frequency ground loop current that distorts pulse waveform zero-crossing timing, generating skewed orbit plots and false harmonic amplitude readings. Prevention: Terminate cable shield at only the rack side of the wiring run.❗ ESD Damage Risk: Ungrounded field tools touching exposed rear base terminal pins or front BNC port discharge static and destroy delicate pulse conditioning ADC front-end circuits; OEM PCB repair labor costs exceed $1,500 for production M-series hardware. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal service work while the chassis is energized.❗ Missing Keyphasor Configuration Backup Risk: Failing to export channel pulse count scaling and fault threshold values prior to replacement resets all synchronous diagnostic reference parameters to blank factory defaults, disabling orbit and order analysis functionality for turbomachinery condition monitoring.

Quick summary: Pair only with OEM dedicated rear terminal base, unify rack firmware versions, implement single-point cable shield grounding, and maintain stored Keyphasor scaling configuration backups to eliminate nearly all common synchronous reference measurement field failures for this component.

FAQ

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front half-height Keyphasor card is rated for hot-swap without full rack power loss. Existing timing reference signals hold their last valid state during removal and replacement, so vibration monitor fault annunciations do not trigger false machine trips mid-service. The rear terminal base cannot be removed while energized.

Q: Can this assembly replace two separate single-channel Keyphasor half-height modules to reduce rack slot consumption?A: Yes, one unit delivers dual independent phase reference inputs within a single half-height slot, cutting half-slot usage in half for redundant Keyphasor layouts on steam and gas turbine racks.

Q: What warranty coverage applies to refurbished surplus inventory of this Keyphasor module?A: Refurbished assemblies carry a 12-month functional warranty covering transducer excitation circuits, pulse signal conditioning, and backplane communication hardware. Cosmetic surface scuffs and minor terminal screw wear are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored Keyphasor pulse count scaling, fault thresholds, and channel configuration data?A: No. All phase marker scaling parameters and channel fault limits write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved synchronous reference configuration data.

Q: Can RTD temperature sensors, 4–20mA process transmitters, or seismic Velomitors be wired directly to this module’s input channels?A: No. This hardware only processes eddy-current Keyphasor and magnetic pickup pulse signals. Thermal, analog PV, and seismic vibration measurements require dedicated 3500/60, 3500/62, or 3500/44M monitor modules respectively.

Q: I operate an auxiliary cooling pump rack that only requires one Keyphasor reference signal for basic speed trending. Is it acceptable to leave the second input channel unpopulated?A: Yes. Unused channels do not draw excess backplane power or create cross-channel timing signal interference. Install factory blank terminal jumpers on empty channel terminals to block dust buildup inside the rear base and reduce long-term insulation degradation.

Q: Does this module independently store transient shaft orbit or vibration fault waveform snapshots on its PCB?A: No. All timestamped transient orbit and harmonic waveform capture functionality is managed exclusively by the rack’s Slot1 TDI master communication module; this hardware only generates and distributes synchronous Keyphasor timing reference signals across the rack backplane.
