Product Core Brief

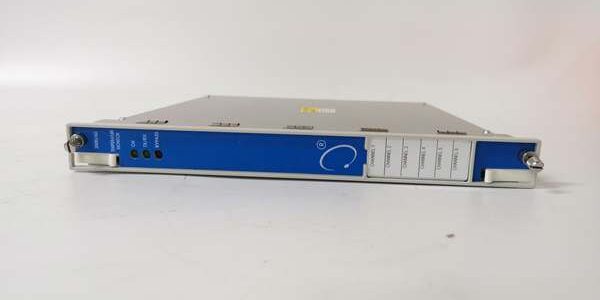

• Model: 3500/60 (assembly PN 163179-01 standard non-isolated variant)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Six mixed RTD/thermocouple input thermal monitor for bearing, stator, process temperature protection; no native analog recorder outputs
• Product Type: Single-slot hot-swappable temperature measurement card, paired with dedicated rear terminal base
• Key Specs: 6 configurable mixed sensor channels | 7W typical power draw | Supports TMR 2oo3 safety voting
• Note: Active production hardware; factory-new and refurbished surplus available; direct functional counterpart to 3500/61 (which adds per-channel 4–20mA outputs).

Key Technical Specifications

• Channel capacity: 6 fully independent software-configured thermal input channels
• Supported sensors: 3/4-wire PT100 RTD (α=0.00385/0.00392); Type E/J/K/T thermocouples
• Input impedance: 10 MΩ per signal lead for noise rejection
• RTD excitation current: 925±15 µA constant current source per channel
• TC cold-junction compensation integrated on PCB
• Measurement accuracy: ±0.5°C for RTD; ±1.5°C for thermocouple inputs
• Scan cycle: <1 second per full six-channel sweep
• Power consumption: 7W nominal continuous load from 24VDC rack backplane
• Galvanic isolation: Standard non-isolated model; optional TC-isolated version with 250VDC channel-to-channel separation
• Operating temperature: -30°C to +65°C standard; conformal coated variant rated -40°C to +85°C offshore cabinet service
• Alarm logic: Per-channel configurable Alert/Danger temperature thresholds with delay suppression; participates in rack-wide TMR triple redundant voting
• Physical dimensions: Standard single 3500 rack slot form factor, unit weight 0.91kg
• Certifications: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 hazardous cabinet rated
• Critical distinction: No built-in 4–20mA analog recorder outputs; trending data only sent to DCS via rack communication gateway

Product Introduction

This thermal monitor processes mixed RTD and thermocouple signals to track critical rotating machinery temperatures including bearing metal, generator stator winding, compressor interstage, and exhaust gas readings. Local onboard logic evaluates thermal thresholds and triggers rack safety relay interlocks independent of rack master communication.Its primary field tradeoff is lack of direct analog recorder outputs. For sites requiring hardwired 4–20mA temperature signals to local recorders, technicians must deploy the 3500/61 variant instead, increasing rack slot planning overhead for mixed I/O layouts.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM production databases to screen counterfeit hardware. Complete physical audit of PCB traces, rear terminal screw blocks, front panel OK/TX/Bypass LEDs; capture timestamped photos of connector corrosion or terminal wear.
2. Live Power-On Testing: Mount the unit and matched rear base in a calibrated test 3500 rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour load test with simulated RTD resistance and TC millivolt signals to validate stable power draw and consistent backplane polling to the Slot1 TDI.
3. Electrical Isolation Testing: Use a megohmmeter to confirm insulation resistance >10MΩ between all sensor terminals and rack protective ground; verify zero leakage current across isolation barriers for isolated TC variants.
4. Firmware & Config Backup: Flash latest OEM compatible firmware revision, log exact version number, and archive blank thermal channel configuration offline. Record baseline LED behavior during TMR voting simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject calibrated resistance/millivolt signals across all six channels to validate accurate temperature conversion. Place unit in anti-static foam, attach serialized QC test tag with full test timestamp, seal inside ESD shielding packaging for transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide firmware revisions trigger permanent TX/RX communication faults and disable TMR voting logic. Export full rack firmware stack before swapping the module; never deploy mixed revision firmware sets across rack slots.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with an unmatched I/O base breaks sensor wiring pinouts and removes built-in channel surge suppression, introducing EMI noise and erratic temperature readings.❗ Dual-End Ground Loop Wiring Risk: Grounding RTD/TC cable shielding at both the rear terminal base and machinery junction boxes creates circulating ground loop current that distorts thermal signal integrity, triggering random nuisance overheat Danger shutdown trips during VFD startup transients.❗ ESD Damage Risk: Ungrounded field tools discharge static through exposed rear base terminal pins, destroying analog signal conditioning circuits; OEM PCB repair costs exceed $1,500 for production hardware.❗ Missing Thermal Setpoint Backup Risk: Failing to export validated Alert/Danger temperature thresholds prior to replacement resets all protection limits to factory defaults, leaving bearing and stator overheat conditions unmonitored.

4-Step Replacement Guide

1. Pre-install: Attach ESD wrist strap, photograph rear terminal sensor wiring layout, export full rack thermal TMR configuration, and record active rack firmware revision set. Capture front LED baseline status for post-swap validation.
2. Removal: Unlatch front panel lock levers to disengage backplane pins, slide the front card straight out of its assigned rack slot without bending PCB edge connectors; disconnect matched rear base wiring harness and unmount base from rack rear rails.
3. Install: Mount matching OEM rear terminal base first on rack rear rails, align replacement front card’s backplane pins with rack bus, slide fully into slot, squeeze extraction levers to lock contact pins, re-terminate RTD/TC wiring strictly matching photographed terminal layout.
4. Power-on Test: Restore rack power, upload saved thermal rack configuration, inject calibrated test signals to all six channels, confirm functional Alert/Danger alarm triggers and valid DCS temperature trending via rack communication gateway before returning machinery to automatic operation.

FAQ (Frequently Asked Questions)

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front measurement card is rated for hot-swap without full rack power loss. Hardwired thermal alarm relay trip logic remains active during removal and replacement, so machinery overheat ESD interlocks do not drop out mid-swap. The rear terminal base cannot be removed while energized.

Q: Can this assembly be directly swapped with the 3500/61 variant?A: Physical slot and firmware compatibility exists, but the unit lacks per-channel 4–20mA recorder outputs. Sites relying on hardwired analog temperature signals to local recorders will lose those readings after swap, requiring rework to the 3500/61 model.

Q: What warranty coverage applies to refurbished surplus inventory?A: Refurbished stock carries a 12-month functional warranty covering analog signal conditioning, backplane communication, and channel fault detection circuits; cosmetic scratches and terminal screw wear are excluded from claims. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored thermal threshold and TMR voting configurations?A: No. All sensor type assignments, temperature trip limits, and 2oo3 voting parameters write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved protection configuration data.

Q: Does this module independently store thermal fault waveform snapshots on its own PCB?A: No. Timestamped fault transient data capture functionality is managed exclusively by the rack’s Slot1 TDI master module; this hardware only processes steady-state thermal measurements and threshold alarm logic.

Q: Can I mix PT100 RTD and Type K thermocouple sensors across separate channels on one unit?A: Yes. Each of the six channels is independently configurable via rack software, allowing mixed RTD and thermocouple wiring without cross-channel signal interference.

Q: What happens if one thermal channel suffers an open or shorted sensor fault?A: The faulty channel triggers a front-panel OK LED fault state and logs the error to rack memory. Remaining five fully functional channels continue normal temperature measurement and alarm operation without cross-channel disruption.
