Product Core Brief

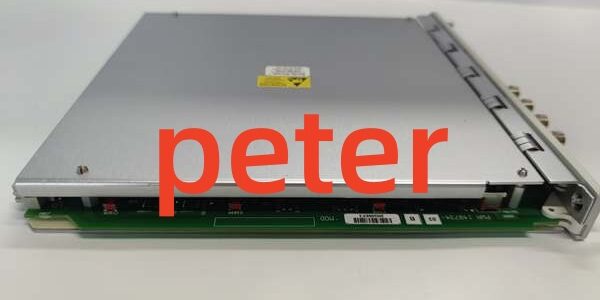

• Model: 3500/44M-01-00 (Front Card PN 140734-03), matched rear terminal base PN 176449-03
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Four-channel seismic monitor purpose-built for aeroderivative gas turbines, with dual Keyphasor inputs for synchronous 1X vibration filtering and multi-mode alarm profiles
• Product Type: Split front/rear base single-slot hot-swappable aeroderivative GT vibration monitor
• Key Specs: 4 independent seismic channels | Dual Keyphasor pulse inputs | 7.7W typical power draw
• Note: Active OEM production unit; factory-new and refurbished surplus inventory available; suffix -01-00 denotes standard non-conformal coated general industrial variant.

Key Technical Specifications

• Channel allocation: 4 isolated seismic measurement channels, requires exclusive pairing with rear I/O base 176449-03 for field wiring termination
• Supported transducers: Velomitor velocity sensors, industrial accelerometers with OEM interface modules (86517 / 86497)
• Keyphasor capacity: Two dedicated differential pulse input circuits to enable independent per-channel-pair 1X synchronous vibration tracking
• Frequency response range: 4 Hz to 30 kHz (-3dB); configurable 25/75/100 Hz high-pass filters, fixed 10-pole 200 Hz low-pass rolloff
• Transducer excitation: 23 VDC nominal supply, maximum 43 mA drive current per active measurement channel
• Analog recorder output: Isolated proportional 4–20 mA per channel, maximum 550 Ω load impedance for DCS trending
• Power consumption: 7.7 W typical continuous draw from rack 24 VDC backplane bus
• Galvanic isolation: 1500 VAC channel-to-backplane isolation, per-channel TVS overvoltage surge suppression
• Operating temperature: -30°C to +65°C standard ambient; conformal coated variant ordered via alternate suffix for offshore -40°C to +85°C service
• Alarm logic: Multi-mode Alert/Danger threshold sets with user-programmable time delay suppression for turbine startup, base-load and trip operating profiles
• Compliance certifications: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 hazardous cabinet rated
• Physical weight: 0.91 kg single slot form factor, fully hot-swap compatible without full rack de-energization

Product Introduction

This split-base M-series seismic monitor is engineered exclusively for lightweight aeroderivative gas turbine casing vibration surveillance, processing high-frequency acceleration and velocity signals that general-purpose proximity monitors cannot properly condition. Dual Keyphasor reference inputs deliver precise 1X rotor imbalance tracking to separate synchronous fault signatures from broadband casing noise.Its primary field advantage is modular rear terminal base hardware. Technicians rework transducer wiring, install intrinsic safety barriers, or repair damaged terminals without extracting the front measurement card from the rack, cutting planned maintenance downtime for critical turbine assets.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM M-series production databases to reject counterfeit hardware. Complete physical audit of PCB traces, front buffered BNC output jacks, rear base screw terminals, and front panel channel status LEDs; timestamp photos of connector corrosion or mechanical wear.
2. Live Power-On Testing: Mount the front card and matched 176449-03 rear base into a calibrated test 3500 rack fed by a Fluke 115 24VDC supply. Execute a continuous 24-hour load test with simulated Velomitor and Keyphasor pulse signals to validate stable power draw and consistent backplane data polling to the rack Slot1 TDI.
3. Electrical Isolation Testing: Use a megohmmeter to confirm insulation resistance >10 MΩ between all seismic and Keyphasor signal terminals and rack protective ground; verify zero leakage current across isolation barriers during full signal swing simulation.
4. Firmware & Config Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank multi-mode alarm configuration file to offline storage. Record baseline LED behavior during 1X tracking filter activation for post-replacement fault comparison.
5. Final QC & Packaging: Inject calibrated velocity test signals across all four channels to validate linear 4–20 mA recorder output scaling. Separate front card and rear base into anti-static foam inserts, attach serialized QC test tag with full test timestamp, and seal inside ESD shielding packaging for transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide M-series firmware revisions trigger permanent TX/RX communication faults and disable dual Keyphasor 1X tracking logic. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with any I/O base other than 176449-03 breaks transducer wiring pinouts and removes built-in channel surge suppression; unfiltered EMI creates erratic casing vibration readings and false alarms.❗ Dual-End Ground Loop Wiring Risk: Grounding Velomitor cable shielding at both the rear terminal base and turbine junction boxes creates circulating ground loop current that distorts velocity signal integrity, triggering random nuisance Danger shutdown trips during turbine startup VFD transients.❗ ESD Damage Risk: Ungrounded field tools discharge static through front BNC buffered output ports or exposed rear base terminal pins, destroying high-frequency ADC front-end circuits; OEM PCB repair costs exceed $1,600 for production M-series hardware.❗ Missing Multi-Mode Alarm Backup Risk: Failing to export startup/load-specific vibration threshold sets prior to replacement resets all protection limits to factory defaults, leaving aeroderivative turbine transient operating states unprotected from unfiltered alarm logic.

4-Step Replacement Guide

1. Pre-install: Attach ESD wrist strap, photograph rear terminal transducer wiring layout, export full rack multi-mode alarm configuration, and record active rack firmware revision set. Capture front LED channel status baseline for post-swap validation.
2. Removal: Unlatch front panel lock levers to disengage backplane pins, slide the front card straight out of its assigned rack slot without bending PCB edge connectors; disconnect the matched 176449-03 rear base wiring harness and unmount the base from rack rear rails.
3. Install: Mount the matching 176449-03 rear terminal base first on rack rear rails, align the replacement front card’s backplane pins with the rack bus, slide fully into the slot, squeeze extraction levers to lock contact pins, and re-terminate Velomitor/Keyphasor wiring strictly matching the photographed terminal layout.
4. Power-on Test: Restore rack power, upload saved multi-mode rack configuration, inject calibrated velocity test signals to all four seismic channels, confirm accurate 1X tracking via Keyphasor input, validate linear 4–20mA DCS trending and functional Alert/Danger alarm state triggers before returning the aeroderivative turbine to automatic operation.

FAQ (Frequently Asked Questions)

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front measurement card is rated for hot-swap without full rack power loss. Hardwired channel alarm relay trip logic remains active during removal and replacement, so turbine machinery protection interlocks do not drop out mid-swap. The rear terminal base cannot be removed while energized.

Q: Can this assembly be a direct drop-in replacement for the legacy integrated-terminal 3500/44-01-00 unit?A: No direct wiring swap possible. This unit requires a separate rear I/O base with unique pinouts; existing wiring harnesses for the legacy integrated-terminal model cannot connect, requiring complete cable re-termination and rack rear rail mounting adjustments.

Q: What warranty coverage applies to refurbished surplus inventory?A: Refurbished stock carries a 12-month functional warranty covering PCB signal conditioning, backplane communication, and analog output circuits; cosmetic scratches and terminal screw wear are excluded from claims. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored multi-mode alarm threshold configurations?A: No. All mode-based vibration limits, filter settings, and Keyphasor tracking parameters write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved measurement configuration data.

Q: Does this module independently store transient vibration waveform snapshots on its own PCB?A: No. High-resolution post-fault waveform capture functionality is managed exclusively by the rack’s Slot1 TDI master module; this hardware only processes steady-state seismic measurements and mode-based threshold alarm logic.

Q: Can proximity eddy-current probes be wired directly to this monitor’s signal channels?A: No. This card is designed exclusively for Velomitor velocity and accelerometer seismic inputs; it lacks the oscillator excitation circuitry required to drive 3300 XL proximity probes. Proximity measurements require a separate 3500/42M monitor slot.

Q: What happens if one seismic channel suffers an open or shorted transducer fault?A: The faulty channel triggers a front-panel OK LED fault state and logs the error to rack memory. Remaining three fully functional seismic channels and both Keyphasor tracking inputs continue normal measurement and alarm operation without cross-channel signal interference.
