Product Core Brief

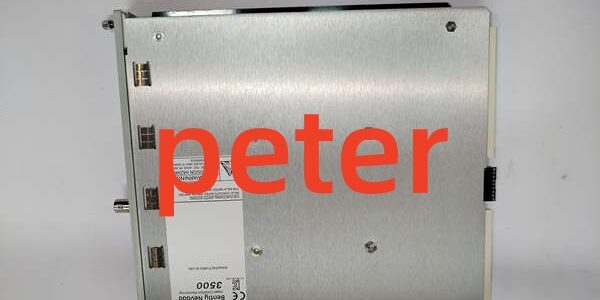

• Model: 3500/53M (front card PN 286566-01, matched rear terminal base PN 133396-01)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Single-channel speed/overspeed monitor that processes Keyphasor or magnetic pickup pulses for API-compliant turbine/compressor overspeed shutdown voting schemes
• Product Type: Single-slot hot-swappable split front+rear base overspeed monitor (replaces integrated-terminal legacy 3500/53 133388-01)
• Key Specs: 1 pulse input channel | <10ms overspeed trip latency | 8W typical power draw
• Note: Active production M-series hardware; factory-new, refurbished surplus stock available; designed for flexible hazardous-area barrier wiring via separate rear I/O base.

Key Technical Specifications

• Signal input: 1 dedicated speed channel, mates exclusively with rear terminal base 133396-01 for field wiring termination
• Supported transducers: 3300 XL Keyphasor proximity probes, variable reluctance magnetic speed pickups
• Input electrical range: -10 VDC to +10 VDC differential pulse signal, 20 kΩ input impedance
• Max input pulse frequency: 10 kHz, RPM measurement range 0–99,999 RPM
• Speed reading accuracy: ±0.1 RPM below 10,000 RPM; ±0.01% full scale above 10,000 RPM
• Overspeed trip response latency: <10 ms, faster than legacy integrated-terminal 3500/53 hardware
• Transducer excitation: -24 VDC, maximum 40 mA drive current for active probes
• Analog recorder output: Isolated 4–20 mA proportional RPM signal, 550 Ω max load resistance
• Relay outputs: Multiple SPDT alarm/trip contacts rated 5 A @ 250 VAC; configurable energized/de-energized trip logic
• Power consumption: 8 W typical continuous draw from rack 24 VDC backplane bus
• Galvanic isolation: 1500 VAC channel-to-backplane isolation, per-input TVS surge suppression
• Operating temperature: -30°C to +65°C standard ambient; conformal coated variant rated -40°C to +85°C offshore service
• Safety & compliance: API 670, API 612, CE EMC, UL Class I Div 2, ATEX Zone 2; supports 2oo2 or 2oo3 redundant safety voting
• Physical form factor: Standard single 3500 rack slot, fully hot-swap compatible without full rack de-energization, unit weight 0.82 kg

Product Introduction

This M-series overspeed monitor uses a split front-card + removable rear terminal base design to simplify hazardous-area wiring modifications, barrier installation, and field cable maintenance without extracting the main measurement card from the rack. It converts shaft pulse signals to calibrated RPM values and executes configurable Alert and Danger overspeed threshold logic independent of rack master communication.Its primary field advantage is rear I/O base modularity. Technicians can rework field transducer wiring, add intrinsic safety barriers, or repair terminal damage without powering down the rack or removing the front measurement card, cutting equipment outage duration during maintenance windows.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM M-series production databases to reject counterfeit hardware. Complete physical audit of PCB traces, front BNC buffered output jack, rear base screw terminals, and front panel status LEDs; timestamp photos of all connector wear or corrosion.
2. Live Power-On Testing: Mount the device and matched rear base into a calibrated test 3500 rack powered by a Fluke 115 24VDC supply. Run a continuous 24-hour load test with variable frequency pulse signal simulation to validate stable power draw and consistent backplane data polling to the rack Slot1 TDI.
3. Electrical Isolation Testing: Use a megohmmeter to confirm insulation resistance >10 MΩ between all speed signal terminals and rack protective ground; verify zero leakage current across isolation barriers during full pulse swing simulation.
4. Firmware & Config Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank overspeed threshold configuration file to offline storage. Record baseline LED behavior during overspeed trip trigger simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject calibrated pulse frequencies across full RPM operating range to validate linear 4–20 mA recorder output scaling. Place the front card and matched rear base separately in anti-static foam, attach serialized QC test tag with full test timestamp, and seal inside ESD shielding packaging for transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide M-series firmware revisions trigger permanent TX/RX communication faults and disable overspeed trip voting logic. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with any I/O base other than 133396-01 breaks transducer wiring pinouts and removes built-in channel surge suppression; this creates unfiltered EMI noise and invalid RPM readings.❗ Dual-End Ground Loop Wiring Risk: Grounding speed transducer coaxial cable shielding at both the rear terminal base and machinery junction boxes creates circulating ground loop current that distorts pulse waveform integrity, triggering random nuisance overspeed Danger shutdown trips during turbine startup VFD transients.❗ ESD Damage Risk: Ungrounded field tools discharge static through front BNC signal ports or exposed rear base terminal pins, destroying pulse conditioning ADC front-end circuits; OEM PCB repair costs exceed $1,600 for production M-series hardware.❗ Missing Overspeed Setpoint Backup Risk: Failing to export validated Alert/Danger RPM threshold values prior to replacement resets all safety trip limits to factory defaults, leaving rotating machinery unprotected from catastrophic overspeed failure.

4-Step Replacement Guide

1. Pre-install: Attach ESD wrist strap, photograph rear terminal speed sensor wiring layout, export full rack overspeed voting configuration, and record active rack firmware revision set. Capture front LED channel status baseline for post-swap validation.
2. Removal: Unlatch front panel lock levers to disengage backplane pins, slide the front card straight out of its assigned rack slot without bending PCB edge connectors; disconnect the matched rear base wiring harness and remove the base from rack rear rails.
3. Install: Mount the matching 133396-01 rear terminal base first on rack rear rails, align the replacement front card’s backplane pins with the rack bus, slide fully into the slot, squeeze extraction levers to lock contact pins, and re-terminate Keyphasor/magnetic pickup wiring strictly matching the photographed terminal layout.
4. Power-on Test: Restore rack power, upload saved overspeed rack configuration, inject calibrated pulse test signals across full RPM range, validate linear 4–20mA DCS trending and functional Alert/Danger relay trip actuation before returning the turbine/compressor to automatic operation.

FAQ (Frequently Asked Questions)

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front measurement card is rated for hot-swap without full rack power loss. Hardwired overspeed alarm relay trip logic remains active during removal and replacement, so machinery emergency shutdown interlocks do not drop out mid-swap. The rear terminal base cannot be removed while energized.

Q: Can this assembly be a direct drop-in replacement for the legacy integrated-terminal 3500/53 133388-01 variant?A: No direct wiring swap possible. This unit requires a separate rear I/O base with unique pinouts; existing wiring harnesses for the legacy integrated-terminal model cannot connect, requiring complete cable re-termination and rack rear rail mounting adjustments.

Q: What warranty coverage applies to refurbished surplus inventory?A: Refurbished stock carries a 12-month functional warranty covering PCB pulse conditioning, backplane communication, analog output, and relay circuits; cosmetic scratches and terminal screw wear are excluded from claims. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored overspeed threshold and voting configurations?A: No. All RPM trip limits, pulse count scaling, and 2oo2/2oo3 voting logic parameters write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved safety configuration data.

Q: Does this module independently store transient speed pulse waveform snapshots on its own PCB?A: No. High-resolution post-fault pulse waveform capture functionality is managed exclusively by the rack’s Slot1 TDI master module; this hardware only processes steady-state RPM measurements and overspeed threshold alarm logic.

Q: Can multiple speed probes be wired in parallel to this single-channel input?A: No. The single input circuit cannot support parallel transducer wiring; parallel pulse signals create waveform distortion and false RPM readings. Redundant speed monitoring requires separate units in independent rack slots for SIL-compliant voting schemes.

Q: What happens if the single speed channel suffers an open or shorted transducer fault?A: The faulty channel triggers a front-panel OK LED fault state and logs the error to rack memory. No active speed measurement or overspeed protection remains available on that slot until the transducer fault is cleared or the unit is replaced.
